SKU: DGHT2.1/9.5

Simpson Strong-Tie DGHT2.1/9.5 2" x 9-1/2" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized, Made to Order Non-Returnable

ICC Certified

Sizes

1-3/4" X 11-7/8" 1-3/4" X 14" 1-3/4" X 16" 1-3/4" X 9-1/2" 2" to 2-1/16" X 11-7/8" 2" to 2-1/16" X 14" 2" to 2-1/16" X 16" 2" to 2-1/16" X 9-1/2" 2-5/16" X 11-7/8" 2-5/16" X 14" 2-5/16" X 16" 2-5/16" X 18" 2-5/16" X 20" 2-5/16" X 9-1/2" 2-1/2" X 11-7/8" 2-1/2" X 14" 2-1/2" X 16" 2-1/2" X 18" 2-1/2" X 20" 2-1/2" X 22" 2-1/2" X 24" 2-1/2" X 9-1/2" 3-1/2" X 11-1/4" 3-1/2" X 11-7/8" 3-1/2" X 14" 3-1/2" X 16" 3-1/2" X 18" 3-1/2" X 20" 3-1/2" X 22" 3-1/2" X 24" 3-1/2" X 9-1/2" 3-1/2" X 9-1/4" 5-1/4" X 11-7/8" 5-1/4" X 14" 5-1/4" X 16" 5-1/4" X 18" 5-1/4" X 20" 5-1/4" X 22" 5-1/4" X 24" 7" x 11-7/8" 7" x 14" 7" x 16" 7" x 22" 7" x 24" 7" X 18" 7" X 20"
$4699
Ships in 2-3 business days.

Description
  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

The patent-pending Simpson DGHT™ is a load-tested fire wall hanger with a two-hour fire rating and ideal for multifamily, multilevel Type III residential construction. The first of its kind, DGHT fire wall hanger designed to install with a power nailer which helps keep construction projects on schedule by saving time before hanging drywall. This top-flange hanger provides space for two layers of 5/8" gypsum board (drywall) to be slipped into place after the framing is complete. The DGHT is fire rated for use on both sides of the wall and has been tested according to ASTM E814. This heavier gauge hanger is available in standard, skewed or concealed options.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Specifications
Width: 2-1/8"
Height: 9-7/16"
Thickness: 10 Gauge
Joist Size: 2" to 2-1/16" X 9-1/2"
For Treated Lumber: No
Material: Galvanized Steel
Finish: G90 Galvanized
Manufacturer Name: Simpson Strong-Tie
Quantity: 1
Fasteners Required: TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face POST: (6) 0.148 in. x 1-1/2 in. nails in the joist

Reviews (0)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Continue browsing

Broad selection, fast delivery

Our footprint

Our nationwide network of distribution facilities offers more product selection and faster delivery times. So far we’ve made remarkable progress in our expansion efforts, effectively doubling our capacity by adding a new 47,000 sq. ft. warehouse in Simpsonville, South Carolina, in addition to our existing 60,000 sq. ft. facility in Urbana, Iowa.

Broad selection, fast delivery

Our experience

We pride ourselves on delivering a user-friendly, high quality experience online and over the phone. Our knowledgeable team of experts is readily available via phone to assist with product questions and custom pricing inquiries. We’re available Monday thru Friday from 7:00 AM – 5:00 PM CST. We look forward to supporting you on your next job.

1 2

More from this collection

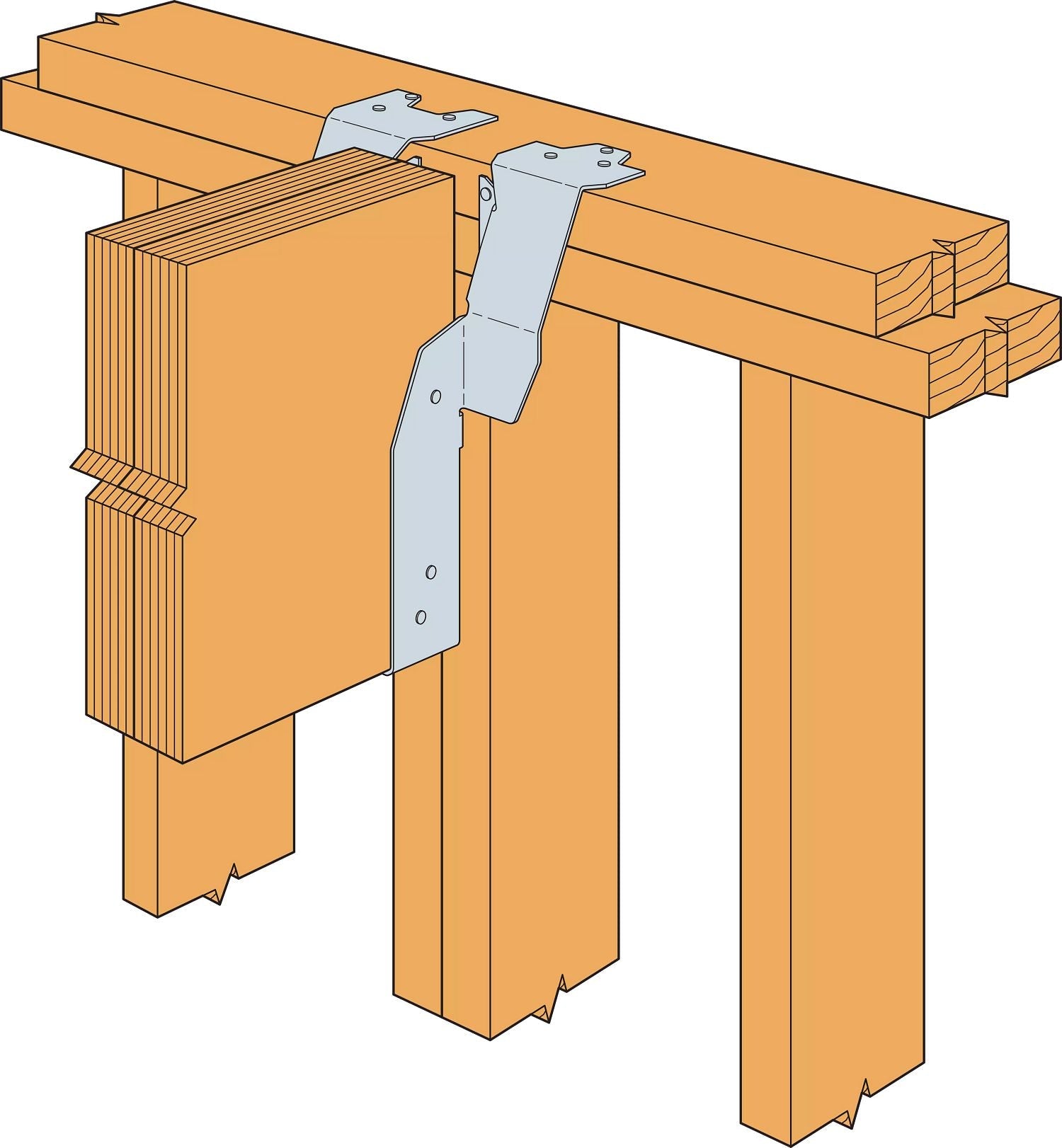

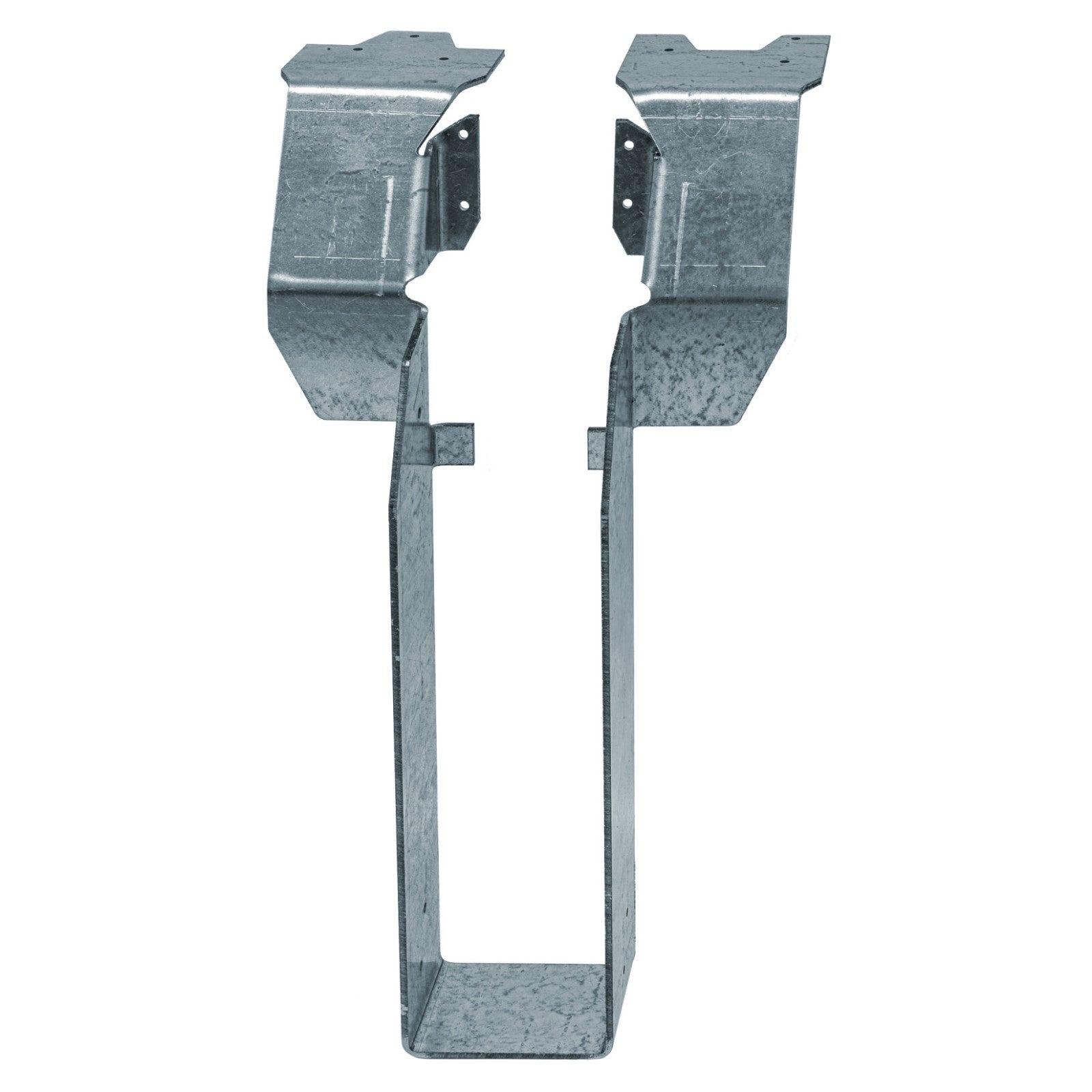

  • DGHT Top-Flange Fire Wall Hanger - Heavy DGHT Installed - Double Stud
    ICC Certified

    DGHT3.62/24

    Simpson DGHT Top-Flange Fire Wall Hangers

    Starting at $4599
    Free Shipping on orders $199+
    Choose Options
  • Simpson DGF3621188 Fire Wall Hanger G90 Galvanized
    ICC Certified

    DGF3.62/11.88

    Simpson DGF Fire Wall Hangers

    Starting at $5499
    Free Shipping on orders $199+
    Choose Options

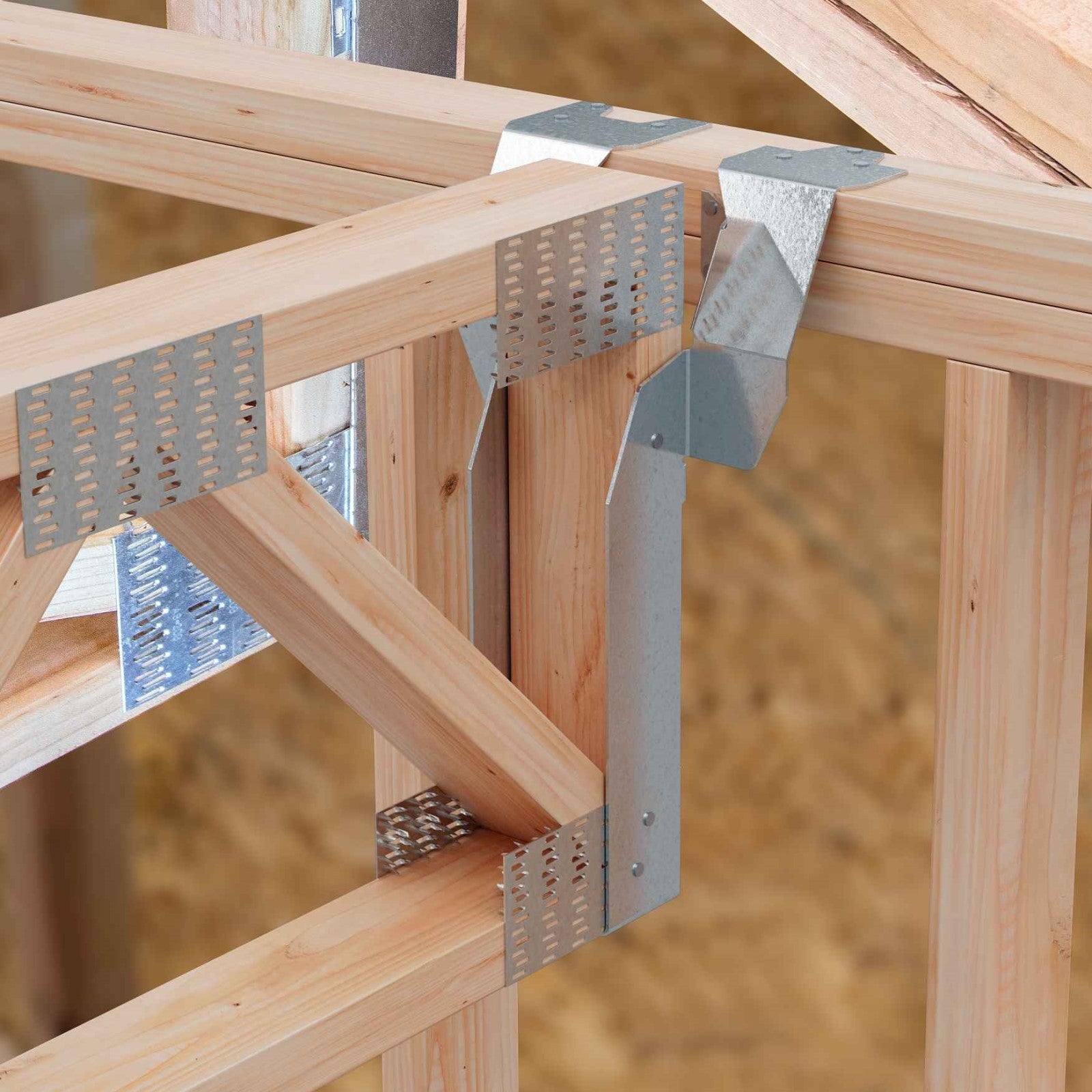

  • DGT Top Flange Fire Wall Hanger - DGT3.62-18 DGT Top Flange Fire Wall Hanger - DGT326-16 Installation
