SKU: DGHT3.62/16

Simpson DGHT3.62/16 3-1/2" x 16" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized

Simpson DGHT3.62/16 3-1/2" x 16" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized!

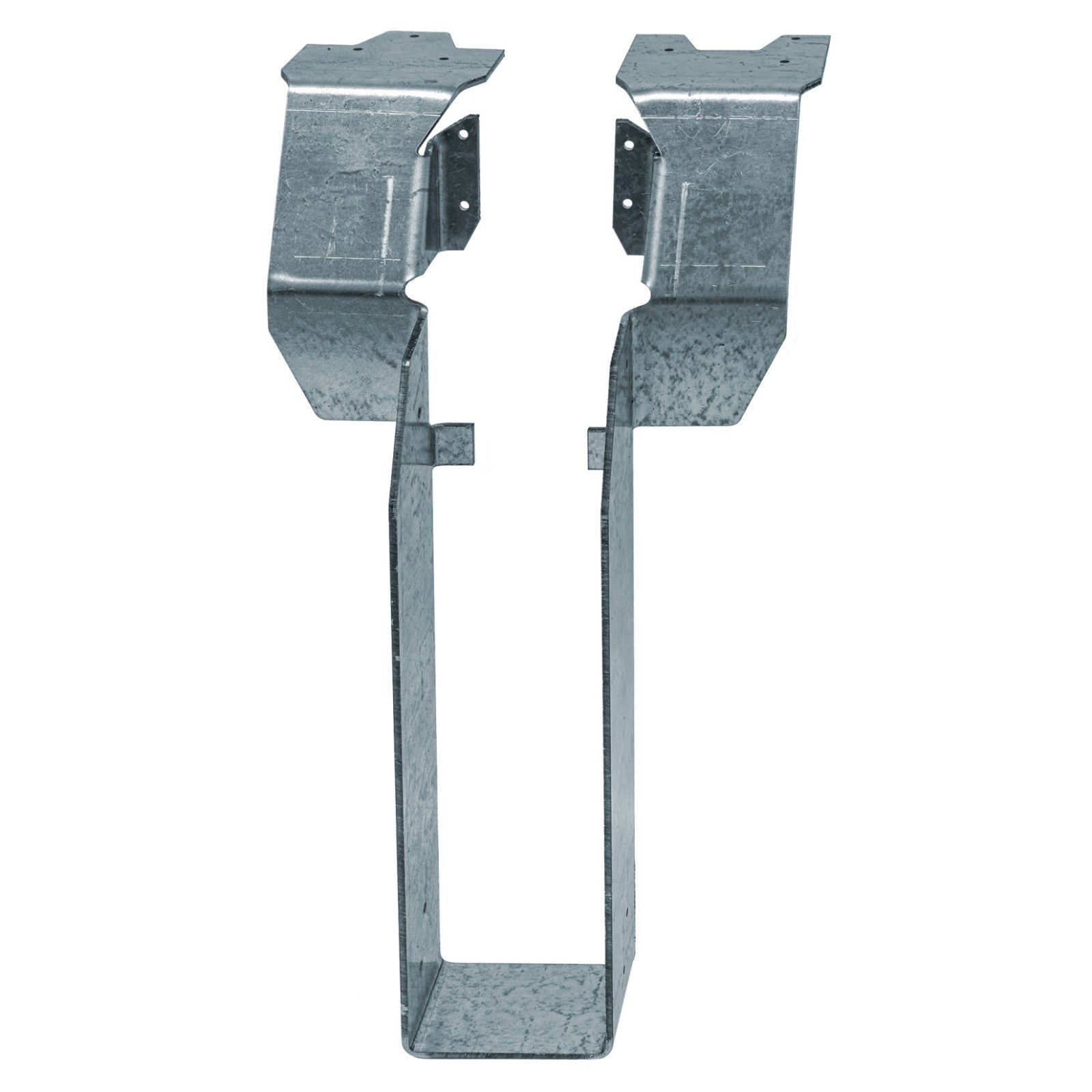

  • DGHT Top-Flange Fire Wall Hanger - Heavy

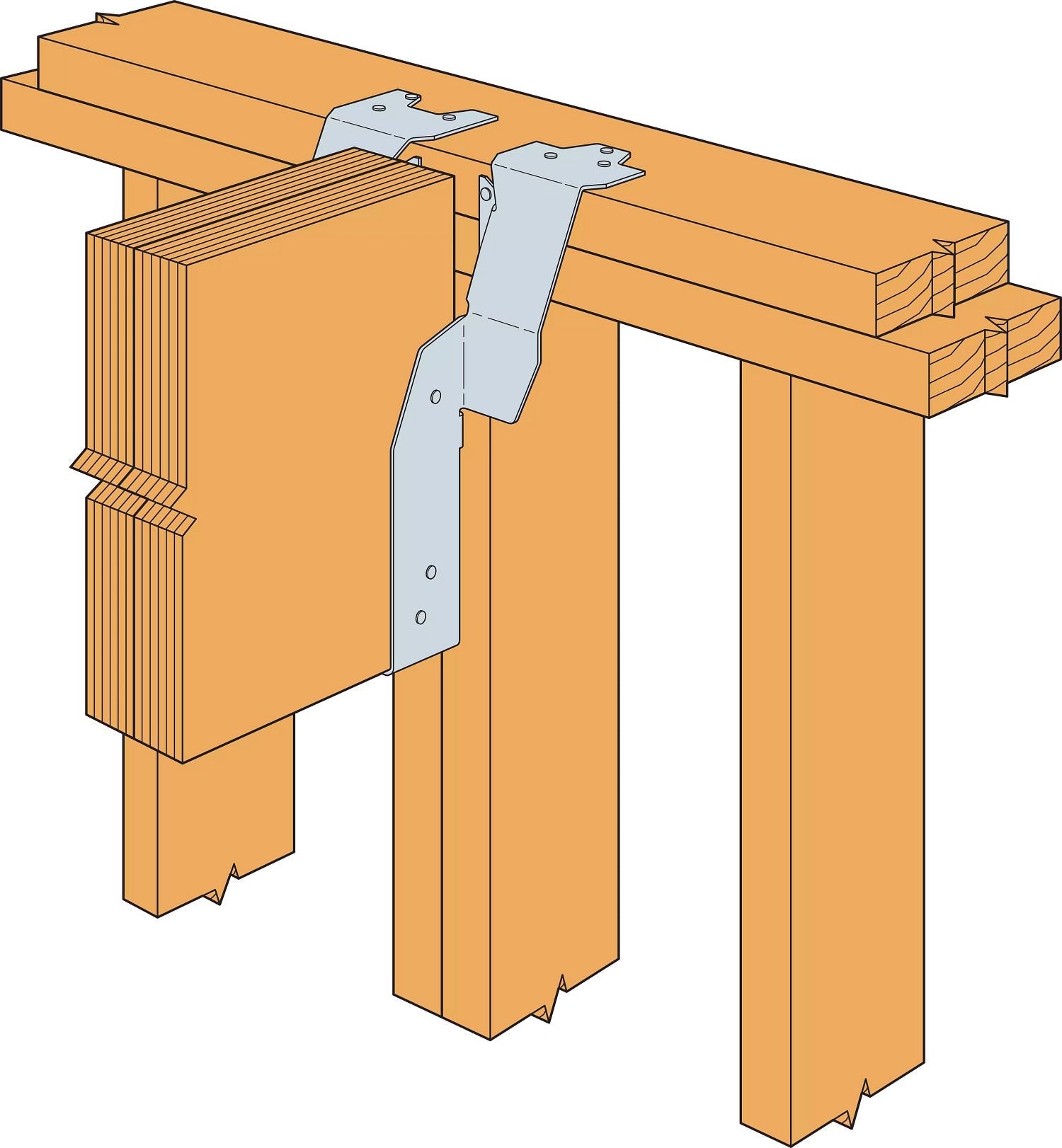

  • DGHT Installed - Double Stud

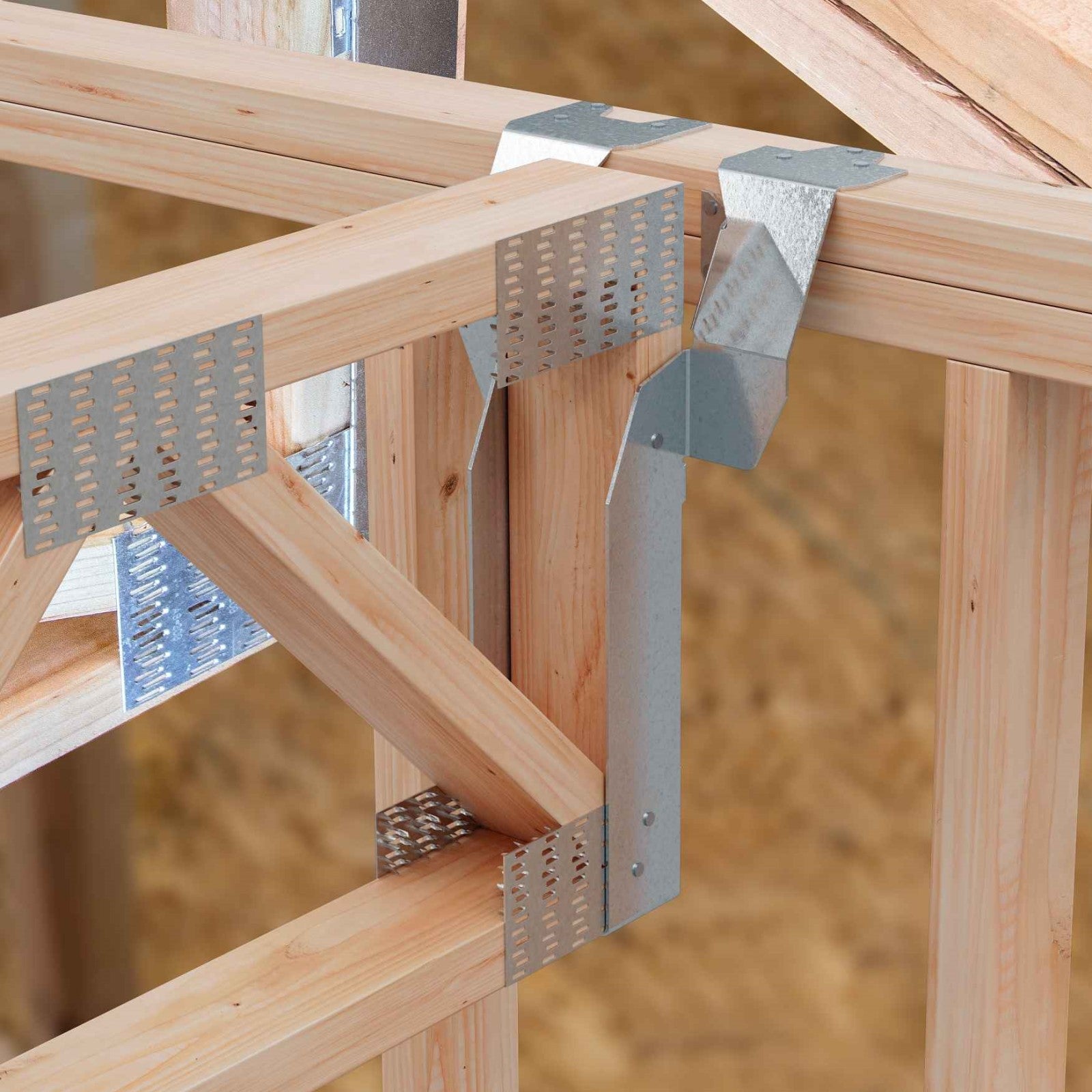

  • DGT Top Flange Fire Wall Hanger - DGT326-16 Installation (DGHT similar)
1 3

Continue Browsing

DGT/DGHT Top-Flange Fire Wall Hangers
SKU: DGHT3.62/16

Simpson DGHT3.62/16 3-1/2" x 16" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized

$49.76

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 4 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails in the top FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails in the face POST: (6) 0.148 in. x 1-1/2 in. nails in the joist
For Treated Lumber: No
Height: 15-15/16"
Joist size: 3-1/2" x 16”
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 10 Gauge
Width: 3-5/8"
Description

The patent-pending Simpson DGHT™ is a load-tested fire wall hanger with a two-hour fire rating and ideal for multifamily, multilevel Type III residential construction. The first of its kind, DGHT fire wall hanger designed to install with a power nailer which helps keep construction projects on schedule by saving time before hanging drywall. This top-flange hanger provides space for two layers of 5/8" gypsum board (drywall) to be slipped into place after the framing is complete. The DGHT is fire rated for use on both sides of the wall and has been tested according to ASTM E814. This heavier gauge hanger is available in standard, skewed or concealed options.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
