SKU: DGT2.1/9.5

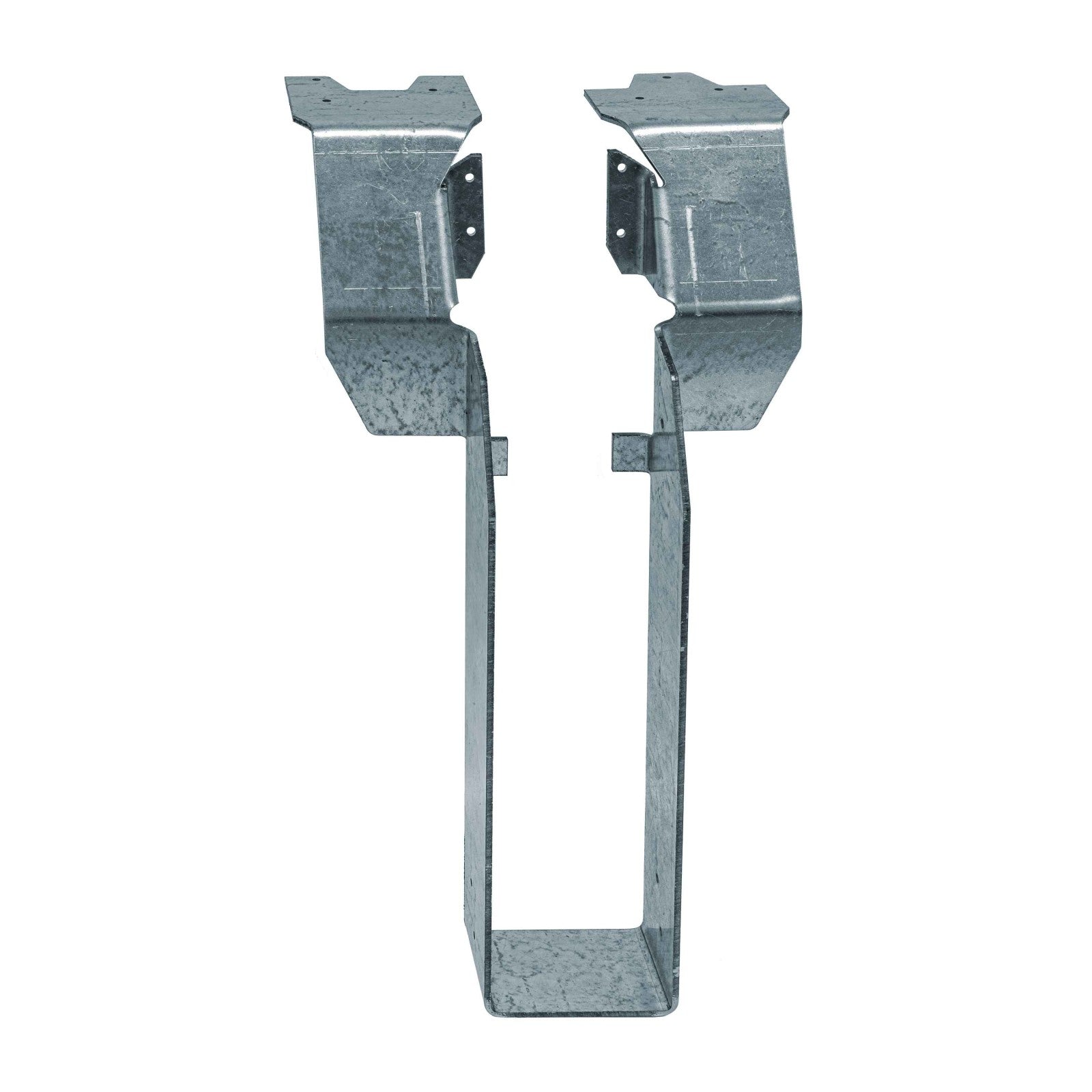

Simpson Strong-Tie DGT2.1/9.5 2" x 9-1/2" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized, Made to Order Non-Returnable

ICC Certified

Sizes

1-3/4" X 11-7/8" 1-3/4" X 14" 1-3/4" X 16" 1-3/4" X 9-1/2" 2" X 10" 2" X 12" 2" X 14" 2" X 16" 2" X 8" 2-5/16" X 11-7/8" 2-5/16" X 14" 2-5/16" X 16" 2-5/16" X 18" 2-5/16" X 20" 2-5/16" X 9-1/2" 2" X 9-1/2" 2-1/2" X 11-7/8" 2-1/2" X 14" 2-1/2" X 16" 2-1/2" X 18" 2-1/2" X 20" 2-1/2" X 22" 2-1/2" X 24" 2-1/2" X 9-1/2" 2" X 11-7/8" 3-1/2" X 11-1/4" 3-1/2" X 11-7/8" 3-1/2" X 14" 3-1/2" X 16" 3-1/2" X 18" 3-1/2" X 20" 3-1/2" X 22" 3-1/2" X 24" 3-1/2" X 9-1/2" 3-1/2" X 9-1/4"
$4199
Ships in 2-3 business days.

Description

This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

The Simpson DGT Top-Flange Fire Wall Hanger is engineered to provide robust, fire-rated connections in multifamily and multilevel Type III residential constructions. This innovative hanger ensures structural integrity while maintaining fire-resistive wall assemblies, making it an essential component for builders and contractors.

Key Features:

  • Two-Hour Fire Rating: Successfully tested according to ASTM E814 standards, the DGT hanger maintains a two-hour fire-resistance rating for both 2x4 and 2x6 walls, ensuring compliance with stringent building codes.
  • Efficient Installation: Designed for use with power nailers, this hanger allows for quick and secure attachment before drywall installation, streamlining construction timelines.
  • Drywall Accommodation: The top-flange design provides space for two layers of 5/8" gypsum board to be installed after framing, preserving the integrity of fire-rated wall assemblies.
  • Versatile Application: Suitable for back-to-back installation on minimum 2x6 walls, offering flexibility in various construction scenarios.

Installation:

  • Fasteners: Use all specified fasteners as per the manufacturer's guidelines. The hanger is compatible with both 1-1/2" and 2-1/2" power-driven or hand-installed nails.

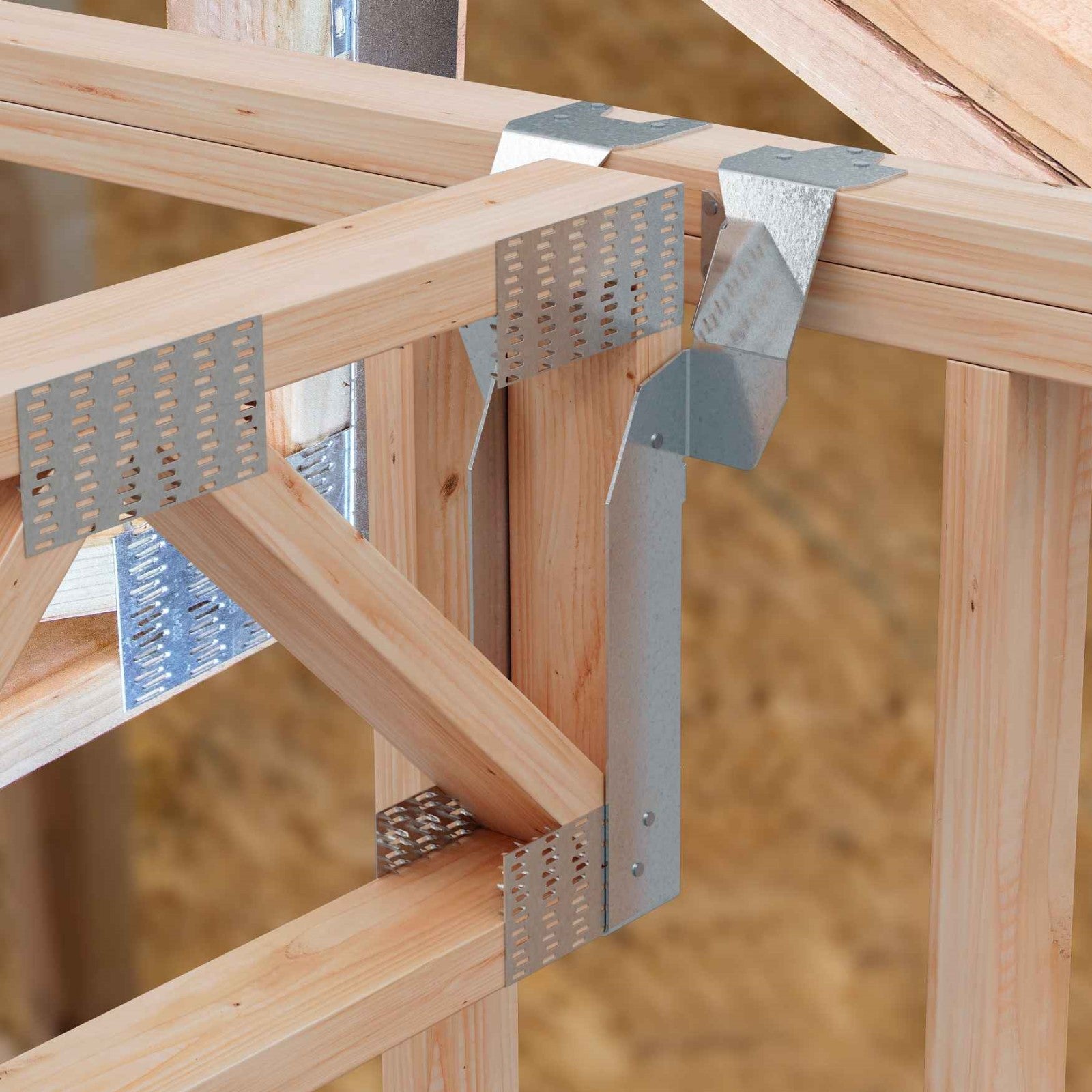

  • Mounting: Install the DGT hanger similarly to standard top-flange hangers. Ensure that stud wall-plate splices occur at stud locations for optimal support.
  • Additional Support: For I-joist applications, web stiffeners are required to maintain structural integrity.
  • Steel Header Installation: When attaching to a steel header, weld the DGT hanger using four 1/8" x 1-1/2" fillet welds and secure with six joist nails to achieve a download capacity of 1,700 lbs. Ensure face flanges have full backing.

Applications:

  • Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
  • Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
  • Type III Construction: Ideal for buildings requiring non-combustible exterior walls with interior wood framing.
  • Retrofit Projects: Suitable for upgrading existing structures to meet current fire-resistance requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

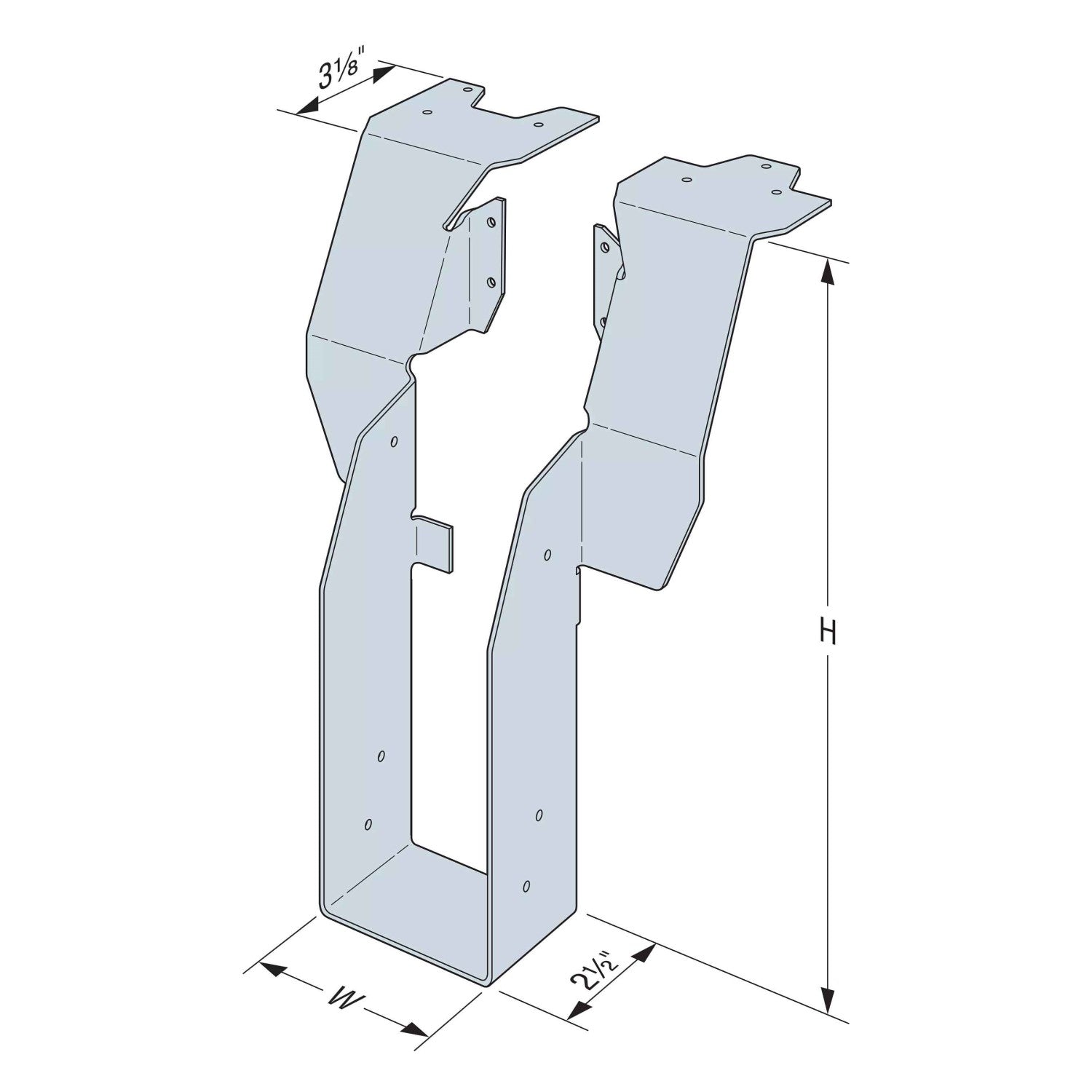

Specifications
Width: 2-1/8"
Height: 9-7/16"
Thickness: 12 Gauge
Joist Size: 2" X 9-1/2"
For Treated Lumber: No
Material: Galvanized Steel
Finish: G90 Galvanized
Manufacturer Name: Simpson Strong-Tie
Quantity: 1
Fasteners Required: TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails POST: (6) 0.148 in. x 1-1/2 in. nails
