SKU: DGT2.37/9.5

Simpson DGT2.37/9.5 2-5/16" x 9-1/2" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized

Simpson DGT2.37/9.5 2-5/16" x 9-1/2" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized!

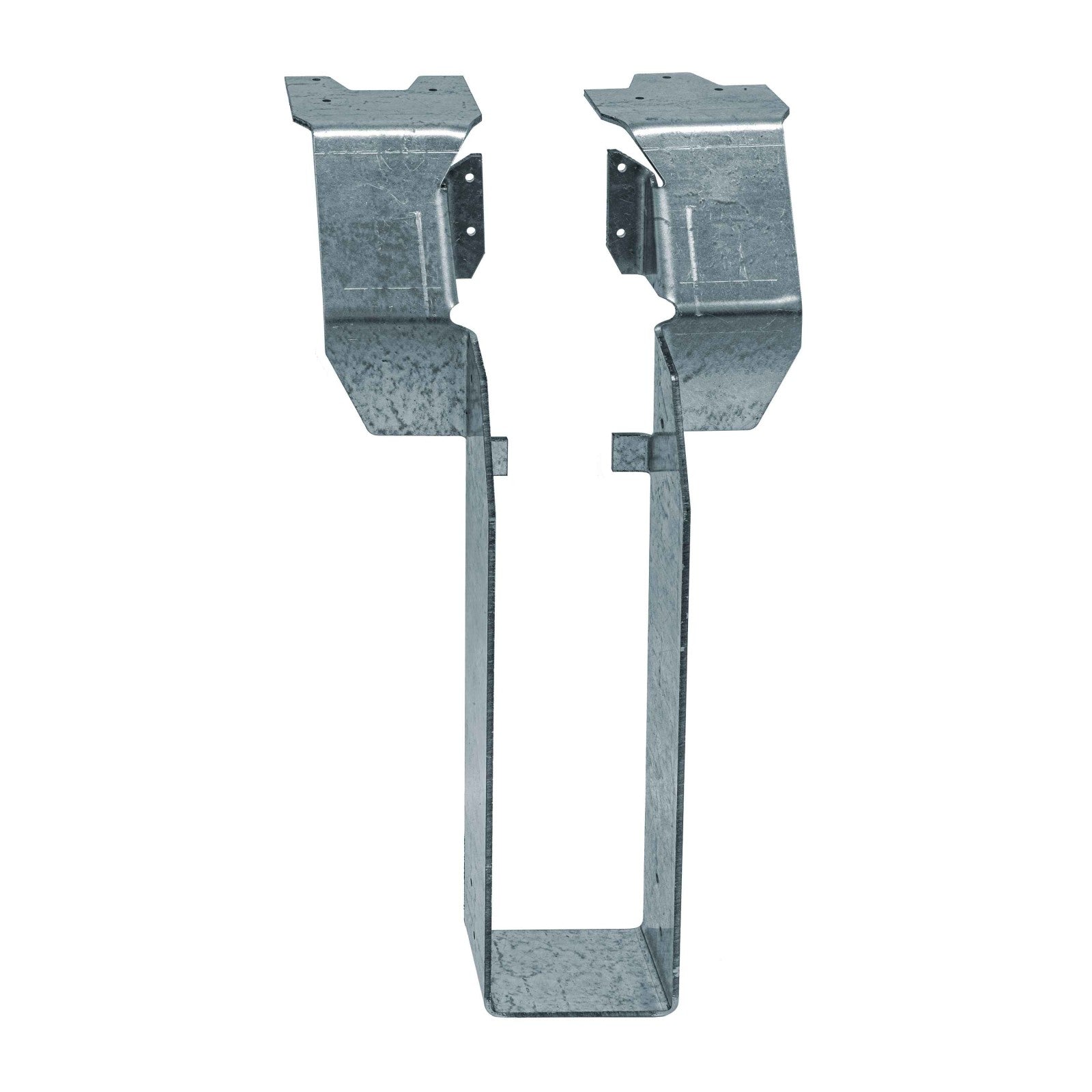

  • DGT Top Flange Fire Wall Hanger - DGT3.62-18

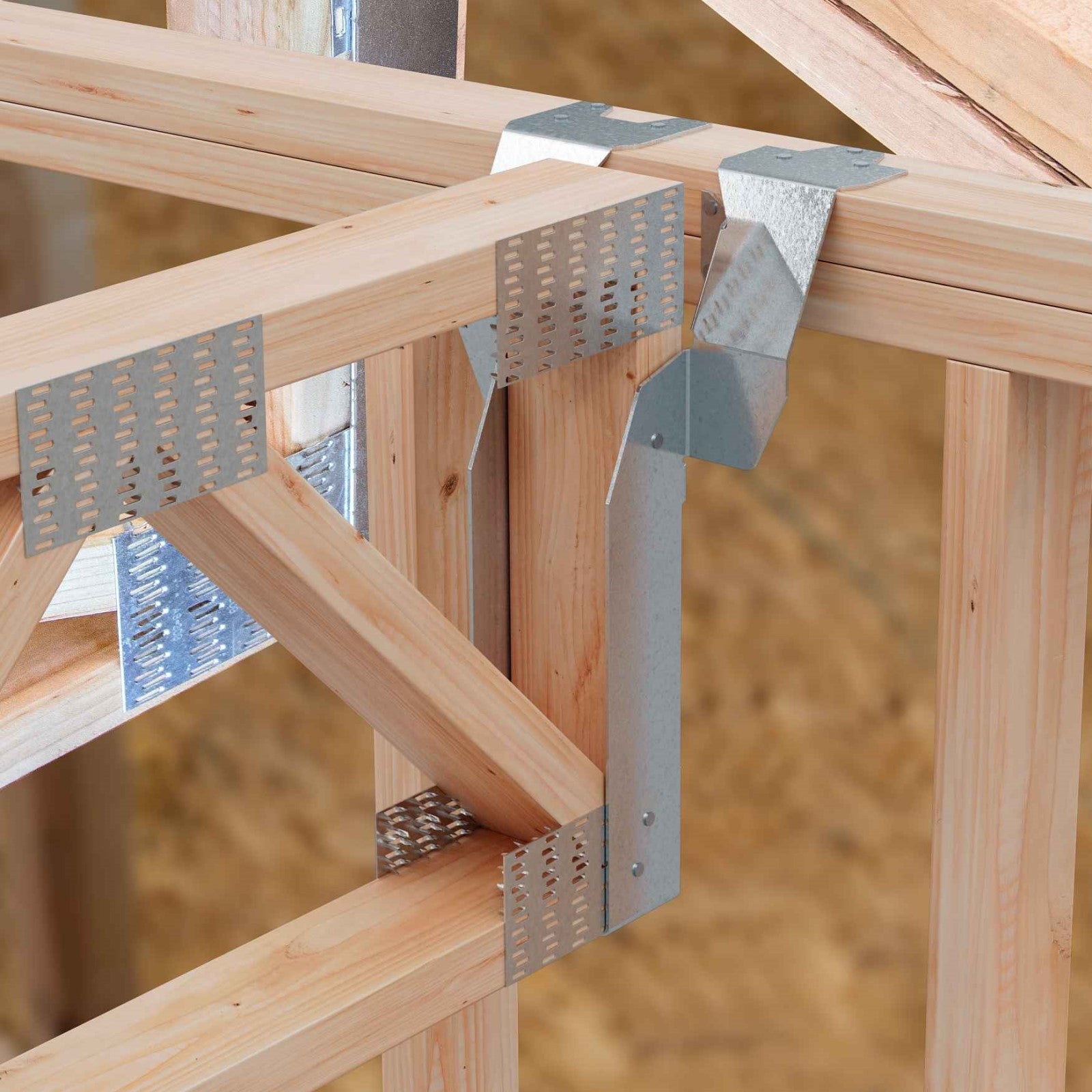

  • DGT Top Flange Fire Wall Hanger - DGT326-16 Installation

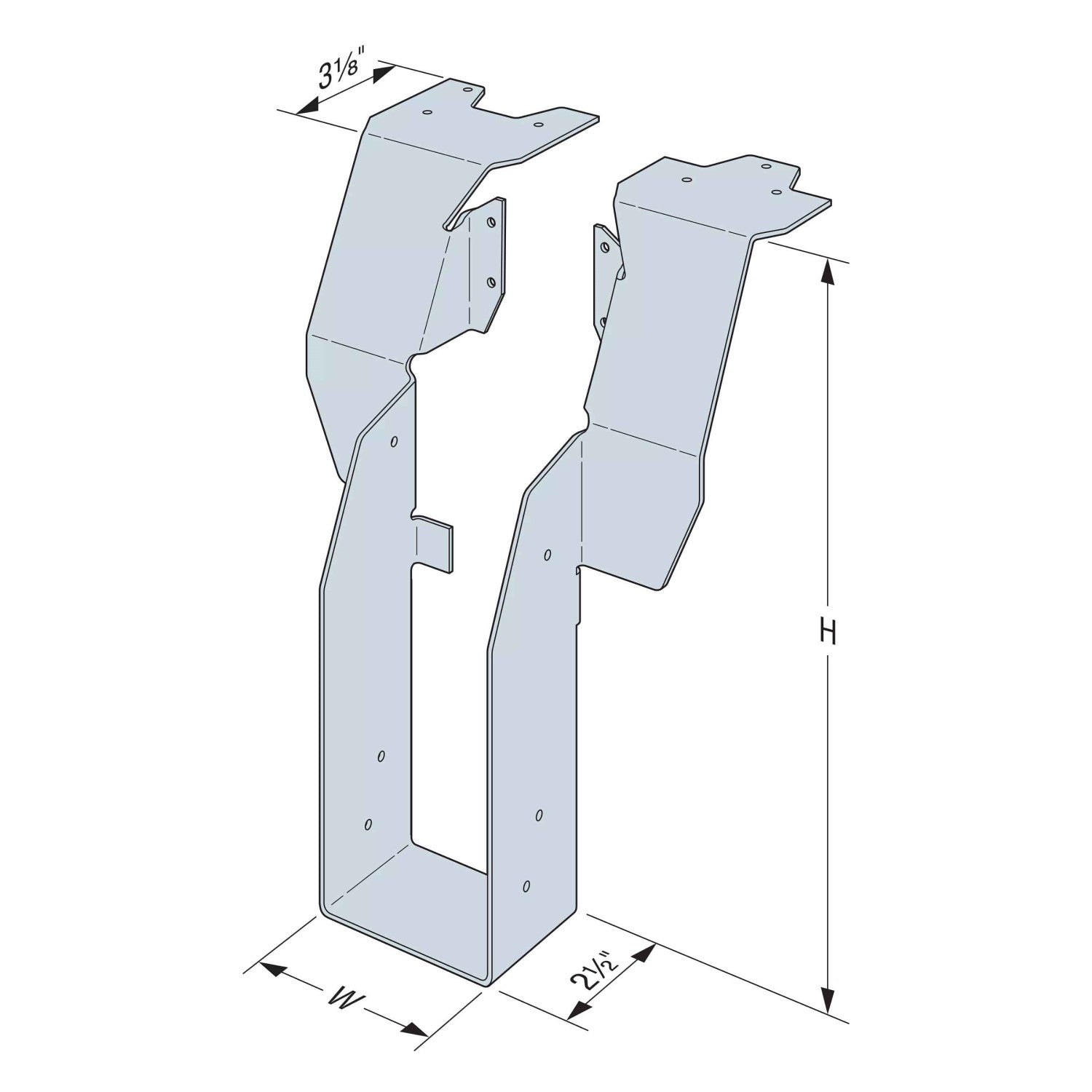

  • DGT Top Flange Fire Wall Hanger Callout - DGT3.62-11.88 shown
1 3

Continue Browsing

DGT/DGHT Top-Flange Fire Wall Hangers
SKU: DGT2.37/9.5

Simpson DGT2.37/9.5 2-5/16" x 9-1/2" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized

$40.13

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails POST: (6) 0.148 in. x 1-1/2 in. nails
For Treated Lumber: No
Height: 9-7/16"
Joist size: 2-5/16" x 9-1/2"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 12 Gauge
Width: 2-3/8"
Description
  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

The patent-pending Simpson DGT™ is a load-tested fire wall hanger with a two-hour fire rating and ideal for multifamily, multilevel Type III residential construction. The first of its kind, the DGT fire wall hanger is designed to install with a power nailer to save time before hanging drywall allowing for greater construction project efficiency. After framing is complete, this top-flange hanger provides space for two layers of 5/8" gypsum board (drywall) to be slipped into place. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
