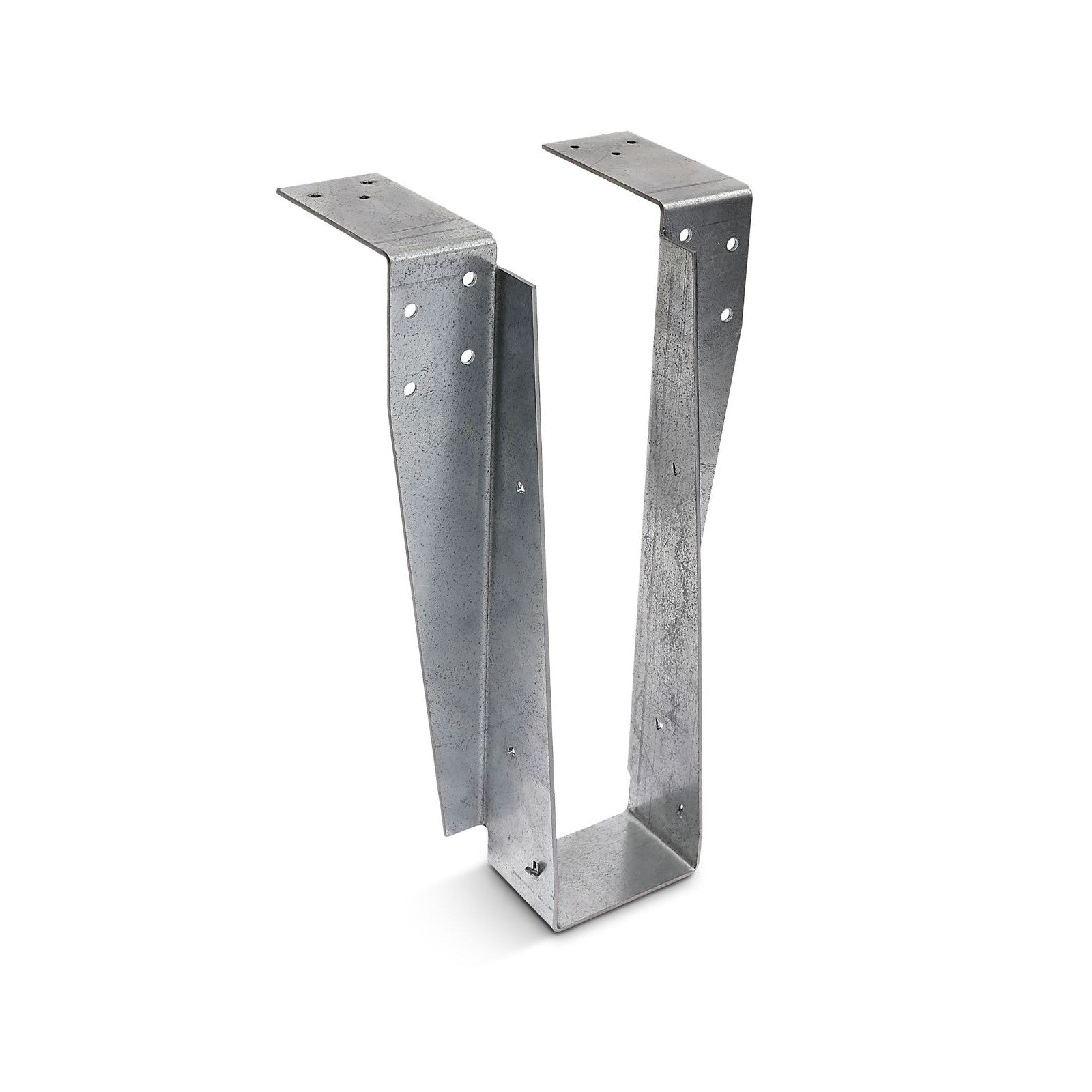

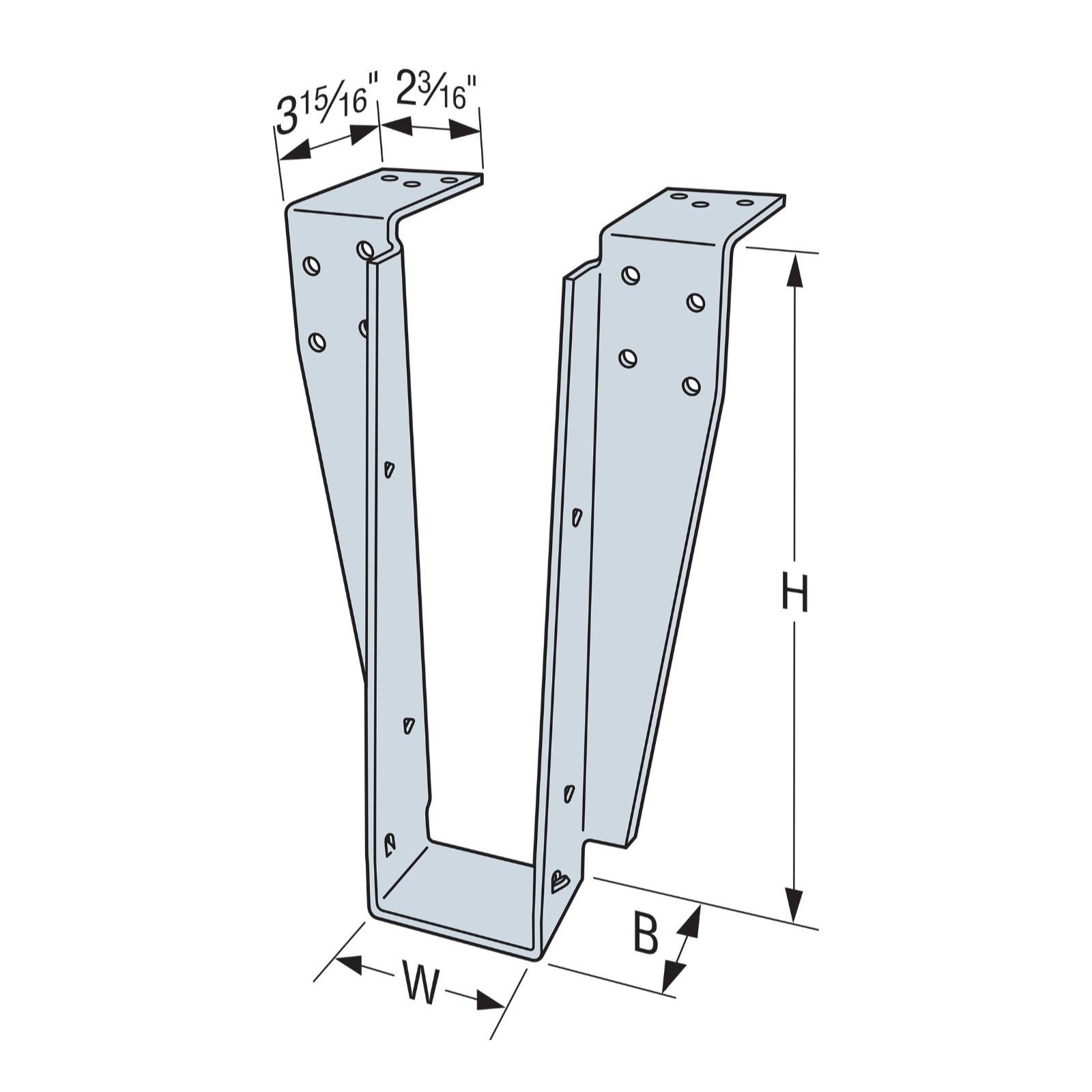

The Simpson Strong-Tie DHUTF Top-Flange Fire Wall Hanger offers a reliable solution for connecting floor trusses and joists to wood or concrete/masonry walls while maintaining the integrity of two-hour fire-rated wall assemblies. Engineered with precision, this top-flange hanger is designed to allow a 1" gap between the end of the carried member and the wall, reducing the risk of fire-wall compromise in the event of shrinkage or movement.

Fabricated from heavy-gauge steel and available in G90 galvanization, the DHUTF provides superior load capacity while accommodating design requirements for both engineered wood and solid sawn lumber. The offset nail pattern and top-flange mounting allow for easy installation on either side of the wall assembly.

Key Features:

• Top-flange design: Preserves fire-rating with 1" member-to-wall gap.
• Framing compatibility: Compatible with solid sawn lumber and engineered wood members.
• Code compliant: IAPMO ER-287 listed and tested per ASTM D7147.
• Durable coating: Galvanized for corrosion resistance in typical interior

Applications:

• Multi-Family Construction: Supports floor framing while preserving fire-rated assemblies between units.
• Commercial Wood-Framed Buildings: Enables secure joist or truss connections in fire-separation wall applications.
• Engineered Wood Framing: Compatible with I-joists, LVL, and other engineered members.
• Solid Sawn Applications: Ideal for dimensional lumber in traditional framing systems.

Installation Notes:

• Designed for use with two-hour wood-stud fire walls when paired with a minimum 1" air gap between the end of the carried member and wall.
• Installs with specific nails or screws into both the top flange and carried member (refer to Simpson’s load table and installation guide for exact fastener configurations).
• Hanger must be installed on the cold side of the wall assembly.
• Do not skew, modify, or install upside-down.
• When used with concrete or masonry, anchorage requirements must meet ICC standards.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
