SKU: DSSCB48-KT25

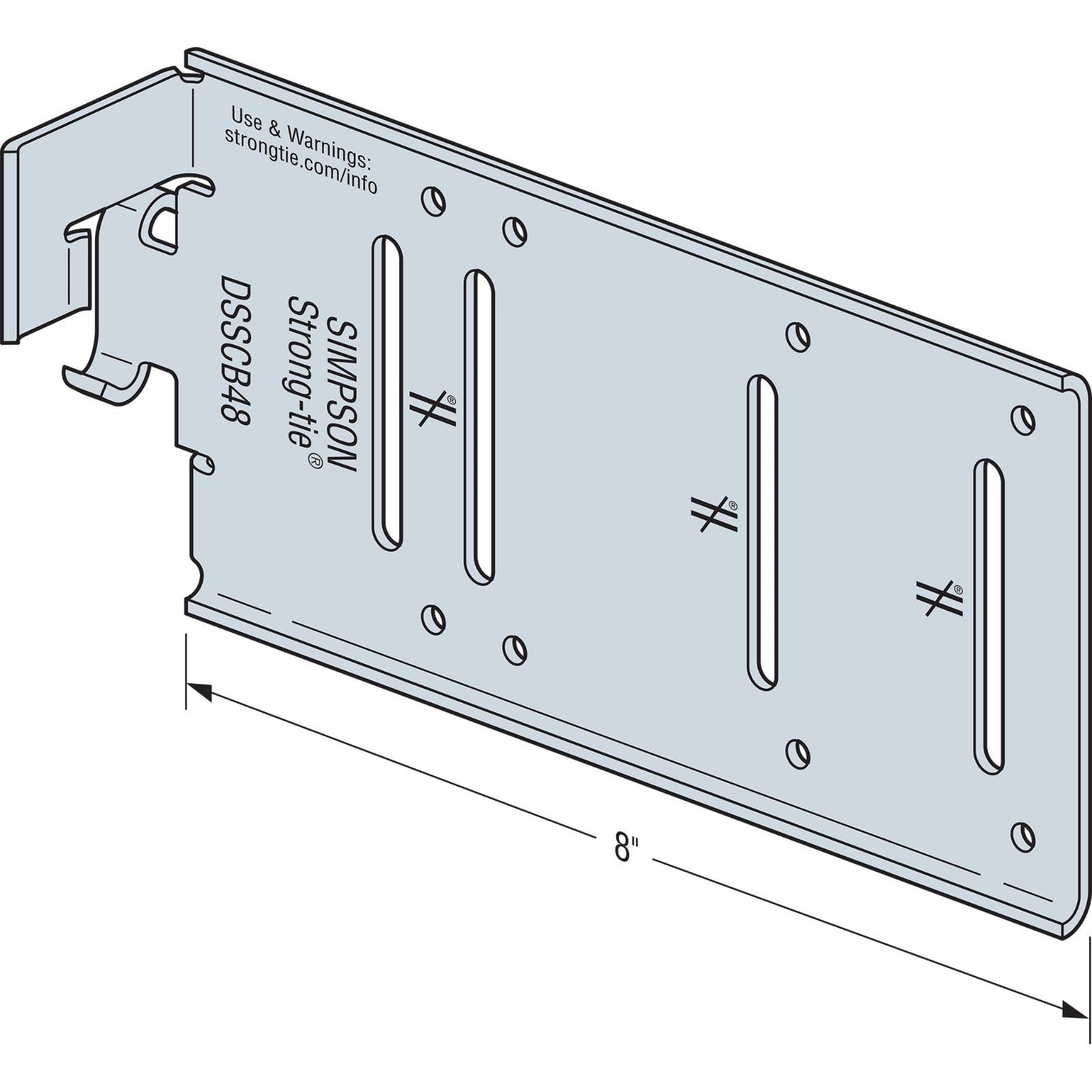

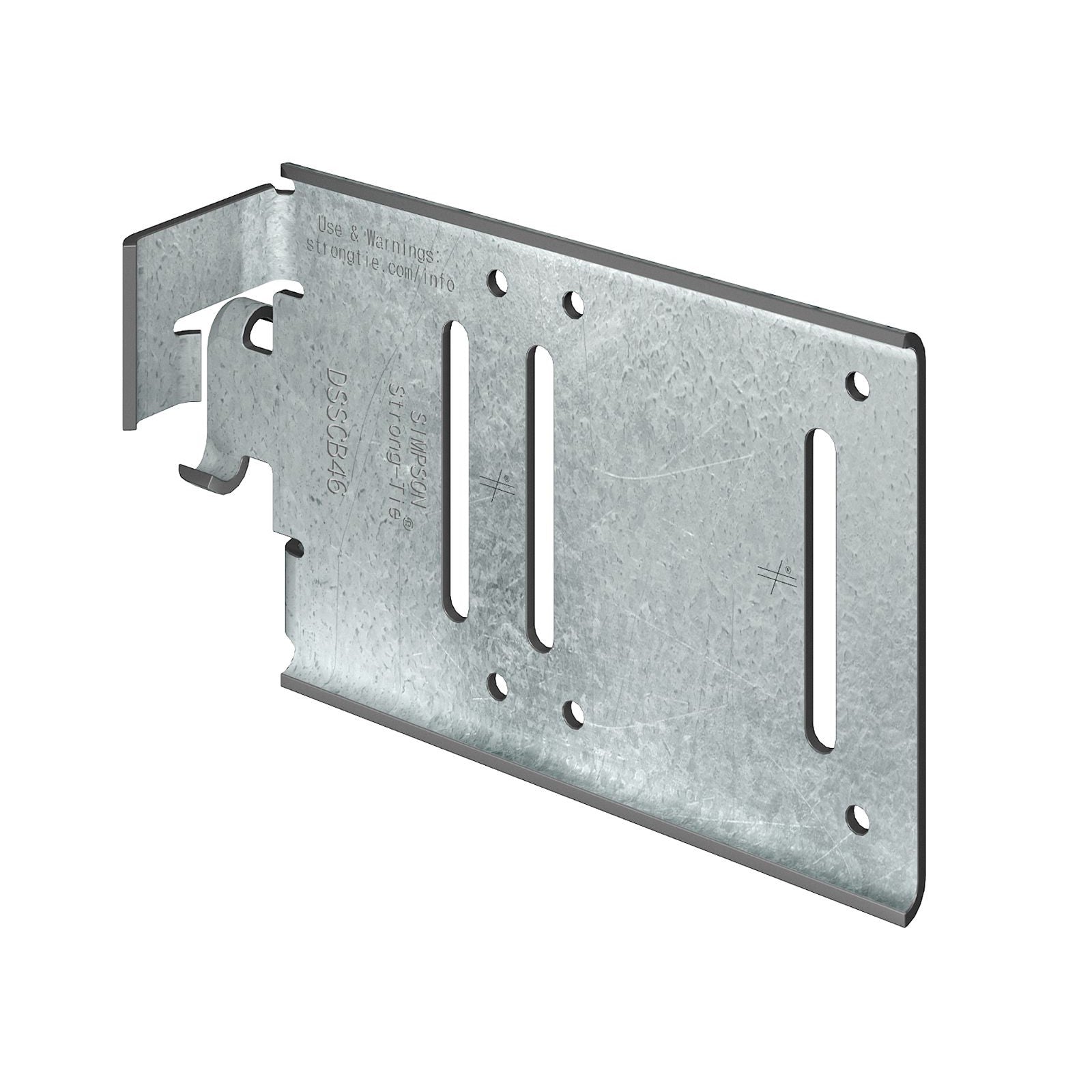

Simpson DSSCB48-KT25 Bypass Framing 8" Drift Strut Connector, Pkg 25

Simpson DSSCB48-KT25 Bypass Framing 8" Drift Strut Connector, Pkg 25!

  • Simpson DSSCB48KT25 Bypass Framing 8 inch Drift Strut Connector Pkg 25 image 1 of 2
  • Simpson DSSCB48KT25 Bypass Framing 8 inch Drift Strut Connector Pkg 25 image 2 of 2
1 2

Continue Browsing

DSSCB Drift Strut Connectors
SKU: DSSCB48-KT25

Simpson DSSCB48-KT25 Bypass Framing 8" Drift Strut Connector, Pkg 25

$250.38

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 1 and order in the next 3 hours 8 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Material: Carbon Steel
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description
Simpson Strong-Tie introduces the DSSCB for cold-formed steel construction. The DSSCB is used to anchor cold-formed steel bypass framing to the edge of a floor slab in order to accommodate horizontal building drift. The DSSCB simplifies panelized construction by allowing contractors to install finished panels from the top of the slab without the need to predrill or preinstall anchors for each clip. It also eliminates the coordination difficulties associated with preanchorage of standard bypass clips. With prepunched slots and round holes, the DSSCB is a dual-function connector that can be used for slide-clip and fixed-clip applications. Depending on the application, the struts can be mechanically ancored, welded, or cast in place to provide further rigidity and support.
Installation:
  • Use the specified type and number of fasteners.

    • California Residents: WARNING
