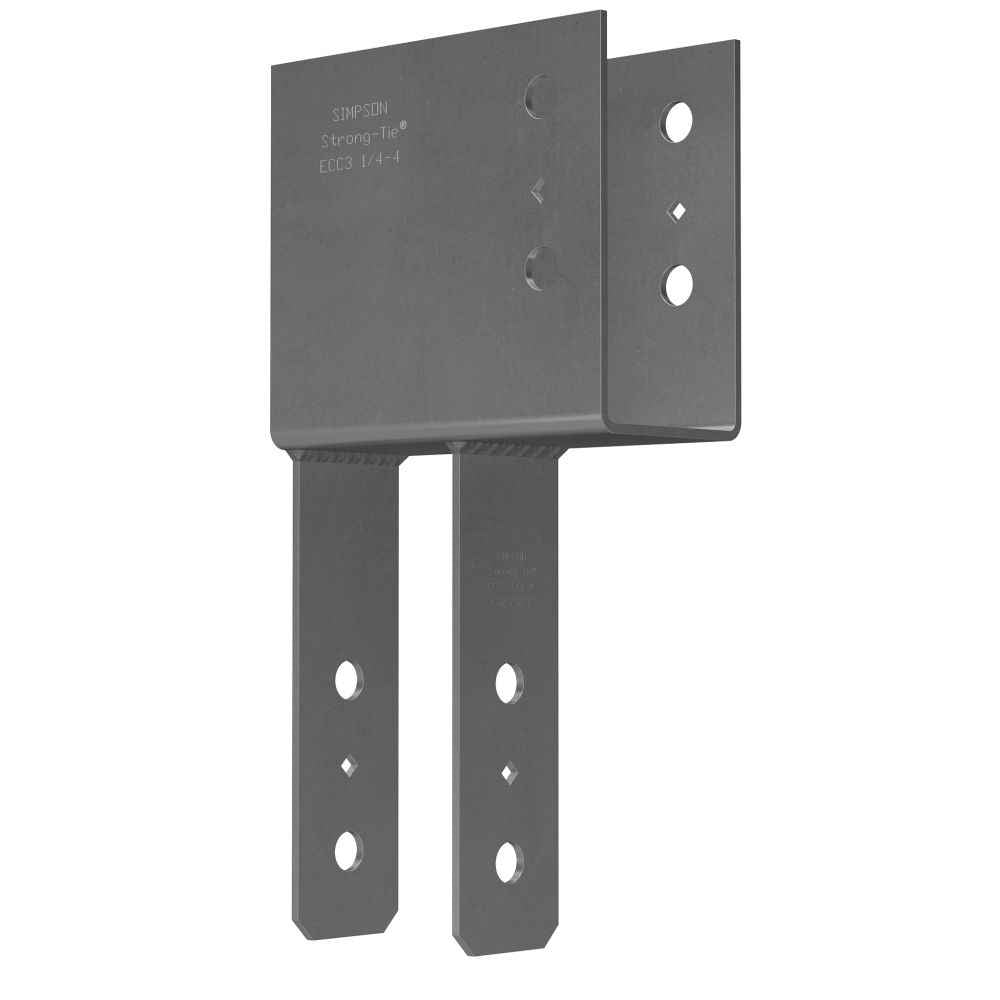

Simpson ECC3 1/4-4 End Column Cap- Gray Paint

Simpson ECC3 1/4-4 End Column Cap- Gray Paint!

Skip to product information
1 of 4

Continue Browsing

ECC End Column Caps

$191.54

Request Bulk Pricing
Made to Order
Ships in 3-5 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Material: Steel
Beam size: 3-1/8x
Fasteners required: Beam - (2) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Post size: 4x
Thickness: 7 Gauge
Description

Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.

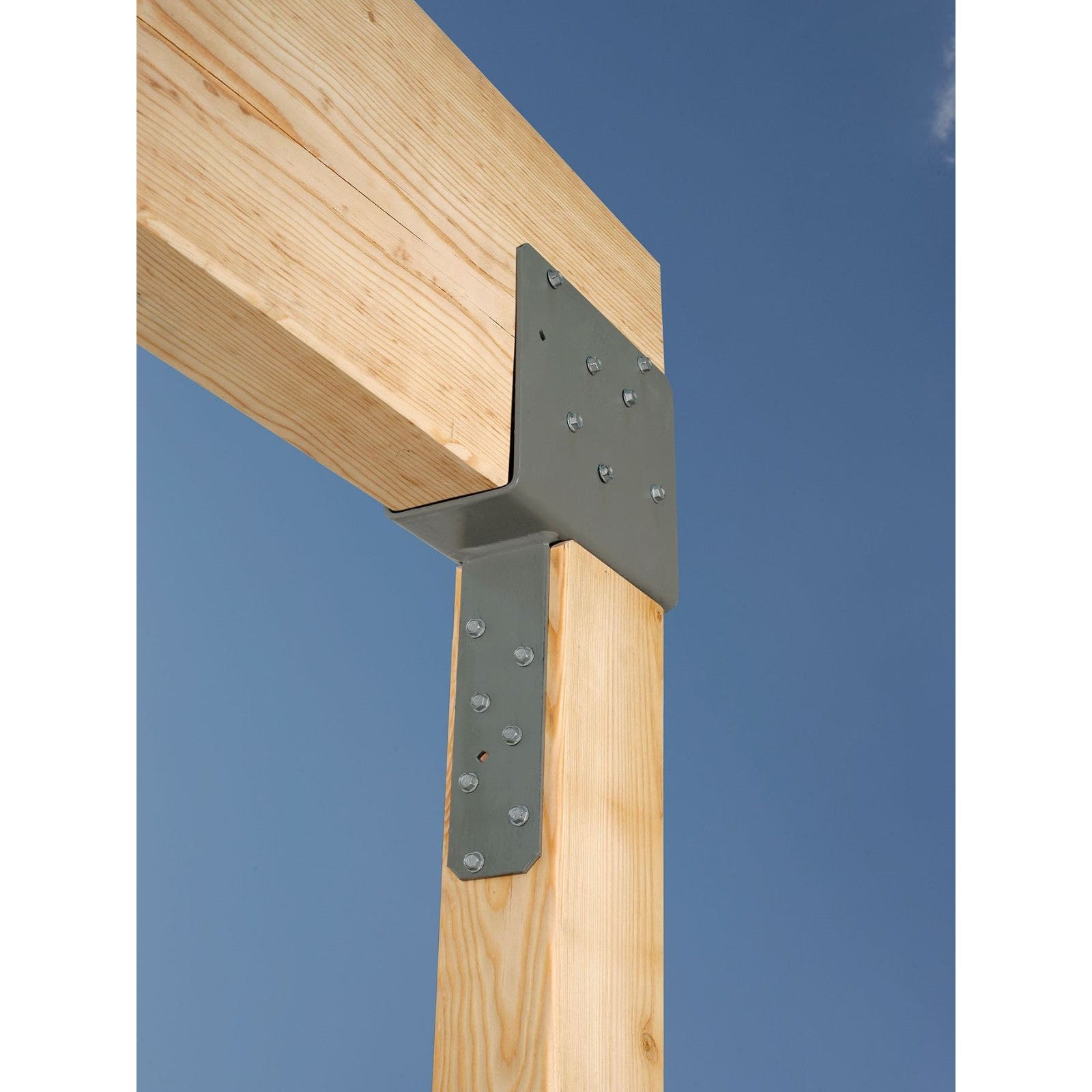

The Simpson ECC3 1/4-4 End Column Cap- Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.

The seat of the column cap features additional surface area beyond the side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

This product is intended for use with 4x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.

Features:

  • Connection Type: Provides strong end-of-beam connection for column-to-beams and the extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Lumber Size: Intended for use with 3-1/8x beams and 4x posts/columns.
  • Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
  • Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
  • Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
