SKU: ECC4.62-4.62
Simpson ECC4.62-4.62 End Column Cap - Gray Paint
Simpson ECC4.62-4.62 End Column Cap - Gray Paint
No reviews
Regular price
$200.87
Sale price
$200.87
Regular price
Unit price
/
per
0% off
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

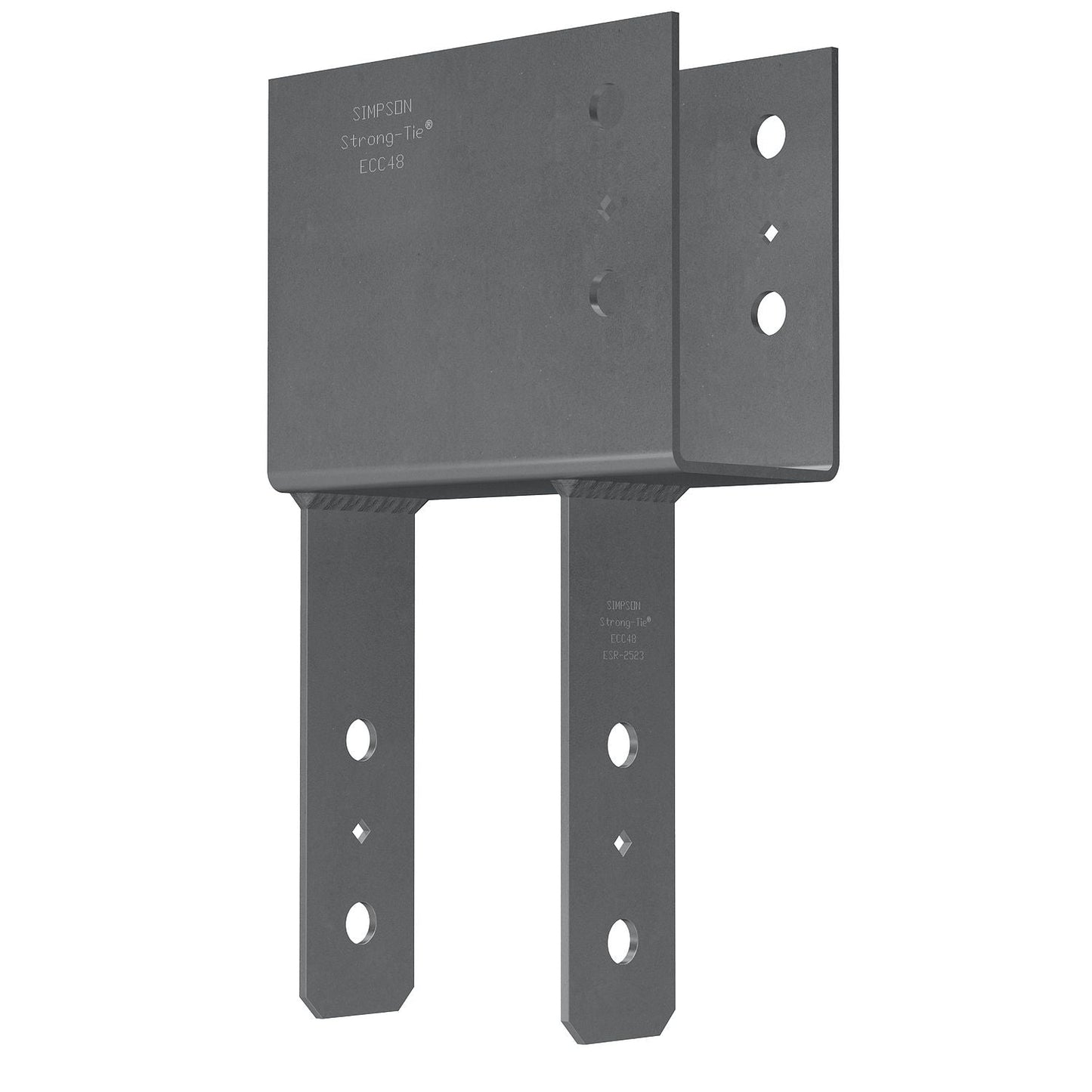

Simpson Strong-Tie ECC end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie ECC post base features a Gray Painted finish for added corrosion resistance.
Installation:
- Use all specified fasteners.
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
- Contact engineered wood manufacturers for connections that are not through the wide face.
Options:

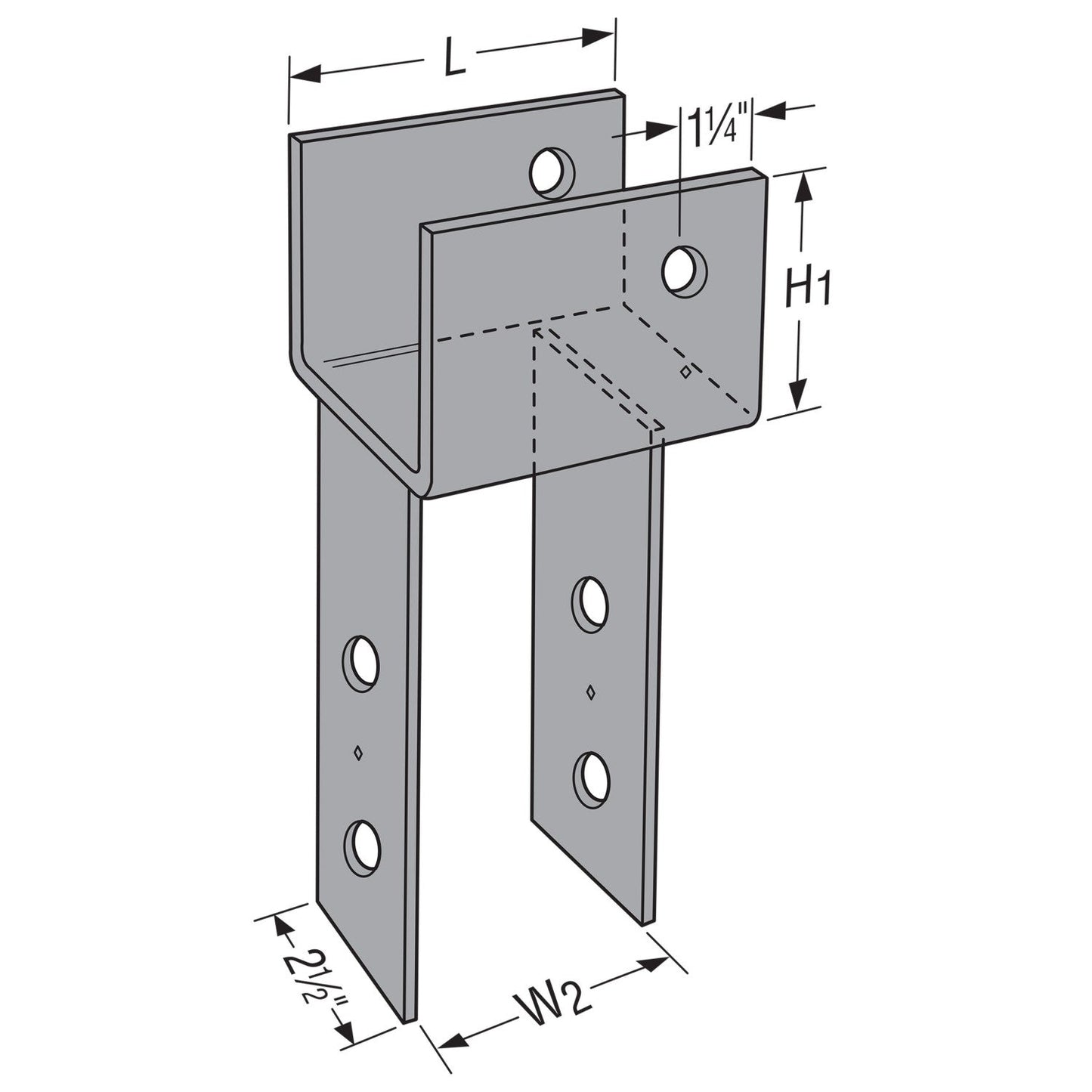

- Straps may be rotated 90° where W1?W2 (see illustration) and for CC5 1/4-6.
- For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
- Contact engineered wood manufacturers for connections that are not through the wide face.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 6-1/2"
Fasteners required: Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2"
Thickness: 7 Gauge
Width: 4-5/8" (W1 & W2)
Finish: Gray Paint
Length: 8-1/2"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
