Simpson ECC46HDG End Column Cap - Hot Dip Galvanized
Simpson ECC46HDG End Column Cap - Hot Dip Galvanized
Couldn't load pickup availability
Ships in 21-28 business days.
Description:
Description:
Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.

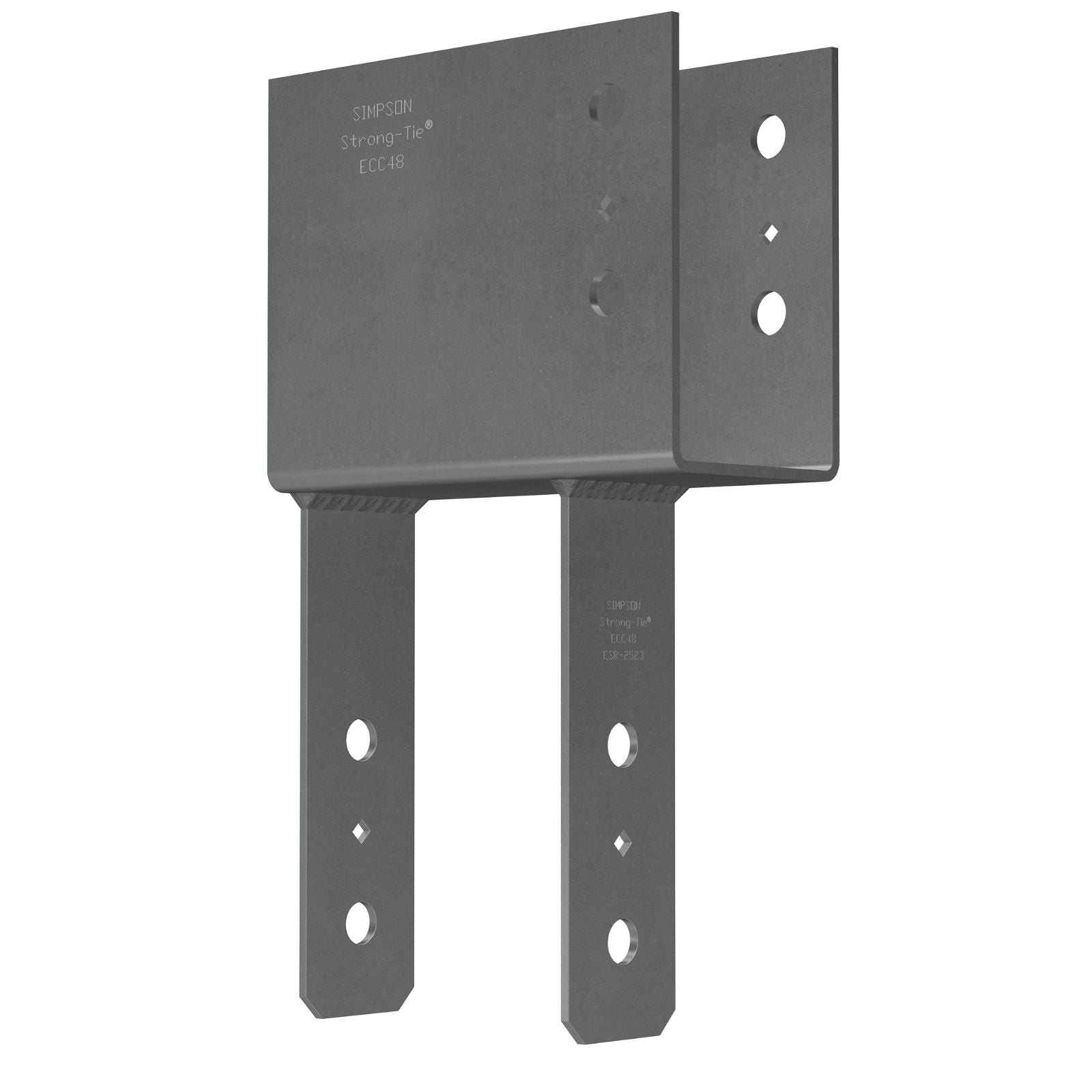

The Simpson ECC46HDG End Column Cap - Hot Dip Galvanized enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.
The seat of the column cap features additional surface area beyond the side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.
This product is intended for use with 6x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.
Features:
- Connection Type: Provides strong end-of-beam connection for column-to-beams and the extended area of the column seat offers additional surface area of bearing to distribute the load.
- Lumber Size: Intended for use with 4x beams and 6x posts/columns.
- Material and Finish: Made from Steel for durability and finished with Hot Dip Galvanized coating.
- Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
- Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 6x
Fasteners required: Beam - (2) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
Thickness: 7 Gauge
Finish: Hot Dip Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Beam size: 4x
Product Guide: View Spec Sheet

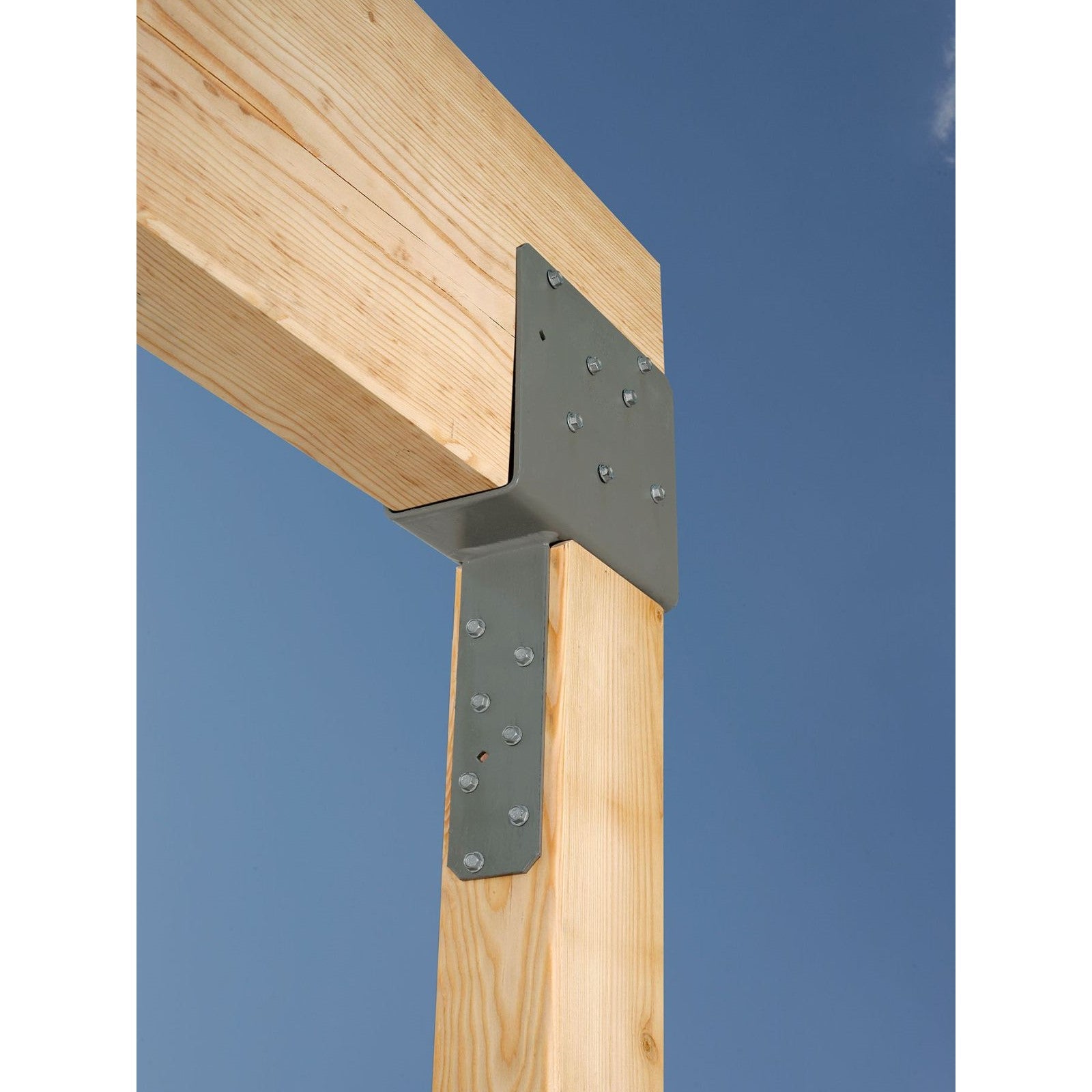

Installation
Installation
-Use all specified fasteners.
-Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
-Contact engineered wood manufacturers for connections that are not through the wide face.
