Simpson ECC5 1/4-4 End Column Cap- Gray Paint
Simpson ECC5 1/4-4 End Column Cap- Gray Paint
Couldn't load pickup availability

Description:
Description:

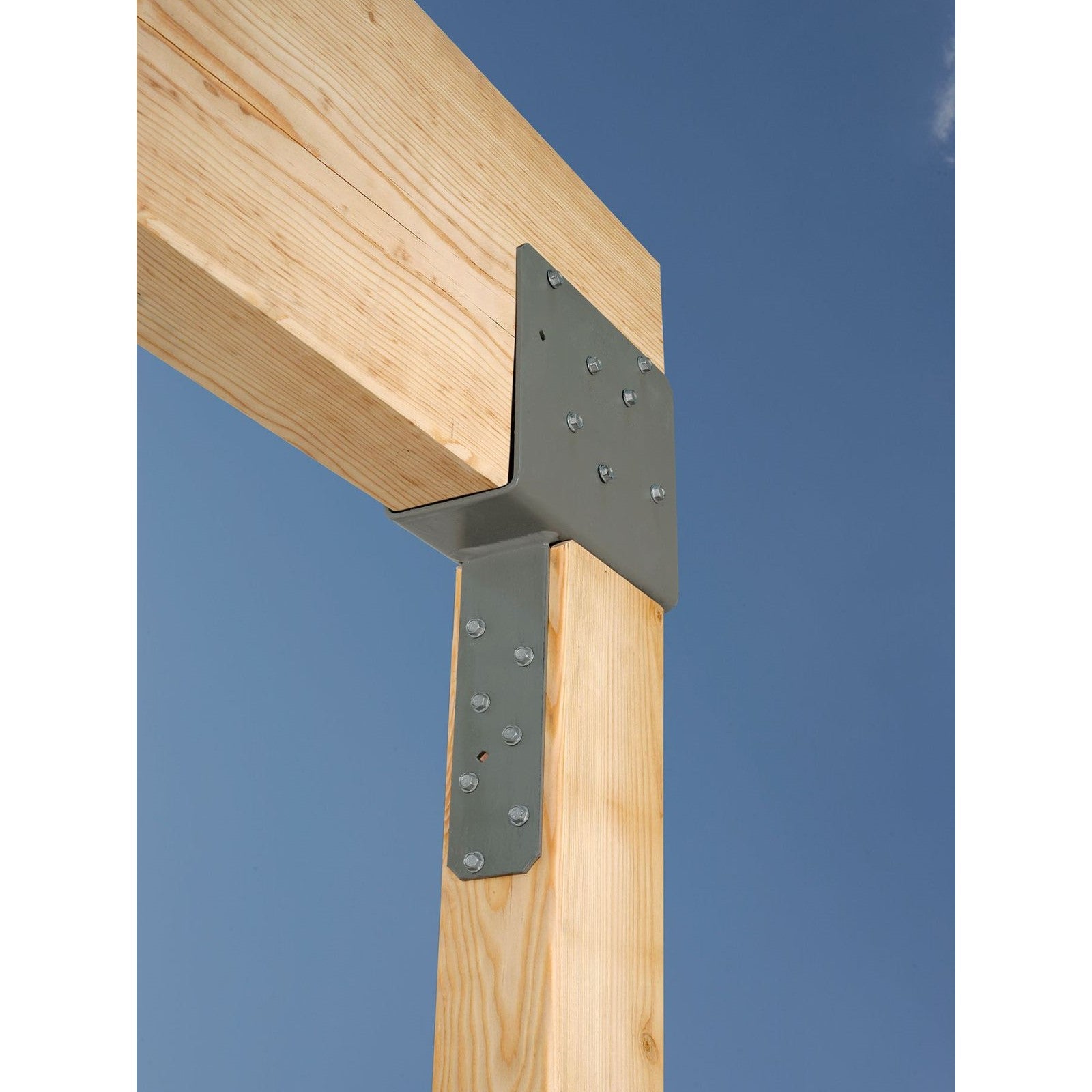

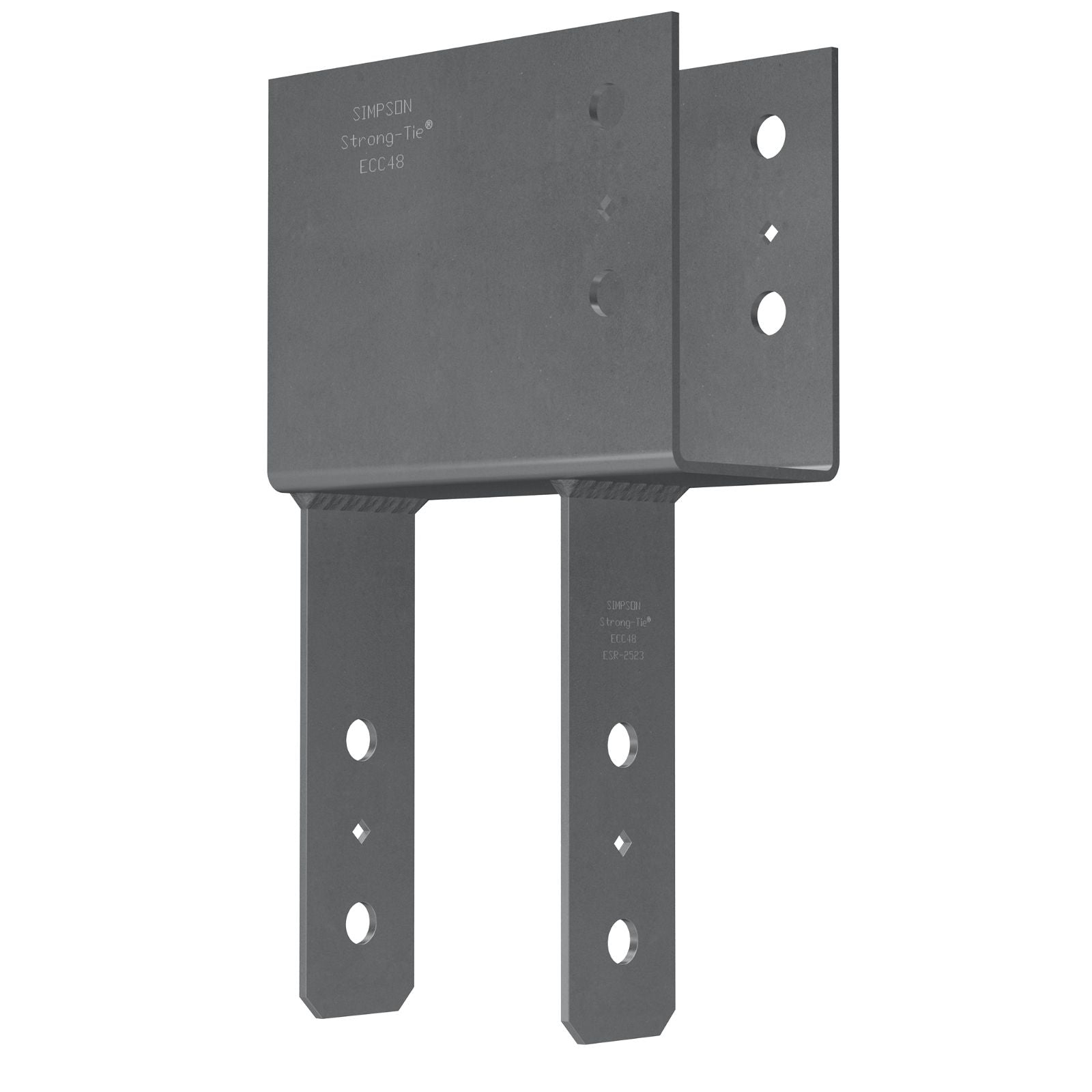

Simpson Strong-Tie ECC end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie ECC5 1/4-4 post base features a Gray Painted finish for added corrosion resistance.
Installation:- Use all specified fasteners.
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
- Contact engineered wood manufacturers for connections that are not through the wide face.
Options:
- Straps may be rotated 90° where W1?W2 (see illustration) and for CC5 1/4-6.
- For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
- Contact engineered wood manufacturers for connections that are not through the wide face.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson ECC End Column Caps.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4X
Fasteners required: Beam - (2) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
Thickness: 3 Gauge
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Beam size: 5-1/8"
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
-Contact engineered wood manufacturers for connections that are not through the wide face.
