Simpson ECC5 1/4-6 End Column Cap- Gray Paint

SKU: ECC5 1-4-6

$166.07

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

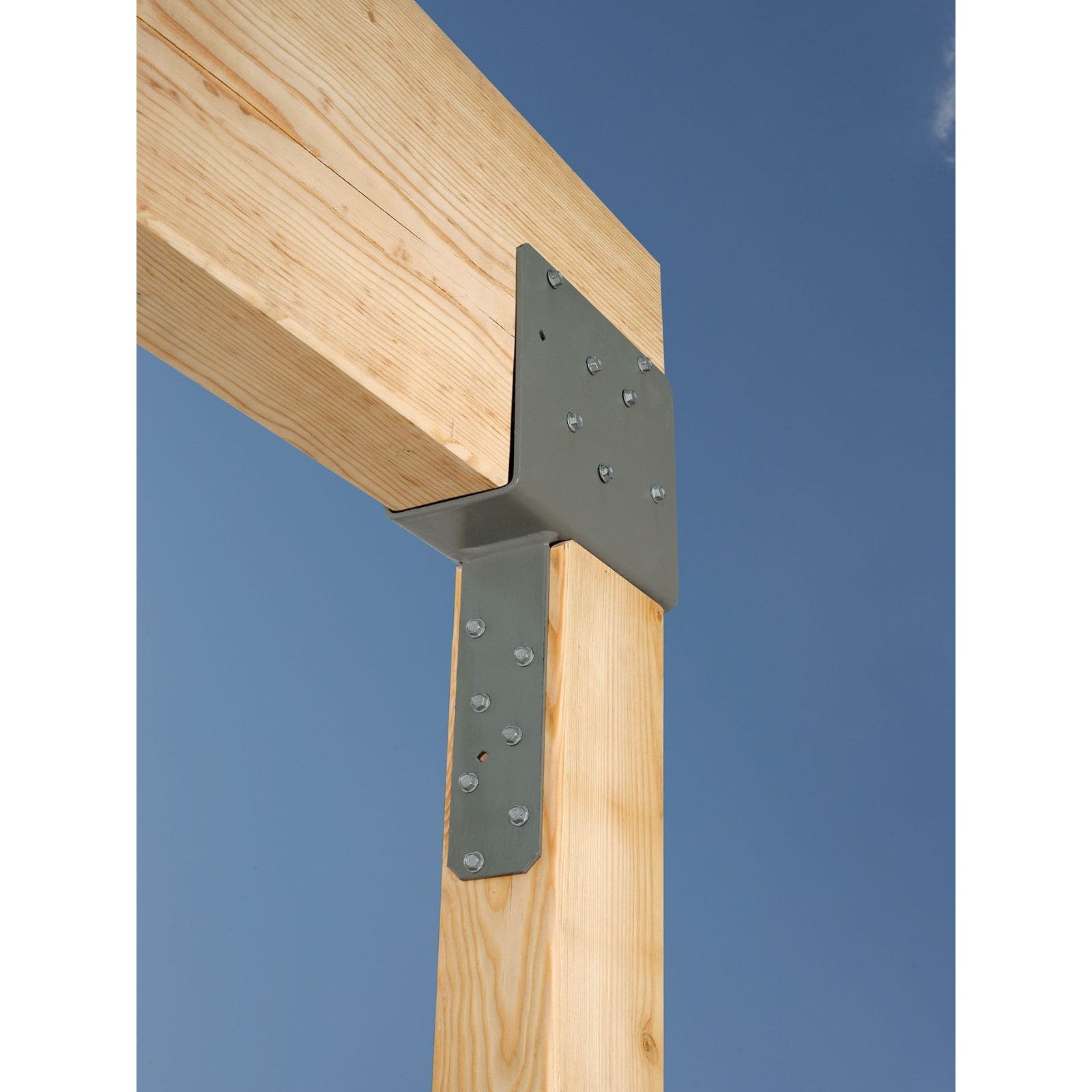

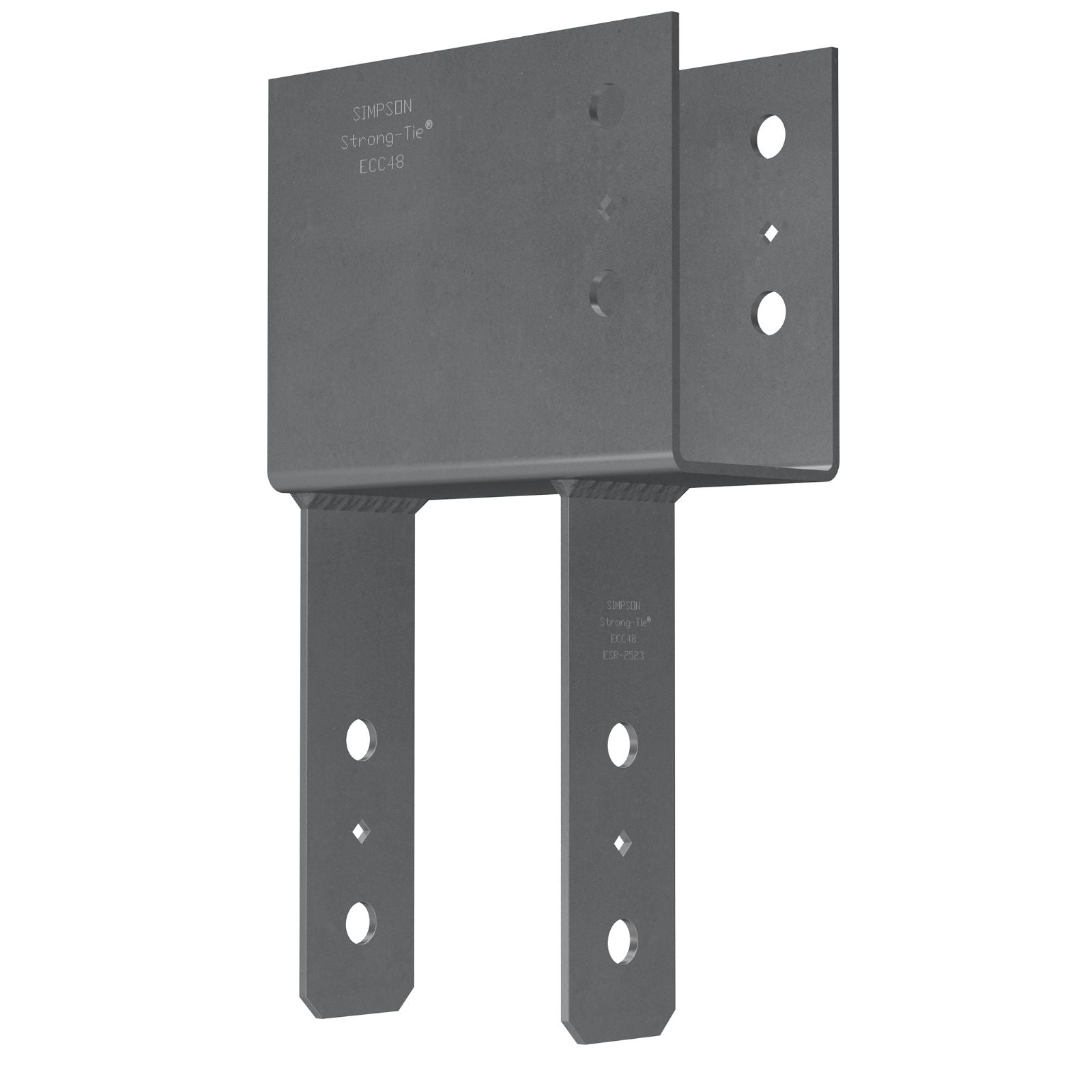

  • Simpson Strong-Tie ECC end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie ECC5 1/4-6 post base features a Gray Painted finish for added corrosion resistance.

    Installation:
    • Use all specified fasteners.
    • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    Options:
    • Straps may be rotated 90° where W1?W2 (see illustration) and for CC5 1/4-6.
    • For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson ECC End Column Caps.


    California Residents: WARNING

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson...

    Read More

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie ECC end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie ECC5 1/4-6 post base features a Gray Painted finish for added corrosion resistance.

    Installation:
    • Use all specified fasteners.
    • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    Options:
    • Straps may be rotated 90° where W1?W2 (see illustration) and for CC5 1/4-6.
    • For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson ECC End Column Caps.


    California Residents: WARNING

    Show Less

    Fasteners Required:
    Beam - (2) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts

    Finish Spec:
    Gray Paint

    Manufacturer Name:
    Simpson Strong-Tie

    Beam Size:
    5-1/8"

    For Treated Lumber:
    no

    Post Size:
    6X

    Product Guide Document:
    CC_ECC_Load_Table.pdf

    Thickness:
    3 Gauge

    Product Guide:

    Read More

    Show Less
