SKU: ECC66HDG

Simpson ECC66HDG End Column Cap - Hot Dip Galvanized

Simpson ECC66HDG End Column Cap - Hot Dip Galvanized

Regular price $144.84
Sale price $144.84 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 6 hours 32 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

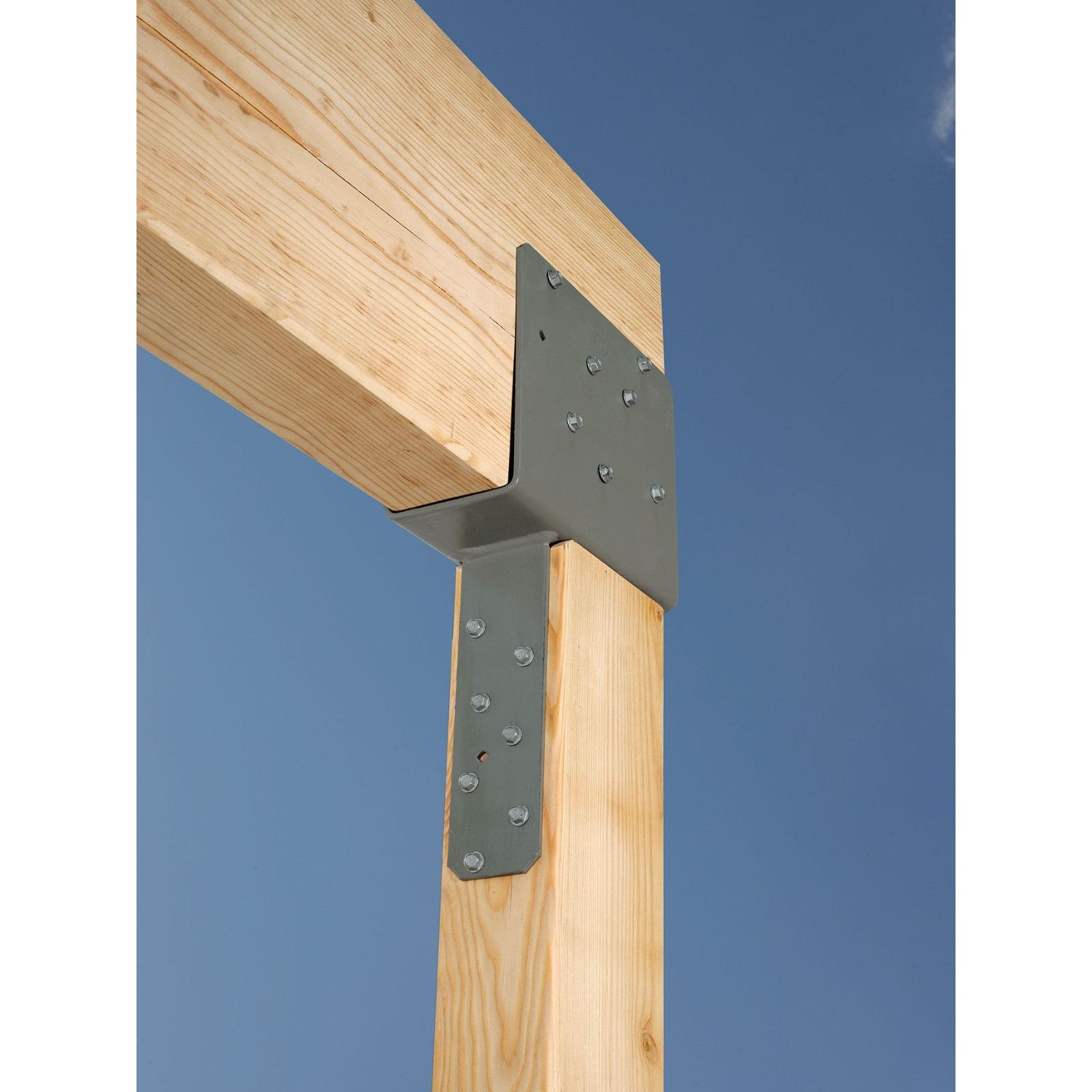

  • Simpson Strong-Tie ECC end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie ECC66HDG post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).

    Installation:
    • Use all specified fasteners.
    • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    Options:
    • Straps may be rotated 90° where W1?W2 (see illustration) and for CC5 1/4-6.
    • For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
    • Contact engineered wood manufacturers for connections that are not through the wide face.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson ECC End Column Caps.


    California Residents: WARNING

    Specifications:


    Post Size: 6X
    Fasteners required: Beam - (2) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
    Thickness: 7 Gauge
    Manufacturer name: Simpson Strong-Tie
    For Treated Lumber: Yes
    Beam size: 6X
    Product Guide: View Spec Sheet

    Installation

    -Use all specified fasteners.
    -Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
    -Contact engineered wood manufacturers for connections that are not through the wide face.
