Simpson ECC68PC End Column Cap - Black Powder Coat
Simpson ECC68PC End Column Cap - Black Powder Coat
Ships in 14-21 business days.
Description:
Description:

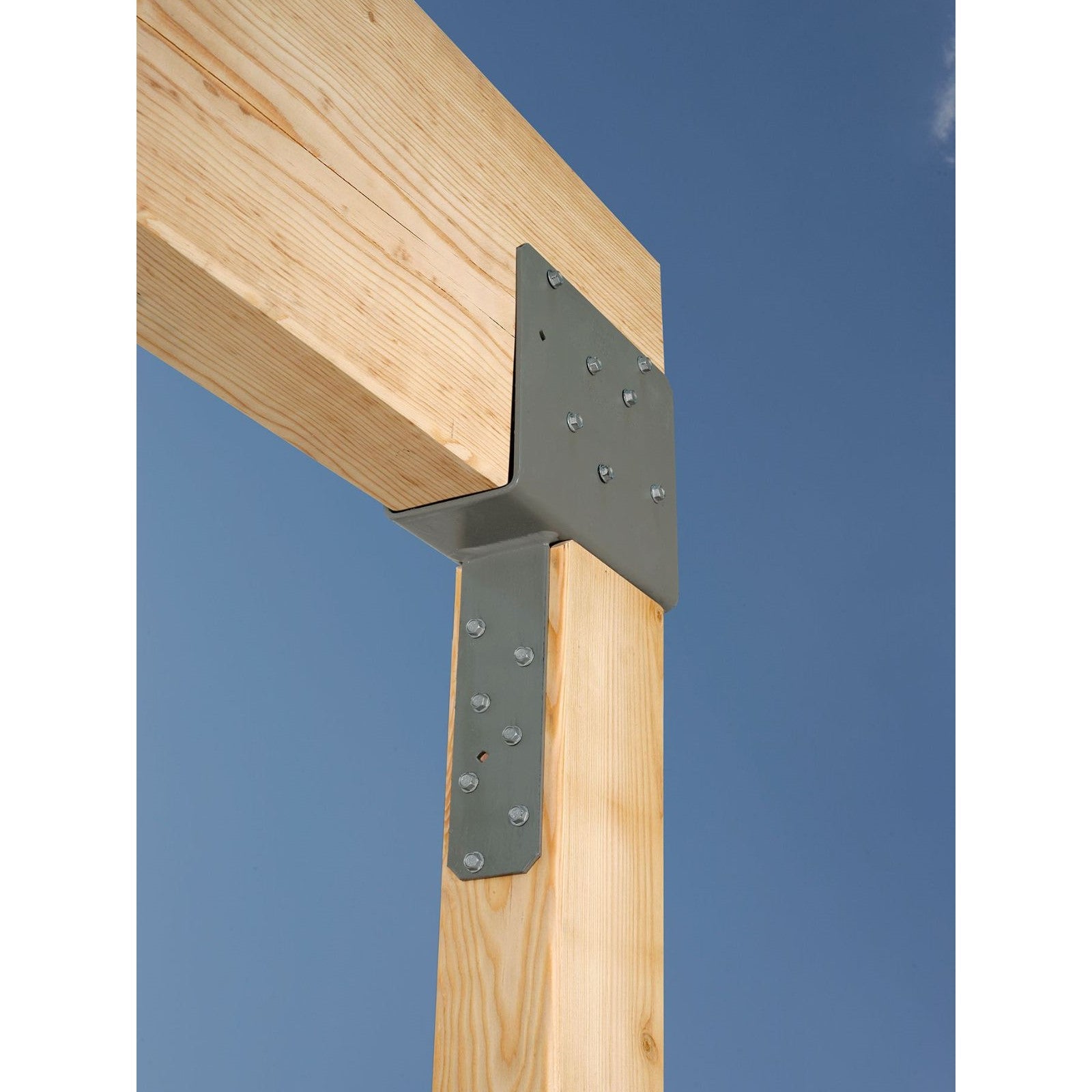

Simpson Strong-Tie ECC end column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. This post base features a black powder coat finish for a high aesthetic and added corrosion resistance.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Post Size: 8X
Height: 6-1/2"
Fasteners required: Beam - (2) 5/8" Machine Bolts; Post - (2) 5/8" Machine Bolts
Thickness: 7 Gauge
Quantity: 1
Finish: Black Powder Coat
Length: 9-1/2"
Manufacturer name: Simpson Strong-Tie
Beam size: 5-1/4", 5-1/2"
Additional information:
Width (1): 5-1/2"
Width (2): 7-1/2"
Product Guide: View Spec Sheet
Features
Features
•Certified welds for confidence in strength and loading
•Uplift loads increased for earthquake or wind loading
•Bolt spacing that meets NDS code requirements to ensure optimal performance
•Diamond holes to provide temporary fastening
Installation
Installation
•Use all specified fasteners; see General Notes
•Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2015 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
•Contact engineered wood manufacturers for connections that are not through the wide face
