This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

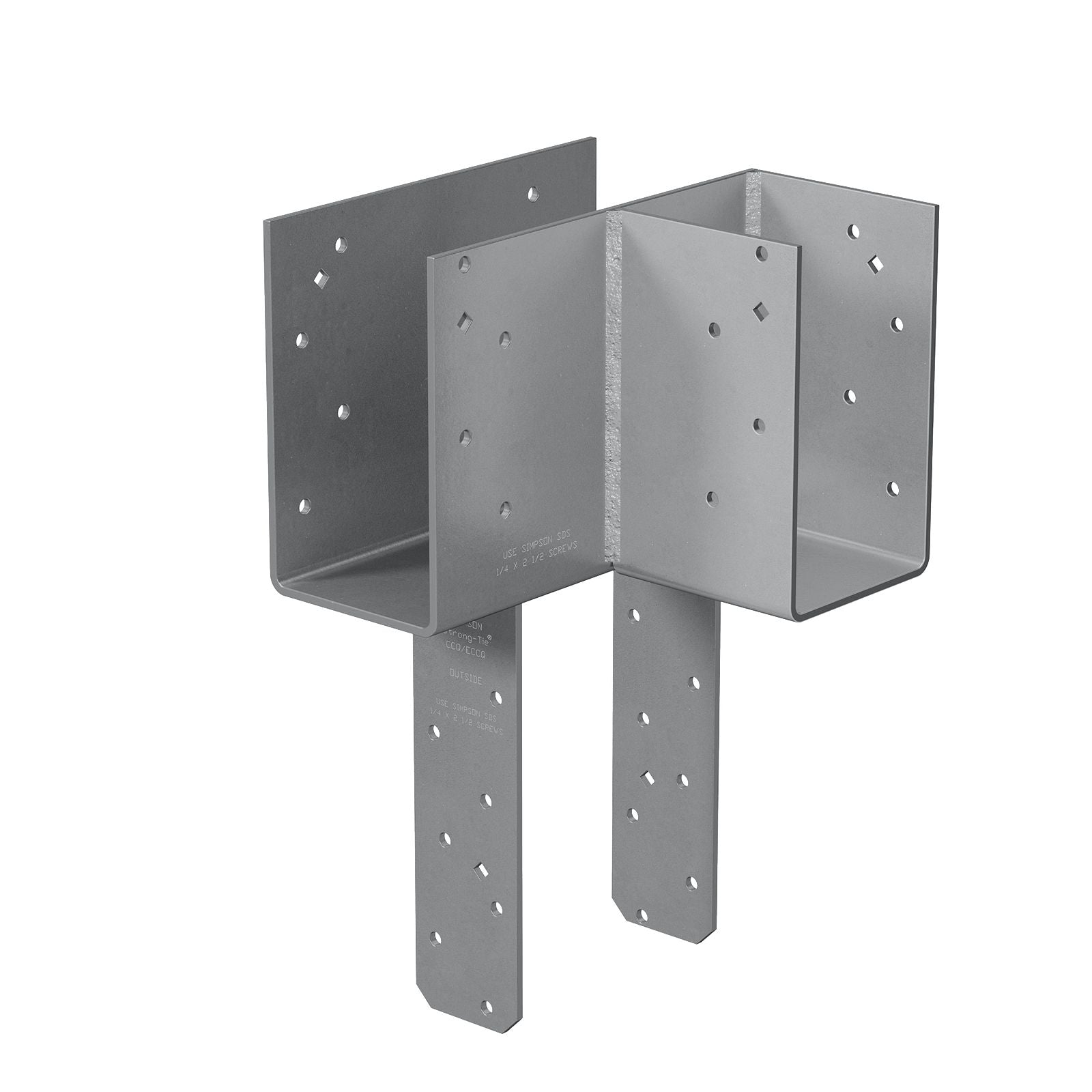

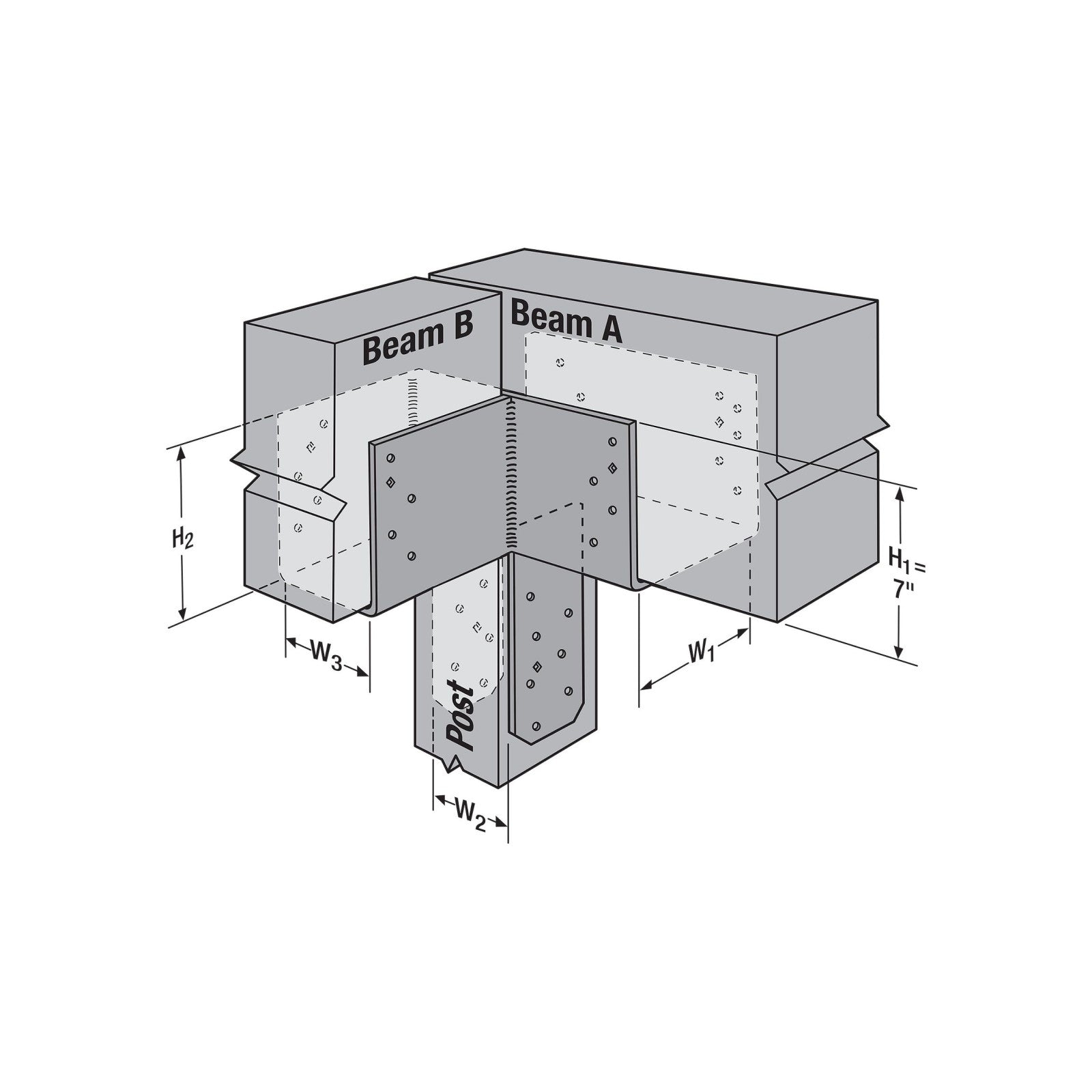

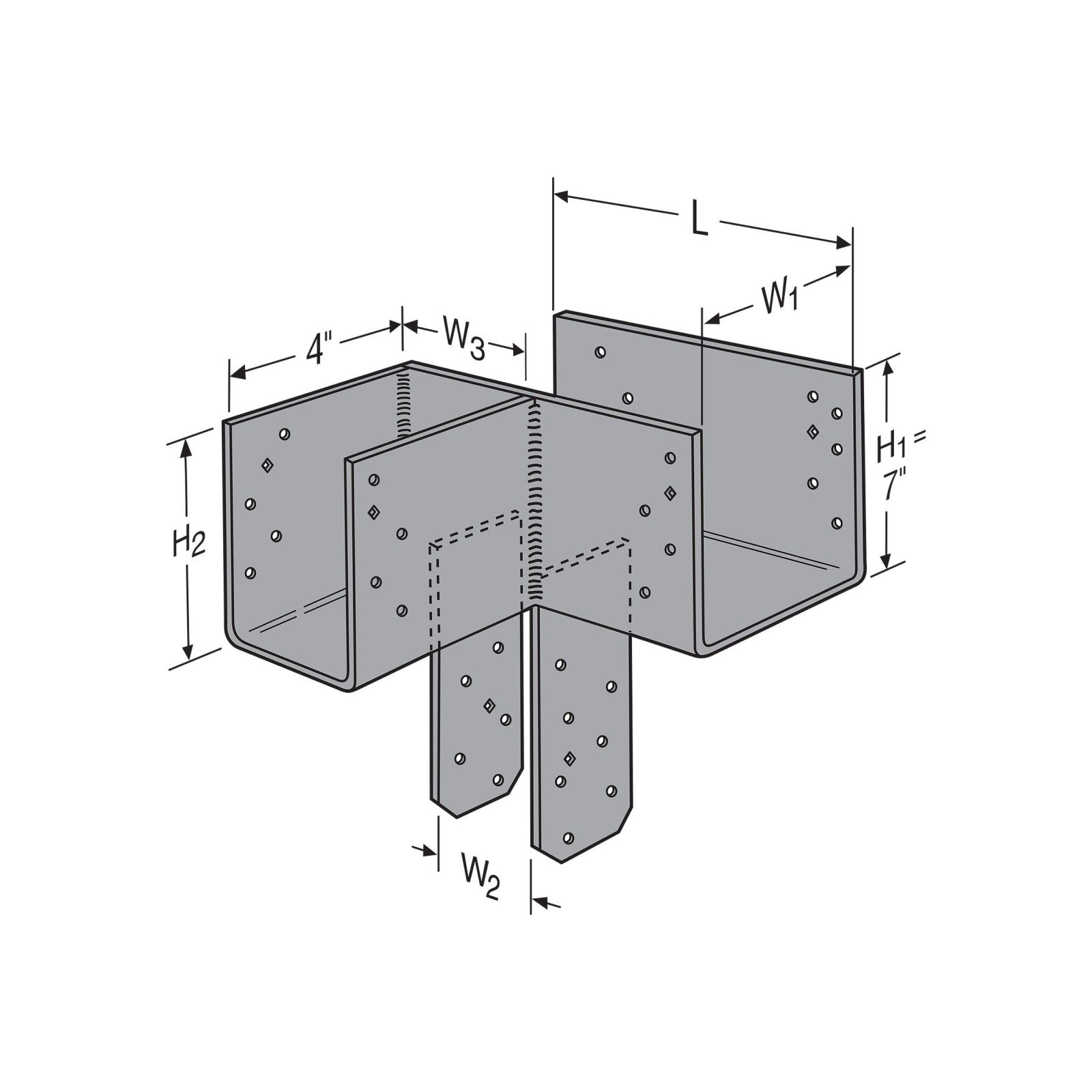

The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an "L" formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ7.1X-SDS comes with Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Features

• 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided.
• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• Diamond holes to provide temporary fastening
• Also available in hot dip galvanized (HDG) finish, please specify when ordering.
• Available in widths up to 8" wide, straps may be rotated, and column caps may be ordered without the column straps for field welding to a steel column.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
