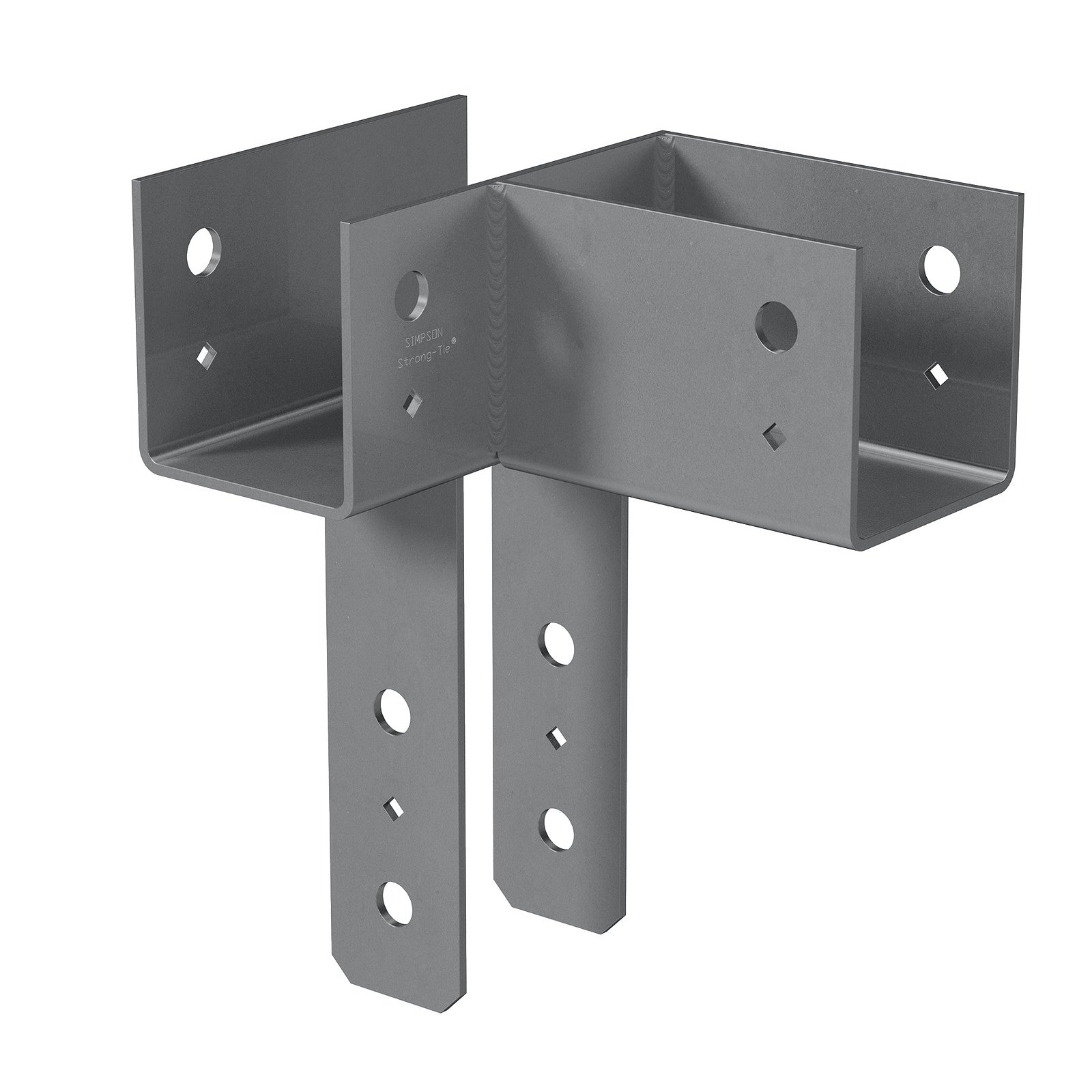

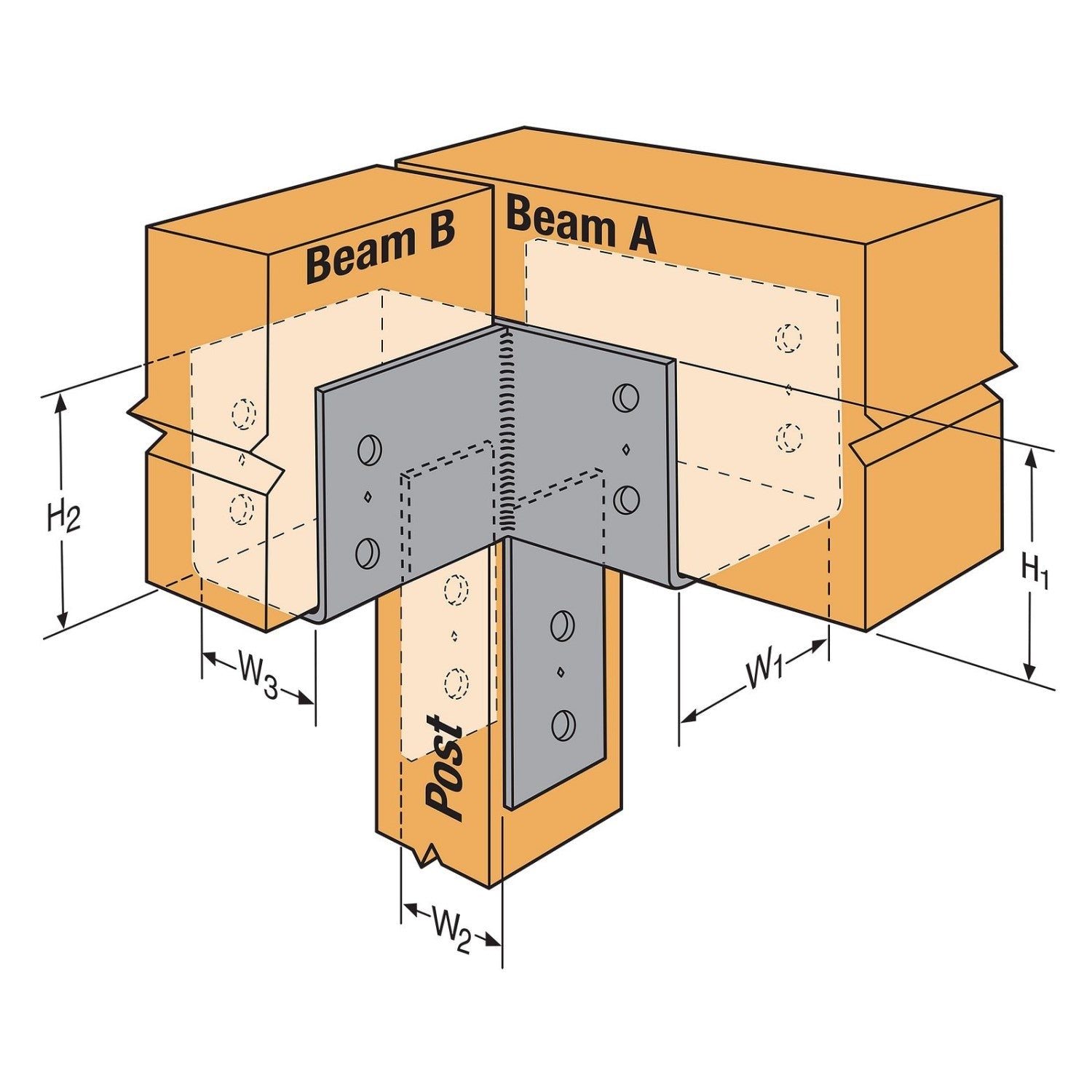

The Simpson Strong-Tie ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

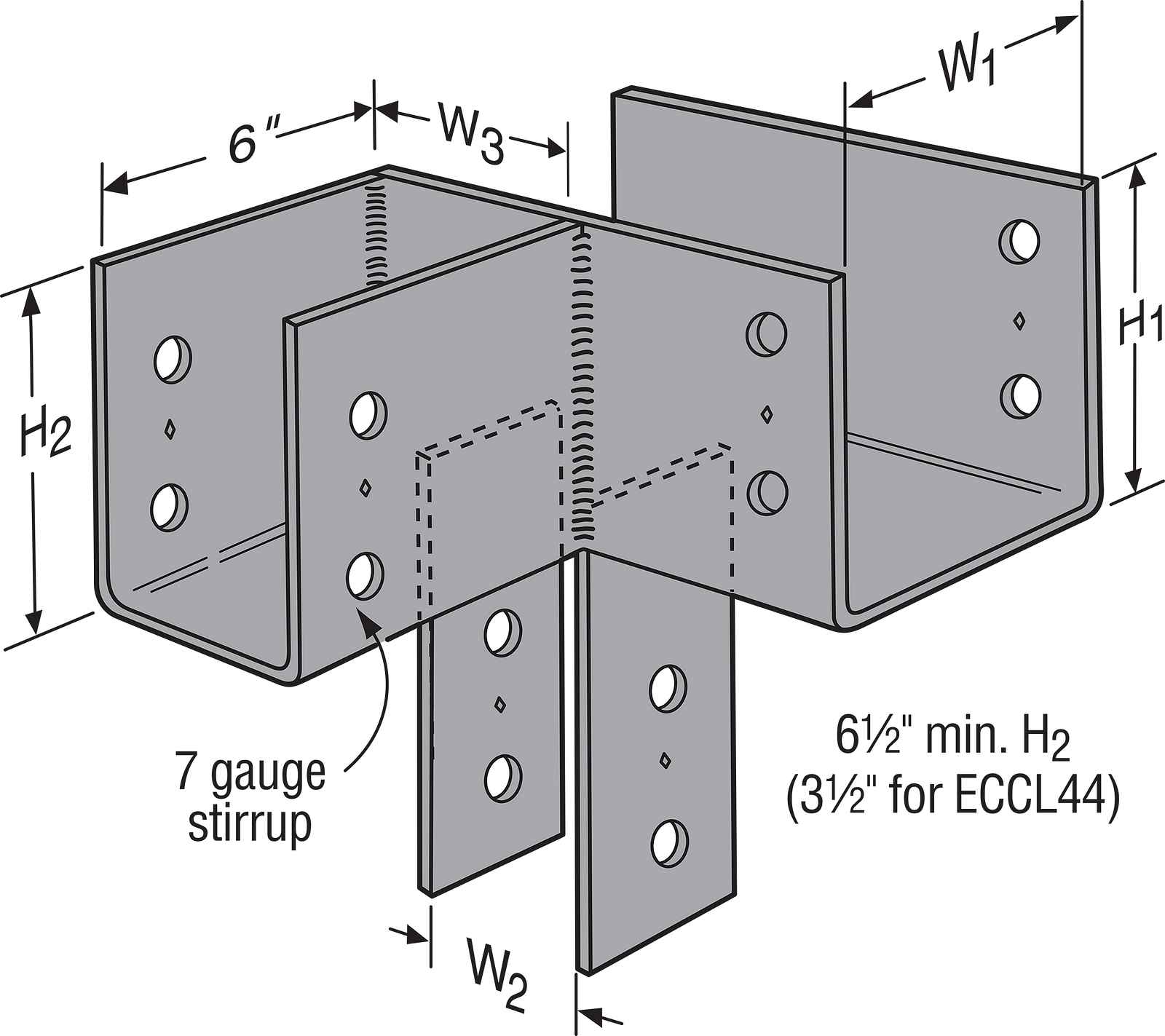

• 7 gauge or 3 gauge depending on size
• Certified welds for confidence in strength and loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening, bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than bolt diameter
• Use all specified fasteners; see General Notes

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
