Simpson ECCO5 1/4HDG End Column Cap Legs Omitted, 7 Gauge
Simpson ECCO5 1/4HDG End Column Cap Legs Omitted, 7 Gauge
Couldn't load pickup availability
Ships in 21-28 business days.
Description:
Description:
Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.
The Simpson ECCO5 1/4HDG End Column Cap Legs Omitted, 7 Gauge enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this end column cap is designed to provide column-to-beam connections in wood construction.
The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection, while the strapless design was created specifically for field welding to a steel column.
This product is intended for use with 5-1/4x beams but is also available in a wide range of other sizes.
Features:
- Connection Type: Provides strong column to beam connection while the strapless design is intended for field welding to a steel column.
- Lumber Size: Intended for use with 5-1/4x beams.
- Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
- Performance: Extended surface area of the column seat provides additional bearing distrubtion for the load.
- Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Use all specified fasteners; see spec sheet.
Thickness: 7 Gauge
Width: 8"
Finish: Gray Paint
Length: 9-1/2"
Manufacturer name: Simpson Strong-Tie
Beam size: 5-1/4x
Product Guide: View Spec Sheet
Stay in touch
This is a dummy newsletter form so don't bother trying to test it. Not that I expect you to, anyways. :)

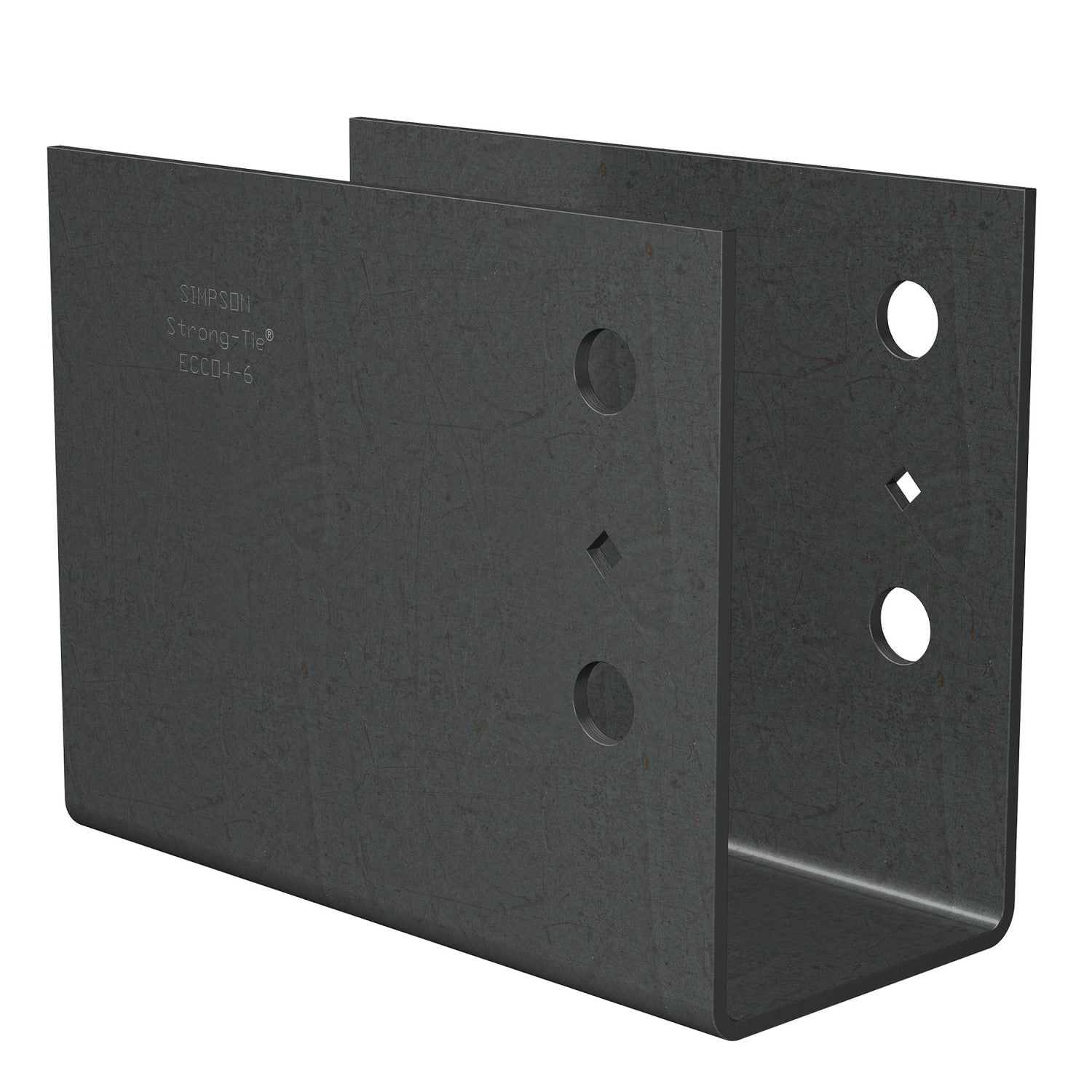

![ECCO End Column Cap Legs Omitted - ECCO4/6 shown](http://www.fastenersplus.com/cdn/shop/products/ECCO4-6_9df27d0f-0436-4d6c-a0df-6f947eda1f8e.jpg?v=1675381217&width=1445)

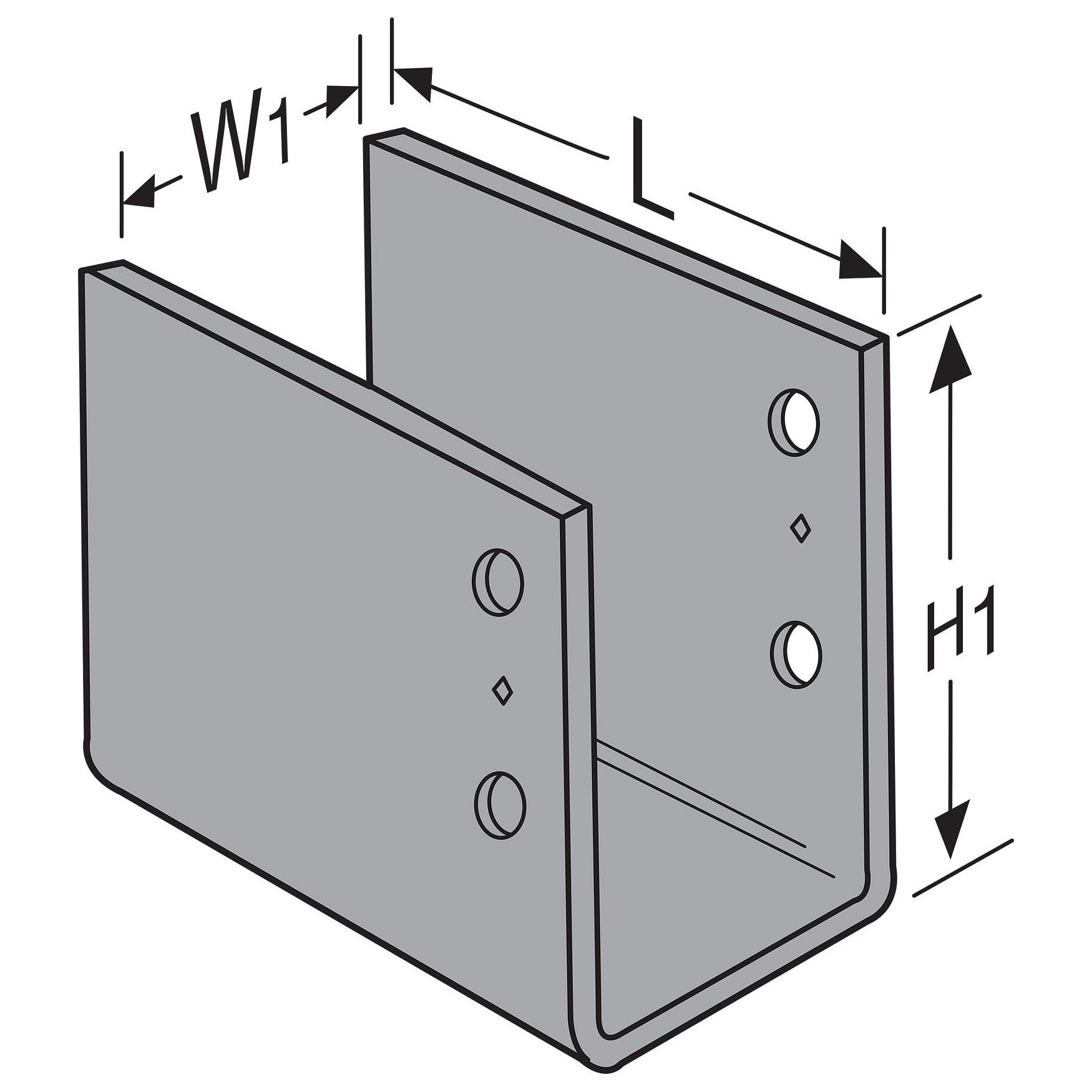

![ECCO End Column Cap Legs Omitted Callout](http://www.fastenersplus.com/cdn/shop/products/ECCO_callout_c0ede5c6-11da-40aa-8ded-0fd21656e319.jpg?v=1675381217&width=1445)
