Shop more ECCQ End Column Caps
SKU: ECCQ46SDS2.5

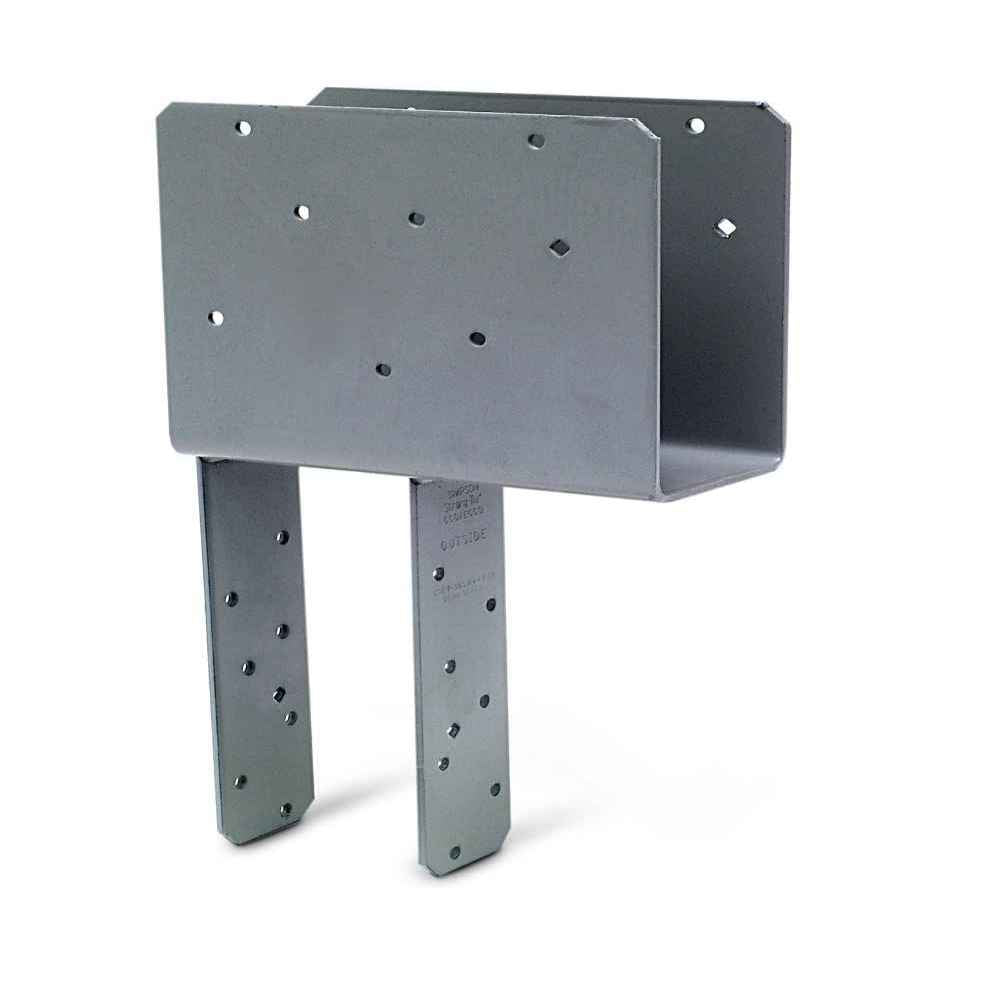

Simpson ECCQ46SDS2.5 End Column Cap w/SDS Screws - Gray Paint

Simpson ECCQ46SDS2.5 End Column Cap w/SDS Screws - Gray Paint

Regular price $114.20
Sale price $114.20 Regular price $126.89
10% off
shipping truck, lead time icon
Ships Apr 22 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie ECCQ End Column caps provide a high-capacity connection for column-beam combinations. This design uses Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and provides a greater net section area of the column compared to bolts. The SDS screws provide for a lower profile compared to standard through bolts. The Strong-Tie ECCQ46SDS2.5 post base features a Gray Paint finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

    Installation:
    • Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
    • CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
    • For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson ECCQ End Column Caps.


    California Residents: WARNING

    Specifications:


    Post Size: 6X
    Fasteners required: All Fasteners Included
    Thickness: 7 Gauge
    Finish: Gray Paint
    Manufacturer name: Simpson Strong-Tie
    For Treated Lumber: No
    Beam size: 4X
    Product Guide: View Spec Sheet

    Installation

    -Install 1/4"x2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.)
    -CCOQ and ECCOQ column cap only (no straps) may be ordered for field-welding to pipe or other columns. Dimensions are same as CCQ and ECCQ.
    -For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)
