SKU: ECCU 5/8

Simpson ECCU 5/8 End Column Cap with Uplift

Name: Simpson ECCU 5/8 End Column Cap with Uplift
SKU: ECCU 5/8
Availability: InStock

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is custom, made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

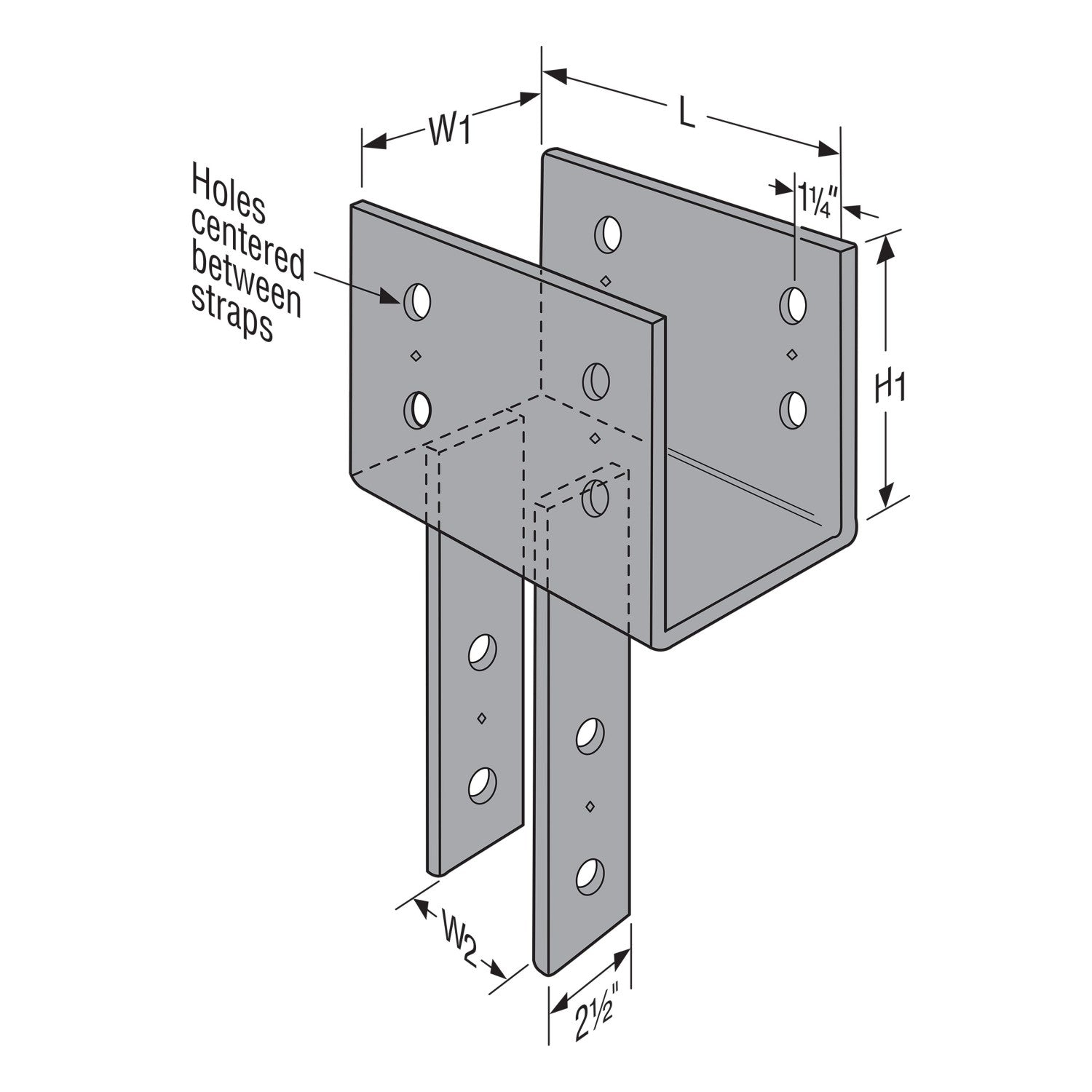

The ECCU End Column Cap with Uplift is designed for column-beam connections in end-of-beam applications requiring uplift values and helps to distribute the load from the beam and provide support for the connection. The seat of the column cap provides additional surface area for bearing that extends beyond one side of the column.

Certified welds for confidence in strength and loading
Uplift loads increased for earthquake or wind loading
Bolt spacing that meets NDS code requirements to ensure optimal performance
Diamond holes to provide temporary fastening
Straps may be rotated 90° where W1 ≥ W2.
For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)

California Residents: WARNING

Specifications

Material: Steel

Manufacturer Name: Simpson Strong-Tie

Fasteners Required: Use all specified fasteners.

View Spec Sheet

Simpson Strong-Tie Limited Warranty
