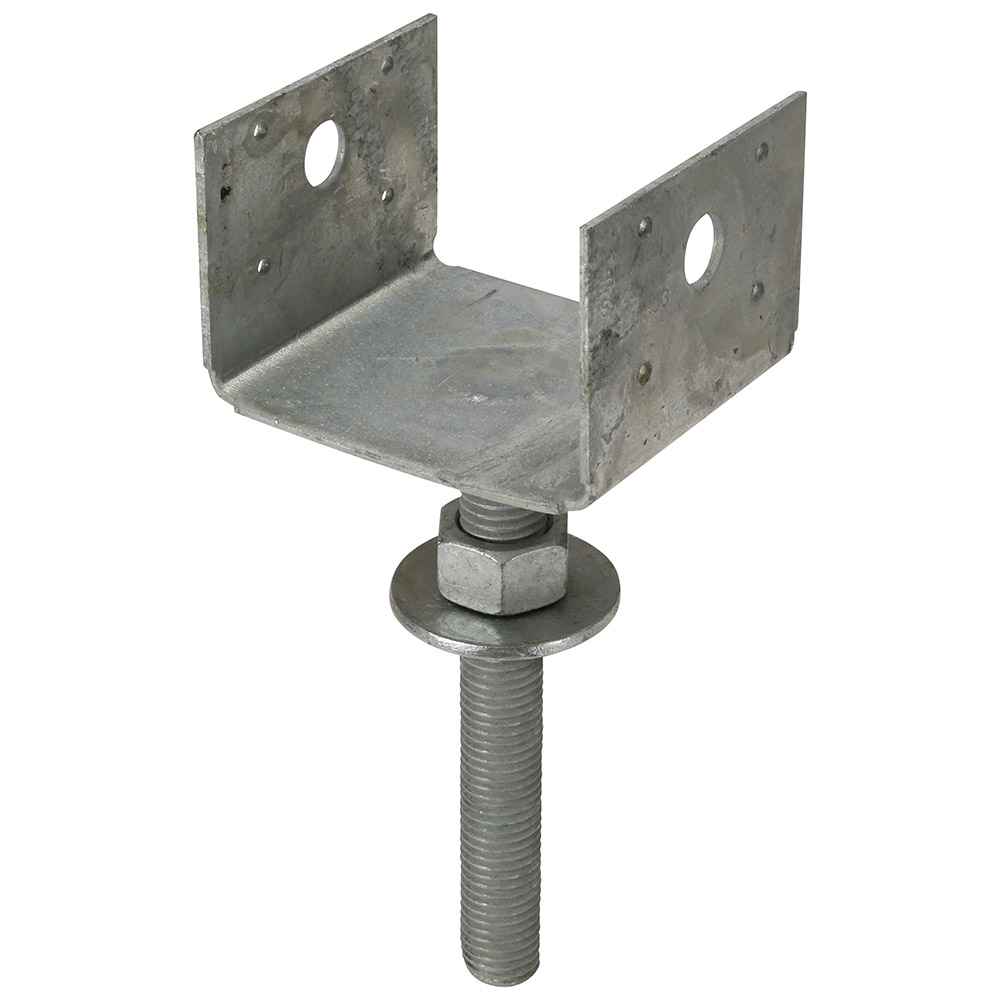

Simpson EPB44PHDG 4x4 Elevated Post Base - Hot Dip Galvanized

SKU: EPB44PHDG
$16.49

The Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB44PHDG elevated post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).


Installation:
  • Use all specified fasteners.
  • Secured with Anchoring Adhesive: Drill a 7/8" diameter hole 4" deep minimum and fill the hole halfway with SET epoxy or drill a 13/16" diameter hole 4" deep minimum and fill the hole halfway with AT adhesive. Insert the EPB44PHDG and adjust to the desired height. The threaded rod shall be embedded a mimimum of 3 1/2". Minimum sidecover is 3" from the center of the threaded rod for both products.
  • See additional information on hole cleaning procedures and cure time for SET-XP® and AT-XP® anchoring adhesives.
  • Supported by a Nut: Drill a 1" diameter hole 3 1/2" deep minimum. Insert the EPB44PHDG and adjusts to the desired height.
  • Cast-in Place: Embedded end to have a nut and bearing plate with a minimum embedment of 4" from top of concrete to the top of plate.
  • Minimum sidecover is 3" from the center of the threaded rod.
  • Fully engage at least three threads in the base.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Elevated Post Bases.


California Residents: WARNING

The Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB44PHDG elevated post base f...

Read More

The Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB44PHDG elevated post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).


Installation:
  • Use all specified fasteners.
  • Secured with Anchoring Adhesive: Drill a 7/8" diameter hole 4" deep minimum and fill the hole halfway with SET epoxy or drill a 13/16" diameter hole 4" deep minimum and fill the hole halfway with AT adhesive. Insert the EPB44PHDG and adjust to the desired height. The threaded rod shall be embedded a mimimum of 3 1/2". Minimum sidecover is 3" from the center of the threaded rod for both products.
  • See additional information on hole cleaning procedures and cure time for SET-XP® and AT-XP® anchoring adhesives.
  • Supported by a Nut: Drill a 1" diameter hole 3 1/2" deep minimum. Insert the EPB44PHDG and adjusts to the desired height.
  • Cast-in Place: Embedded end to have a nut and bearing plate with a minimum embedment of 4" from top of concrete to the top of plate.
  • Minimum sidecover is 3" from the center of the threaded rod.
  • Fully engage at least three threads in the base.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson Elevated Post Bases.


California Residents: WARNING

Show Less

finish spec:
Hot Dip Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
(8) 0.162" x 3-1/2" Nails

for treated lumber:
yes

thickness:
12 Gauge
