SKU: EPB44-12HDG

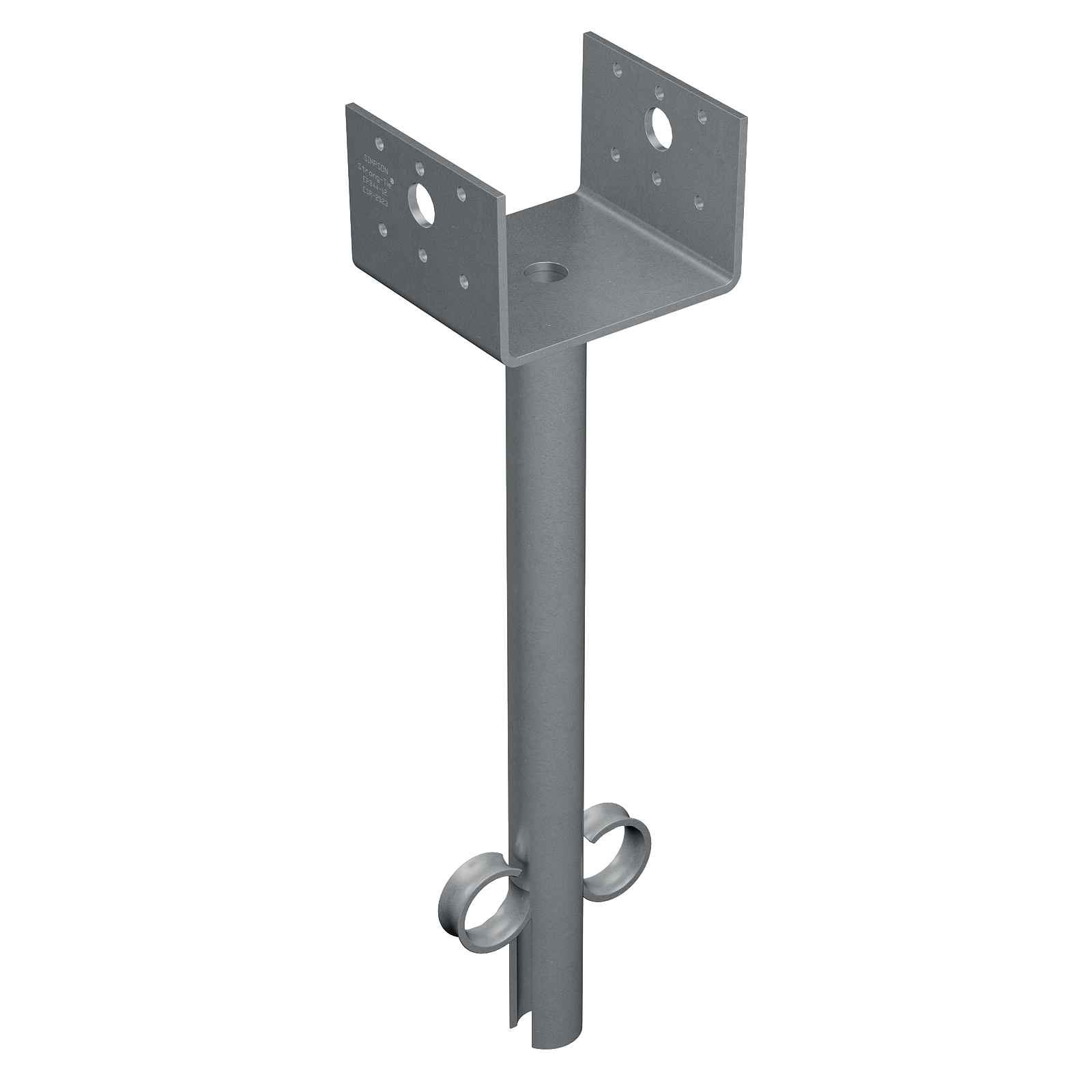

Simpson EPB44HDG-12 4x4 Elevated Post Base W/12 Inch Pipe - Hot Dip Galvanized

Simpson EPB44HDG-12 4x4 Elevated Post Base W/12 Inch Pipe - Hot Dip Galvanized

Regular price $34.97
Sale price $34.97 Regular price
0% off
Ships in 21-28 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Strong-Tie EPB elevated post bases are designed to allow a 1" to 2-1/2" clearance above concrete. The Strong-Tie EPB44-12HDG elevated post base features a hot-dip galvanized coating. The minimum average coating weight is 2.0 oz./ft2 (per ASTM A123 total both sides). This product requires hot-dip galvanized fasteners (fasteners which meet the specifications of ASTM A153).


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:

Material: Galvanized Steel
Post Size: 4 X 4
Height: 2-5/16"
Fasteners required: (8) 0.162" x 3-1/2" Nails
Thickness: 12 Gauge
Quantity: 1
Width: 3-9/16"
Finish: Hot Dip Galvanized
Length: 3-1/4"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Installation

• Use all specified fasteners.
• Supported by a Nut: Drill a 1" diameter hole 3 1/2" deep minimum. Insert the EPB44PHDG and adjusts to the desired height.
• Cast-in Place: Embedded end to have a nut and bearing plate with a minimum embedment of 4" from top of concrete to the top of plate.
• Minimum sidecover is 3" from the center of the threaded rod.
• Fully engage at least three threads in the base.
• Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
