Simpson GHD66-6 Top-Flange Girder Hanger
Simpson GHD66-6 Top-Flange Girder Hanger
Description:
Description:
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product.

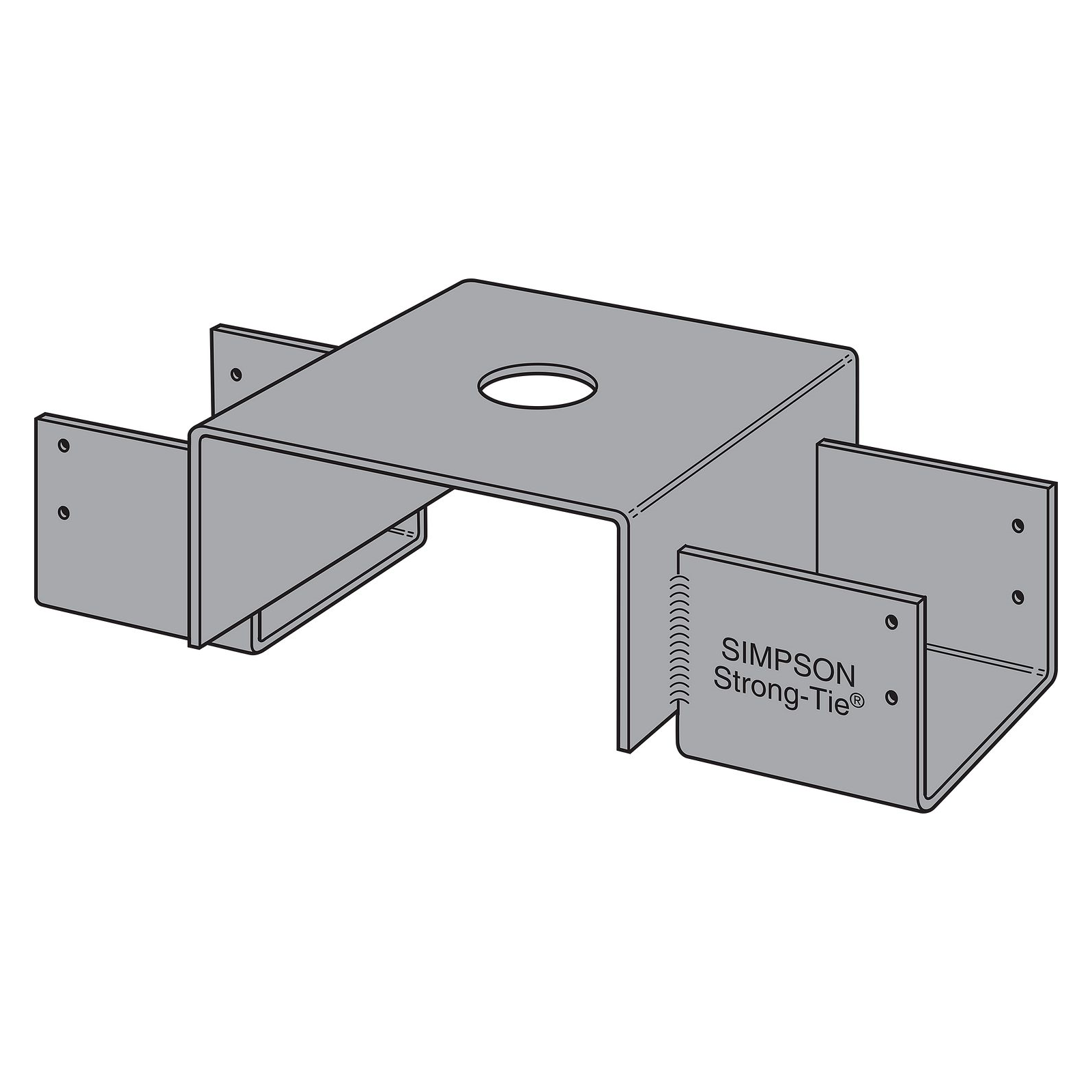

The GHD is a girder-to-foundation wall connection. A mudsill on top of the GHD is required to achieve the table loads. Available in Hot Dip Galvanized, specify when ordering. For no saddle-style hangers or for skewed options, please see our non-saddle style GH Girder Top-Flange Hangers.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: (4) 0.162 x 3-1/2
Thickness: 12 Gauge
Width: 5-1/2"
Finish: Gray Paint
Length: 8
Girder size: 6x6
Product Guide: View Spec Sheet
Installation
Installation
• Insert four 0.162" x 3 1/2" nails into girder.
• H = girder height – mudsill thickness. Measurement is from the bottom of the top flange to the top of the seat.
• 1 1/2" clearance hole accommodates rebar or anchor. This is not required.
