SKU: HB2.56/22

Simpson HB2.56/22 Top Flange I-Joist Hanger - G90 Galvanized

Simpson HB2.56/22 Top Flange I-Joist Hanger - G90 Galvanized!

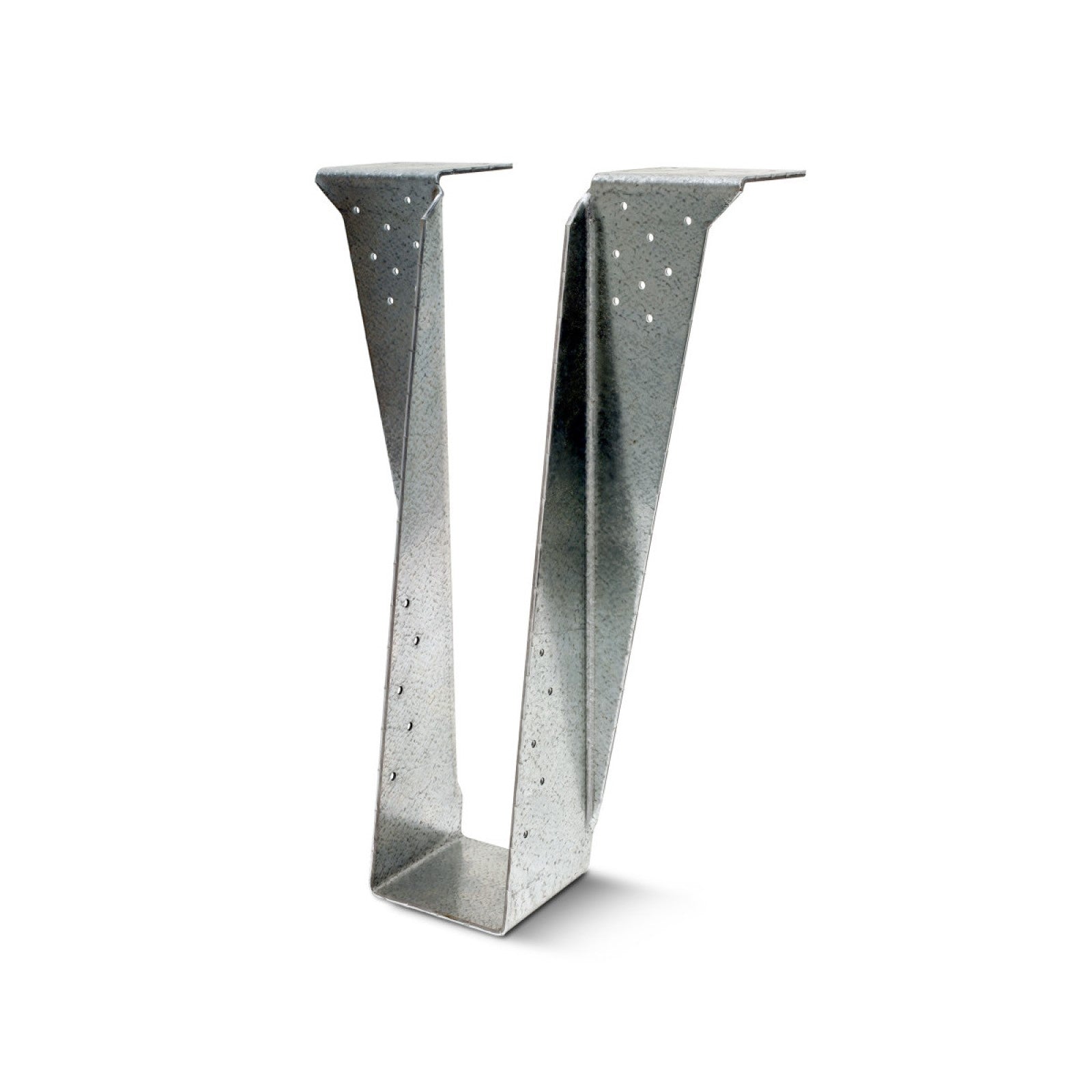

  • HB Heavy Beam Hanger

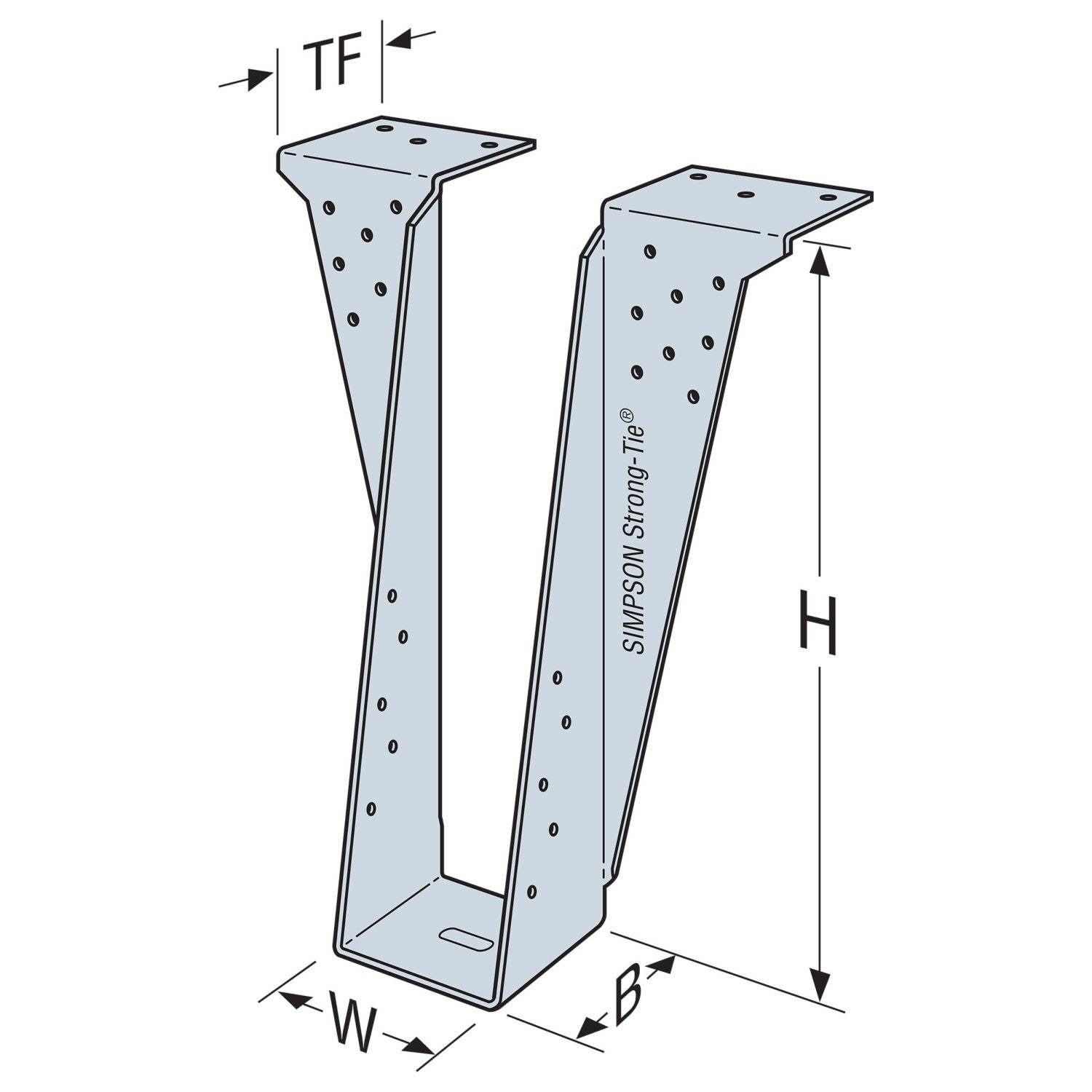

  • HB Heavy Beam Hanger Callout

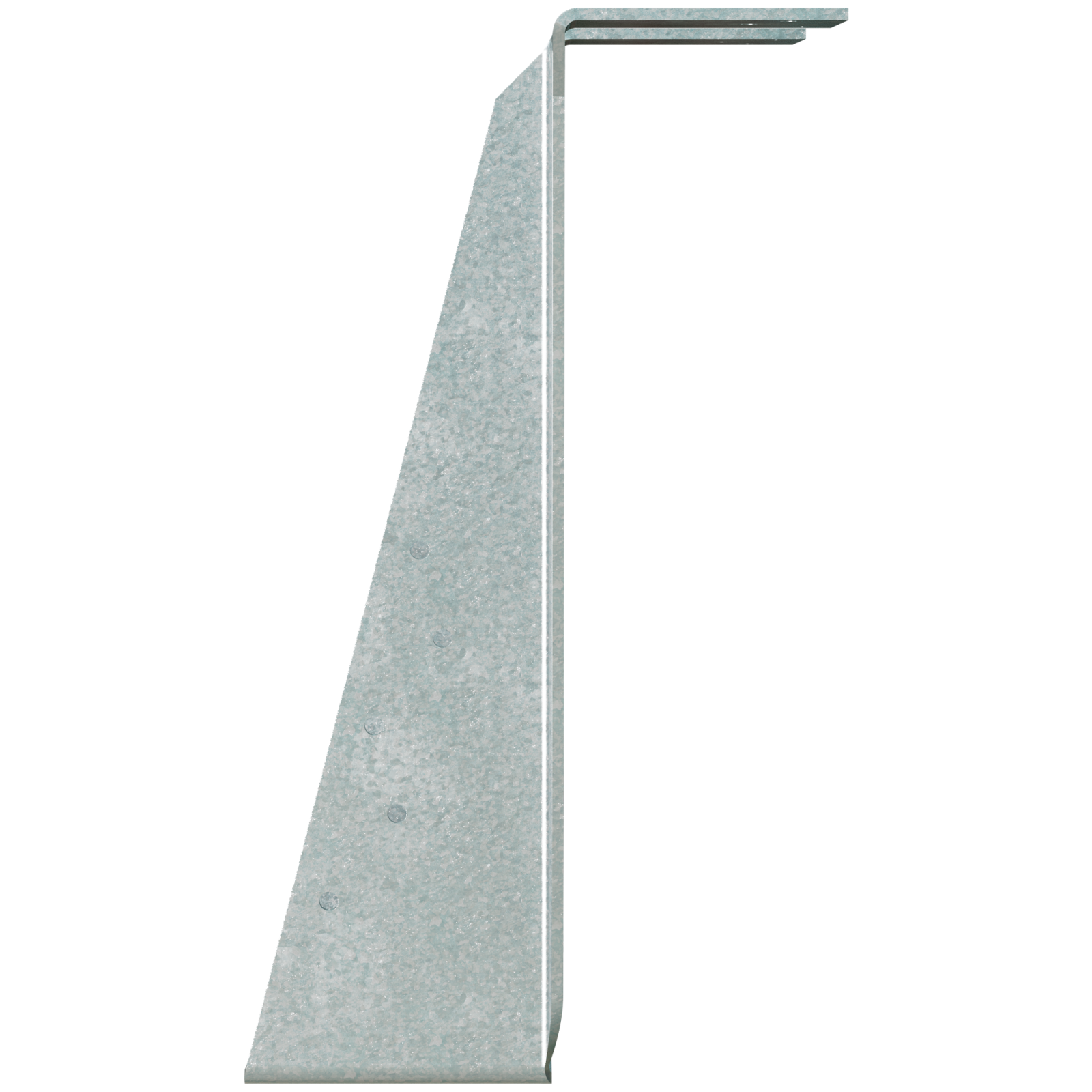

  • HB Heavy Beam Hanger - Side View
1 3

Continue Browsing

HB I-Joist & SCL Hangers
SKU: HB2.56/22

Simpson HB2.56/22 Top Flange I-Joist Hanger - G90 Galvanized

$80.50

Request Bulk Pricing
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: See Spec Sheet; fastner requirements are based on ordered width
Height: 22"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 10 Gauge
Width: 2-9/16"
Description
  • This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

    • The Simpson HB Heavy Beam Hanger is a top-flange hanger made for solid sawn and engineered wood applications that require the ability to support medium to heavy loads. A full-height joist flange on this substantial beam hanger catches the top chord of the joist to stop rotation. The HB is a one-piece design that offers a less expensive alternative to welded hangers. These hangers come in a galvanized finish, but hot-dip galvanizing is available; please specify HDG when ordering.
