SKU: HB7.12/11.25

Simpson HB7.12/11.25 Top Flange I-Joist Hanger - G90 Galvanized

Simpson HB7.12/11.25 Top Flange I-Joist Hanger - G90 Galvanized!

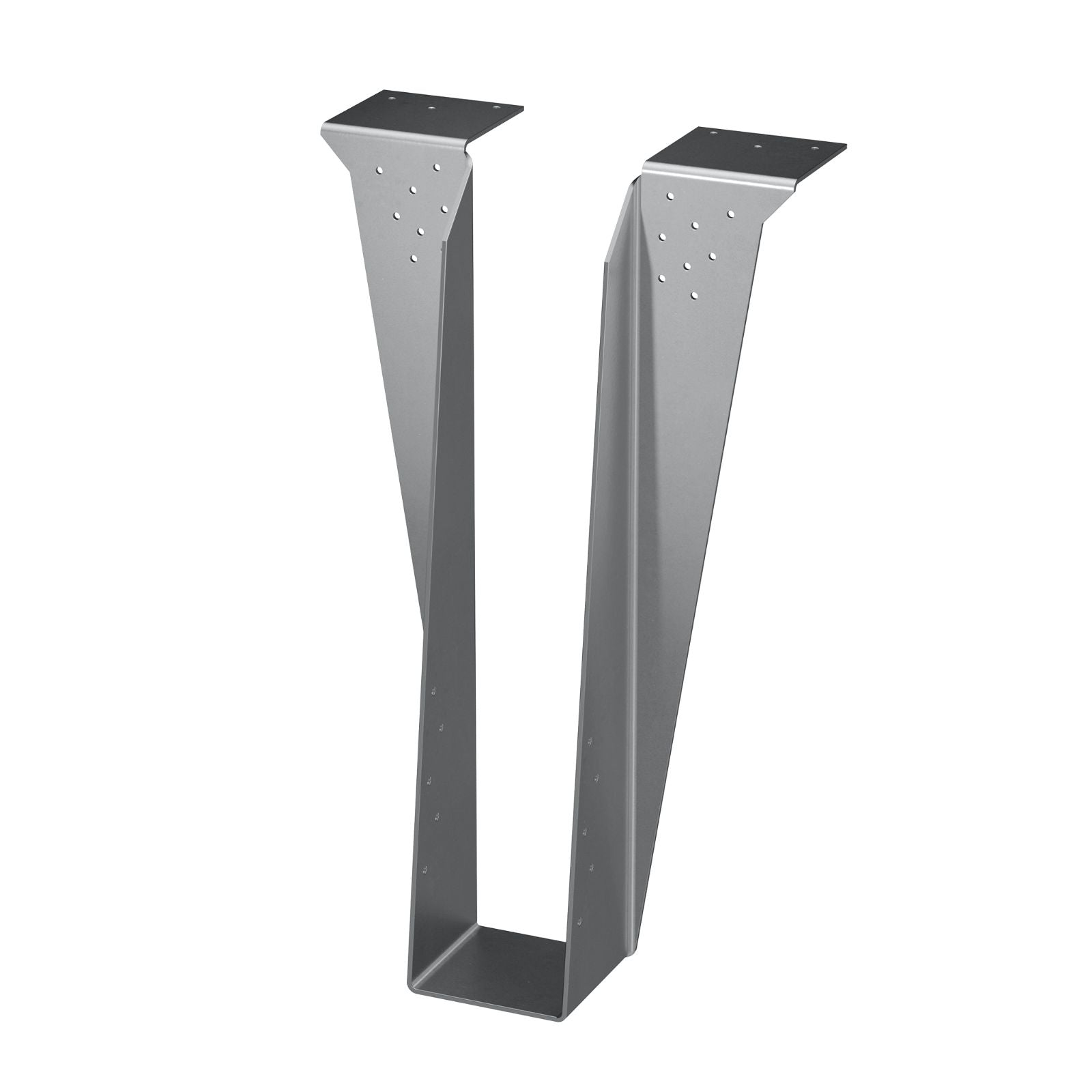

  • Simpson HB7121125 Top Flange IJoist Hanger G90 Galvanized image 1 of 2
  • Simpson HB7121125 Top Flange IJoist Hanger G90 Galvanized image 2 of 2
1 2

Continue Browsing

HB I-Joist & SCL Hangers
SKU: HB7.12/11.25

Simpson HB7.12/11.25 Top Flange I-Joist Hanger - G90 Galvanized

$47.09

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Header - (22) 0.162" x 3-1/2" Nails Joist - (10) 0.162" x 3-1/2" Nails
For Treated Lumber: No
Height: 11-1/4"
Joist size: 7" X 11-1/4"
Manufacturer name: Simpson Strong-Tie
Width: 7-1/8"
Description

The newly improved Simpson Strong-Tie HB hangers offer wide versatility for I-joists and structural composite lumber. The enhanced load capacity widens the range of applications for these hangers. The Strong-Tie HB7.12/11.25 top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153


Installation:
  • Use all specified fasteners.
  • LBV, B, BA and HB may be used for weld-on applications. Weld size to match material thickness (approximate thickness shown). The minimum required weld to the top flanges is 1/8" x 2" fillet weld to each side of each top flange tab for 14 and 12 gauge and 3/16" x 2" fillet weld to each side of each top flange tab for 7 gauge and 10 gauge. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. Weld on applications produce the maximum allowable down load listed.
  • B and HB hangers require the use of web stiffeners. BA MIN nailing does not require web stiffeners. BA MAX nailing requires the use of web stiffeners.

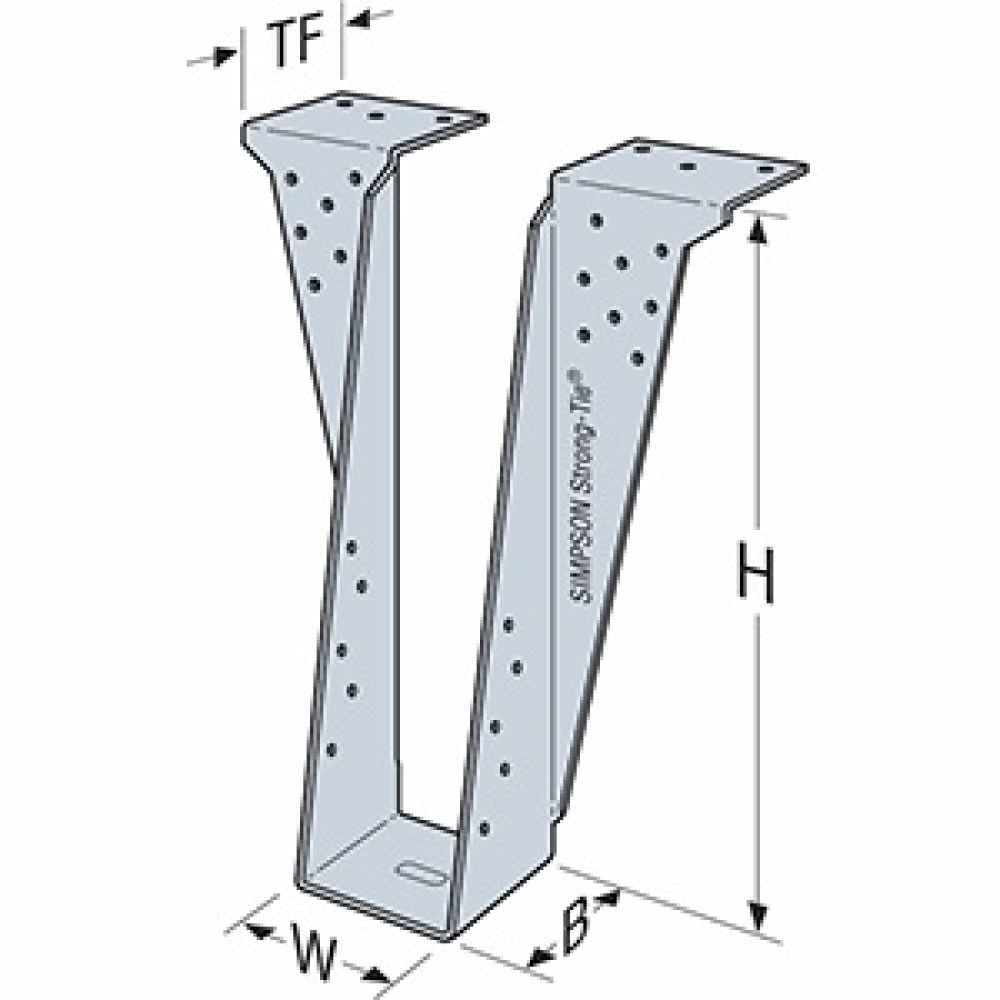

  • Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
