Shop more HCP Hip Corner Plate
SKU: HCP2Z
Simpson HCP2Z Hip Corner Plate - Zmax Finish
Simpson HCP2Z Hip Corner Plate - Zmax Finish
No reviews
Regular price
$6.01
Sale price
$6.01
Regular price
Unit price
/
per
0% off
Ships today when you order in the next
1 hour
46 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:

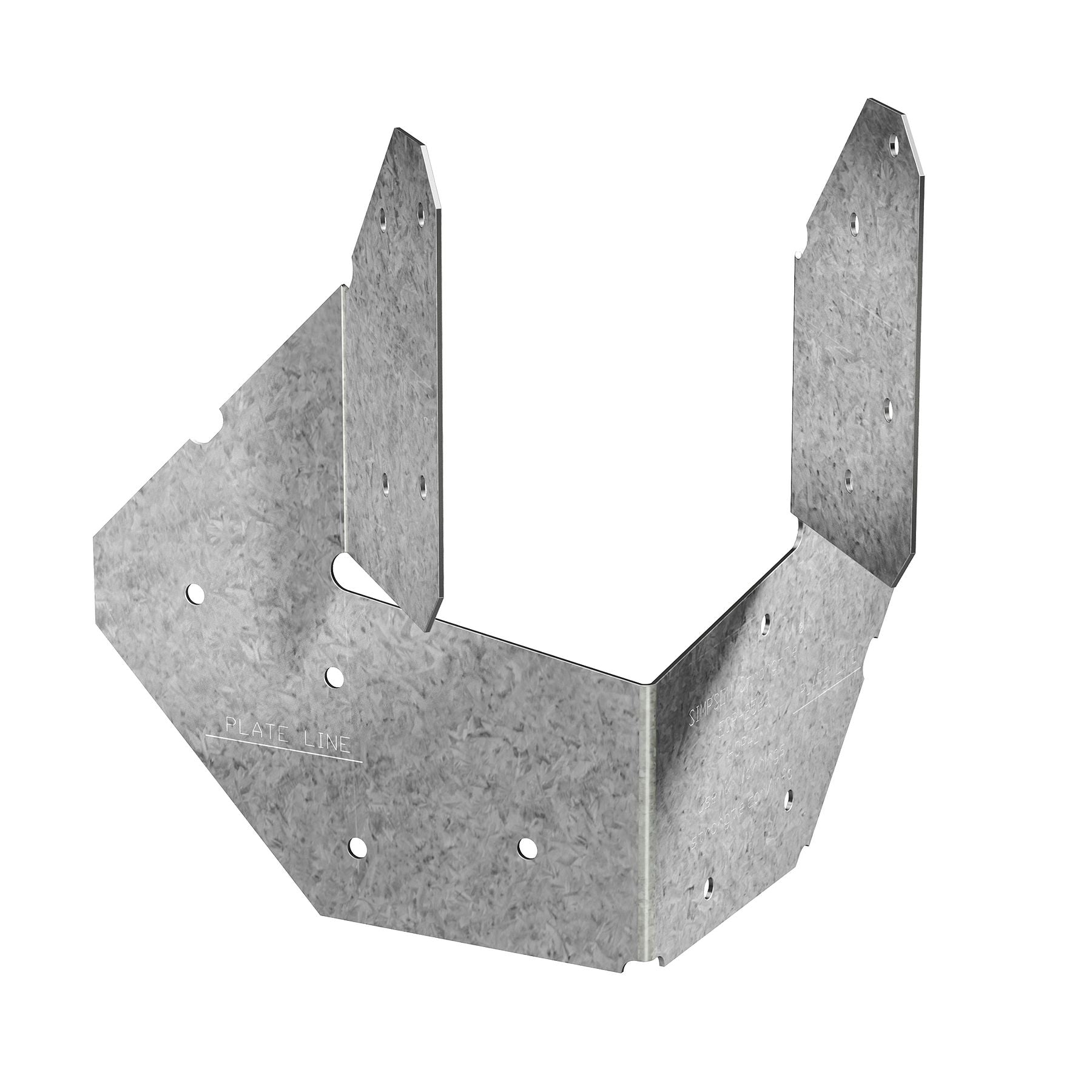

The Simpson HCP Hip Corner Plate connects a rafter or joist to double top plates at a 45° angle.

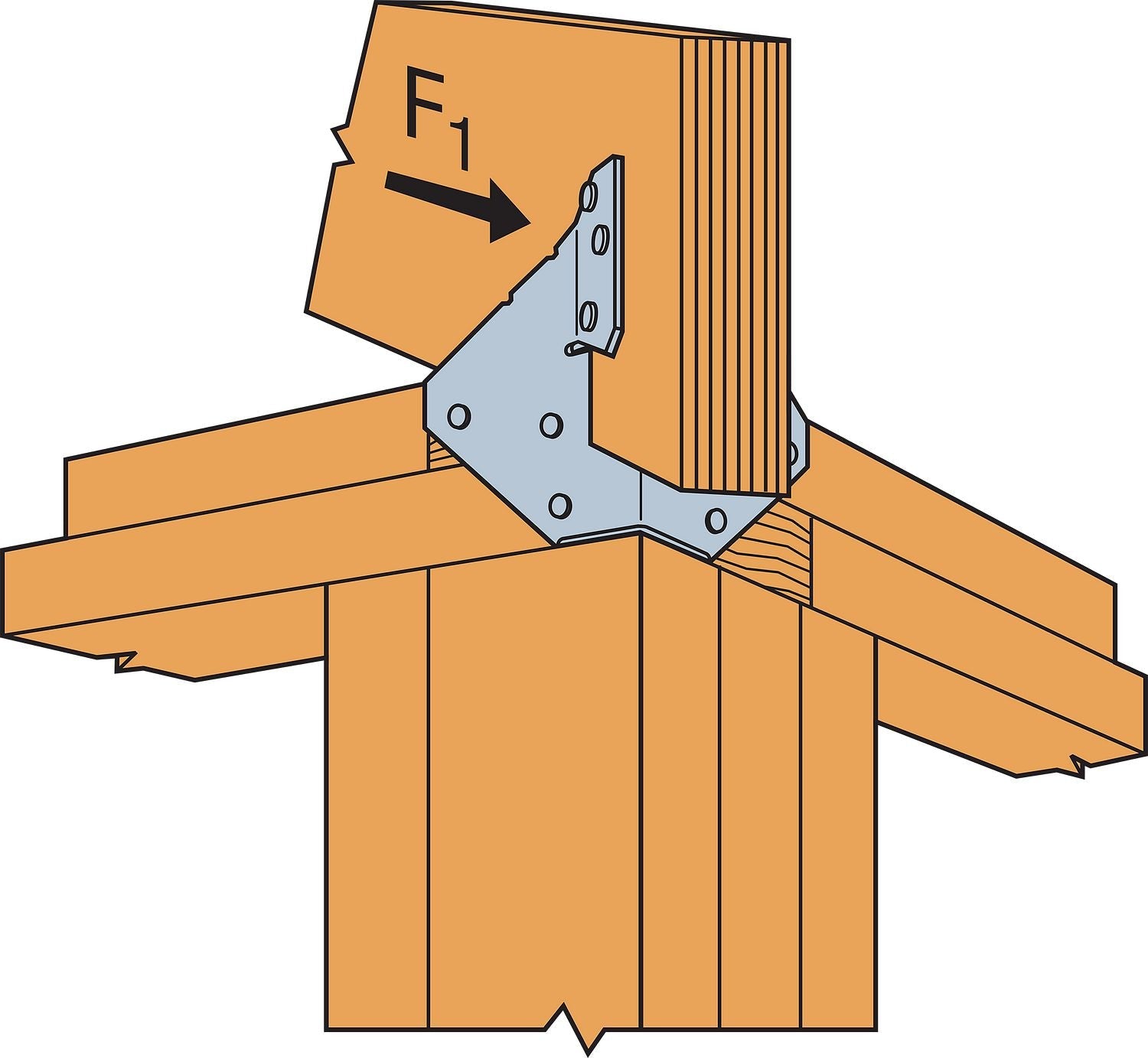

Installation
- Use all specified fasteners; see General Notes.
- Attach HCP to double top plates.
- Birdsmouth not required for table uplift loads but may be required for download.
- Install rafter and complete nailing. Rafter may be sloped to 45°.
California Residents: WARNING
Specifications:
Specifications:

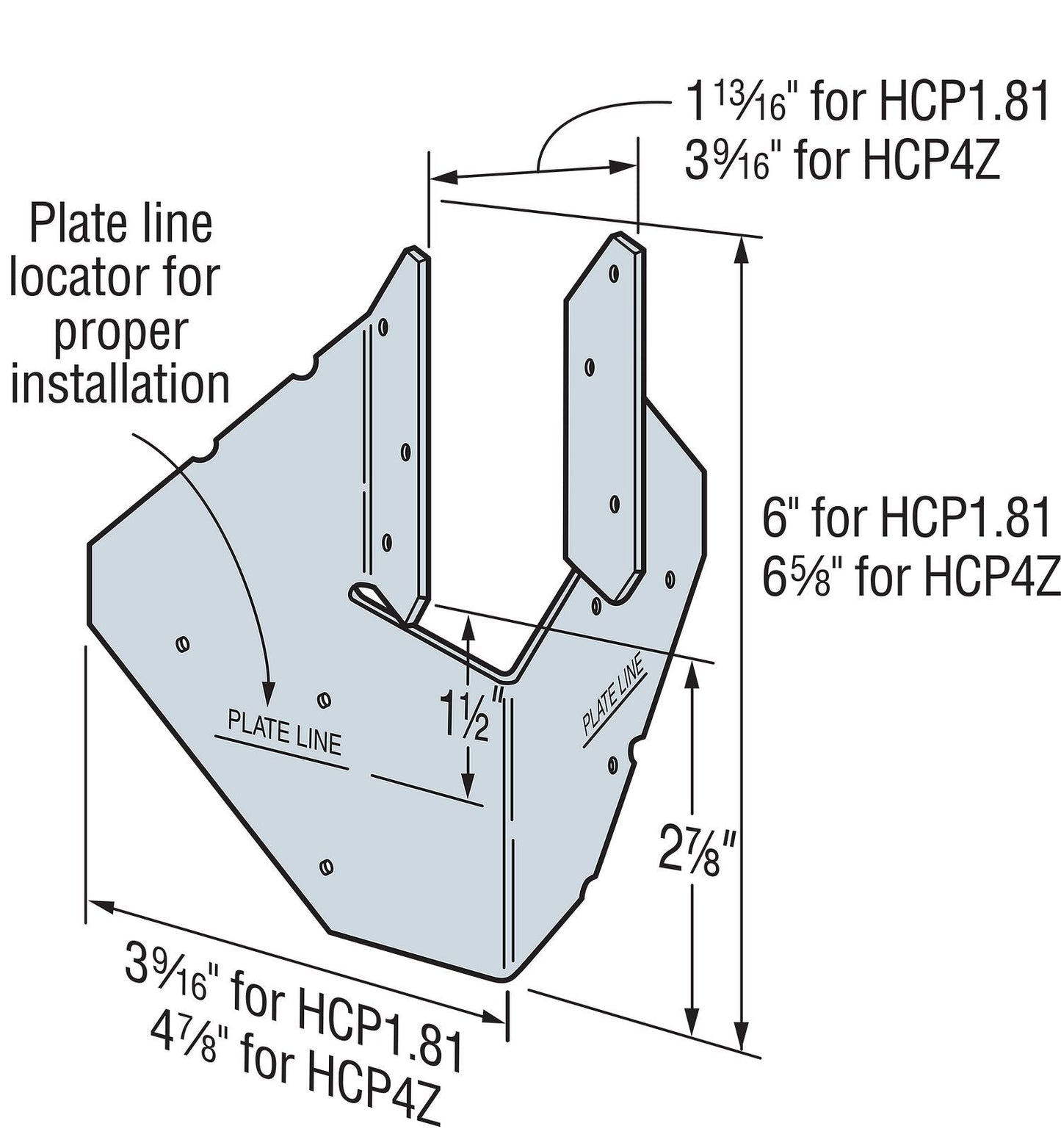

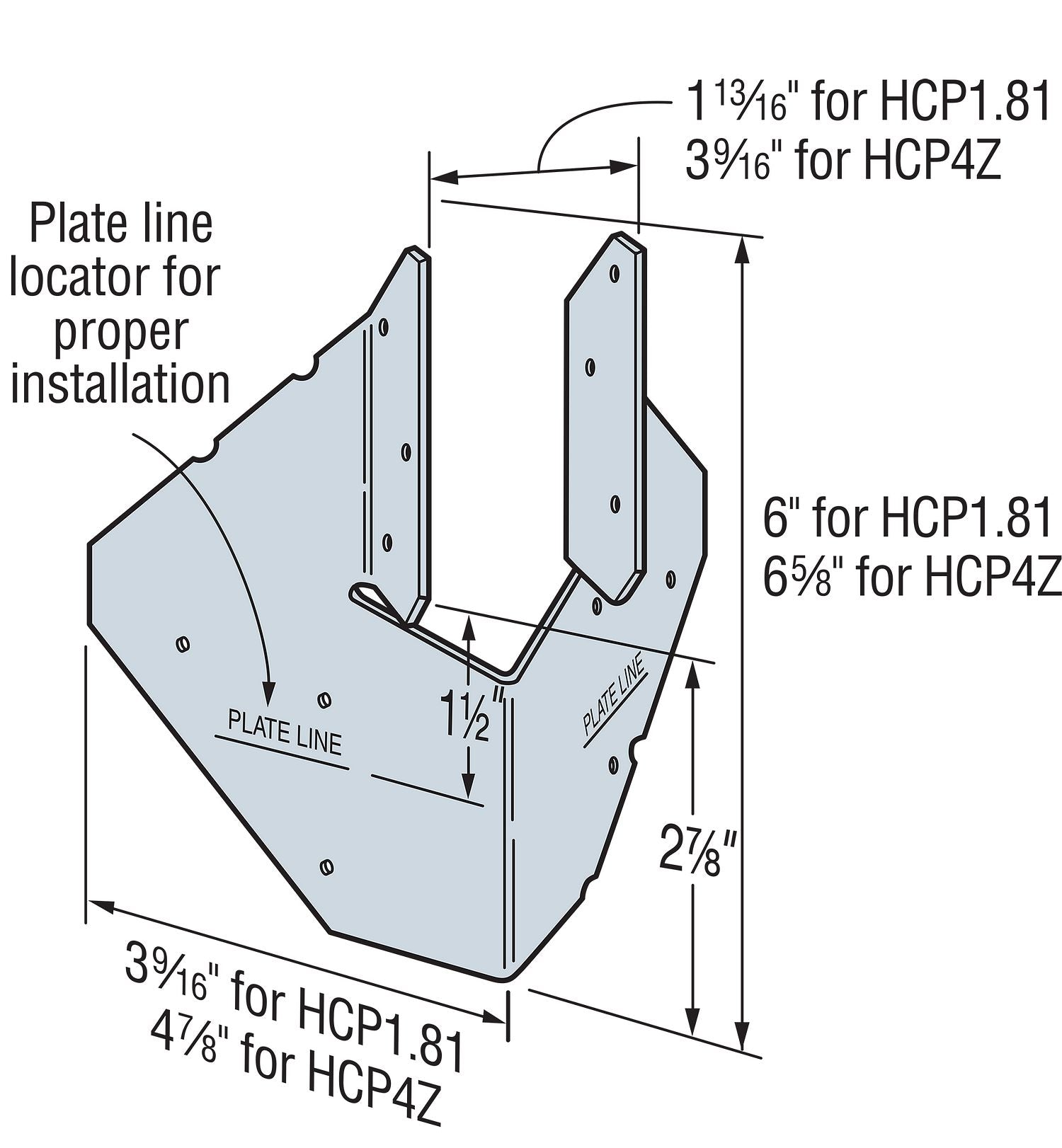

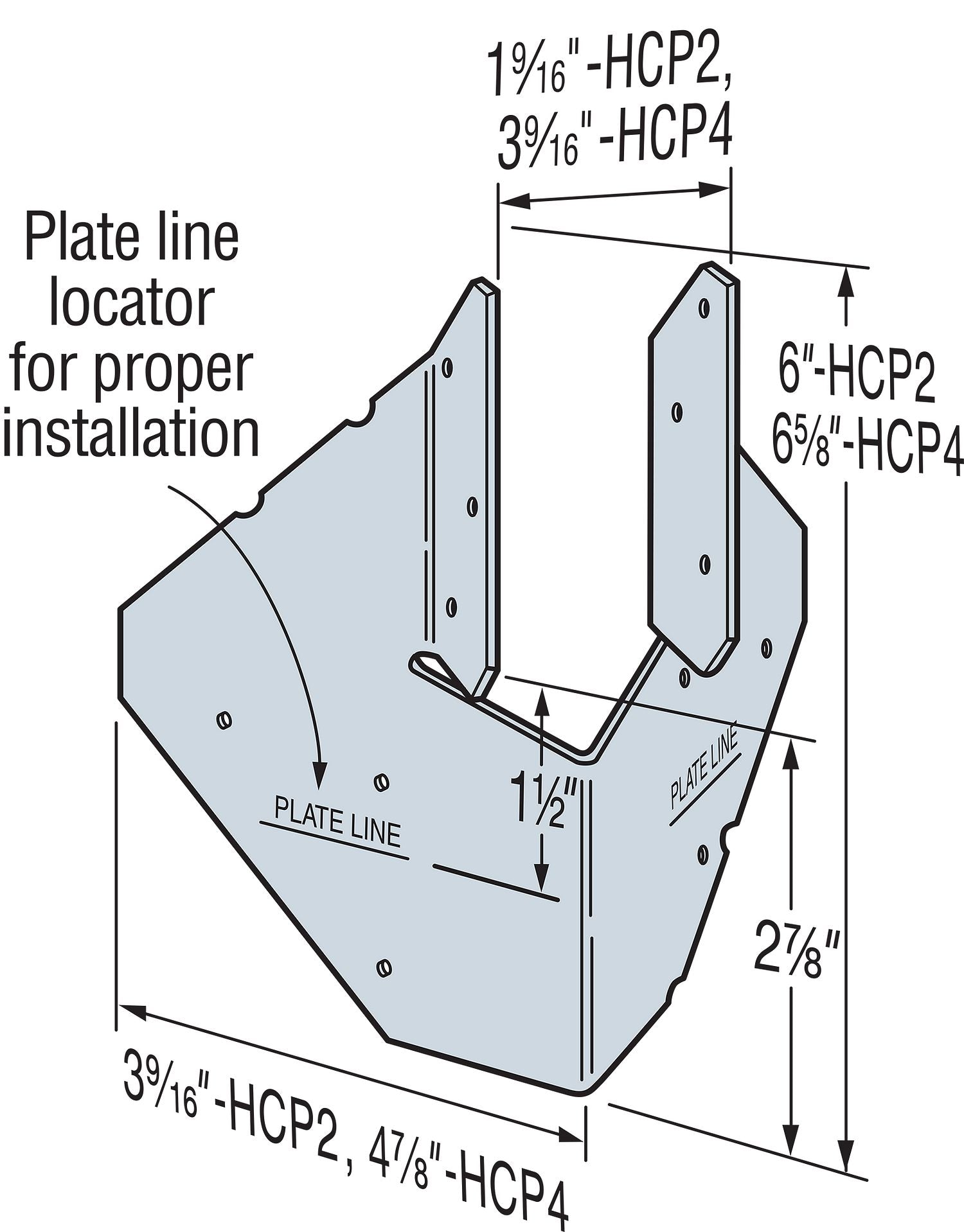

Height: 6-5/8"
Fasteners required: Rafters: (8) 0.148x3" Plates: (8) 0.148x3"
Thickness: 18 Gauge
Manufacturer name: Simpson Strong-Tie Company Inc
