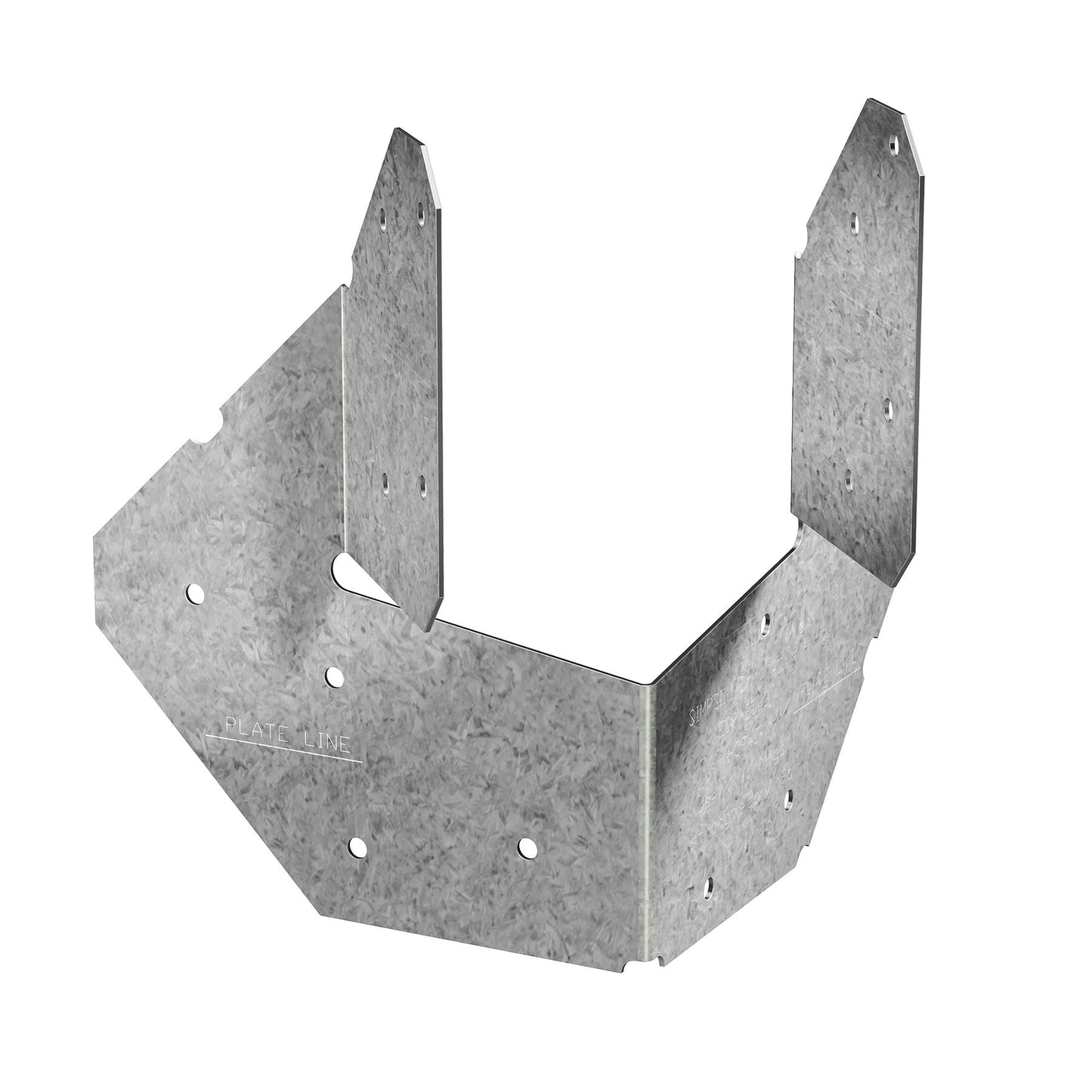

• HCP Hip Corner Plate - HCP4Z Shown

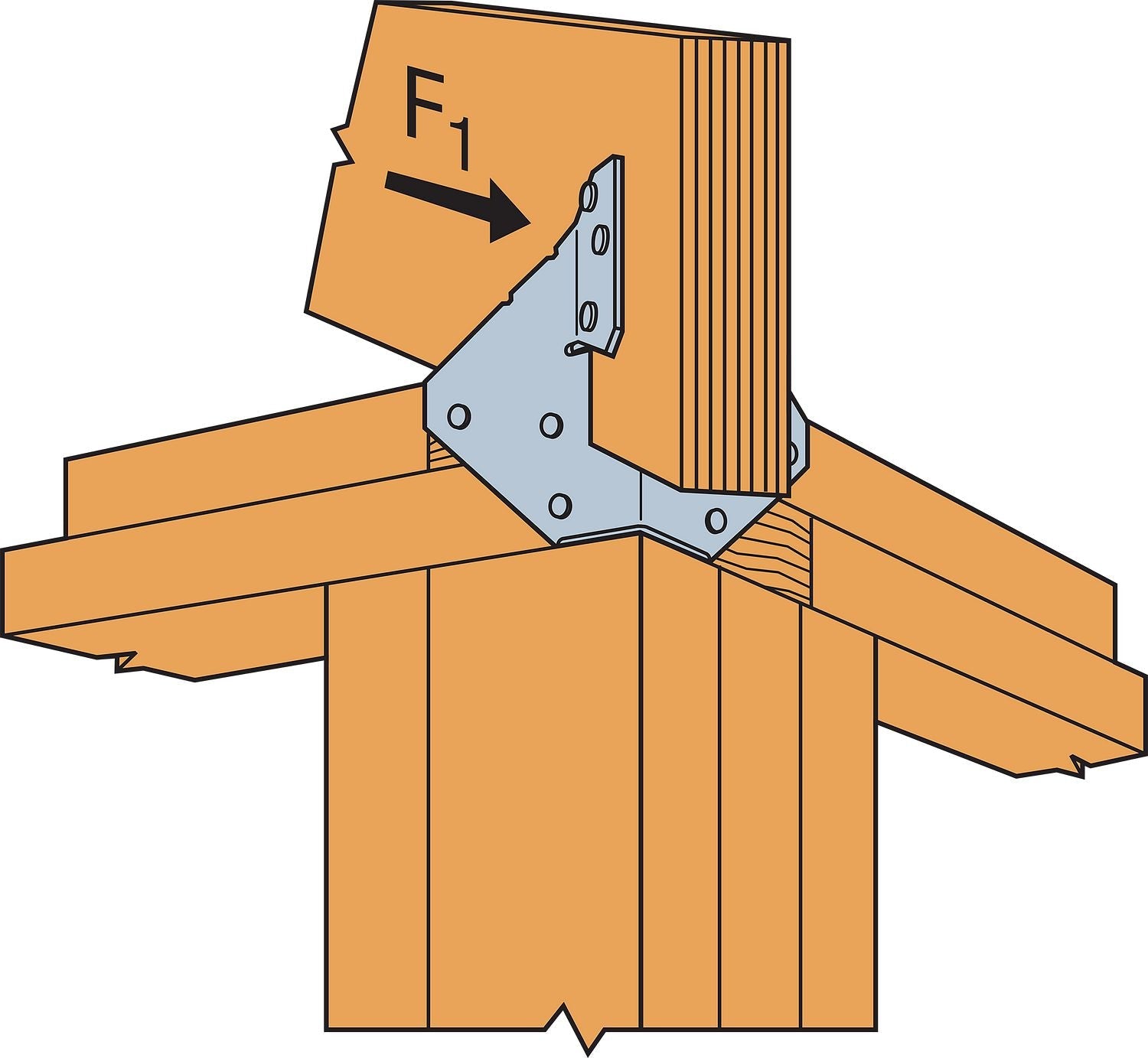

  • HCP Hip Corner Plate Typical Installation

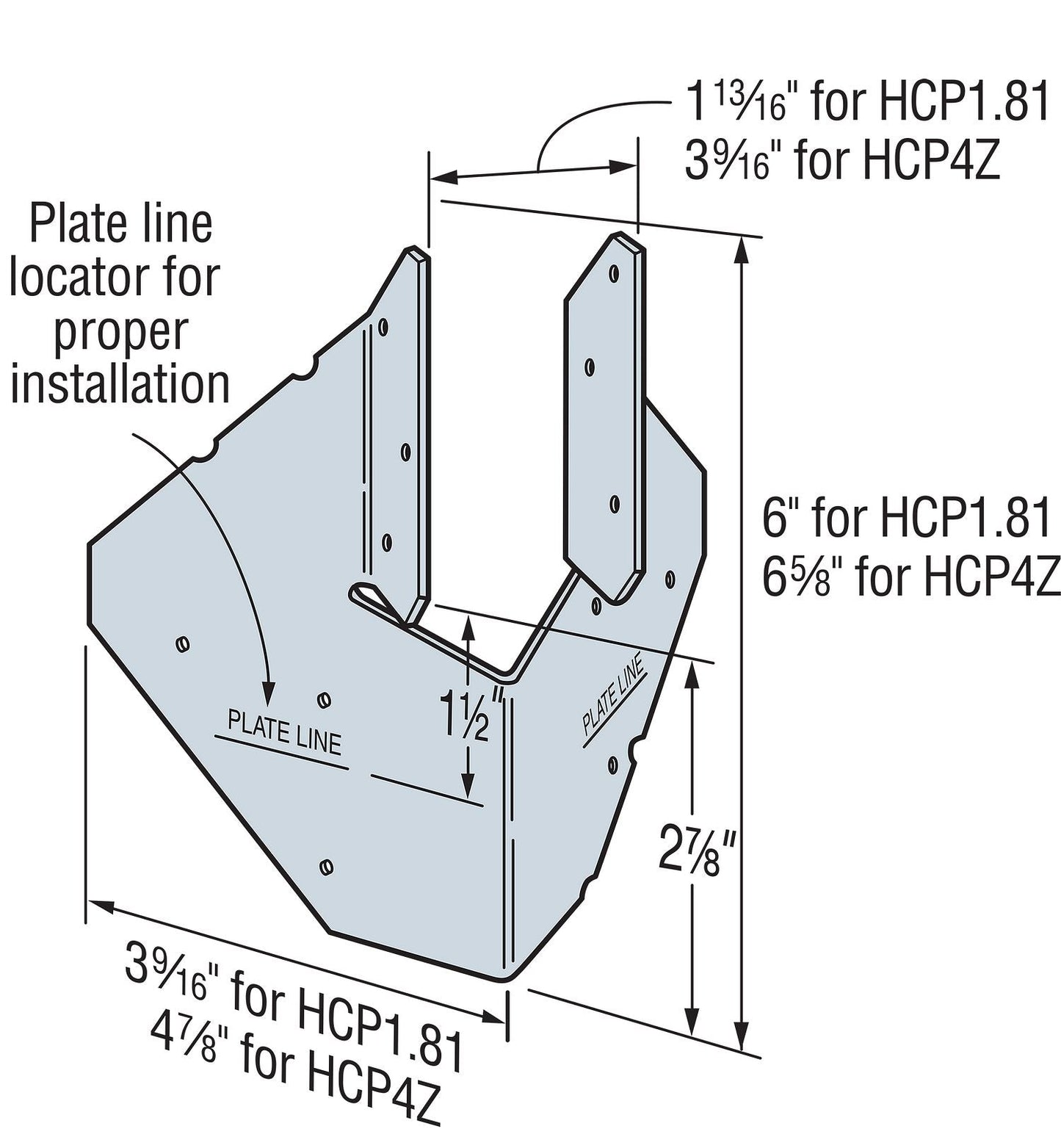

  • HCP1.81 (HCP4Z similar) U.S. Patent 5,380,115

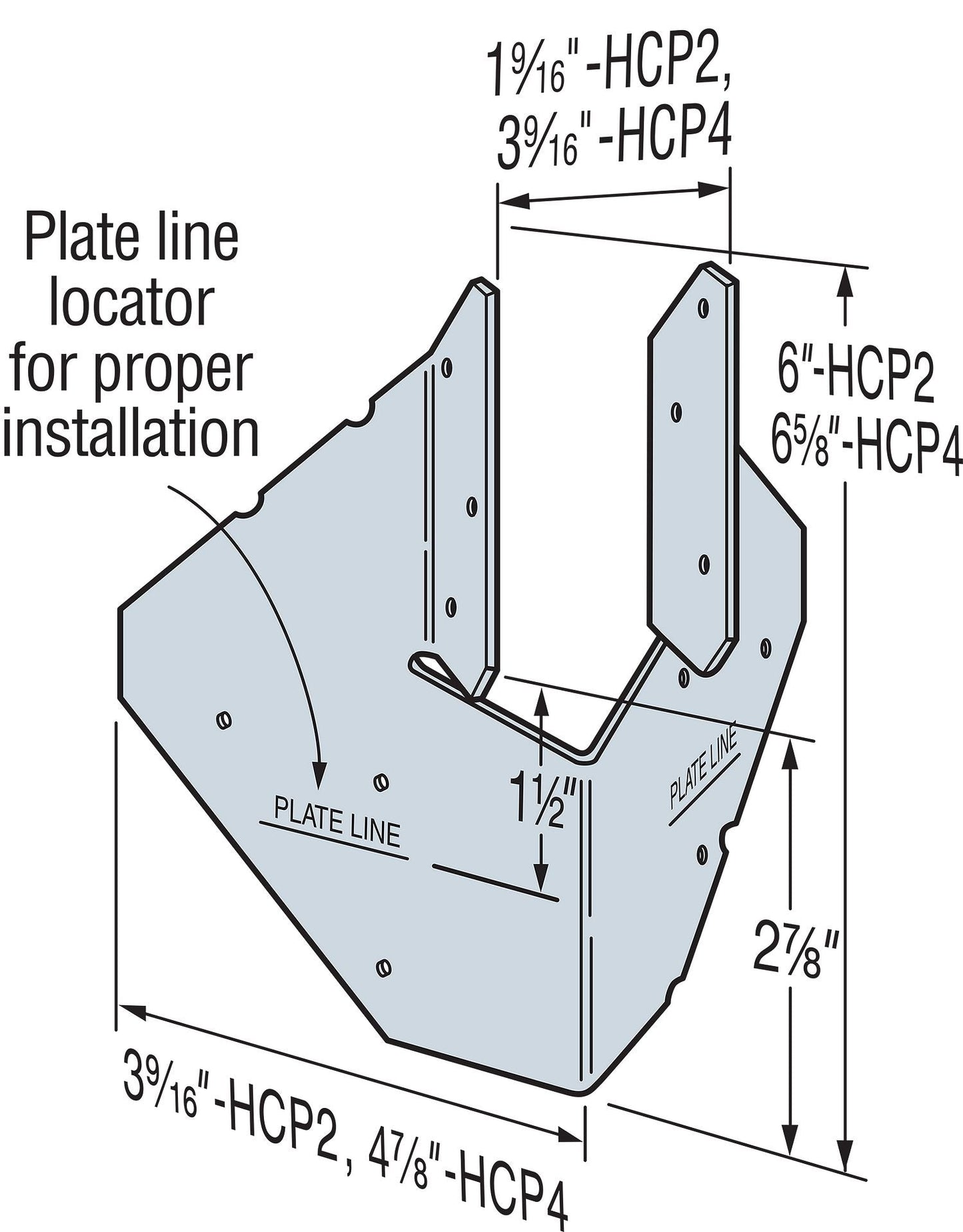

  • HCP2 (HCP4Z similar) U.S. Patent 5,380,115
1 4
Shop more HCP Hip Corner Plate
SKU: HCP4Z

Simpson HCP4Z Hip Corner Plate - Zmax Finish

Simpson HCP4Z Hip Corner Plate - Zmax Finish

$8.42
$8.42
0% off

Description:

The Simpson HCP Hip Corner Plate connects a rafter or joist to double top plates at a 45° angle.

Installation

  • Use all specified fasteners; see General Notes.
  • Attach HCP to double top plates.
  • Birdsmouth not required for table uplift loads but may be required for download.
  • Install rafter and complete nailing. Rafter may be sloped to 45°.

California Residents: WARNING

Specifications:


Height: 6-5/8"
Fasteners required: Rafters: (8) 0.148x3" Plates: (8) 0.148x3"
Thickness: 18 Gauge
Manufacturer name: Simpson Strong-Tie Company Inc
