SKU: HDUE13-SDS3.5HDG

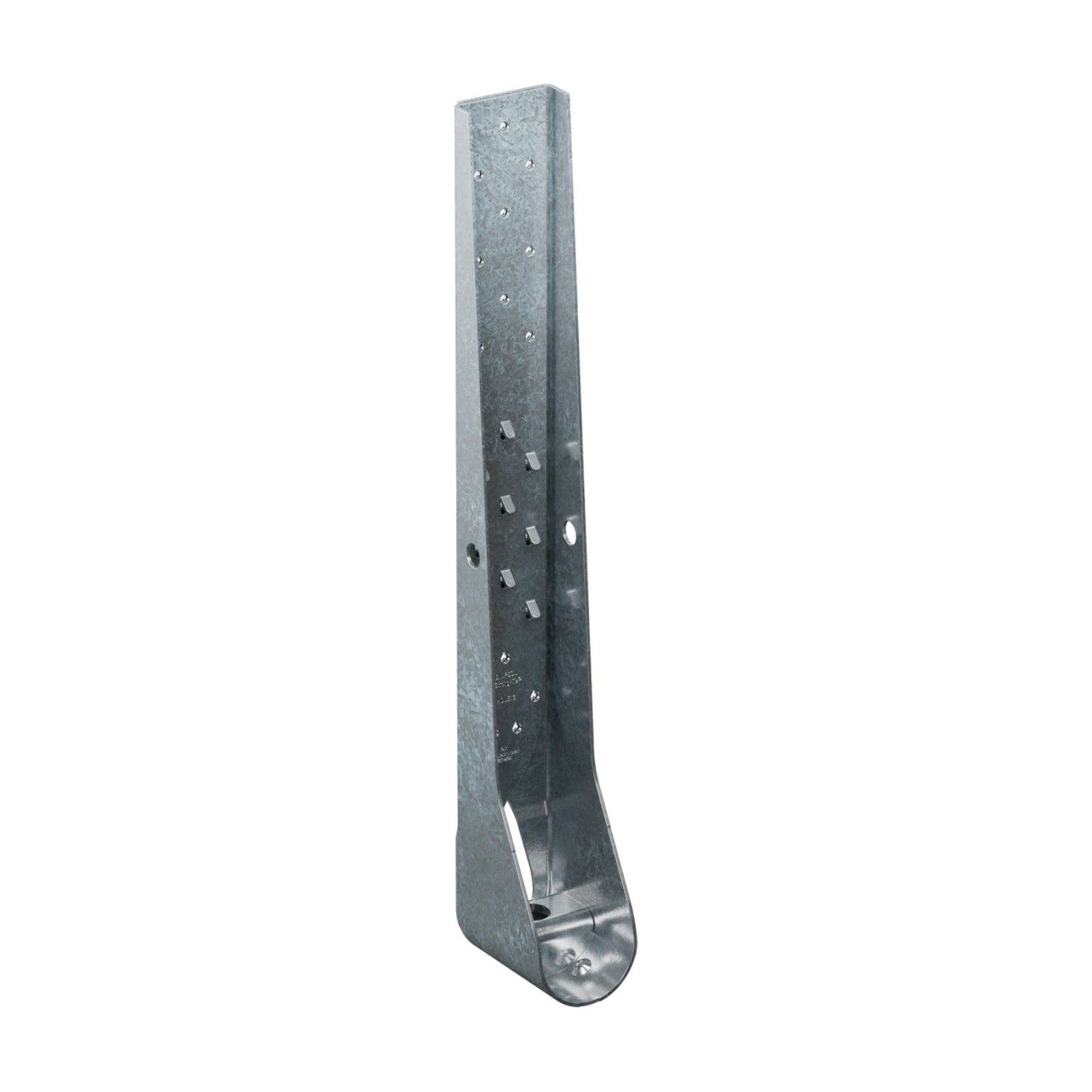

Simpson HDUE13-SDS3.5 23-1/16" Predeflected Holdown w/SDS Screws - Hot Dip Galvanized

Name: Simpson HDUE13-SDS3.5 23-1/16" Predeflected Holdown w/SDS Screws - Hot Dip Galvanized
Brand: Simpson Strong-Tie
SKU: HDUE13-SDS3.5HDG
Price: 164.99 USD
Availability: InStock

ICC Certified

Height

8-11/16" 11-5/16" 14-11/16" 17-3/8" 23-1/16" 27-7/8"

Finish

G90 Galvanized Hot Dip Galvanized

$164⁹⁹

Ships in 1-2 business days.

Description

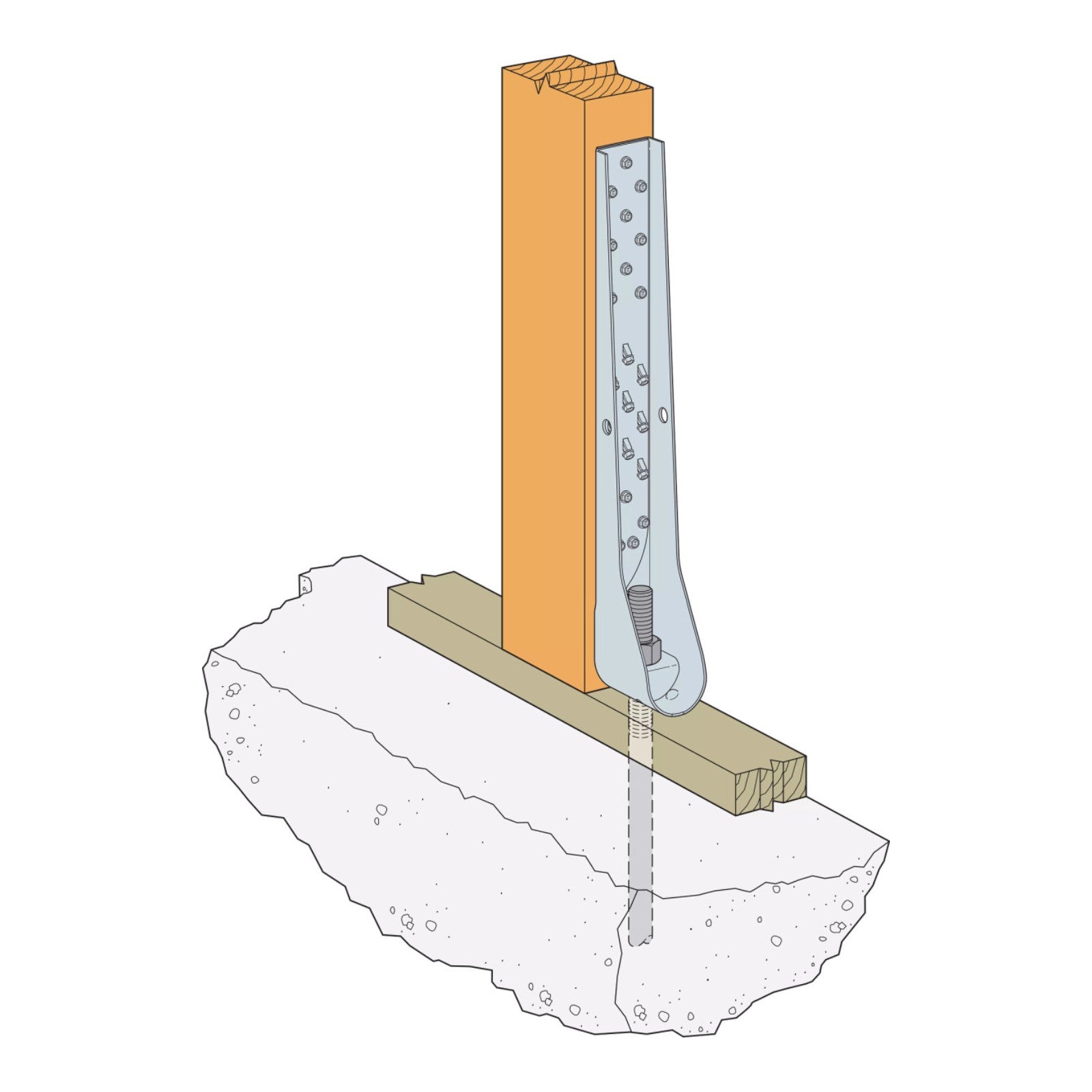

The Simpson Strong-Tie HDUE Holdown is a high-capacity structural holdown designed to anchor wood shearwalls and posts to concrete foundations. It transfers uplift and overturning forces from wood framing into the foundation, helping protect structures in high-wind and seismic conditions.

Built for high uplift resistance, the HDUE series provides enhanced lateral load support for demanding shearwall applications. The included SDS structural screws create a strong, code-compliant connection to wood studs or posts while simplifying installation.

Featuring a pre-deflected body, this structural connector reduces deflection under tension for tighter, more consistent performance. Available in multiple sizes and finish options, the HDUE holdown can be selected based on required load capacity and environmental exposure.

Key Features:

High Load Capacity: Designed to resist significant uplift and overturning forces.
SDS Screws Included: Pre-engineered structural screws provide fast and reliable installation.
Pre-Deflected Design: Minimizes deflection under load for improved structural performance.
Shearwall Anchorage: Secures wall ends and vertical framing members to foundations.
Finish Options: Available in corrosion-resistant finishes for interior or exterior use.

Specifications

Width: 3"

Height: 23-1/16"

Base Width: 4-5/16"

Thickness: 12 Gauge

For Treated Lumber: Yes

Material: Carbon Steel

Finish: Hot Dip Galvanized

Manufacturer Name: Simpson Strong-Tie

Quantity: 1

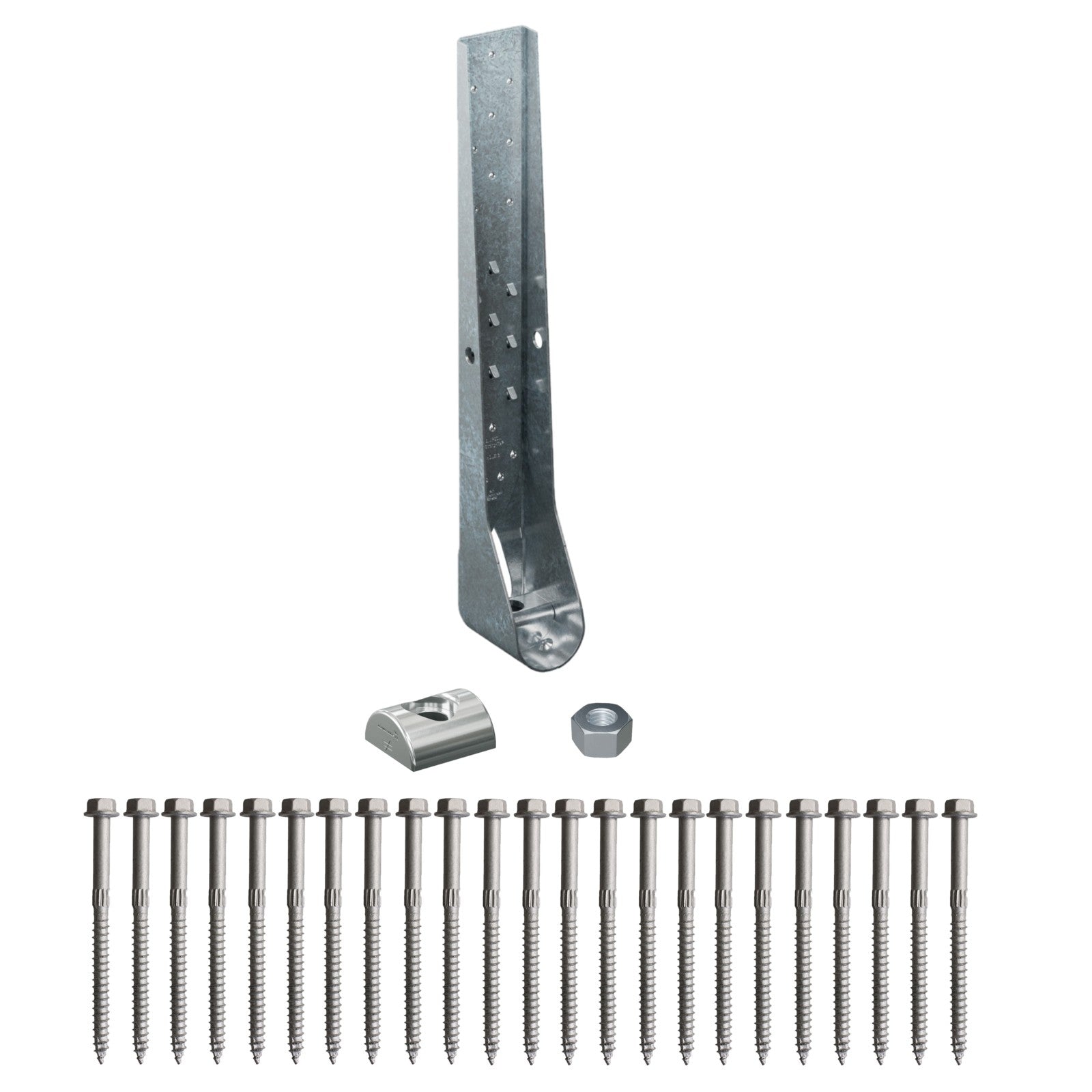

Fasteners Required:
ALL FASTENERS INCLUDED
• (23) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• (1) crescent washer
• (1) heavy-hex anchor nut

View Spec Sheet

ICC Certification - ESR 2330

Simpson Strong-Tie Limited Warranty
