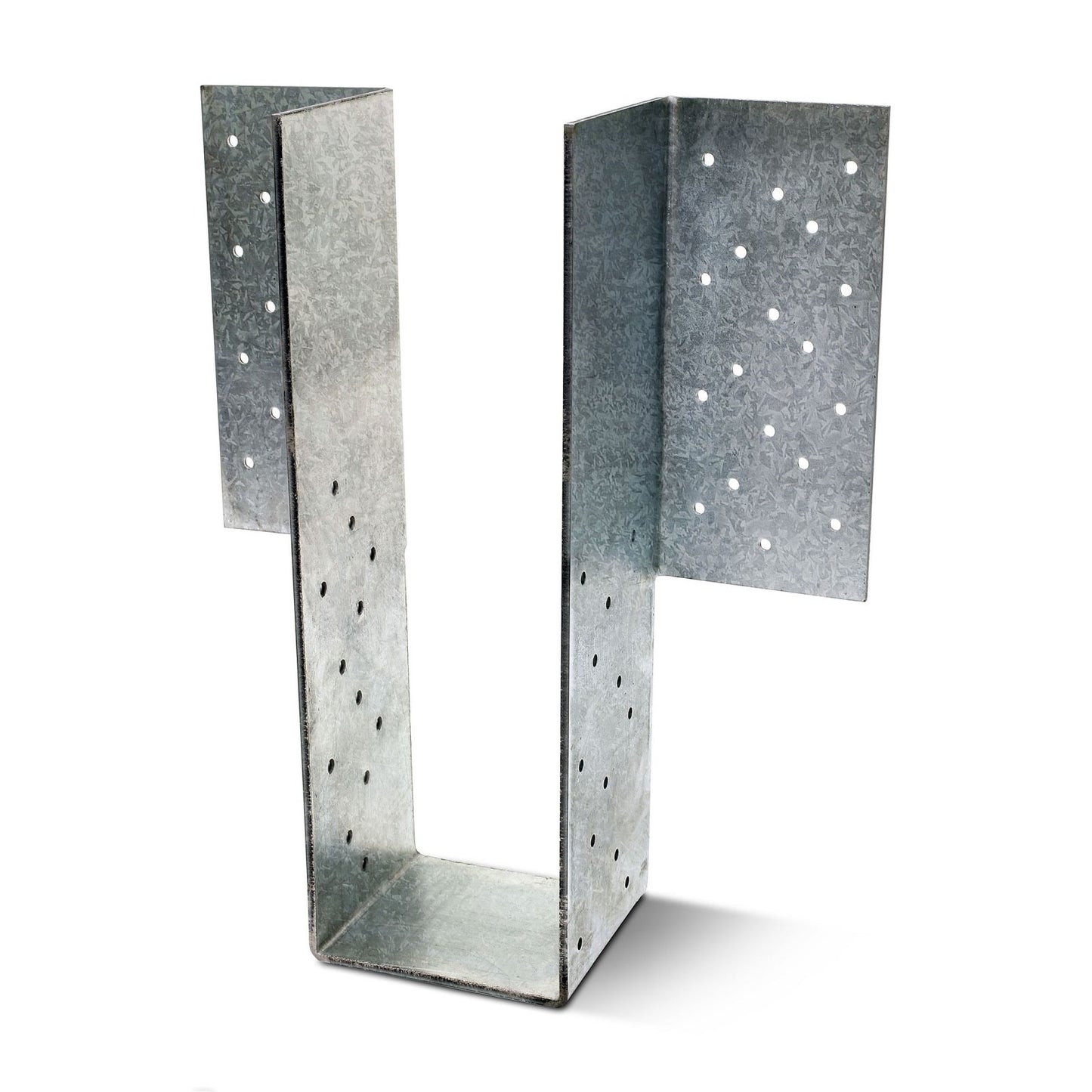

Simpson HGU5.50-SDS Heavy Girder Face-Mount Hanger

Simpson HGU5.50-SDS Heavy Girder Face-Mount Hanger!

Skip to product information
1 of 3
Call for Price

Call to Order
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: All Fasteners Included
For Treated Lumber: No

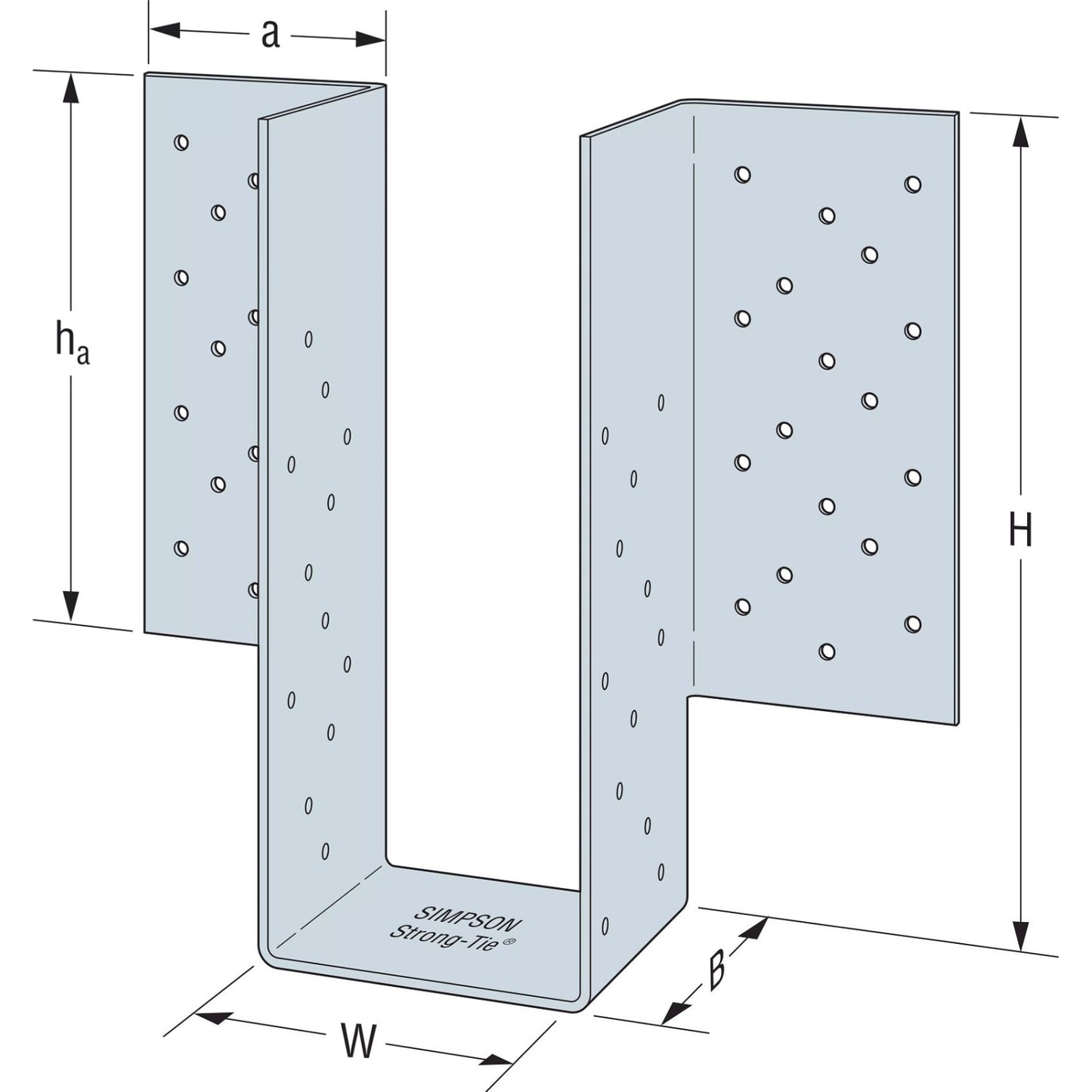

Height: 11"-30"
Joist size: 5-1/4"
Manufacturer name: Simpson Strong-Tie
Description
  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

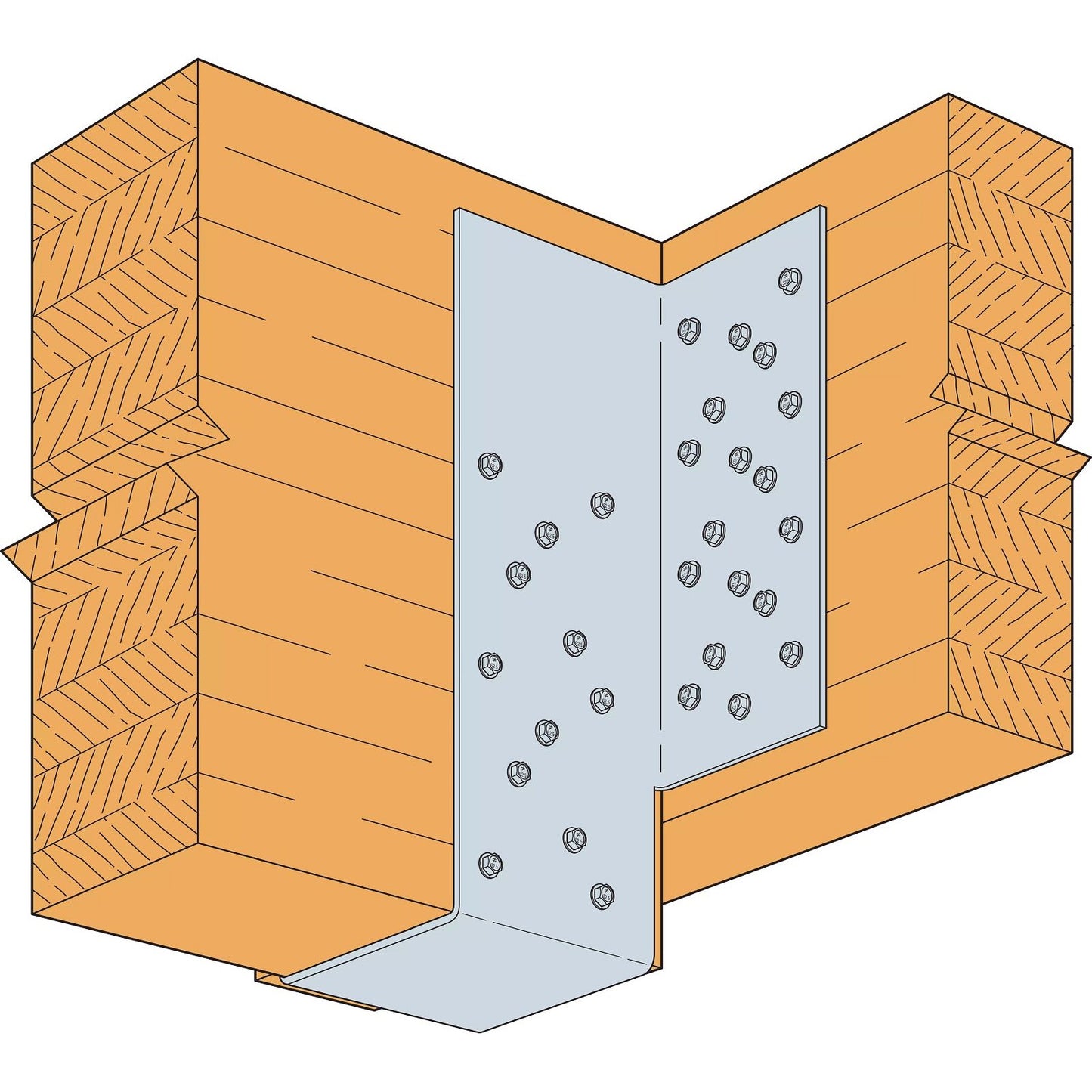

Simpson Strong-Tie HGU high-capacity girder hanger is a face-mount hanger used for retrofit on the framing members after they are temporarily placed into position. Installation made fast and easy, without predrilling, using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws. The HGU is available up to 45° or with one flange concealed.

  • Use all specified fasteners.
  • HGU Heavy Girder Face-Mount Hanger can be installed with 1/4" x 2-1/2" SDS Heavy-Duty Connector Screws which come with GU series hangers.
    • These hangers may be replaced with 1/4" x 3-1/2" SDS or 1/4" x 5" SDS screws for two or three-ply LVL headers so that the load may be transferred to all plies instead of using the 1/4" x 2-1/2" SDS Face Screws that come with this HGU hanger. This option does not eliminate the need for uniform fastener requirements along the length of the two or three-ply header.
  • Multiple sizes are available for glulam or structural composite lumber.
  • HGU-series hangers are flame and temperature resistant.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
