Simpson HGUM7.25XSS Heavy Girder Face Mount Hanger for Concrete & Masonry W/SDS Screws, Custom Non-Returnable
Simpson HGUM7.25XSS Heavy Girder Face Mount Hanger for Concrete & Masonry W/SDS Screws, Custom Non-Returnable!
Specifications
- This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

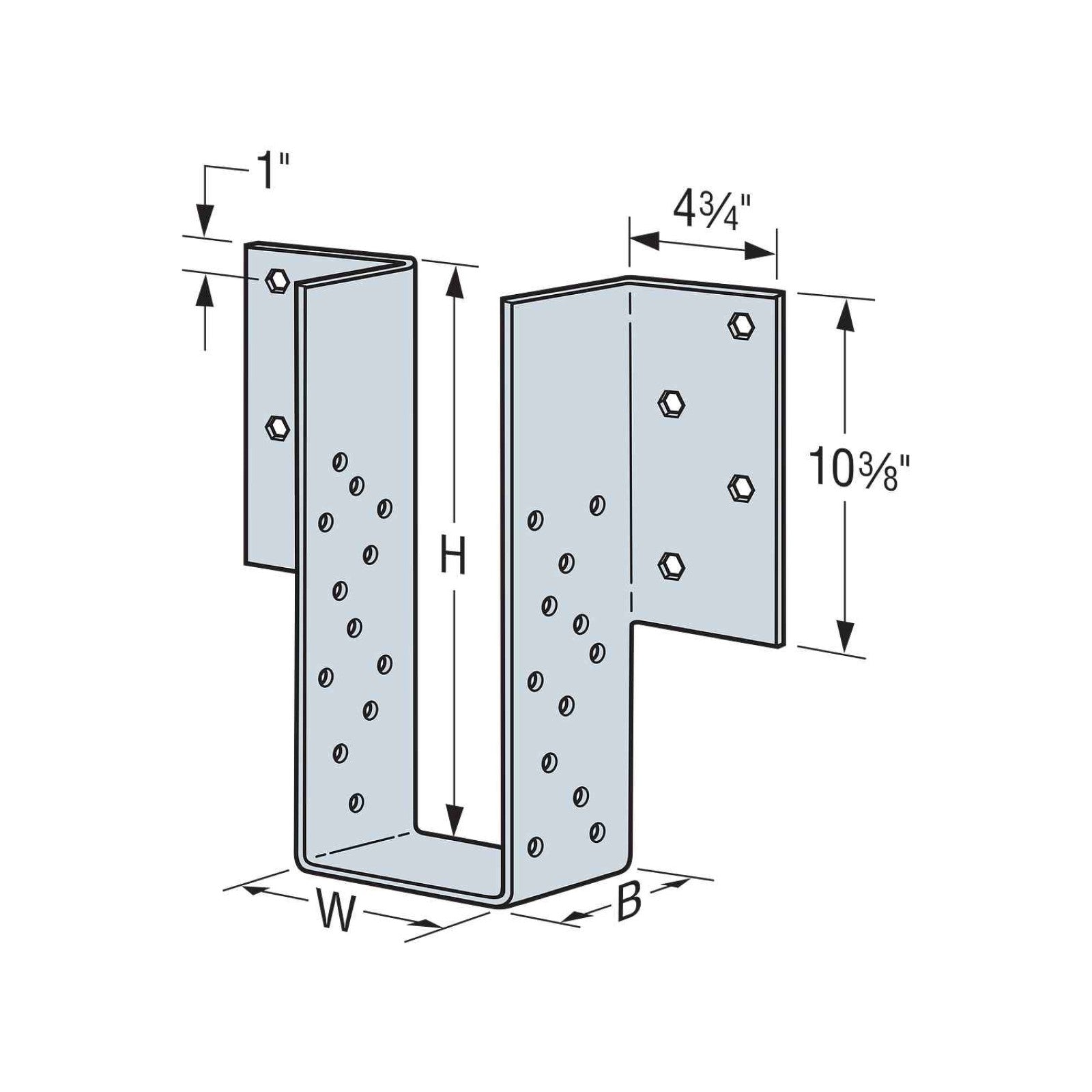

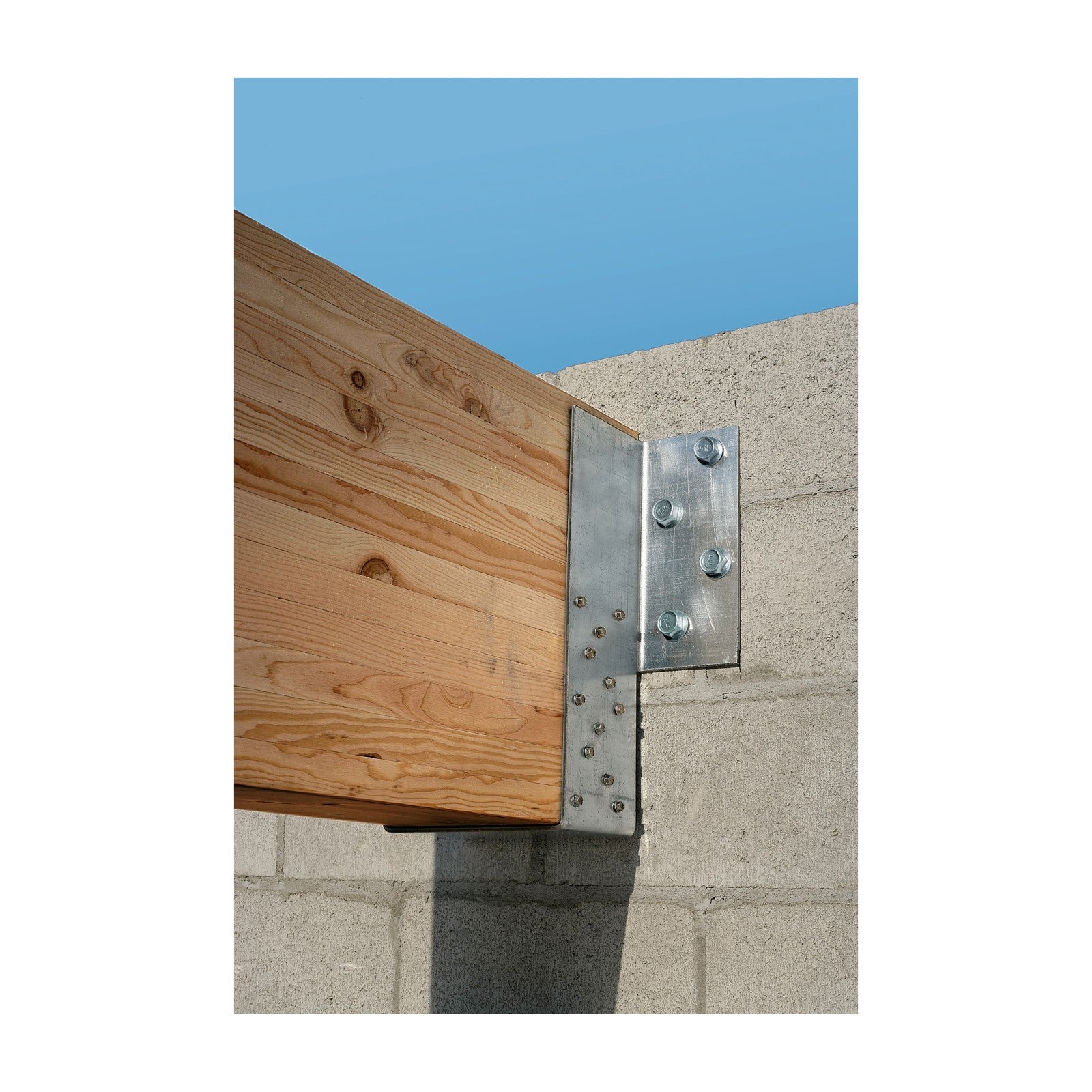

The HGUM7.25XSS is a heavy-duty face-mount hanger designed for hanging glulam and solid sawn timber beams onto concrete or masonry. This hanger installs into the wood member with Strong-Drive SDS Heavy-Duty Connector screws and into the masonry with Titen HD anchors. The HGUM is available in skews up to 45° or with one flange concealed for end-of-wall or corner installation.
Installation:
- Use all specified fasteners (included).
- Some products available in stainless steel, please inquire when contacting us.

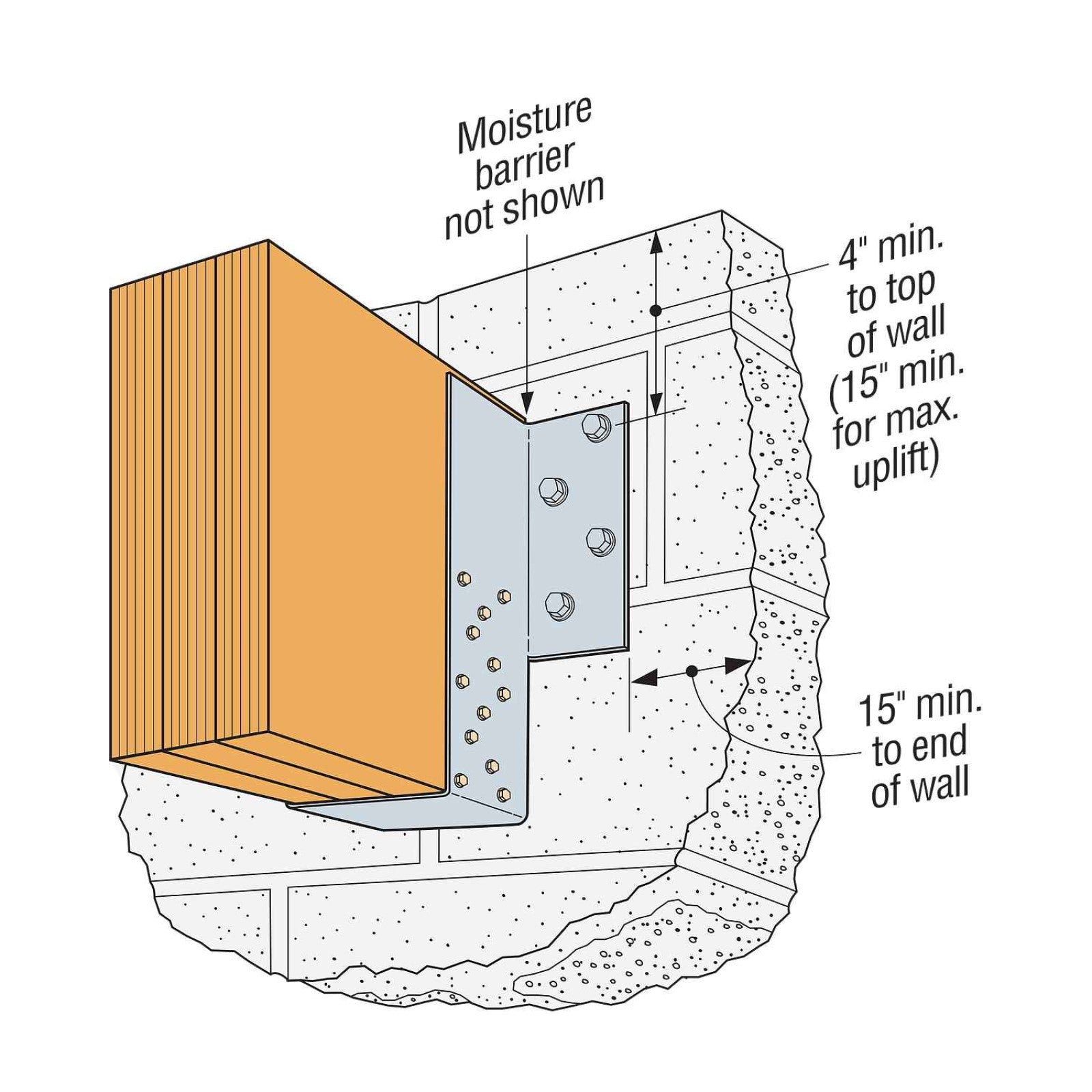

- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors. Note the following:
Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
Holes shall be drilled 1/2" deeper than the specified Titen HD length (e.g., 5 1/2" for a 5"-long Titen HD anchor).
Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity. - The carbon-steel Titen HD is not recommended for exposed exterior applications.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
