Shop more LGUM/HGUM Masonry Girder Hangers
SKU: HGUM9.00-SDS

Simpson HGUM9.00-SDS Heavy Face-Mount Girder and Beam Hanger

Simpson HGUM9.00-SDS Heavy Face-Mount Girder and Beam Hanger

Call for Price
Call to Order
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

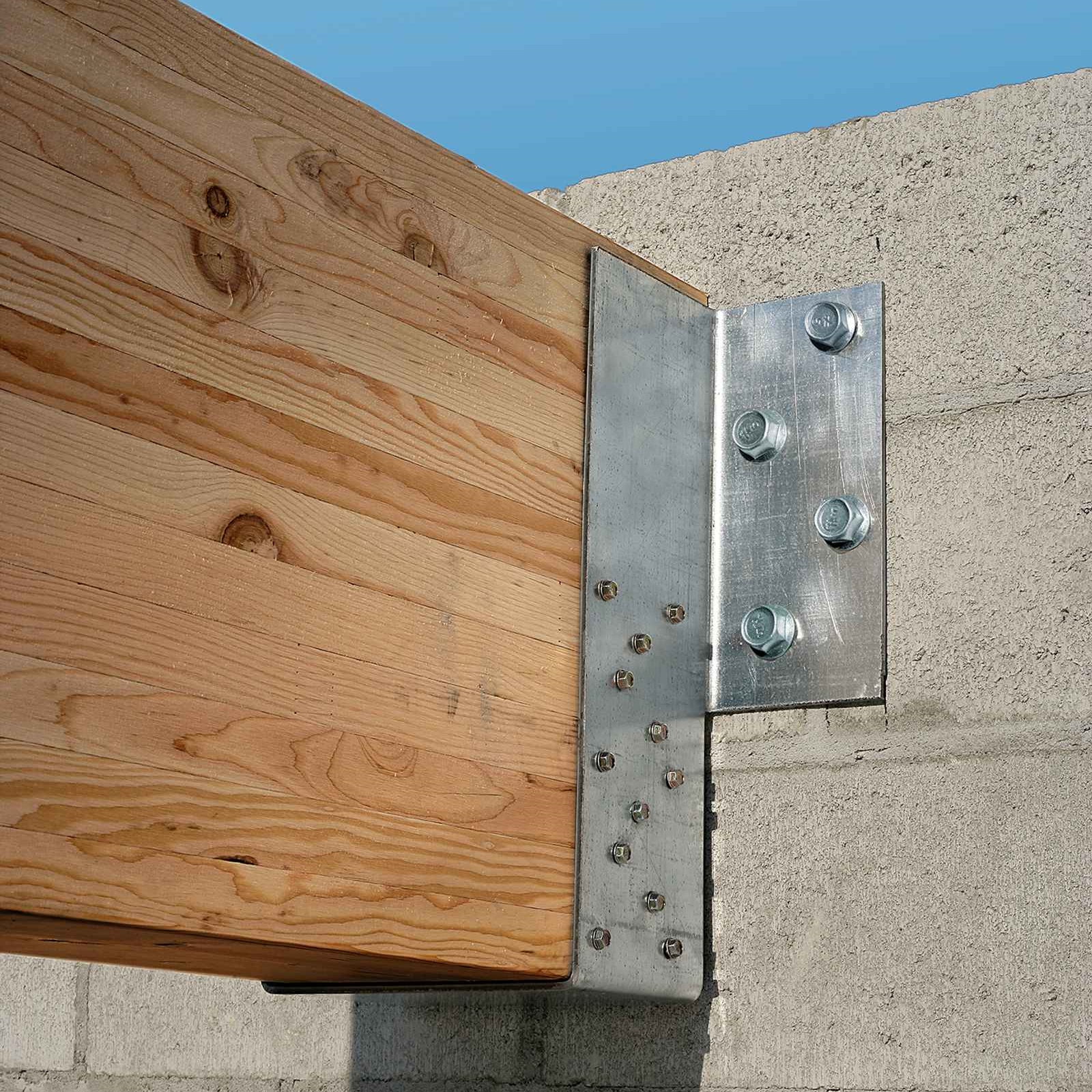

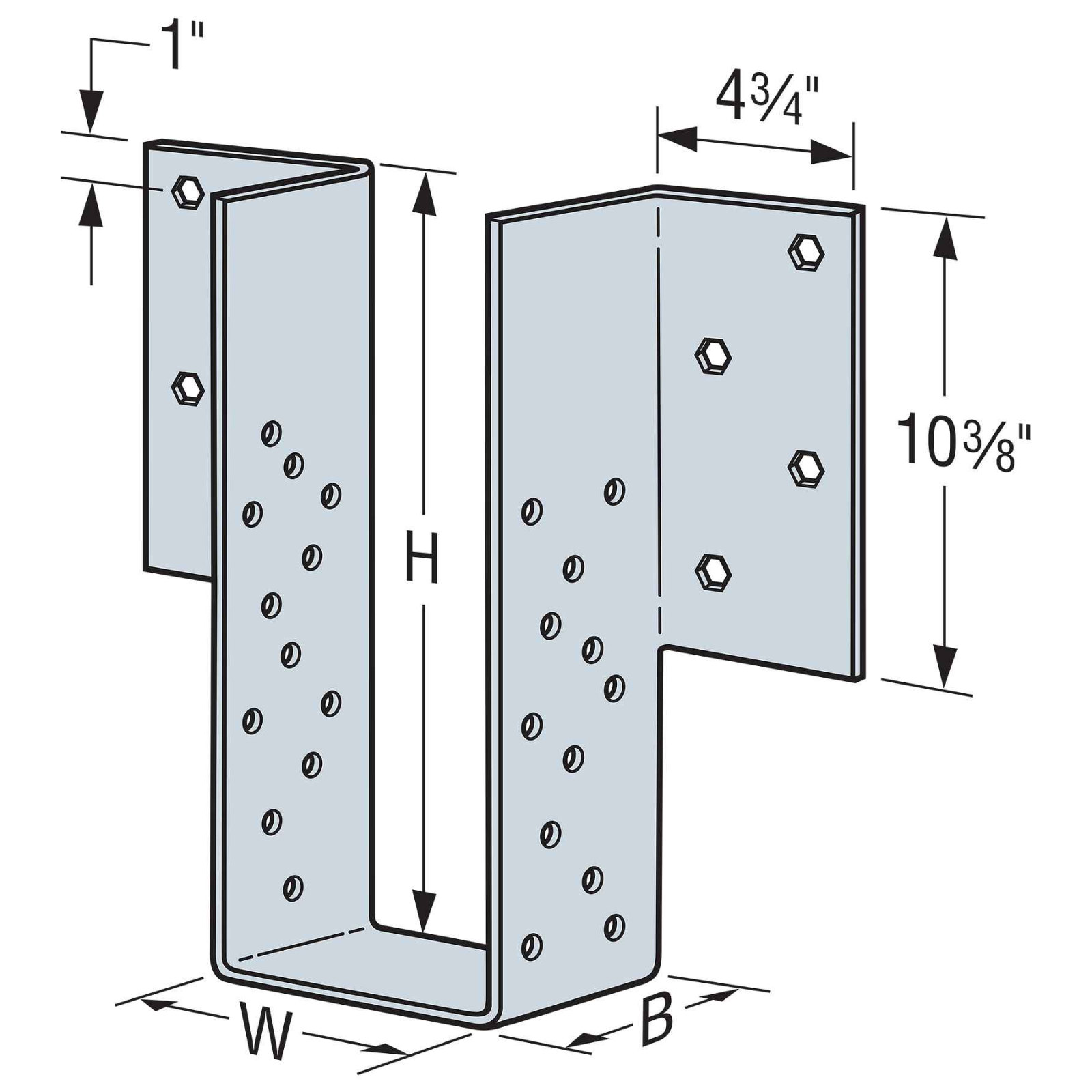

The HGUM is a heavy-duty face-mount hanger designed for hanging glulam and solid sawn timber beams onto concrete or masonry. This hanger installs into the wood member with Strong-Drive SDS Heavy-Duty Connector screws and into the masonry with Titen HD anchors. The HGUM is available in skews up to 45° or with one flange concealed for end-of-wall or corner installation.

Installation:

  • Use all specified fasteners (included).
  • Some products available in stainless steel, please inquire when contacting us.

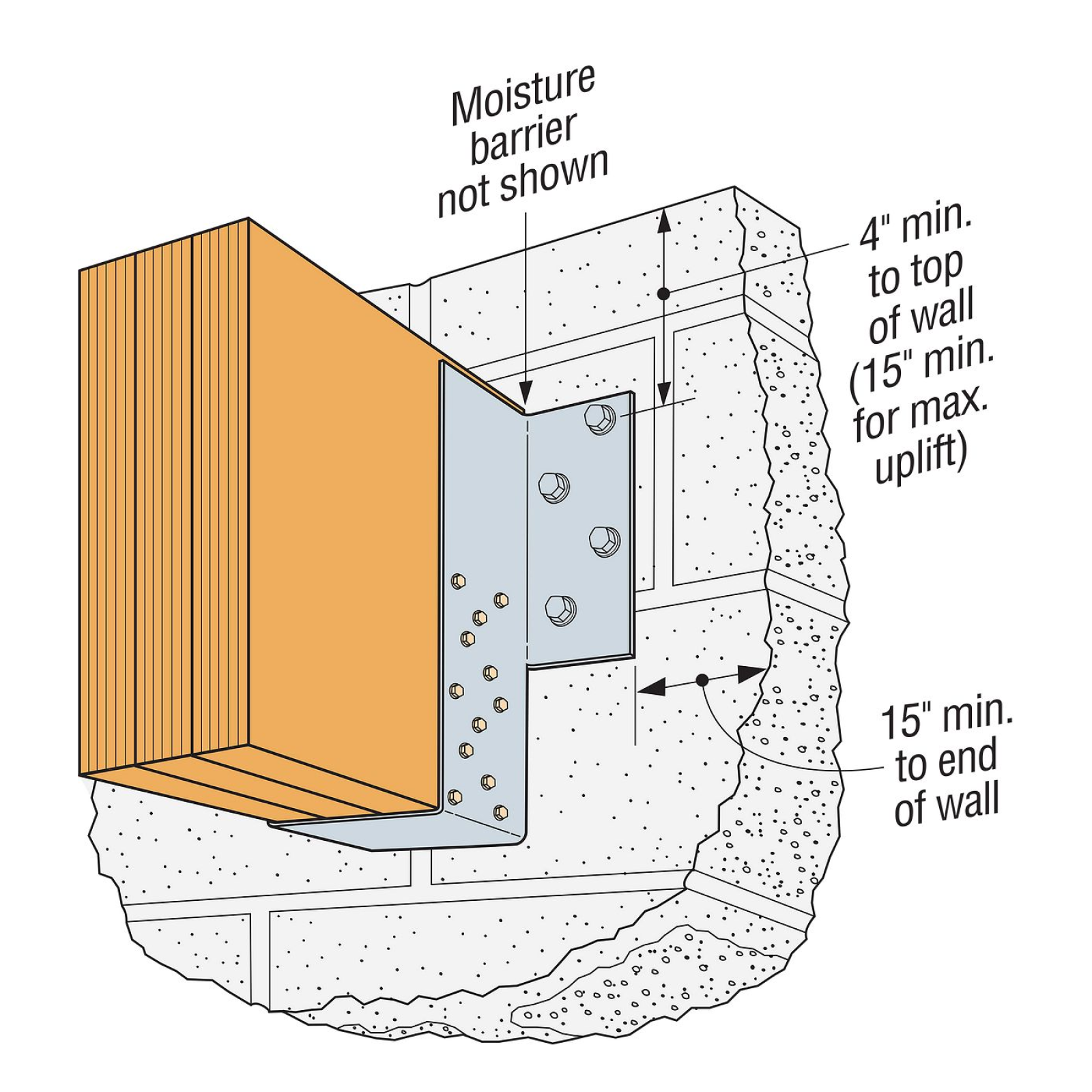

  • Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors. Note the following:
    — Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
    — Holes shall be drilled 1/2" deeper than the specified Titen HD length (e.g., 5 1/2" for a 5"-long Titen HD anchor).
    — Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
  • The carbon-steel Titen HD is not recommended for exposed exterior applications.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Fasteners required: SDS screws and Titen anchors included
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners (included).
-Some products available in stainless steel, please inquire when contacting us.
-Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors. Note the following:
-Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
-Holes shall be drilled 1/2" deeper than the specified Titen HD length (e.g., 5 1/2" for a 5"-long Titen HD anchor).
-Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
-The carbon-steel Titen HD is not recommended for exposed exterior applications.
