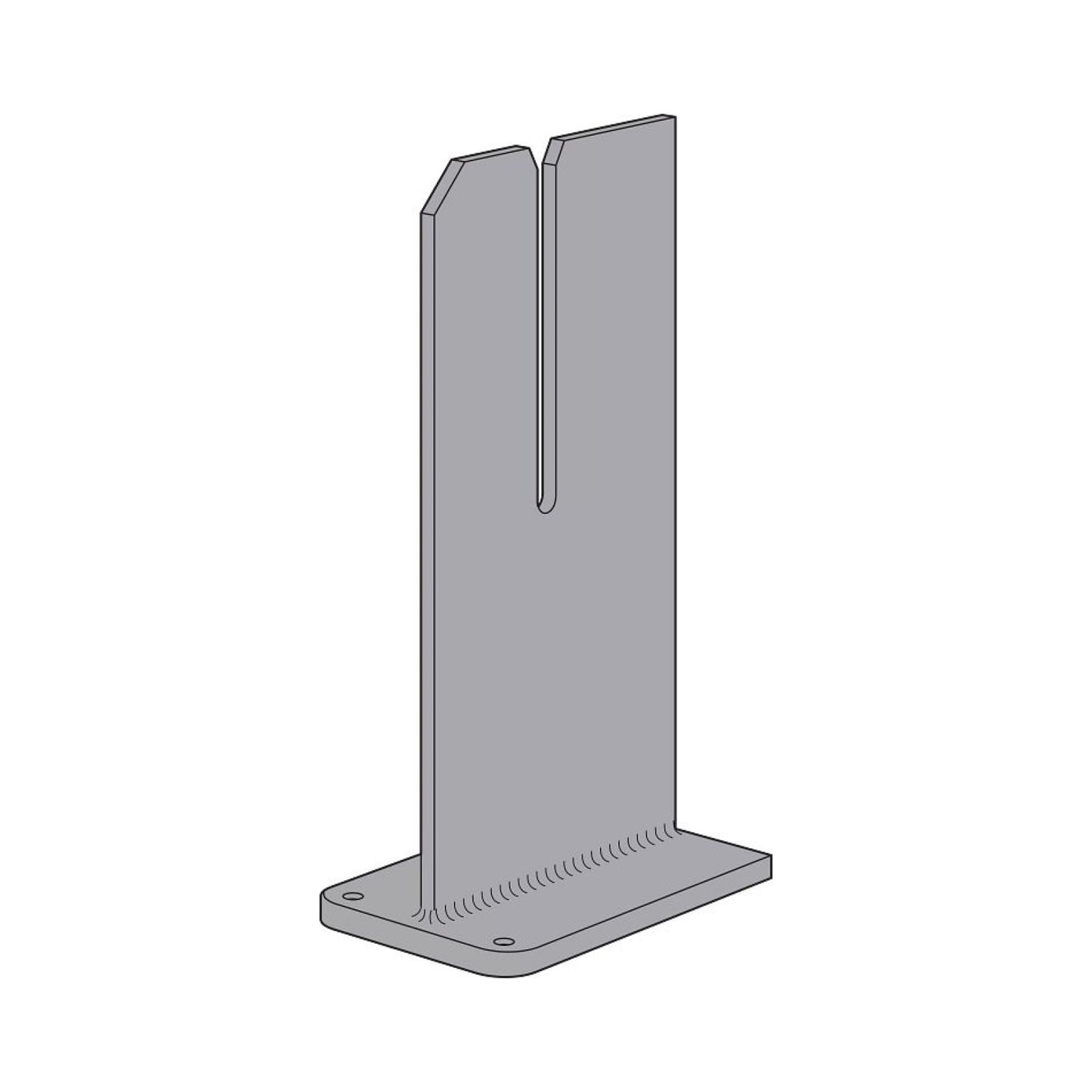

The Simpson Strong-Tie HSKP5.75X17-W is a high-capacity, concealed beam hanger engineered for mass timber construction. Designed for wood-to-wood and wood-to-steel applications, this hanger delivers exceptional strength while preserving the natural beauty of exposed wood connections. It’s the ideal solution where aesthetics and structural integrity are both a priority.

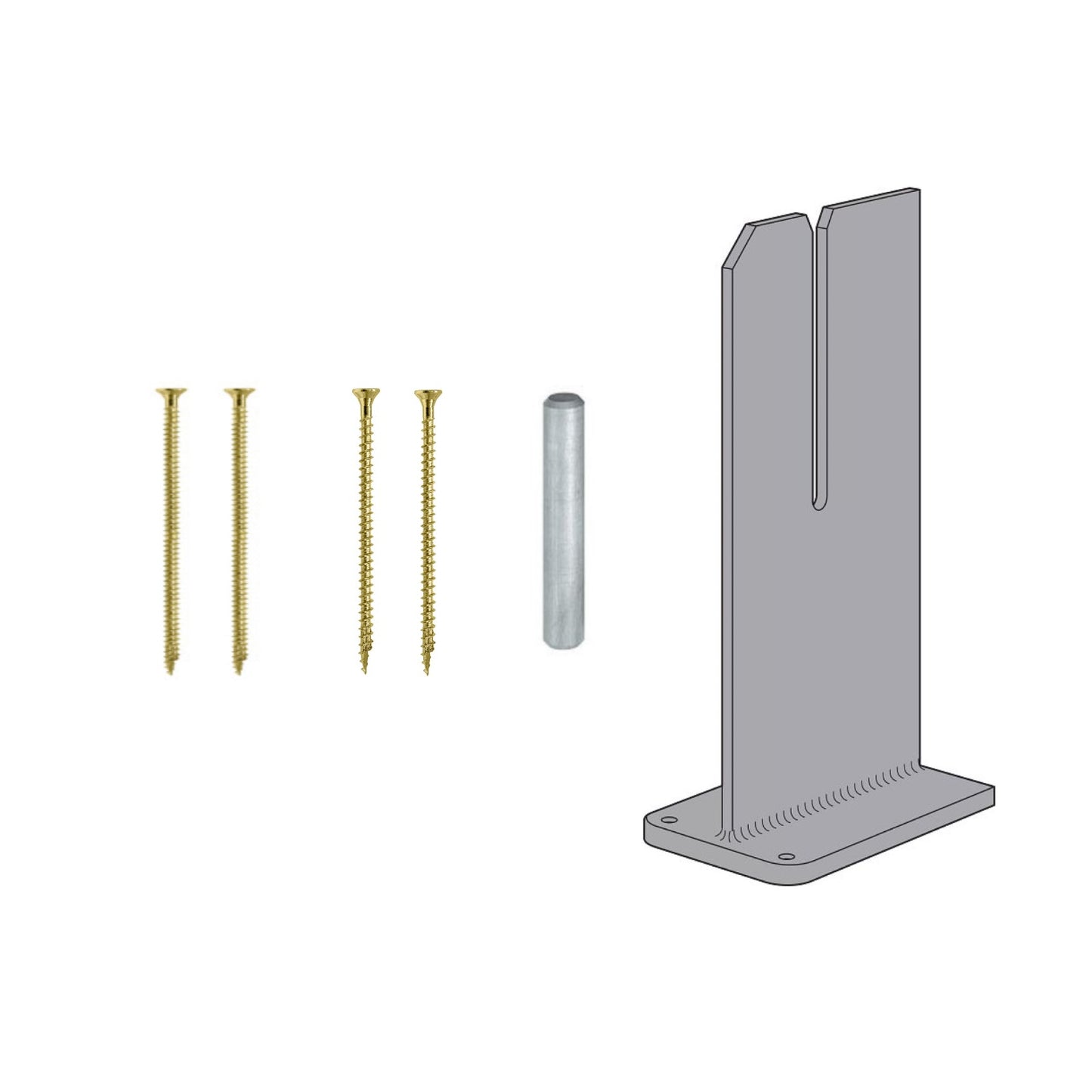

Kit Includes:

• (1) HSKP5.75X17 Heavy Seated Knife Plate Hanger
• (1) CJTPL 1/2" Dia. Steel Dowel
• (2) SDCF27614 0.390" x 6-1/4" Strong-Drive SDCF Timber-CF Screws
• (2) SDCF22858 0.315" x 8-5/8" Strong-Drive SDCF Timber-CF Screw


Key Features:

• High Load Capacity: Code-listed for loads from 22 to 32 kips, handling large structural demands.
• Concealed Design: Maintains a clean wood-only appearance with a hidden connector setup.
• Fire-Rated: Meets two-hour fire resistance standards for enhanced safety.
• Precision Fit: Generous fit-up tolerance simplifies beam installation on site.
• Factory Install Ready: Prepped for off-site fabrication to improve jobsite efficiency.

Applications:

• Mass timber construction
• Wood-to-wood or wood-to-steel beam connections
• Architectural builds requiring concealed connections

Installation:

• Prep: Verify kit contents and inspect for damage or defects.
• Position: Align the hanger on the beam and mark screw hole locations.
• Attach: Drive the included SDCF screws at specified angles into the beam.
• Place: Lower the beam into position so the hanger seats fully on the supporting member.
• Secure: Follow manufacturer guidance to finalize attachment to supporting structure.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
