Shop more HUC/HUCQ Concealed Face Mount Hangers
SKU: HUC28-2Z

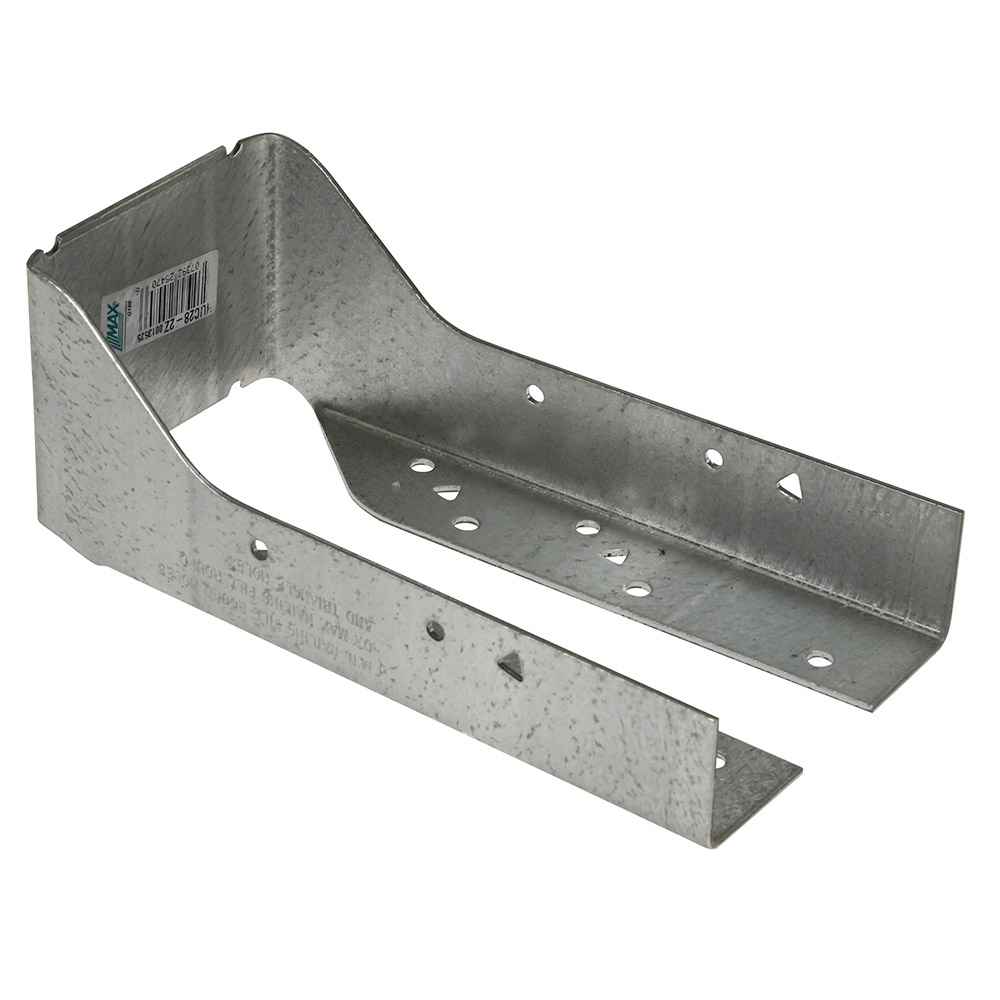

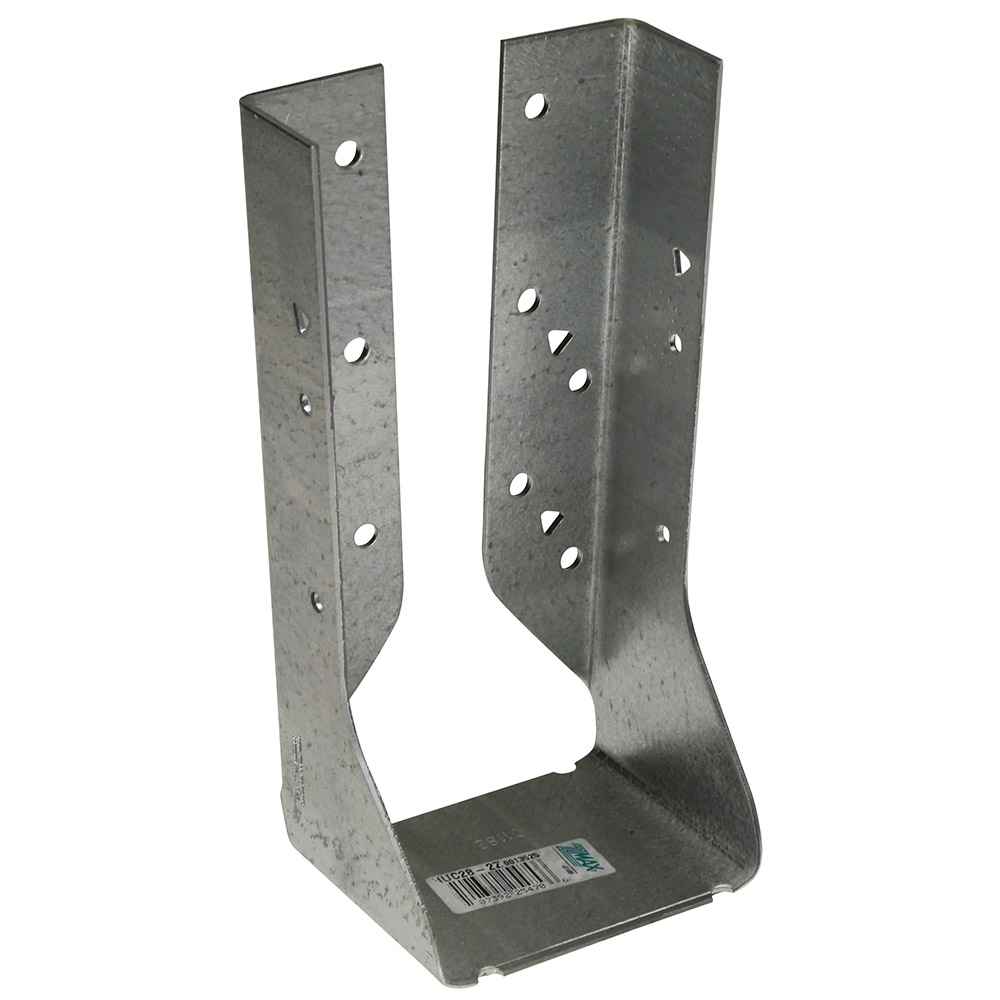

Simpson HUC28-2Z 2x8 Concealed Double Face Mount Hanger - Zmax Finish

Simpson HUC28-2Z 2x8 Concealed Double Face Mount Hanger - Zmax Finish

Regular price $22.85
Sale price $22.85 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 8 hours 25 minutes

Description:

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. The Strong-Tie HUC28-2Z concealed flange hanger features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.

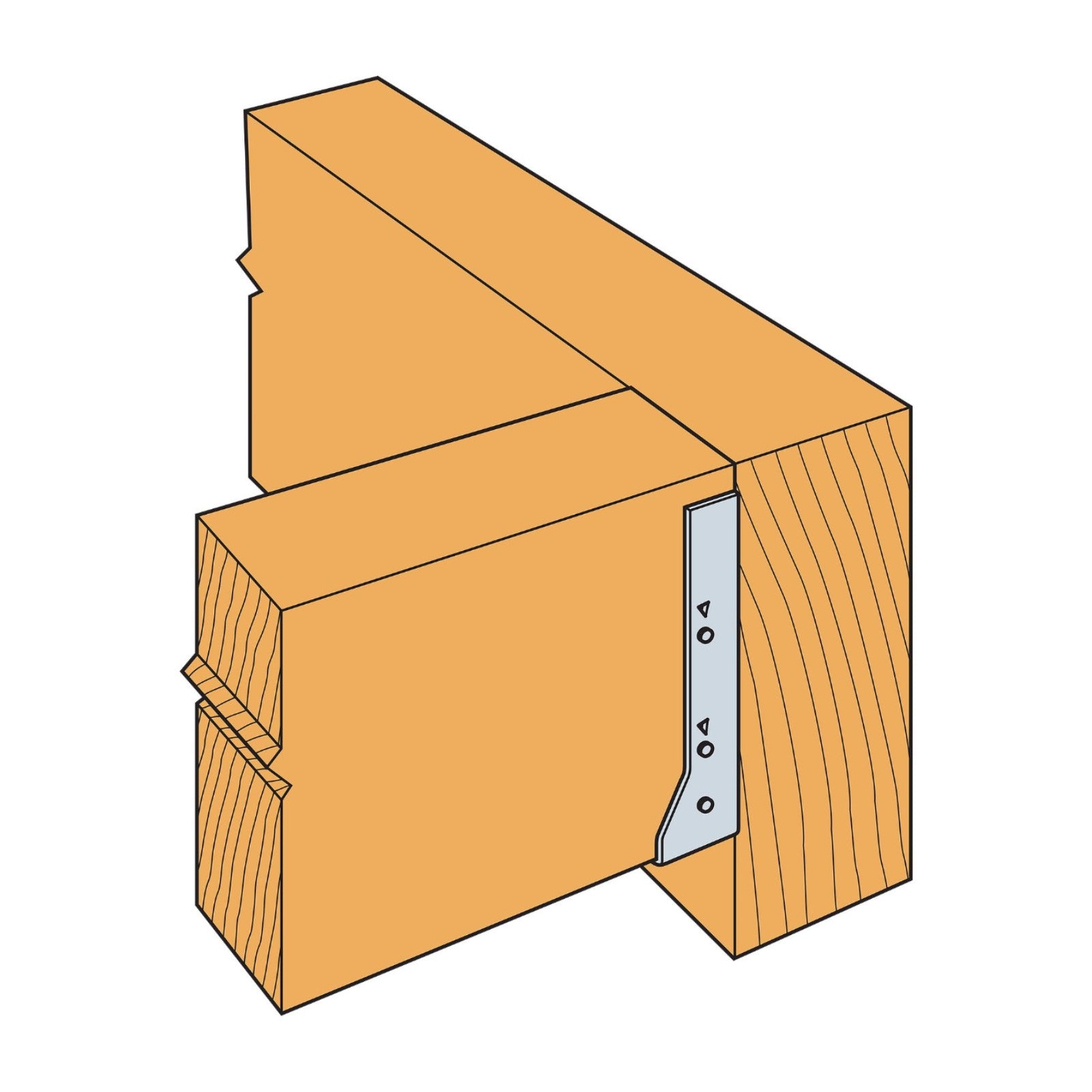

Installation:
  • Use all specified fasteners.
  • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve load tables.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 7"
Fasteners required: Face - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3" Nails
Width: 3-1/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Joist size: Double 2X8
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
-Joists sloped up to 1/4:12 achieve load tables.
-HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

View full details
