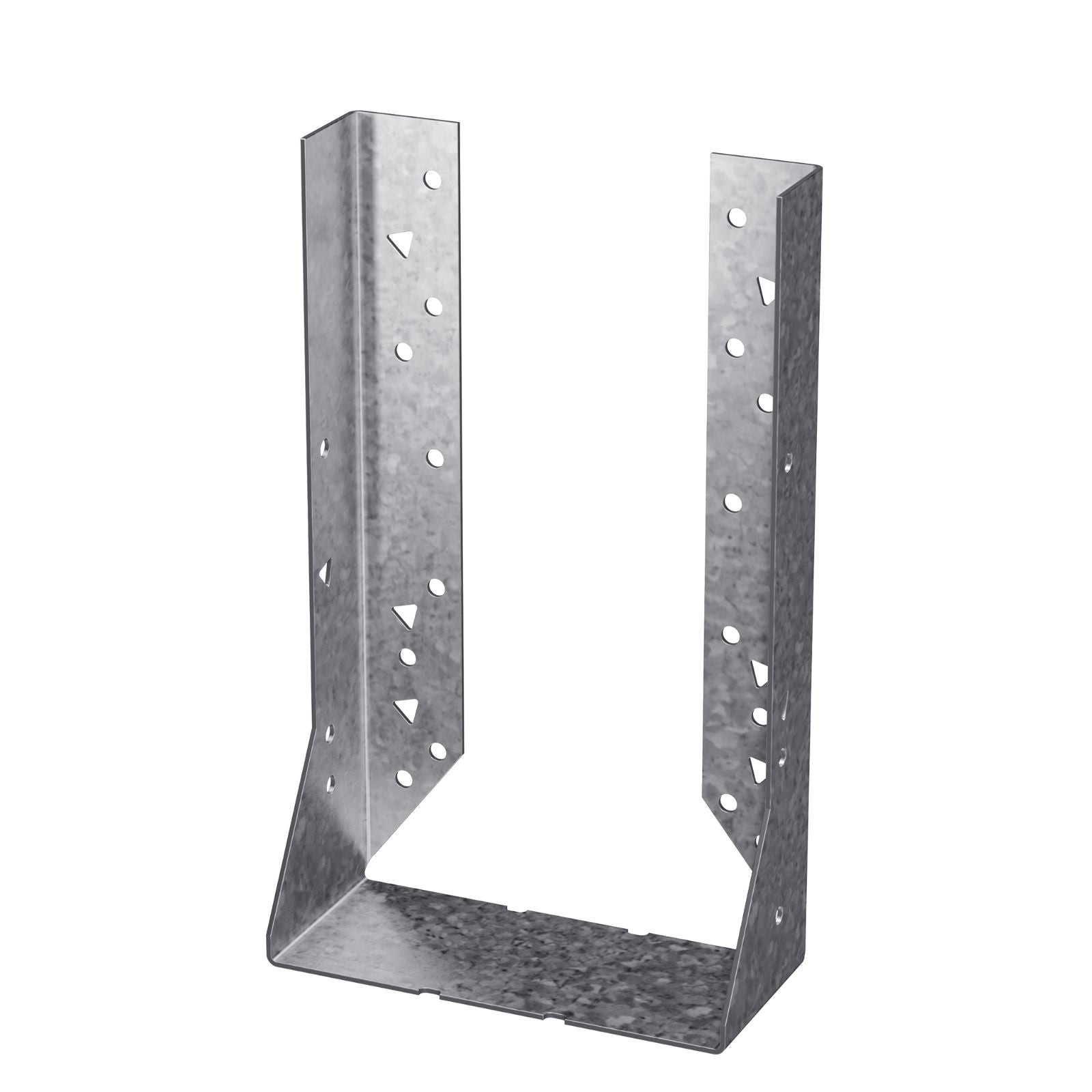

Simpson HUC5.125/12 Concealed Glulam Beam Hanger

SKU: HUC5.125-12
$25.35
Made to Order
Standard Lead Time 2-3 days.

Simpson Strong-Tie HUC hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUC5.125/12 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • HU/HUC - can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • With 3x carrying members, use 16dx2 1/2" (0.162" dia. x 2 1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1 1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HUC hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and saf...

Read More

Simpson Strong-Tie HUC hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUC5.125/12 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • HU/HUC - can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • With 3x carrying members, use 16dx2 1/2" (0.162" dia. x 2 1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1 1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Face - (22) 0.162" x 3-1/2" NailsJoist - (8) 0.162" x 3-1/2" Nails

for treated lumber:
no

height:
10-1/4"

thickness:
14 Gauge

Product Spec Sheet:
