SKU: HUC5.125/16

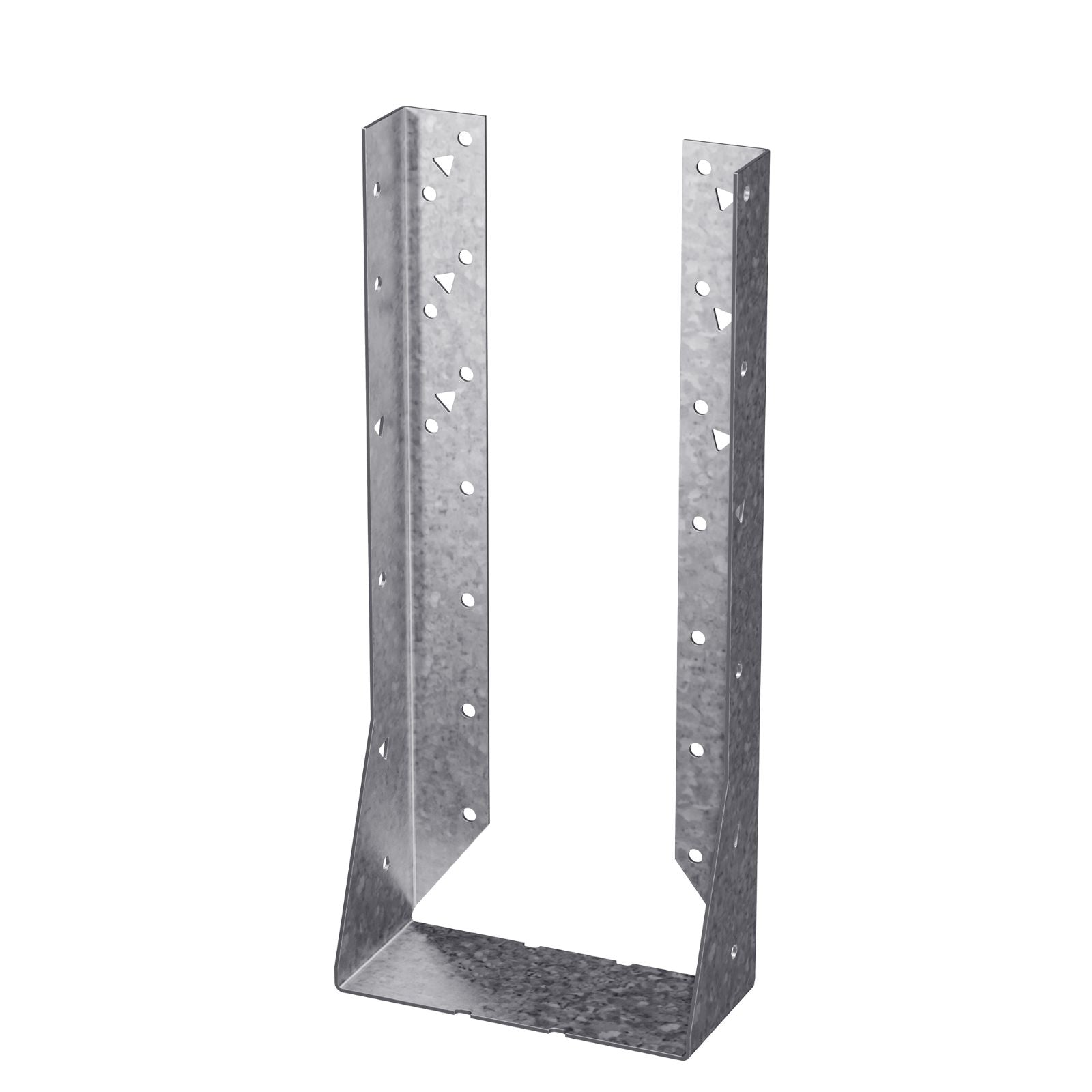

Simpson Strong-Tie HUC5.125/16 Concealed Glulam Beam Hanger

ICC Certified

Regular price $6200
Ships in 2-3 business days.

Description

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

Simpson Strong-Tie HUC hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUC5.125/16 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

  • Use all specified fasteners.
  • HU/HUC - can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • With 3x carrying members, use 16dx2 1/2" (0.162" dia. x 2 1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1 1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.


NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications

Height: 13-7/8"
Joist Size: 5-1/4" X 16"
For Treated Lumber: No
Material: Carbon Steel
Finish: G90 Galvanized
Manufacturer Name: Simpson Strong-Tie
Fasteners Required: Face - (26) 0.162" x 3-1/2" Nails Joist - (12) 0.162" x 3-1/2" Nails
Additional Info: Carried Member Width: 5-1/8 Glulam
