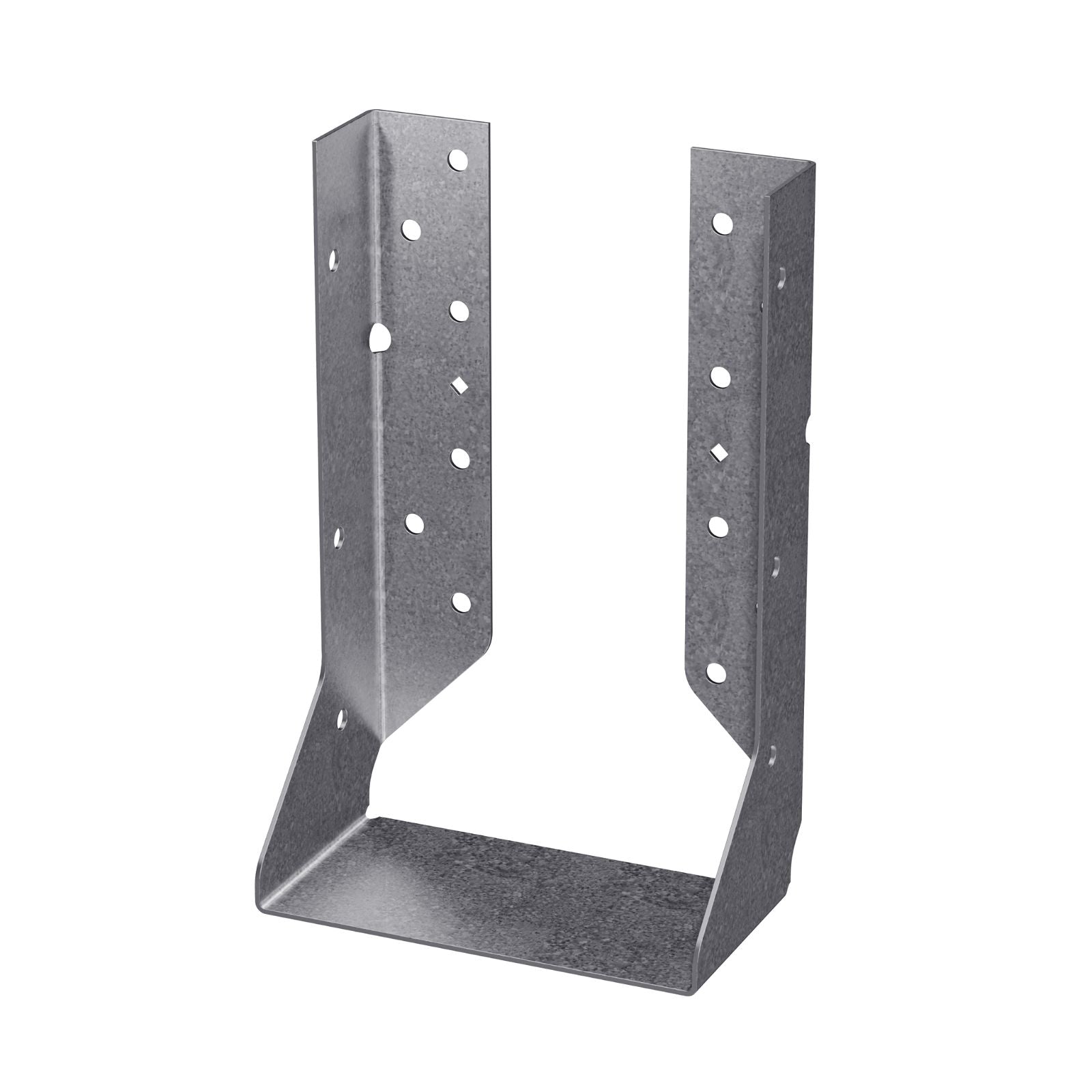

Simpson HUCQ5.25/11ZSDSG Heavy Concealed Glulam Hanger W/SDS Screws - ZMAX

SKU: HUCQ5.25-11ZSDSG

$74.03
Made to Order
Standard Lead Time 3-5 days.

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie HUCQ hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUCQ5.25/11ZSDSG face mount joist hanger features a ZMAX G185 finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    • Use all specified fasteners.
    • HUCQ—Install 1/4"x2-1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided) in all round holes. Lag screws will not achieve the same load.
    • With 3x carrying members, use 16dx2-1/2" (0.162" dia. x 2-1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1-1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simps...

    Read More

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
  • Simpson Strong-Tie HUCQ hangers are heavy duty connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUCQ5.25/11ZSDSG face mount joist hanger features a ZMAX G185 finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    • Use all specified fasteners.
    • HUCQ—Install 1/4"x2-1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided) in all round holes. Lag screws will not achieve the same load.
    • With 3x carrying members, use 16dx2-1/2" (0.162" dia. x 2-1/2" long) nails into the header and 16d commons into the joist with no load reduction. With 2x carrying members, use 10dx1-1/2" (0.148" dia. x 1 1/2" long) nails into the header and 10d commons into the joist, and reduce the load to 0.64 of the table value.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


    California Residents: WARNING

    Show Less

    Fasteners Required:
    All Fasteners Included

    Finish Spec:
    G90 Galvanized

    Manufacturer Name:
    Simpson Strong-Tie

    For Treated Lumber:
    yes

    Height:
    11"

    Product Guide Document:
    Face-Mount-Ijoist-glulam-scl-load-tables.pdf

    Thickness:
    14 Gauge

    Product Guide:
