SKU: HUI49.5TF

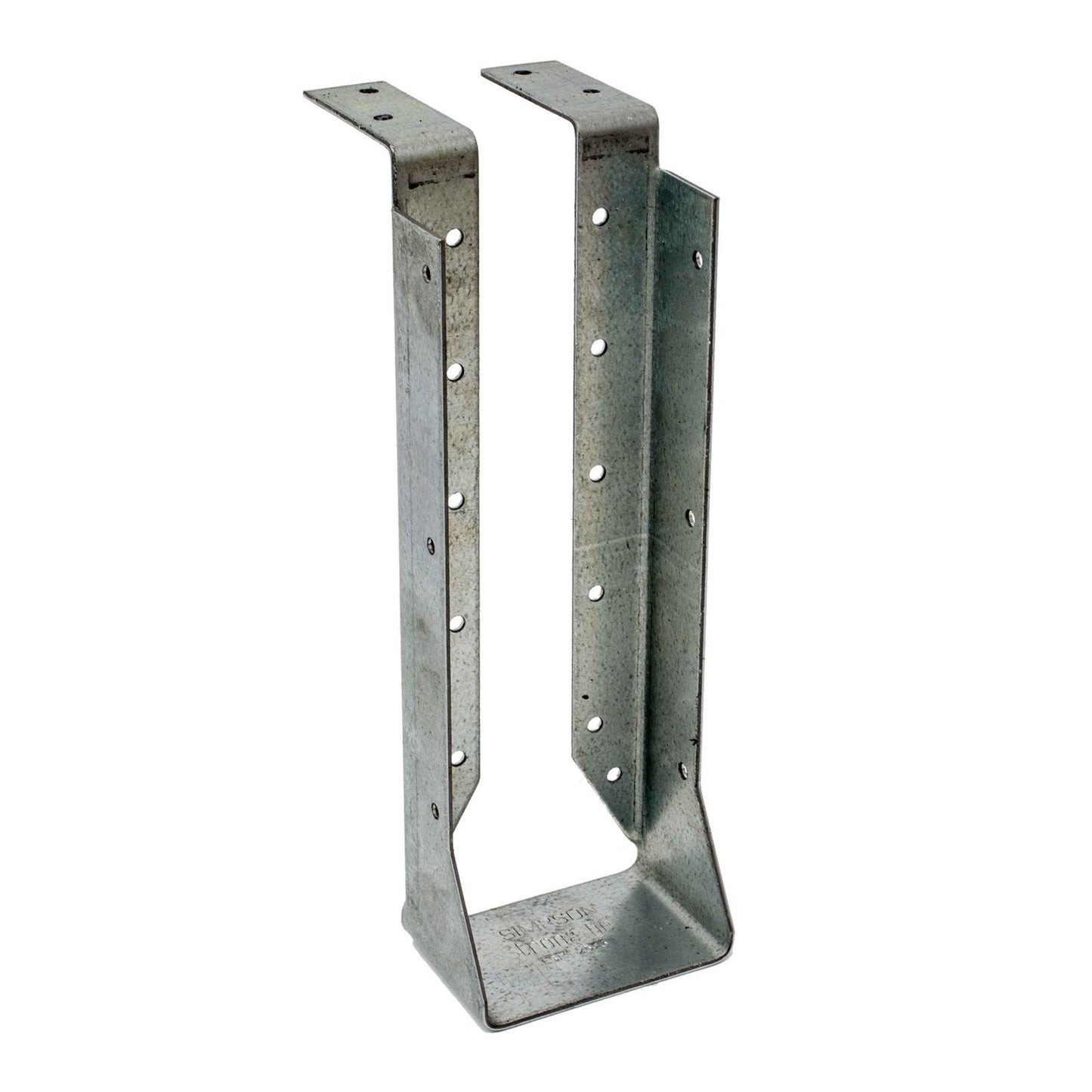

Simpson HUI49.5TF Top-Flange I-Joist Hanger
Simpson HUI49.5TF Top-Flange I-Joist Hanger
No reviews
Regular price
$62.76
Sale price
$62.76
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.
Description:
Description:
- This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.
The Simpson Strong-Tie HUI and HUCI hangers are heavy duty 12-gauge top flange I-Joist hangers with the HUCI having the added feature of concealed flanges. The Strong-Tie HUI and HUCI top flange hangers come standard in a G90 galvanized finish for added corrosion resistance. The correct fasteners installed in the correct position must be used to achieve published load values.
NOTE: This series of hangers have transitioned to the HUTF Top-Flange Heavy U-Shaped Hanger and HUCTF Top-Flange Heavy U-Shaped Hanger with Concealed Flanges.
California Residents: WARNING
Specifications:
Specifications:
Material: Galvanized Steel
Height: 9-1/2"
Fasteners required: Solid Header: Top – 4-16d Face – 12-16d | Joist: 6-10d
Thickness: 12 Gauge
Quantity: HUI49.5TF
Width: 3-9/16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Height: 9-1/2"
Fasteners required: Solid Header: Top – 4-16d Face – 12-16d | Joist: 6-10d
Thickness: 12 Gauge
Quantity: HUI49.5TF
Width: 3-9/16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
