Shop more HUSTF Top Flange Joist Hangers
SKU: HUS412TF

Simpson HUS412TF 4x12 Top Flange Face Mount Hanger - G90 Galvanized

Simpson HUS412TF 4x12 Top Flange Face Mount Hanger - G90 Galvanized

Regular price $31.47
Sale price $31.47 Regular price
0% off
Made to Order
Ships in 2-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie HUSTF hangers are heavy duty 14 gauge top mount hangers. These series of hangers are not acceptable for nailer or welded applications. HUSTF has the double-shear nailing advantage - distributing the joist load through two points on each nail for greater strength. The Strong-Tie HUS412TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

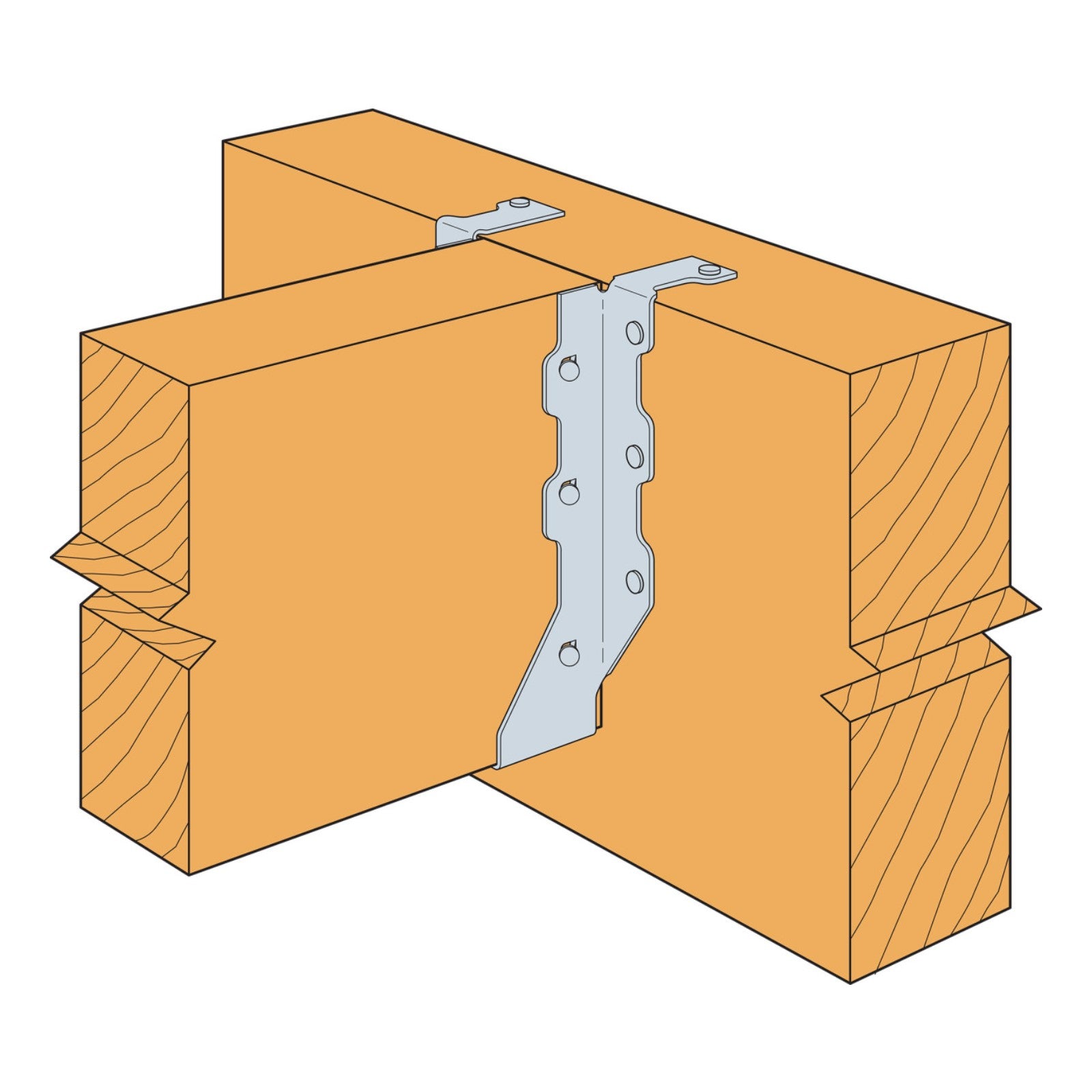

Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • With 3x carrying members, use 16d x 2 1/2" nails into the header and 16d commons into the joist.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 11-1/8"
Fasteners required: Face - (10) 0.162" x 3-1/2" Nails Joist - (8) 0.162" x 3-1/2" Nails
Width: 3-9/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 4X12
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Not acceptable for nailer or welded applications; see W and B hangers.
-With 3x carrying members, use 16d x 2 1/2" nails into the header and 16d commons into the joist.

View full details
