SKU: HWPH410

Simpson HWPH410 High Wind Uplift Purlin Heavy Hanger - Gray Paint

Simpson HWPH410 High Wind Uplift Purlin Heavy Hanger - Gray Paint!

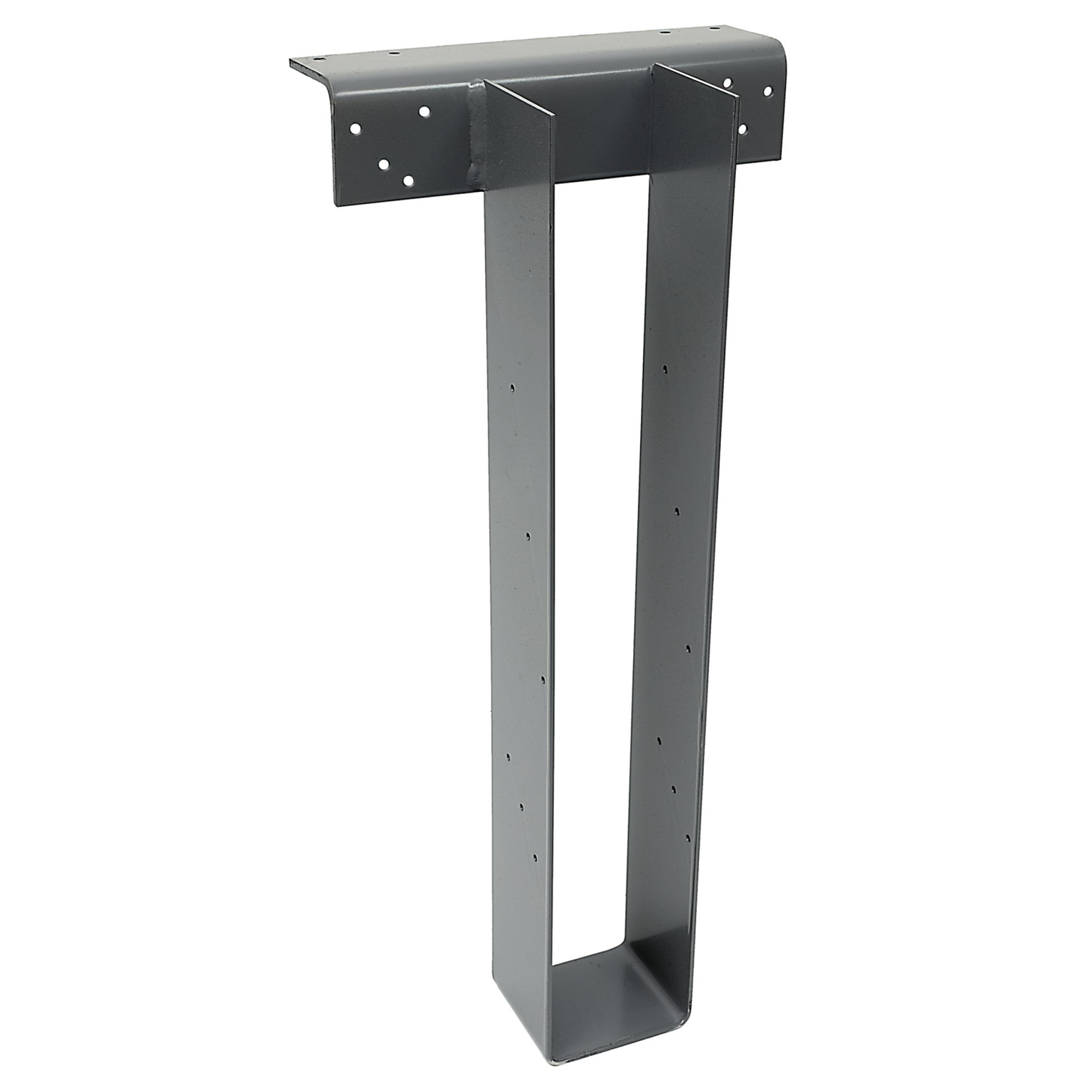

  • HWPH HIGH-WIND PURLIN HEAVY HANGER

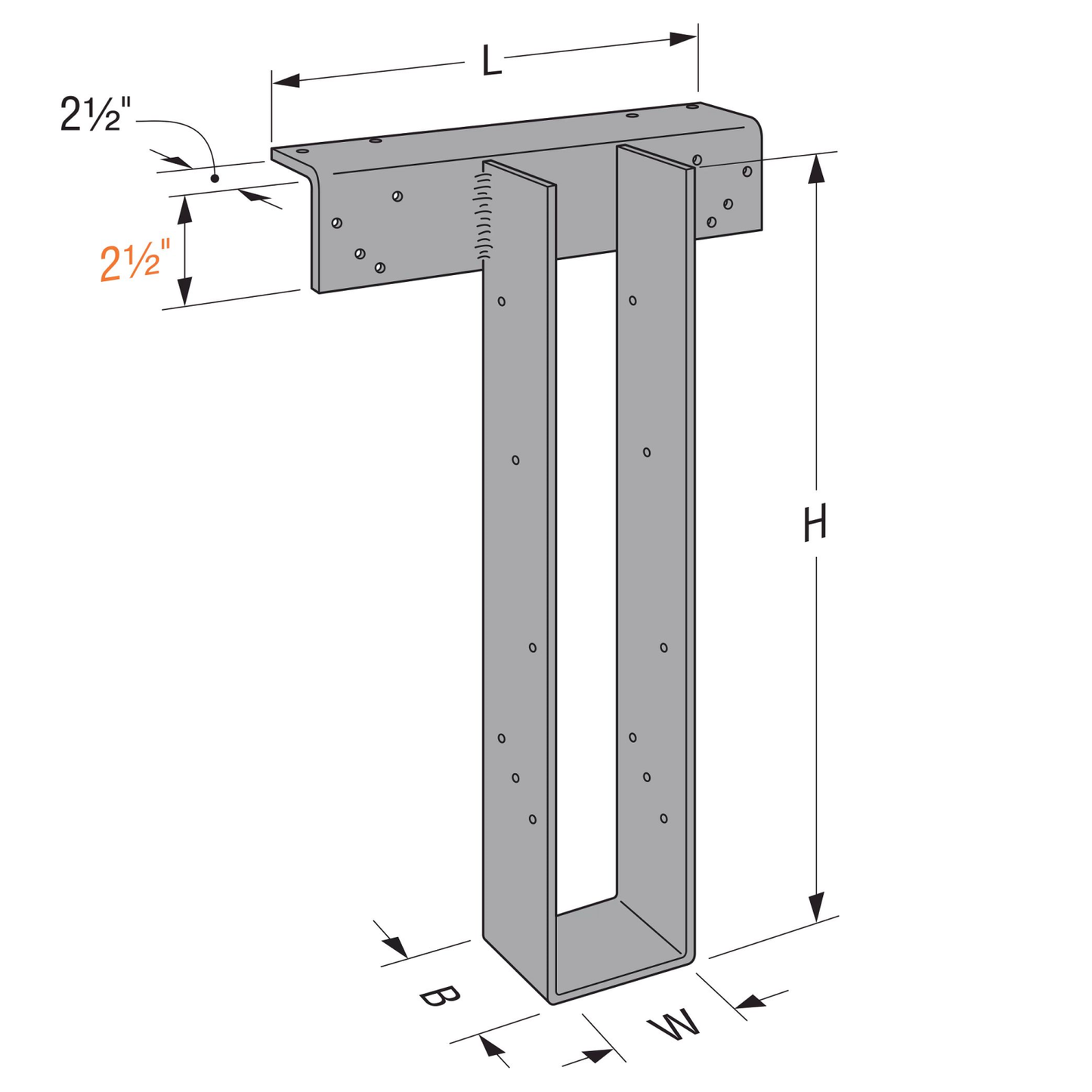

  • HWPH HIGH-WIND PURLIN HEAVY HANGER ILLUSTRATION
1 2

Continue Browsing

WP/HWP/HWPH/WMU Purlin Top-Flange Hangers
SKU: HWPH410

Simpson HWPH410 High Wind Uplift Purlin Heavy Hanger - Gray Paint

$45.24

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Fasteners required: Hanger Heights From 6 to 15 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ Hanger Heights From 15 ¾ to 32 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (12) 0.148 x 1 ½
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description
  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

The HWPH is designed to support joists on purlins or beams in both wood and cold-formed steel construction. This heavy top-flange hanger has enhanced uplift and is ideal for high-wind applications. The HWPH offers design flexibility and versatility that provides very high uplifts and down loads. Hot-dip galvanized available; please specify when contacting us.

Installation:

  • Modifiable with alteration options including opened/closed top-flange and offset top-flange
  • Top flange may be sloped to a maximum of 35° to accommodate a sloped header
  • Features a solid one-piece top flange that provides extra stability in panelized roof applications
  • Available with a sloped and/or skewed seat up to 45°
  • Use all Specified Fasteners

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
