Shop more WP/HWP/HWPH/WMU Purlin Top-Flange Hangers
SKU: HWPH7.12/14

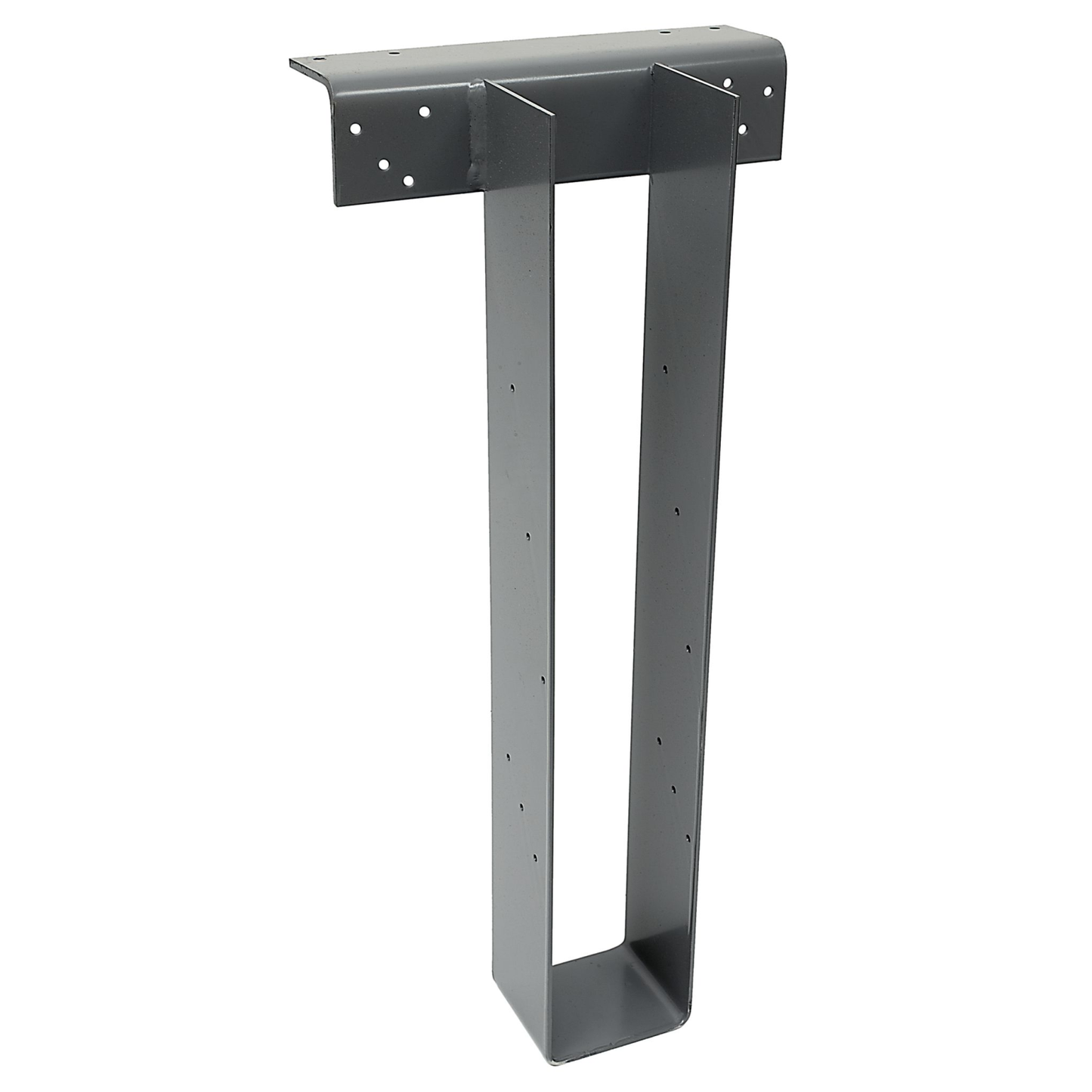

Simpson HWPH7.12/14 High Wind Uplift Purlin Heavy Hanger - Gray Paint

Simpson HWPH7.12/14 High Wind Uplift Purlin Heavy Hanger - Gray Paint

Regular price $69.78
Sale price $69.78 Regular price
0% off
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

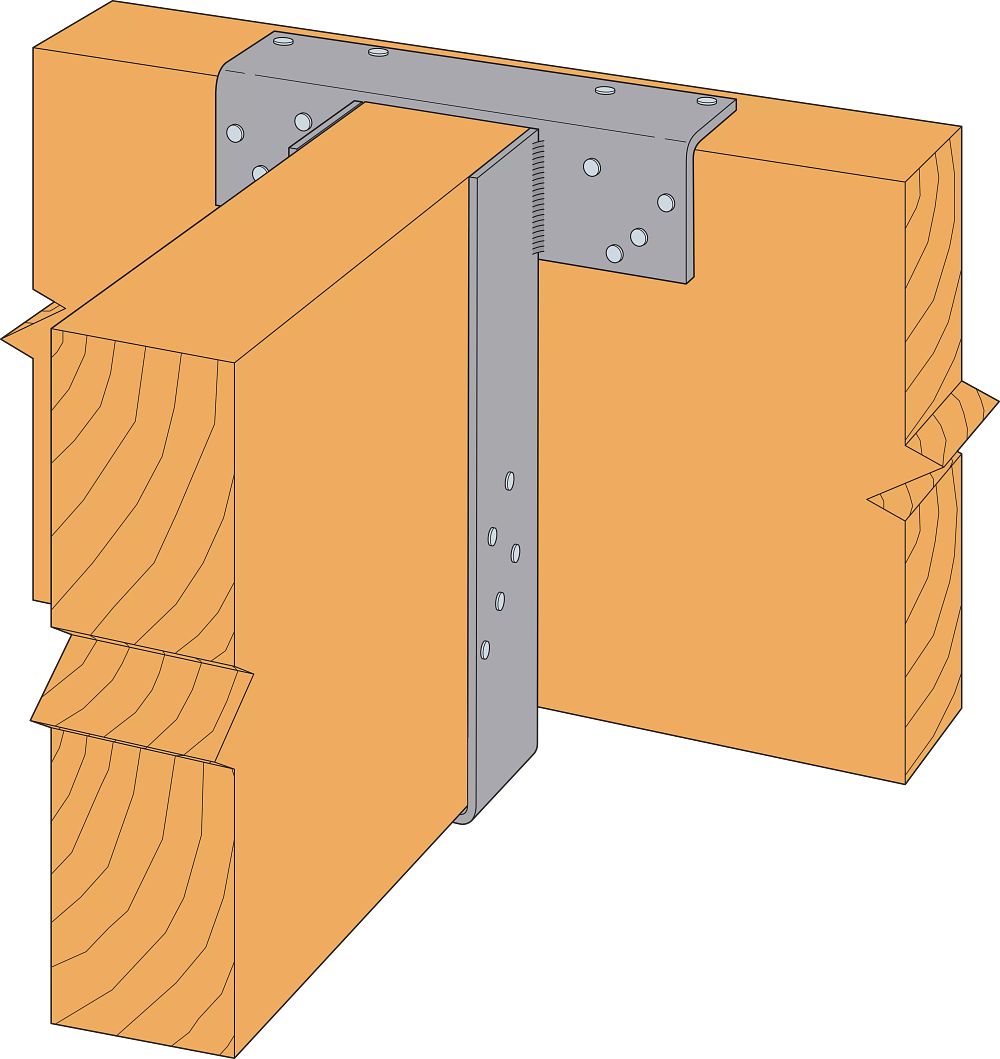

The HWPH is designed to support joists on purlins or beams in both wood and cold-formed steel construction. This heavy top-flange hanger has enhanced uplift and is ideal for high-wind applications. The HWPH offers design flexibility and versatility that provides very high uplifts and down loads. Hot-dip galvanized available; please specify when contacting us.

Installation:

  • Modifiable with alteration options including opened/closed top-flange and offset top-flange
  • Top flange may be sloped to a maximum of 35° to accommodate a sloped header
  • Features a solid one-piece top flange that provides extra stability in panelized roof applications
  • Available with a sloped and/or skewed seat up to 45°
  • Use all Specified Fasteners

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:

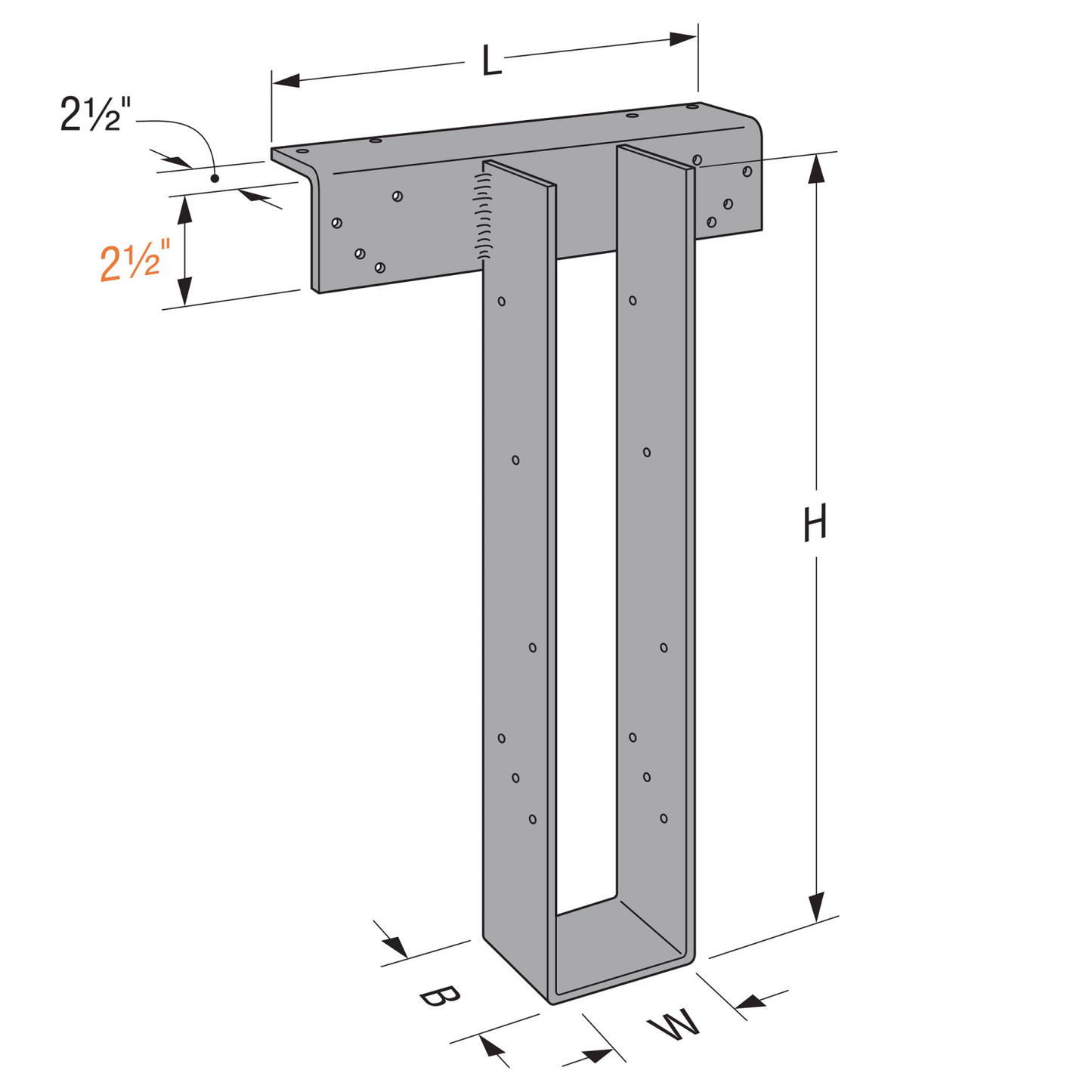

Fasteners required: Hanger Heights From 6 to 15 ? - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (10) 0.148 x 1 ½ Hanger Heights From 15 ¾ to 32 - Top: (4) 0.162 x 3 ½ Face: (8) 0.162 x 3 ½ Joist: (12) 0.148 x 1 ½
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Modifiable with alteration options including opened/closed top-flange and offset top-flange
-Top flange may be sloped to a maximum of 35° to accommodate a sloped header
-Features a solid one-piece top flange that provides extra stability in panelized roof applications
-Available with a sloped and/or skewed seat up to 45°
-Use all Specified Fasteners

View full details
