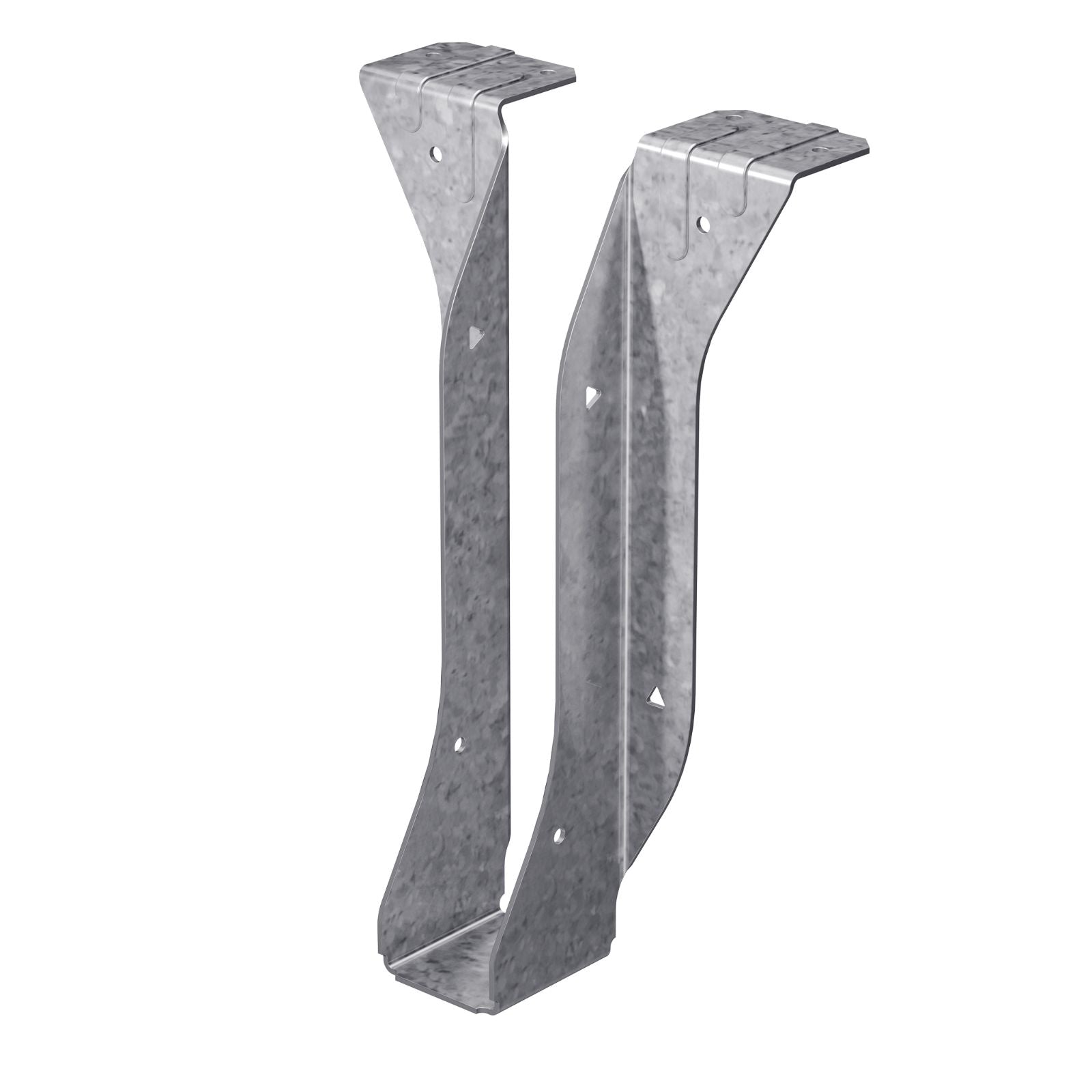

Simpson LB210AZ 2x10 Top Flange Joist Hanger - Zmax Finish

Simpson LB210AZ 2x10 Top Flange Joist Hanger - Zmax Finish

Regular price $6.53
Sale price $6.53 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 6 hours 22 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

Simpson Strong-Tie LB hangers are 14 gauge top mount hangers that are cost effective hangers featuring a min/max joist nailing option. Min Nailing featuring Positive Angle Nailing targets moderate load conditions whereas the Max Nailing generates capacities for higher loads. The unique two level embossment provides added stiffness to the top flange. The Strong-Tie LB210AZ top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153


Installation:
  • Use all specified fasteners.
  • LBAZ, BA, B and HHB may also be welded to steel headers with weld size to match material thickness (approximate thickness shown). The minimum required weld to the top flanges is 1/8" x 2" (1/8" x 1 7/16" for LBAZ) fillet weld to each side of each top flange tab for 14 and 12 gauge and 3/16" x 2" fillet weld to each side of each top flange tab for 7 gauge. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated. Weld on applications produce the maximum allowable down load listed.
  • Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 9-3/16"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Width: 1-9/16"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Joist size: 2X10
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-LBAZ, BA, B and HHB may also be welded to steel headers with weld size to match material thickness (approximate thickness shown). The minimum required weld to the top flanges is 1/8" x 2" (1/8" x 1 7/16" for LBAZ) fillet weld to each side of each top flange tab for 14 and 12 gauge and 3/16" x 2" fillet weld to each side of each top flange tab for 7 gauge. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated. Weld on applications produce the maximum allowable down load listed.
-Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.

View full details
