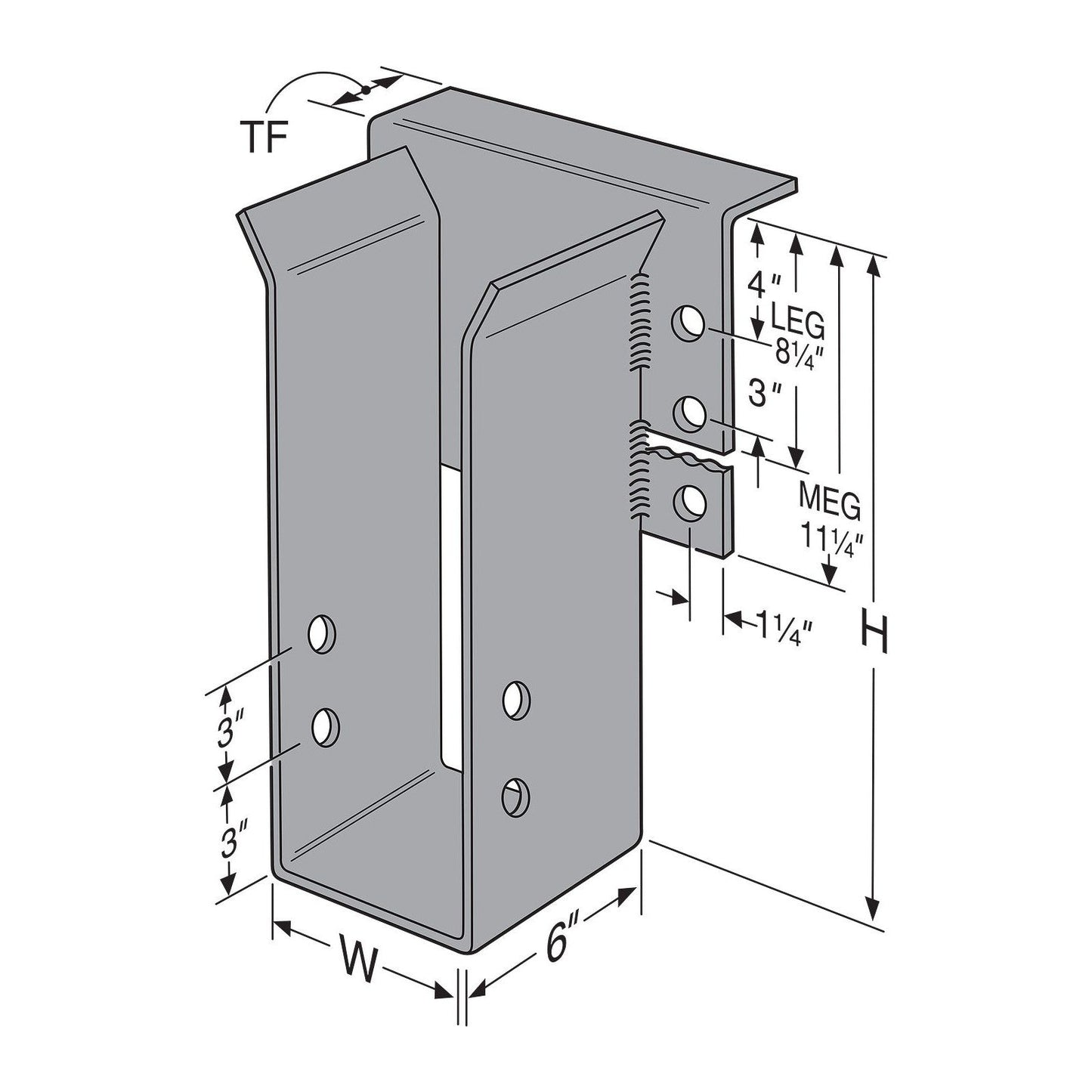

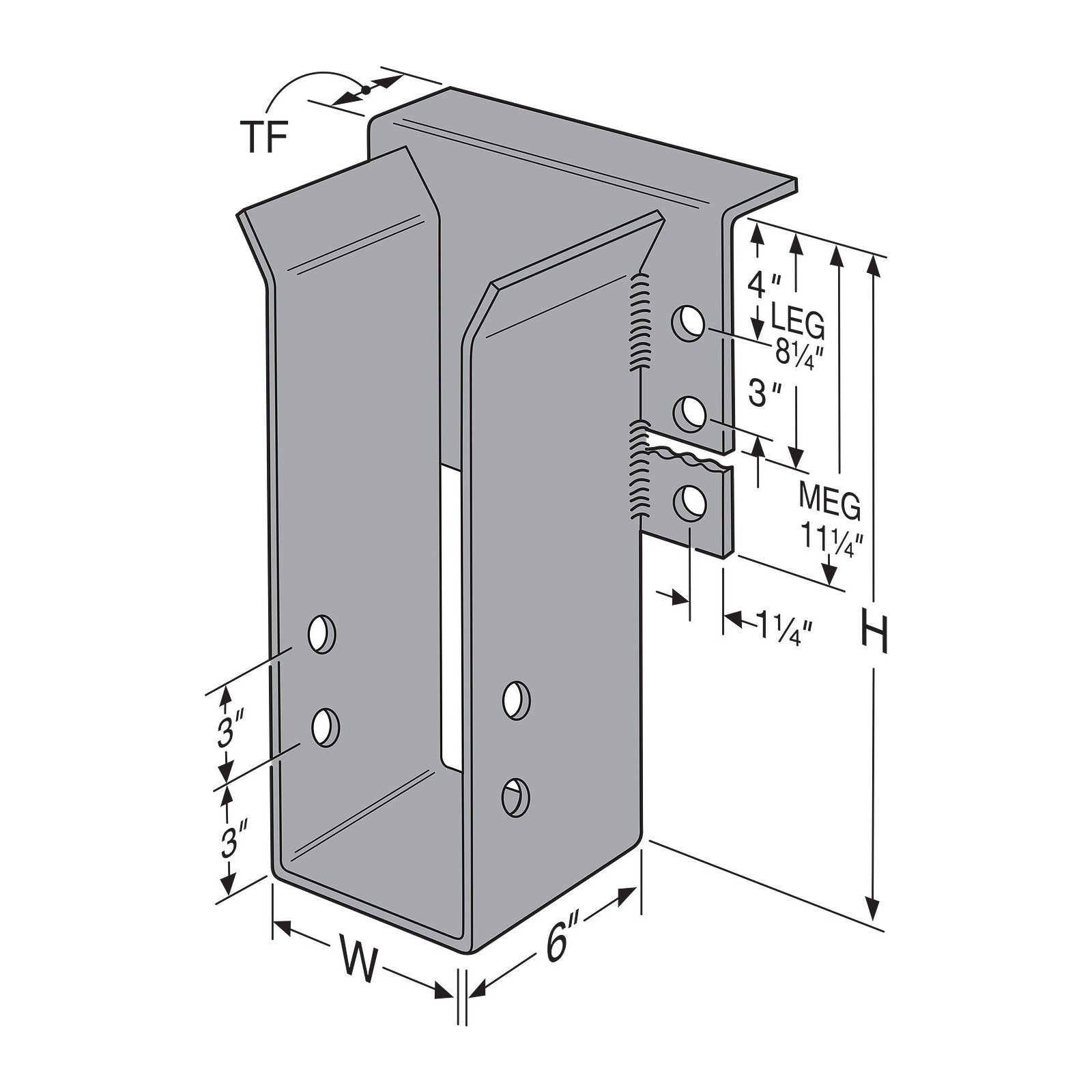

The Simpson Strong-Tie LEG Top-Flange Hanger is engineered for reliable performance in structural framing where light loads and engineered wood members are present. With its adaptable design, this top-flange hanger provides a strong connection between beams and supporting members—ideal for use with LVL, LSL, and glulam applications in both new construction and retrofit scenarios.

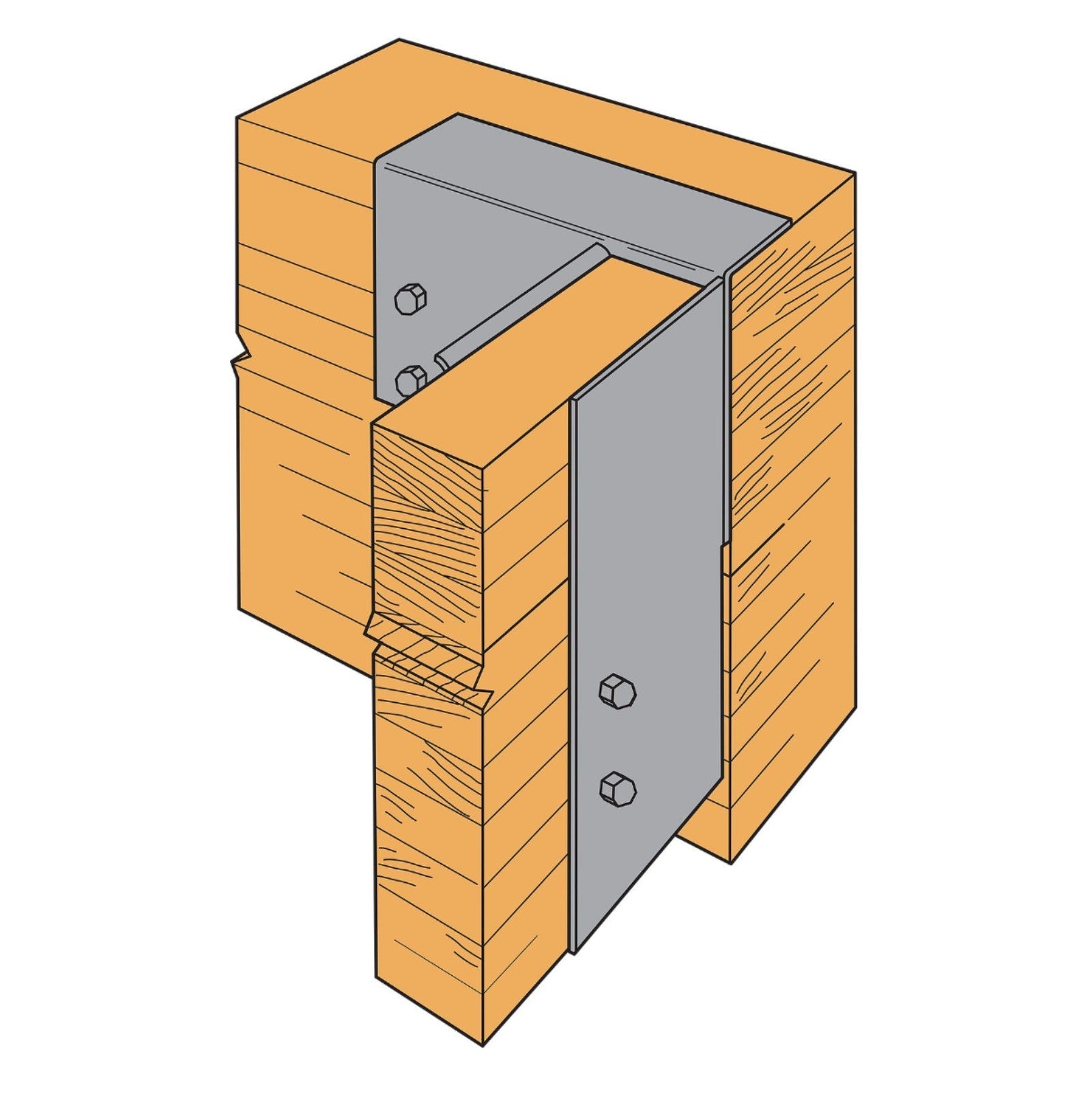

Designed with a top-flange configuration, the LEG hanger wraps over the supporting member, reducing beam rotation and delivering consistent load distribution. It can be customized for various field conditions, including skewed or sloped connections, and offers the flexibility to be manufactured without top flanges when needed.

Features:

• Top-Flange Design: Provides a strong, rotationally stable connection for engineered wood members.
• Adjustable Options: Available with skew or slope modifications up to 45° for complex framing needs.
• Customizable Fit: Can be fabricated without top flanges for specific jobsite conditions or constraints.
• High Load Performance: Designed and tested for dependable strength in light beam and glulam applications.

Installation:

• Use only Simpson Strong-Tie specified fasteners for optimal load values and code compliance.
• Ensure flanges are flush against the top of the supporting member before fastening.
• Confirm all connections are tight and properly aligned to avoid installation errors.
• Consult local code requirements and approved load tables before installation.

Applications:

• Residential Construction: Ideal for framing floors and roofs with engineered lumber in homebuilding projects.
• Commercial Buildings: Suitable for light commercial use, such as retail spaces or office structures using glulam or LVL beams.
• Retrofit Projects: Used in upgrades and remodels where new engineered beams must integrate with existing framing.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
