Shop more EG/LEG/MEG/EGQ Top Flange Beam Hanger
SKU: LEG5

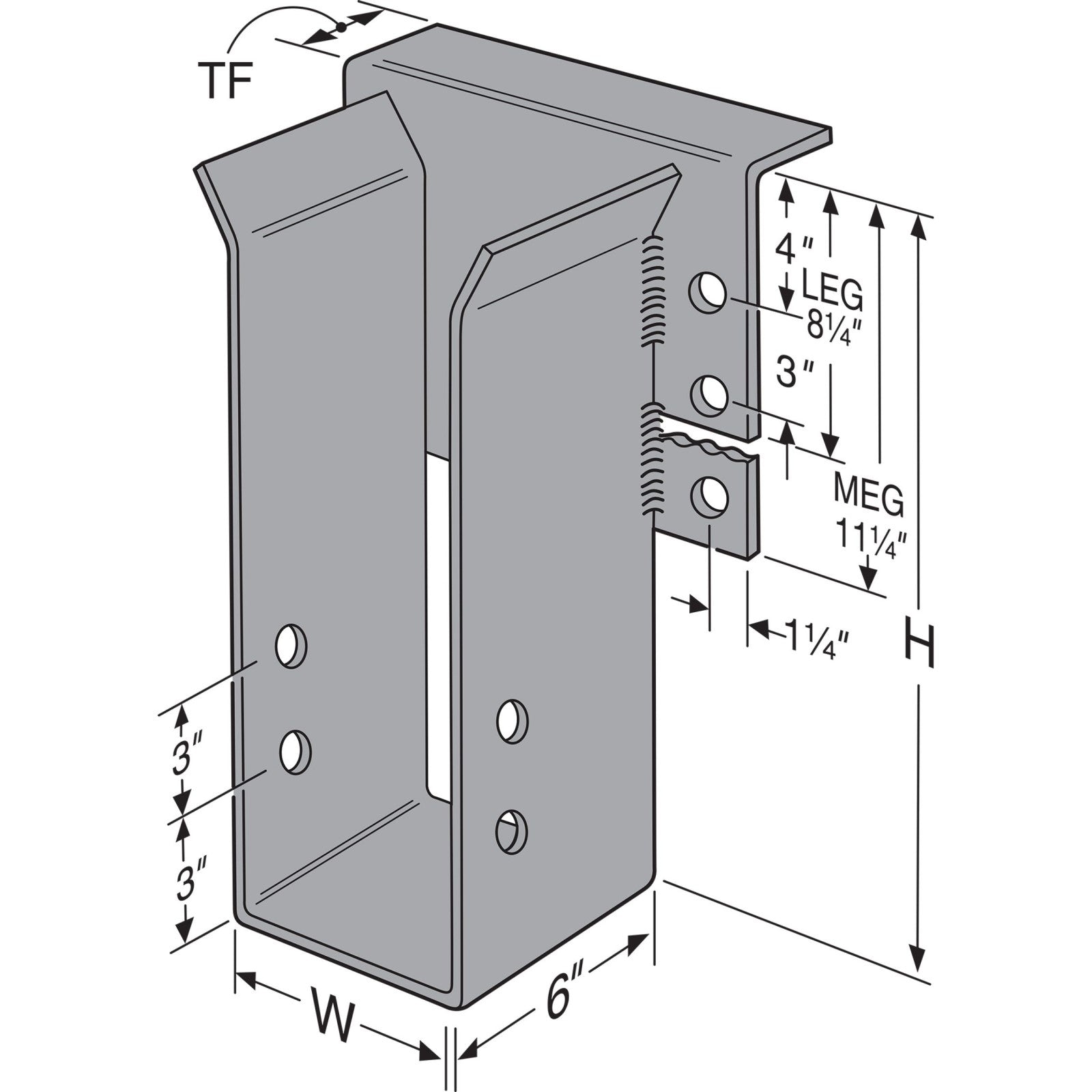

Simpson LEG5 Beam and Glulam Top-Flange Hanger

Simpson LEG5 Beam and Glulam Top-Flange Hanger

Call for Price
Call to Order
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable- Please call us at 888-794-1590 for exact lead times on this product

Simpson Strong Tie LEG is a glulam top-flange hanger designed to support large members typically found in glulam beam construction. The LEG model contains a Simpson Strong-Tie gray paint finish.

  • Use all specified fasteners.
  • Maintain minimum 4D end distance and edge distance from bolt to end of header and nearest loaded edge per NDS requirements.
  • LEG series can be skewed up to 45° with a maximum allowable load of 10,000 lb.
    • For a sloped seat installation, the LEG series can be sloped up to 45° with a  maximum allowable load of 9,665 lb.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 9"-32-1/2"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 5-1/8"
Product Guide: View Spec Sheet
