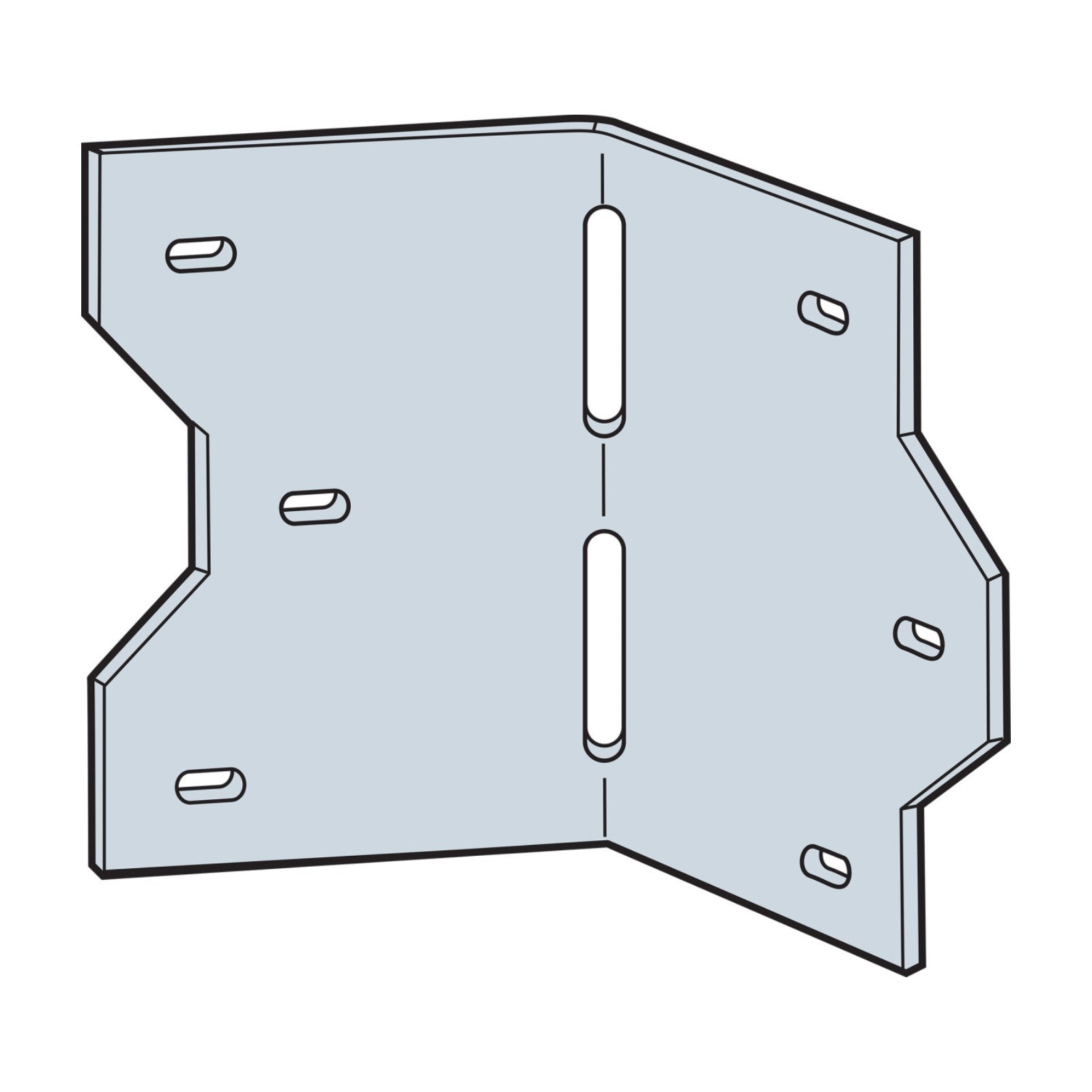

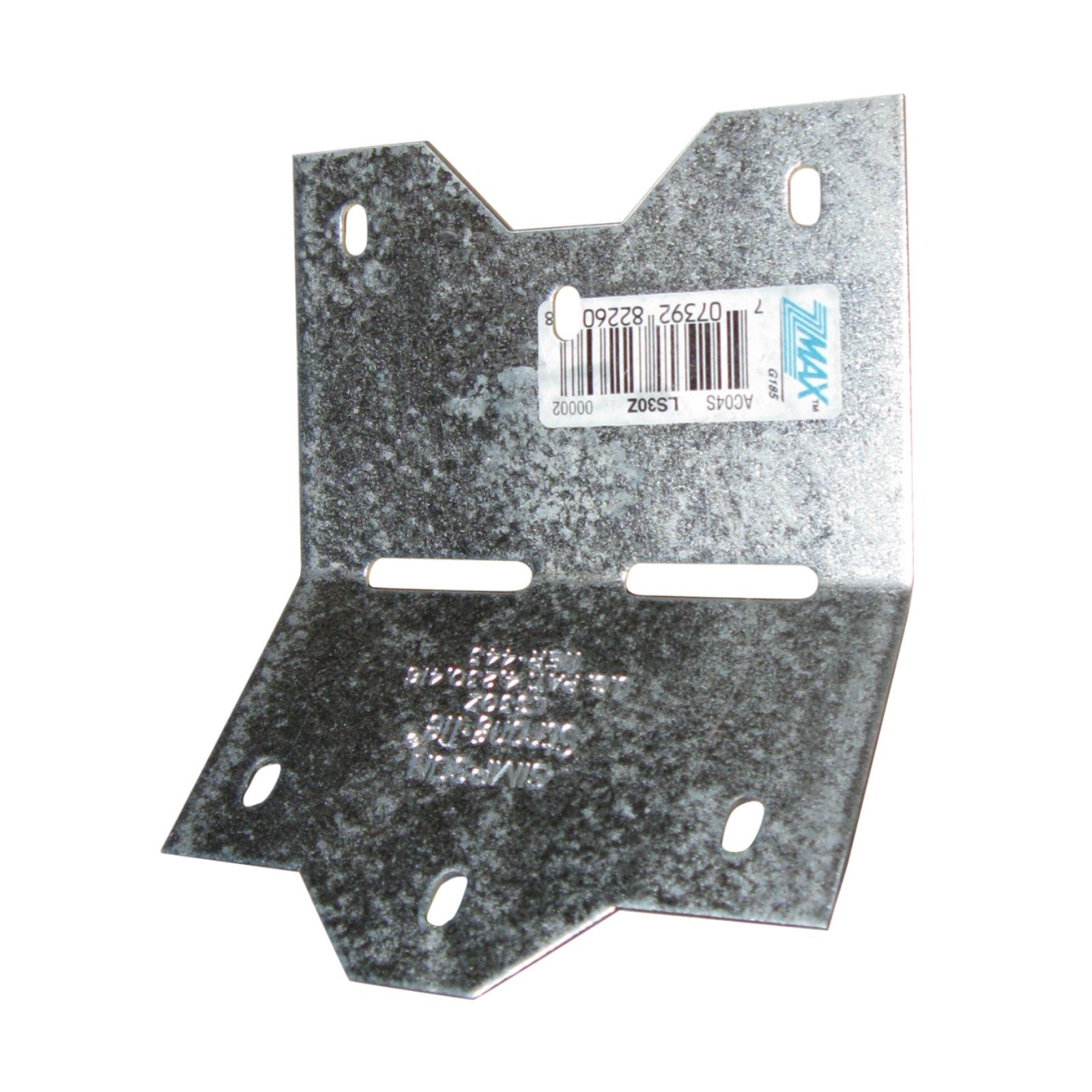

Simpson LS30Z 3-3/8" Reinforcing Angle - Zmax Finish

SKU: LS30Z

$2.70

Simpson Strong-Tie LS angles are skewable which makes them field adjustable to create 0 to 135 degree angles for maximum versatility. The Strong-Tie LS30Z reinforcing angle features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.

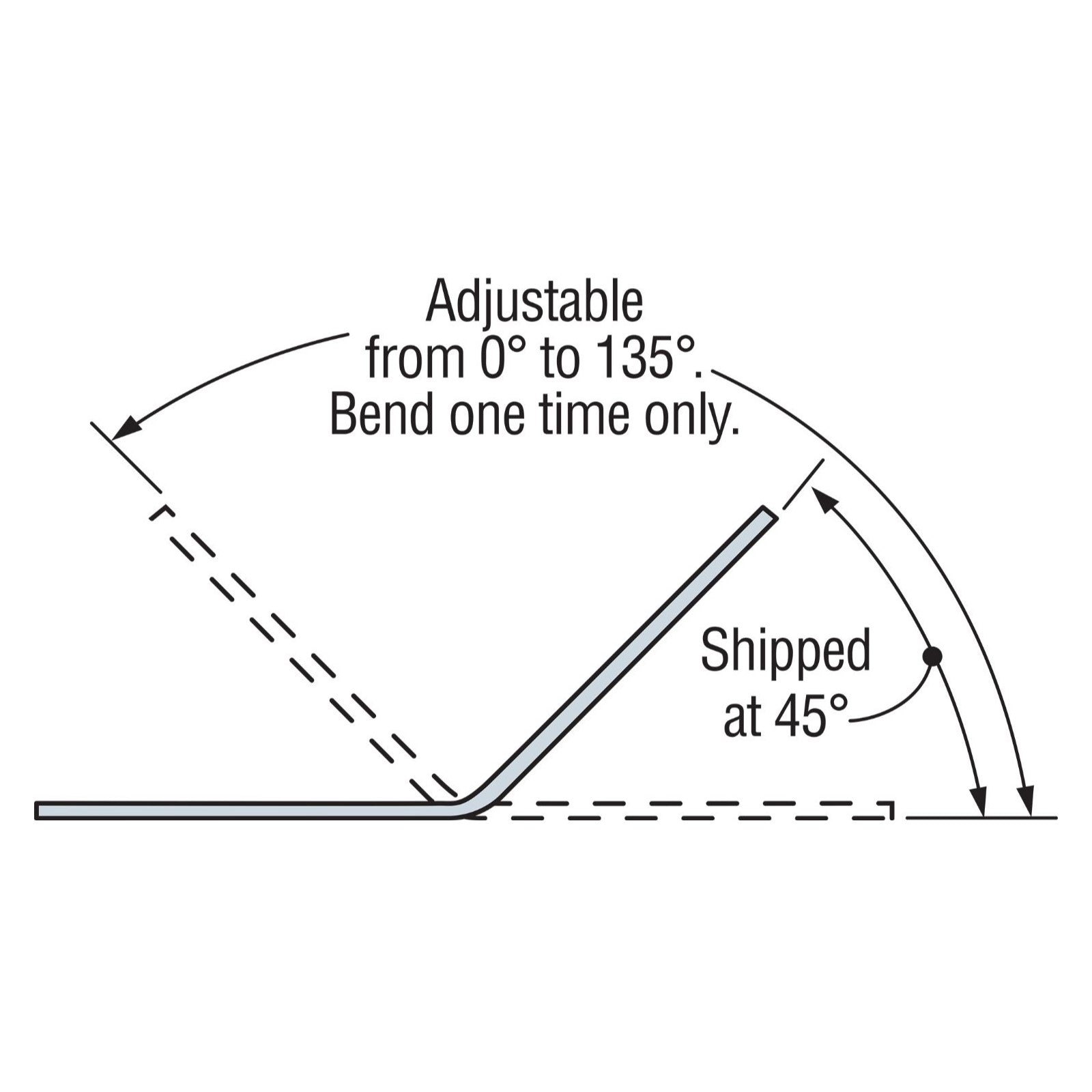

  • LS—field skewable; bend one time only.
  • Joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie LS angles are skewable which makes them field adjustable to create 0 to 135 degree angles for maximum versatility. The Strong-Ti...

Read More

Simpson Strong-Tie LS angles are skewable which makes them field adjustable to create 0 to 135 degree angles for maximum versatility. The Strong-Tie LS30Z reinforcing angle features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • LS—field skewable; bend one time only.
  • Joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
SEE PRODUCT GUIDE DOCUMENT

Finish Spec:
ZMAX

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
yes

Product Guide Document:
L_LS_GA_Reinforcing_and_Skewable_Angles.pdf

Thickness:
18 Gauge

Product Guide:
