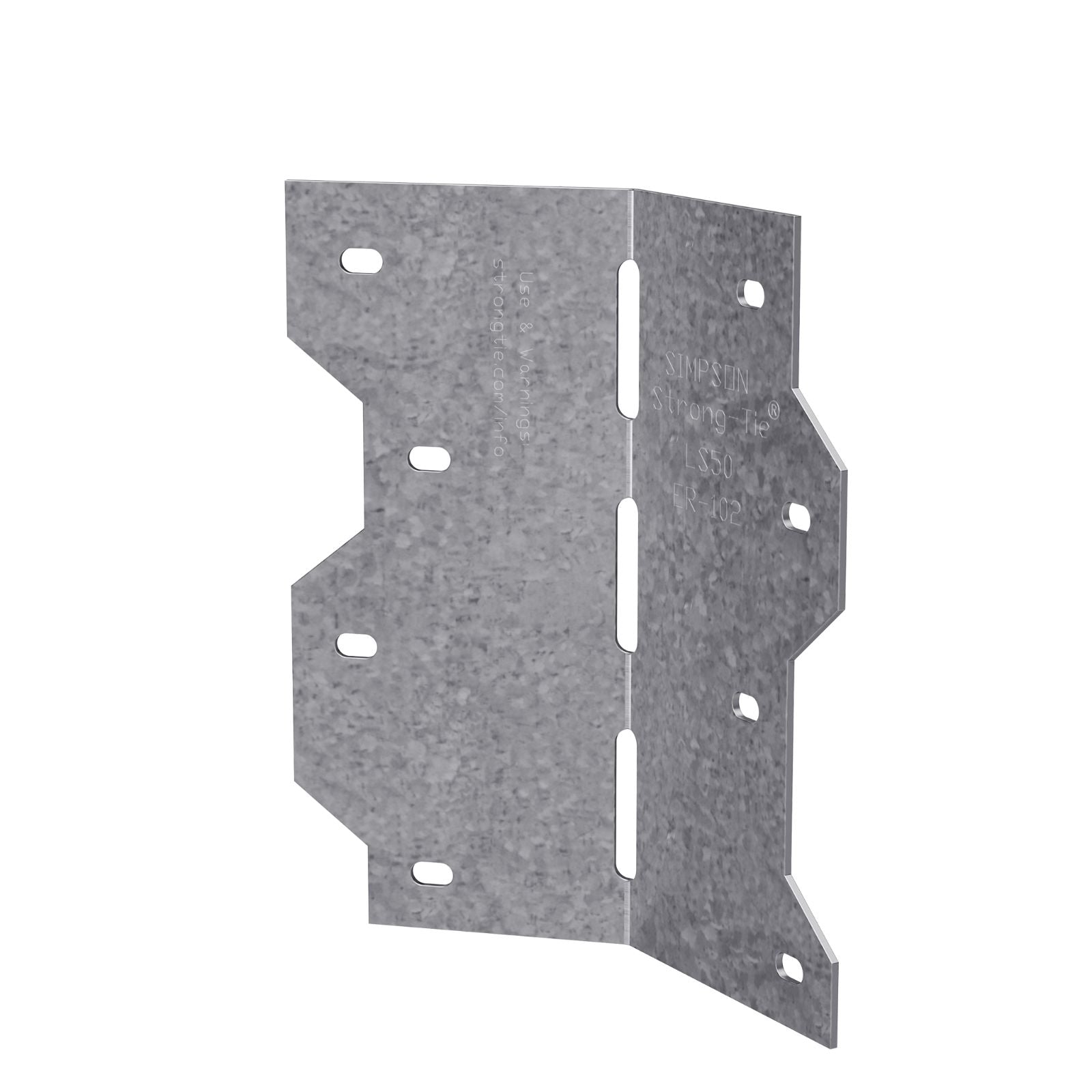

Simpson LS50 4-7/8" Reinforcing Angle - G90 Galvanized

SKU: LS50
$1.88

Simpson Strong-Tie LS angles are skewable which makes them field adjustable to create 0 to 135 degree angles for maximum versatility. The Strong-Tie LS50 reinforcing angle features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.

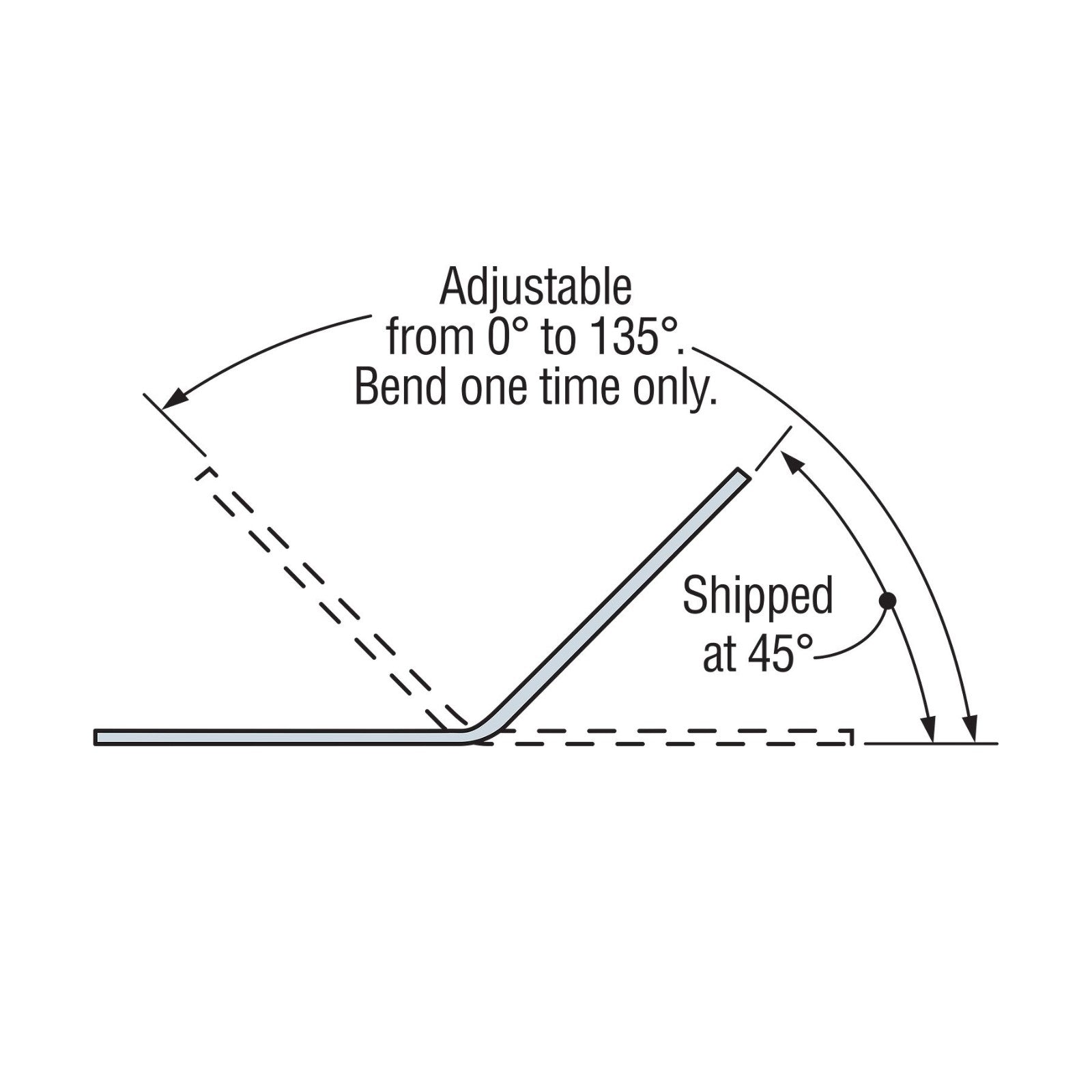

  • LS—field skewable; bend one time only.
  • Joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection.

Please see the below charts for published load values and code reports

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie LS angles are skewable which makes them field adjustable to create 0 to 135 degree angles for maximum versatility. The Strong-Ti...

Read More

Simpson Strong-Tie LS angles are skewable which makes them field adjustable to create 0 to 135 degree angles for maximum versatility. The Strong-Tie LS50 reinforcing angle features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
  • LS—field skewable; bend one time only.
  • Joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection.

Please see the below charts for published load values and code reports

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
SEE PRODUCT GUIDE DOCUMENT

for treated lumber:
no

thickness:
18 Gauge

Product Spec Sheet:
