Shop more TB Tension Bridging
SKU: LTB20

Simpson LTB20 19 1/2" 22 Gauge Light Tension Bridging - G90 Galvanized

Simpson LTB20 19 1/2" 22 Gauge Light Tension Bridging - G90 Galvanized

Regular price $0.57
Sale price $0.57 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships today when you order in the next 4 hours 7 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.

Description:

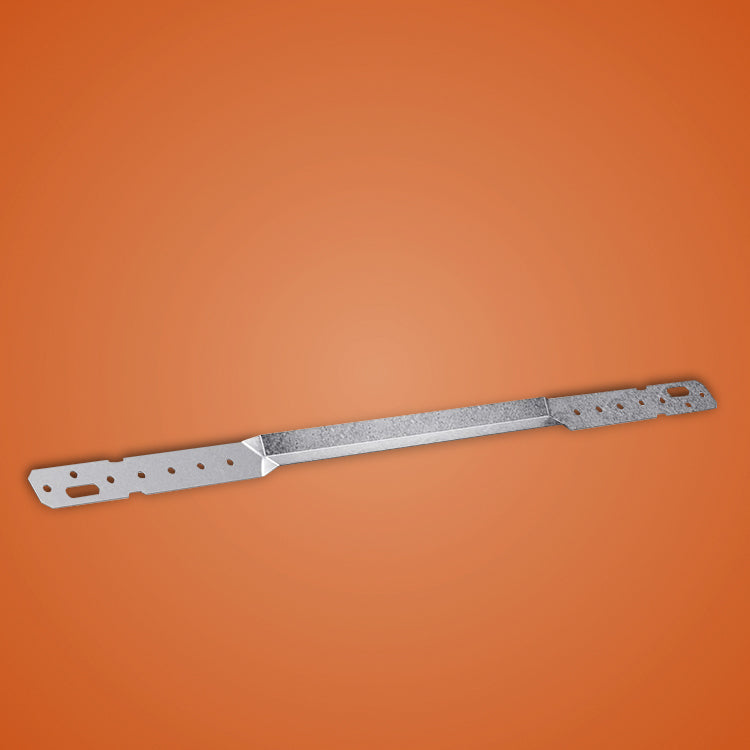

The Simpson LTB Light Tension Bridging provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this light tension-type bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The LTB features a staggered nail pattern to accommodate 2x8 and 2x10 joists and is designed for maximum nailing flexibility, with the option to use as few as two nail holes on each end, and as many as six.

Installation:

  • Galvanized for corrosion resistance
  • Keeps floor system continuity and prevents joist rotation
  • Installation flexibility, with six nail holes on each end and a staggered nail pattern

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Fasteners required: (2) 0.113 in. x 2 in. nails per end

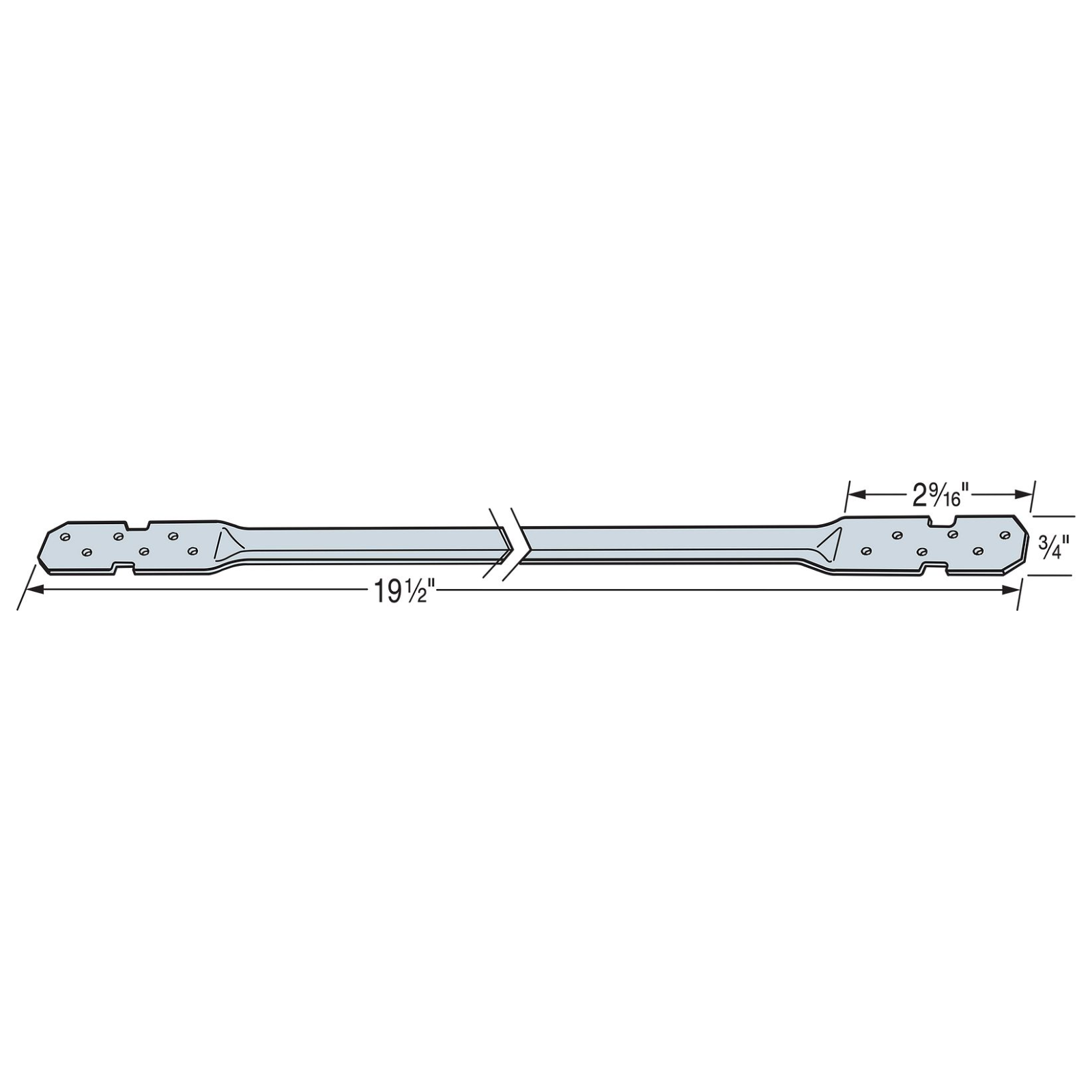

Length: 19 1/2"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet

Installation

-Galvanized for corrosion resistance
-Keeps floor system continuity and prevents joist rotation
-Installation flexibility, with six nail holes on each end and a staggered nail pattern

View full details
Shop more TB Tension Bridging
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
