SKU: LTB40

Simpson LTB40 39" 22 Gauge Light Tension Bridging - G90 Galvanized

Simpson LTB40 39" 22 Gauge Light Tension Bridging - G90 Galvanized!

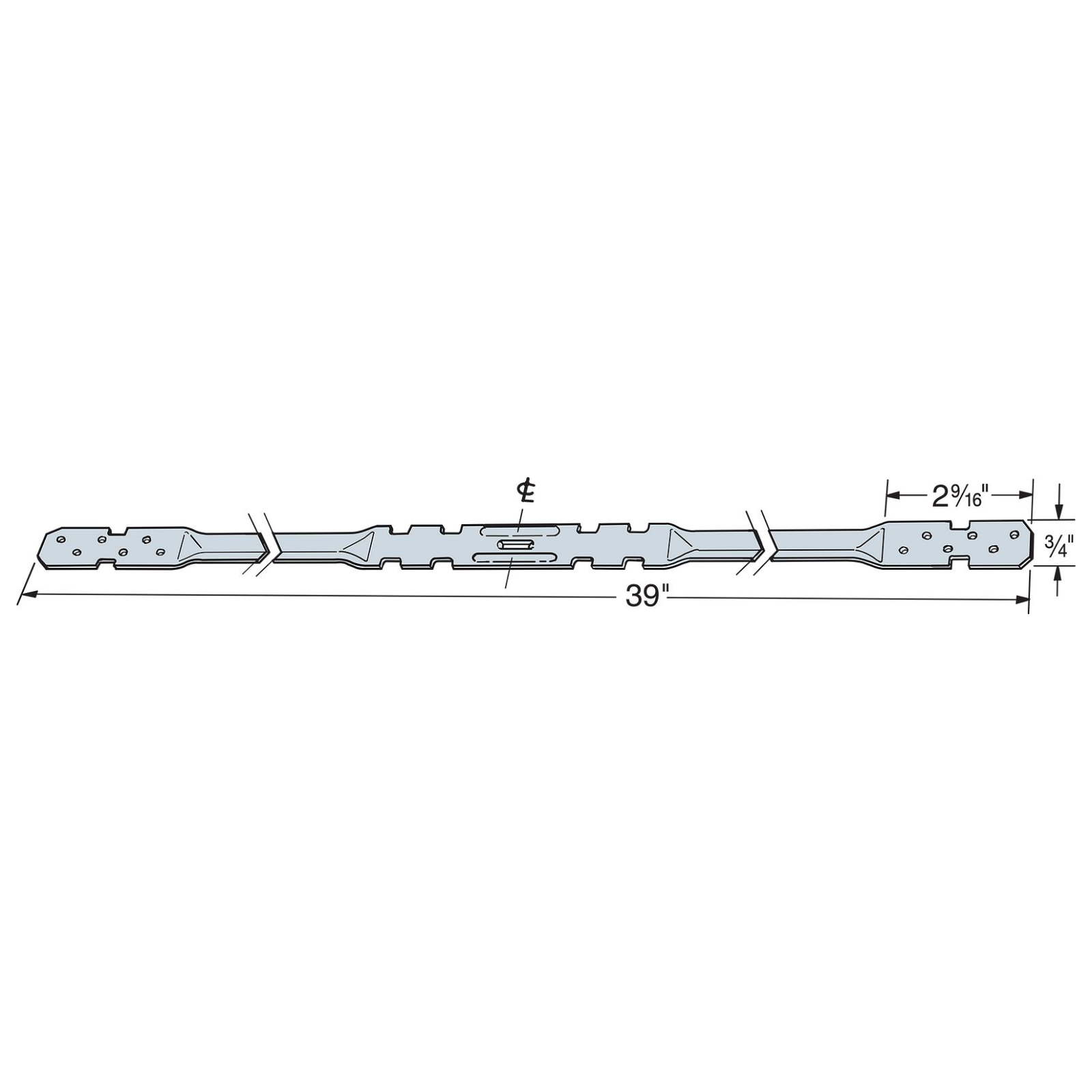

  • LTB40 Light Tension Bridging

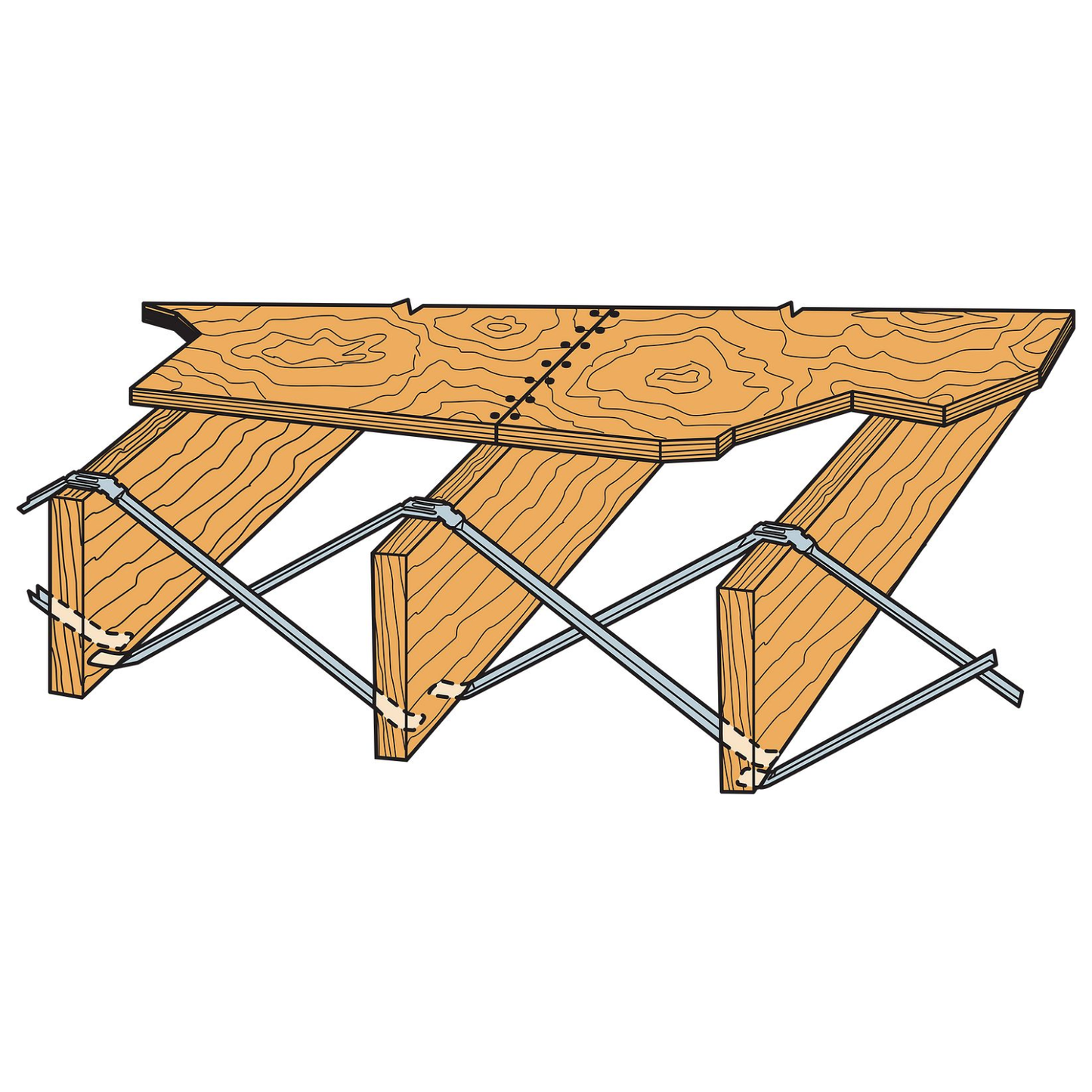

  • LTB40 Light Tension Bridging installation
1 2

Continue Browsing

TB Tension Bridging
SKU: LTB40

Simpson LTB40 39" 22 Gauge Light Tension Bridging - G90 Galvanized

$1.51

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 16
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 39"
Fasteners required: (2) 0.113 in. x 2 in. nails per end
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description

The Simpson LTB Light Tension Bridging provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this light tension-type bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The LTB features a staggered nail pattern to accommodate 2x8 and 2x10 joists and is designed for maximum nailing flexibility, with the option to use as few as two nail holes on each end, and as many as six.

Installation:

  • Galvanized for corrosion resistance
  • Keeps floor system continuity and prevents joist rotation
  • Installation flexibility, with six nail holes on each end and a staggered nail pattern

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
