SKU: MBHU5.50/16SSKT

Simpson MBHU5.50/16SSKT Masonry Beam Hanger W/Screws - Stainless Steel

Name: Simpson MBHU5.50/16SSKT Masonry Beam Hanger W/Screws - Stainless Steel
SKU: MBHU5.50/16SSKT
Price: 1275.00 USD
Availability: InStock

$1,275⁰⁰

Ships FREE today when you order in the next 6 hours and 55 minutes

Description

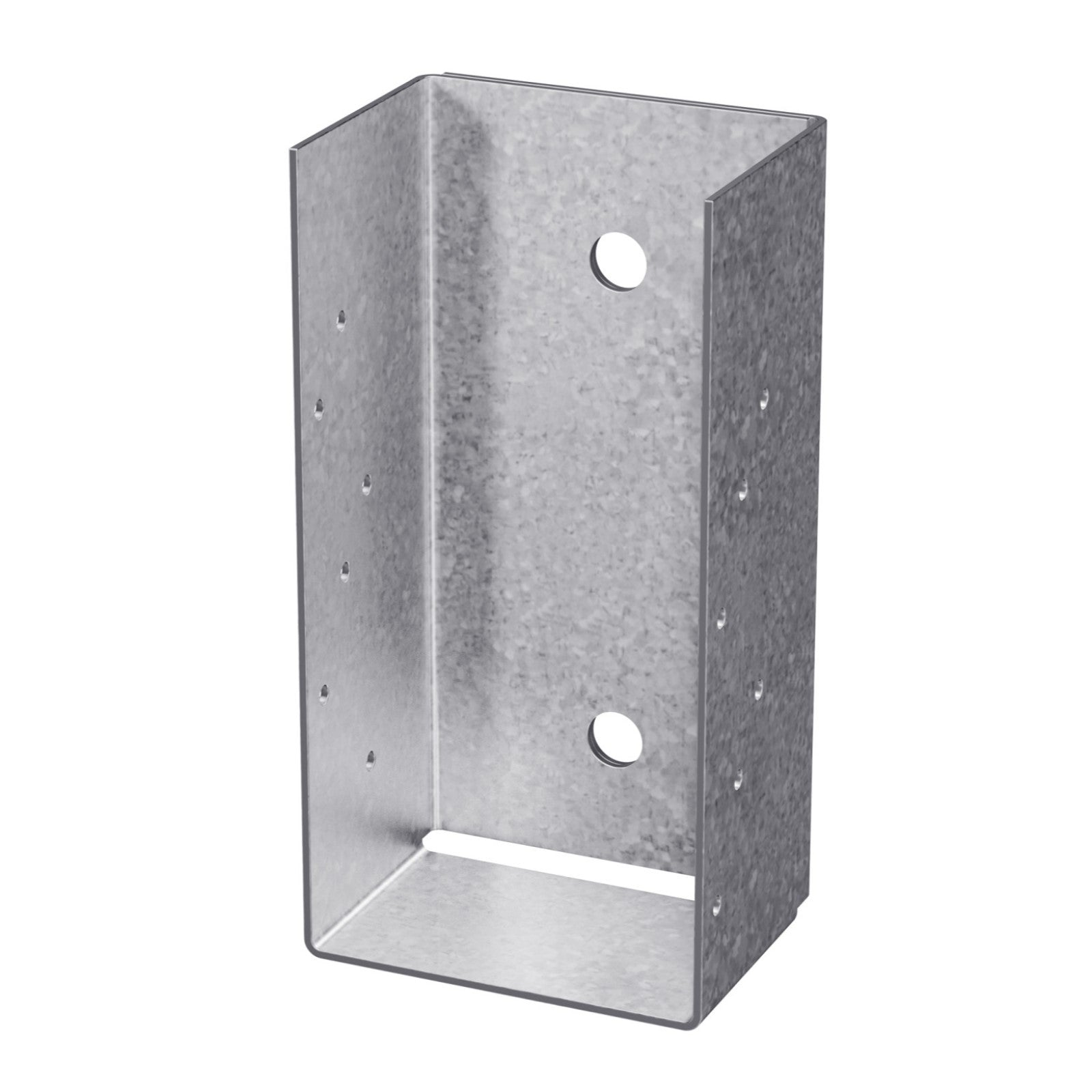

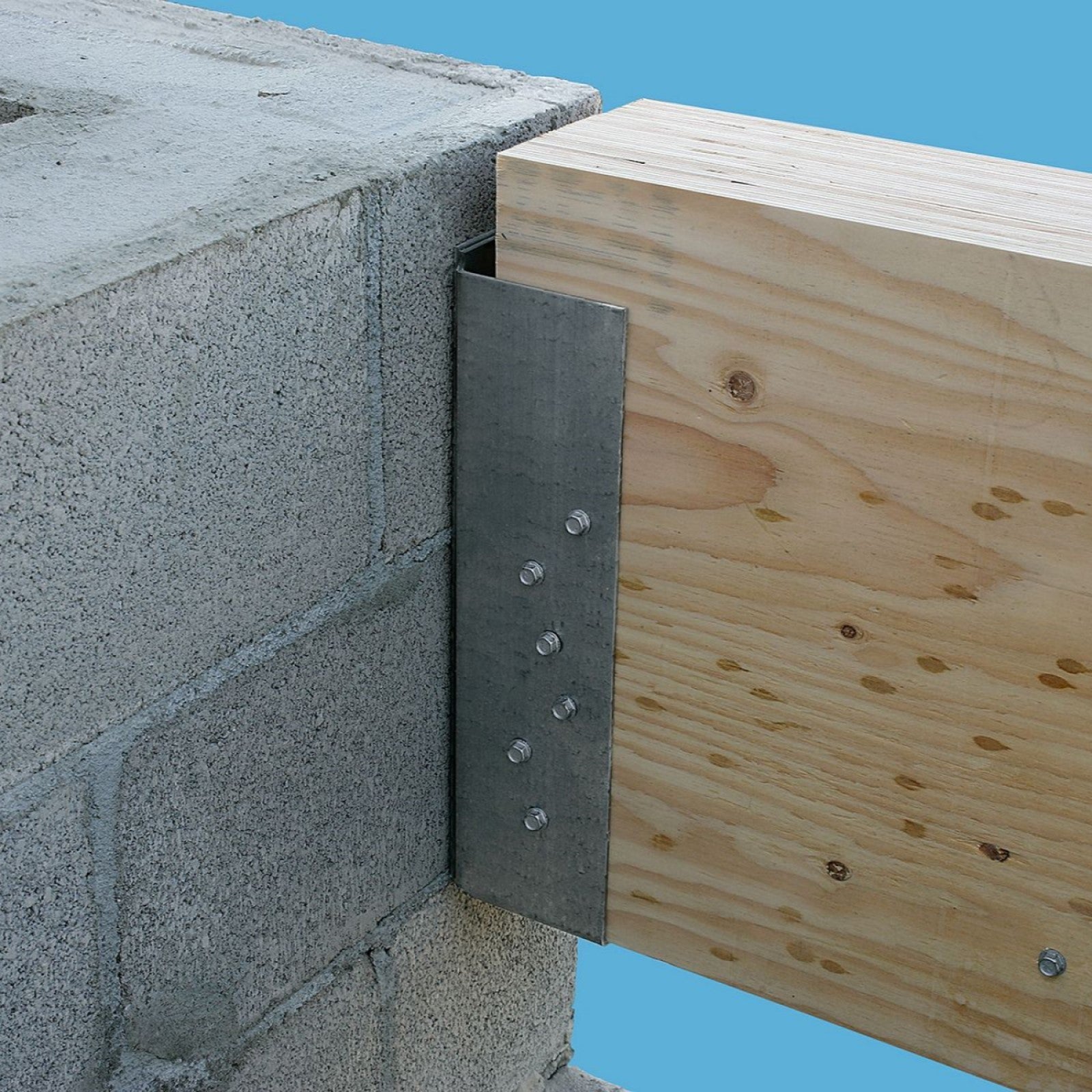

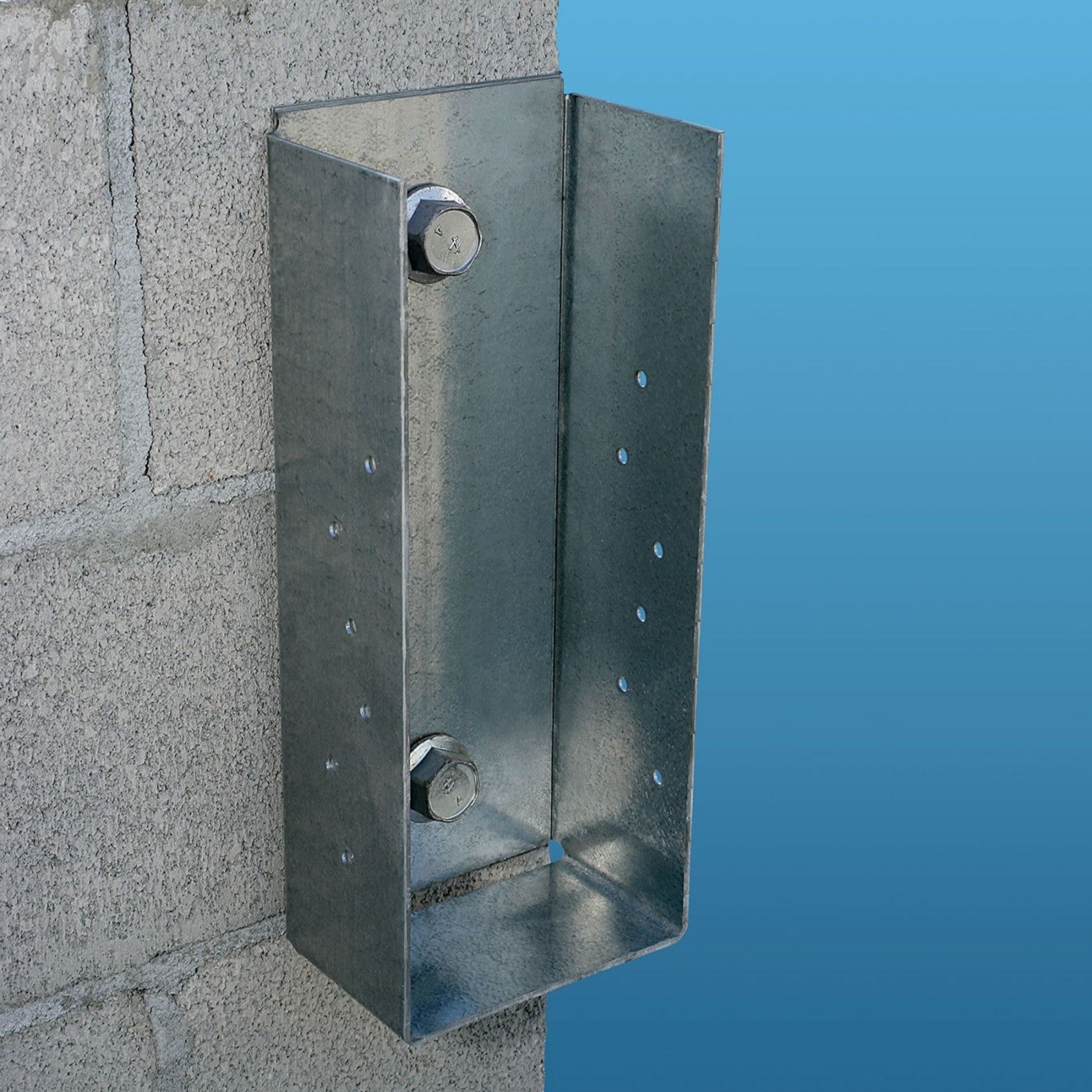

For face-mounted connections between beams and masonry or concrete walls, there is the Simpson MBHU Masonry Beam Face-Mount Hanger. The MBHU is a one-piece, non-welded connector that may be used with both trusses and solid engineered wood beams. Because the Strong-Drive® SDS Heavy-Duty Connector screws and Titen HD® heavy-duty screw anchor are provided with the hanger, installation is made simpler. It is simpler to locate the Titen HD anchor in the proper location than it would be with cast-in-place bolts because it is installed after the wall is constructed.

The MBHU hangers are now offered in Type 316 stainless steel, which offers a High/Severe level of corrosion resistance, and are delivered in kits with the Type 316 stainless steel fasteners paired with the appropriate anchors.

Use all specified fasteners. Verify that the header can take the fasteners specified in the table.

California Residents: WARNING

Specifications

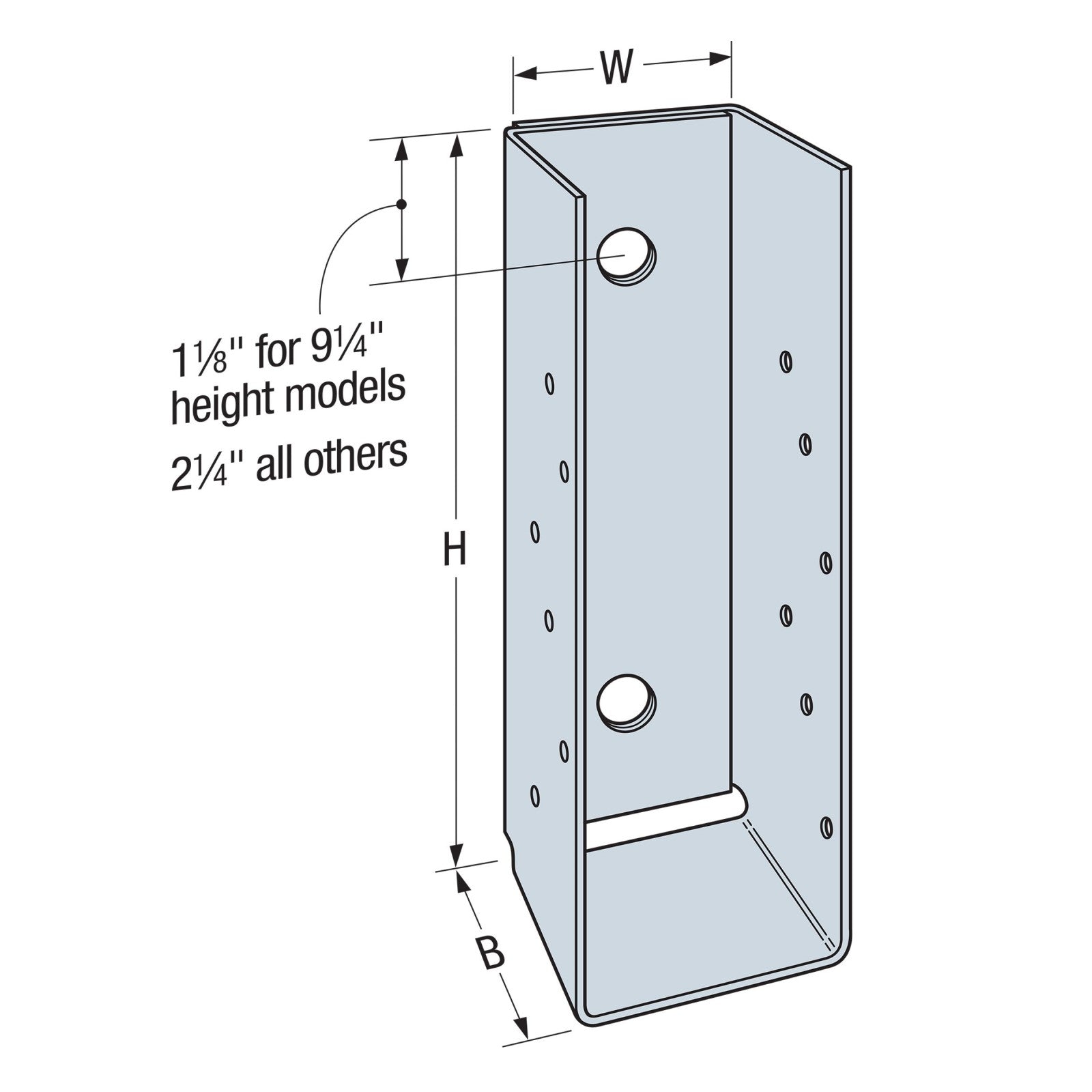

Width: 5-1/2"

Height: 16"

Thickness: 10 Gauge

Material: Stainless Steel

Finish: Stainless Steel

Manufacturer Name: Simpson Strong-Tie

Quantity: 1

Fasteners Required: Includes: (2) 3/4" x 5" Titen HD anchors (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws

View Spec Sheet

Simpson Strong-Tie Limited Warranty
