SKU: MBHU5.50/18SSKT

Simpson MBHU5.50/18SSKT Masonry Beam Hanger W/Screws - Stainless Steel

Simpson MBHU5.50/18SSKT Masonry Beam Hanger W/Screws - Stainless Steel!

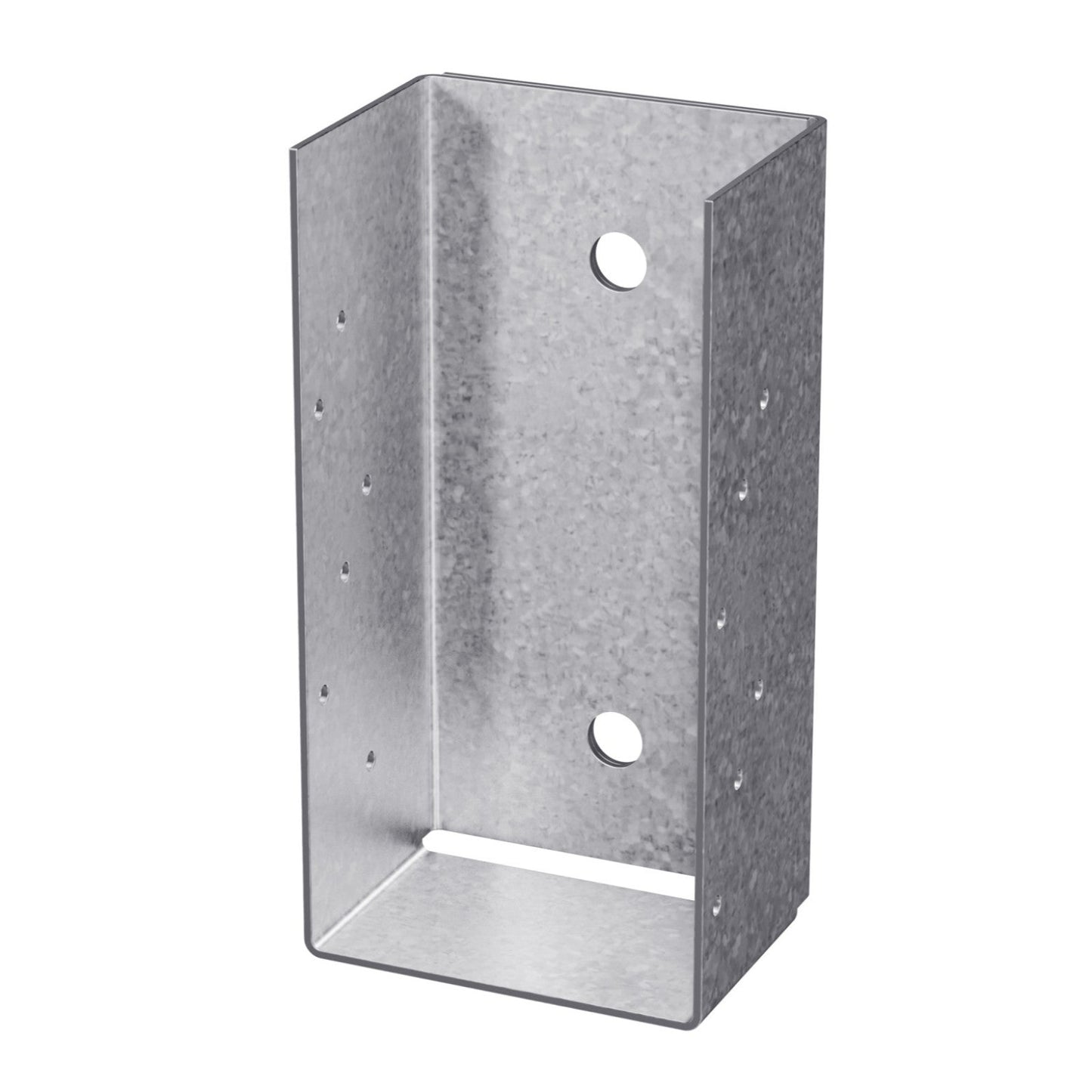

  • MBHU - MBHU5.50-11.25KT Shown

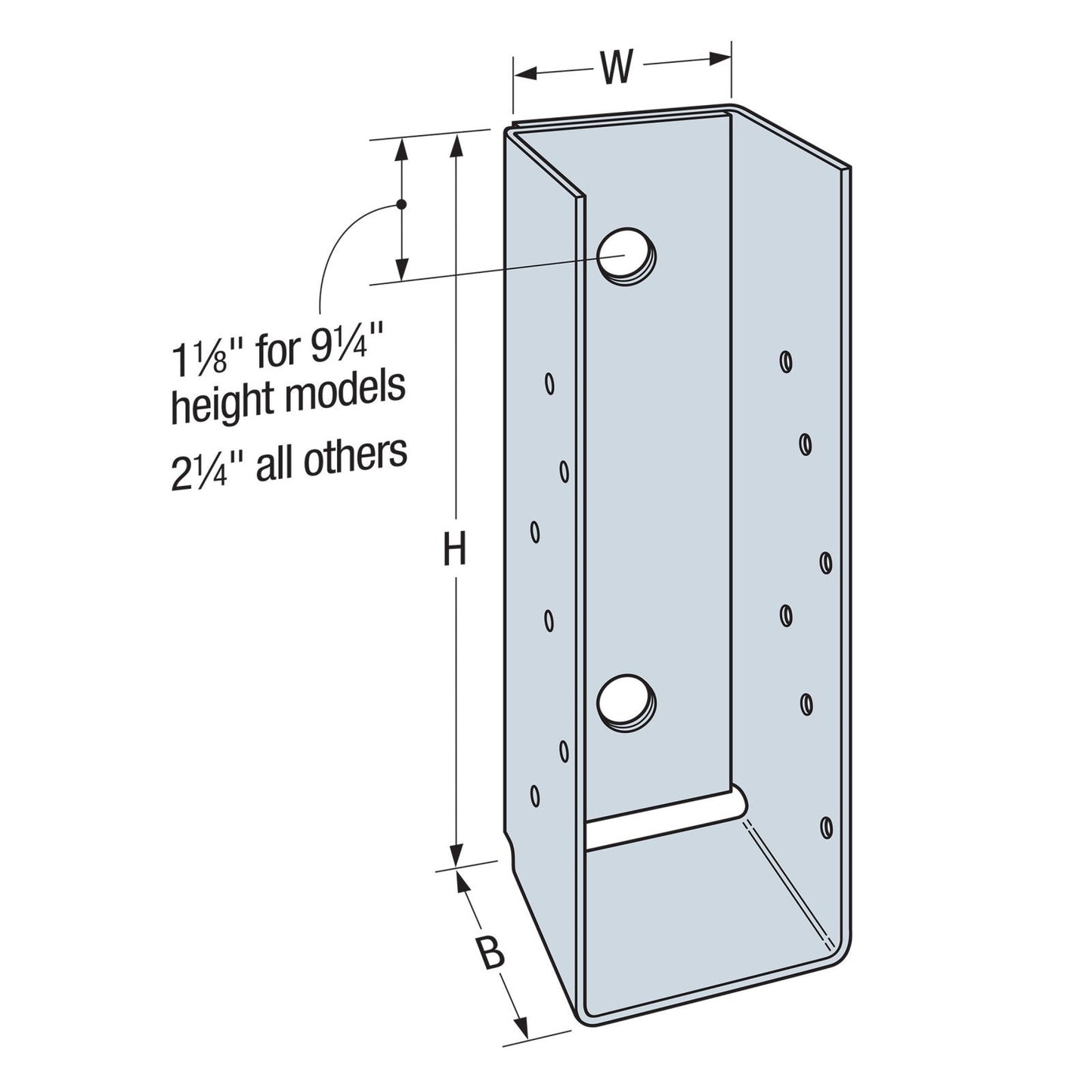

  • MBHU Callout

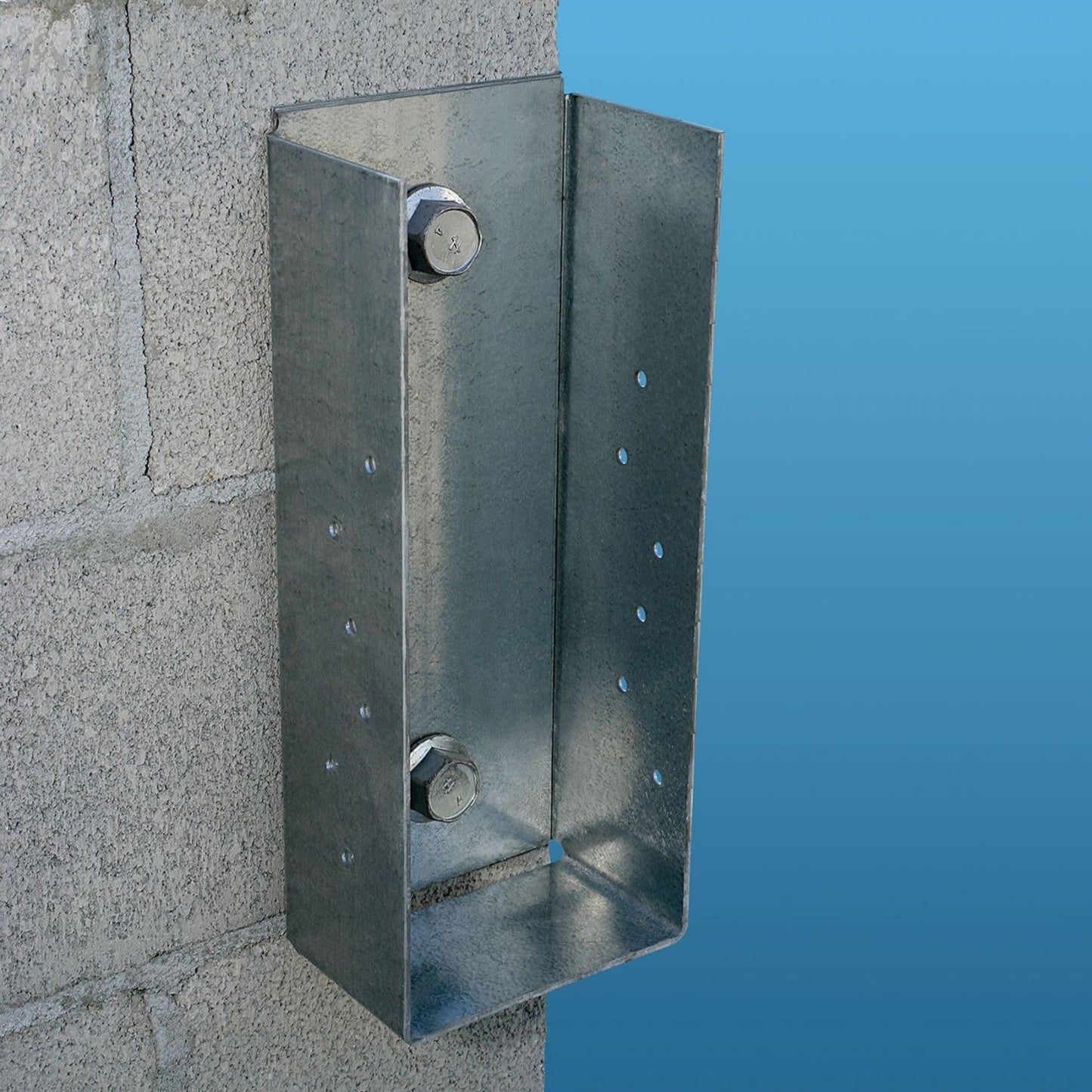

  • MBHU Installation - Step 1

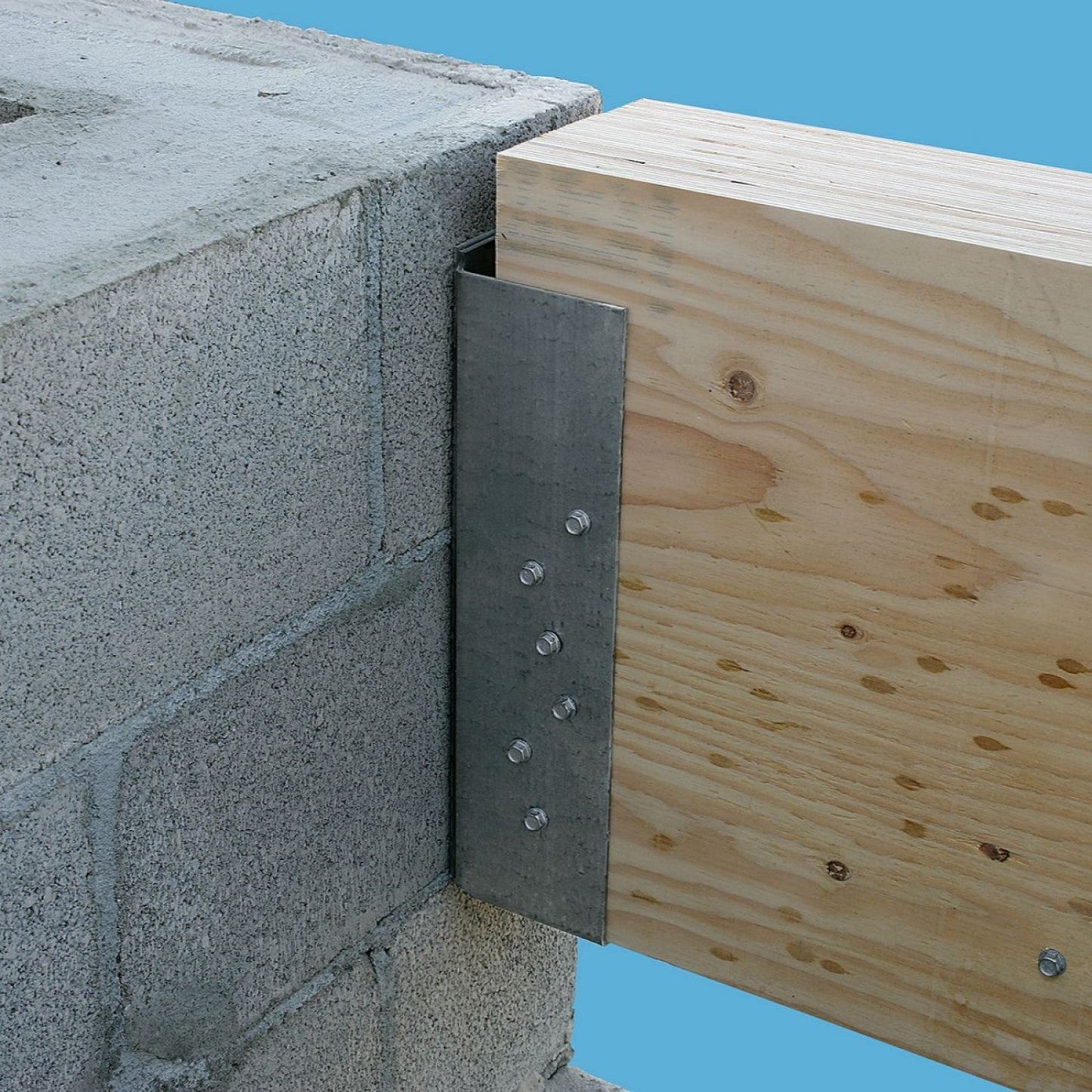

  • MBHU Installation - Step 2
1 4

Continue Browsing

MBHU Masonry Beam Hangers
SKU: MBHU5.50/18SSKT

Simpson MBHU5.50/18SSKT Masonry Beam Hanger W/Screws - Stainless Steel

$1,204.61

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 12 when you add 1 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Stainless Steel
Material: Stainless Steel
Fasteners required: Includes: (2) 3/4" x 5" Titen HD anchors (12) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Height: 18"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 10 Gauge
Width: 5-1/2"
Description

For face-mounted connections between beams and masonry or concrete walls, there is the Simpson MBHU Masonry Beam Face-Mount Hanger. The MBHU is a one-piece, non-welded connector that may be used with both trusses and solid engineered wood beams. Because the Strong-Drive® SDS Heavy-Duty Connector screws and Titen HD® heavy-duty screw anchor are provided with the hanger, installation is made simpler. It is simpler to locate the Titen HD anchor in the proper location than it would be with cast-in-place bolts because it is installed after the wall is constructed.

The MBHU hangers are now offered in Type 316 stainless steel, which offers a High/Severe level of corrosion resistance, and are delivered in kits with the Type 316 stainless steel fasteners paired with the appropriate anchors.

Use all specified fasteners. Verify that the header can take the fasteners specified in the table.
