SKU: MCT1.9X15

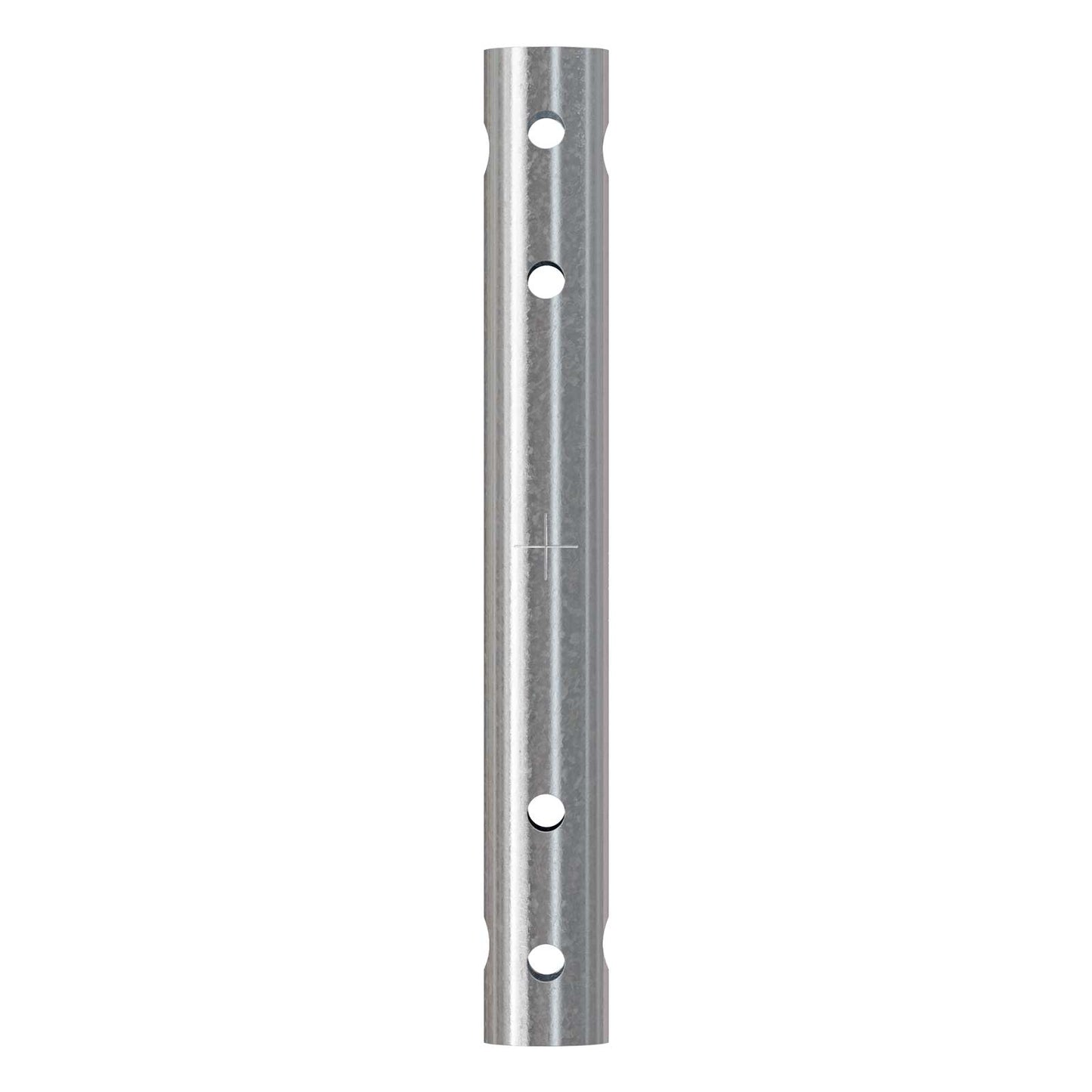

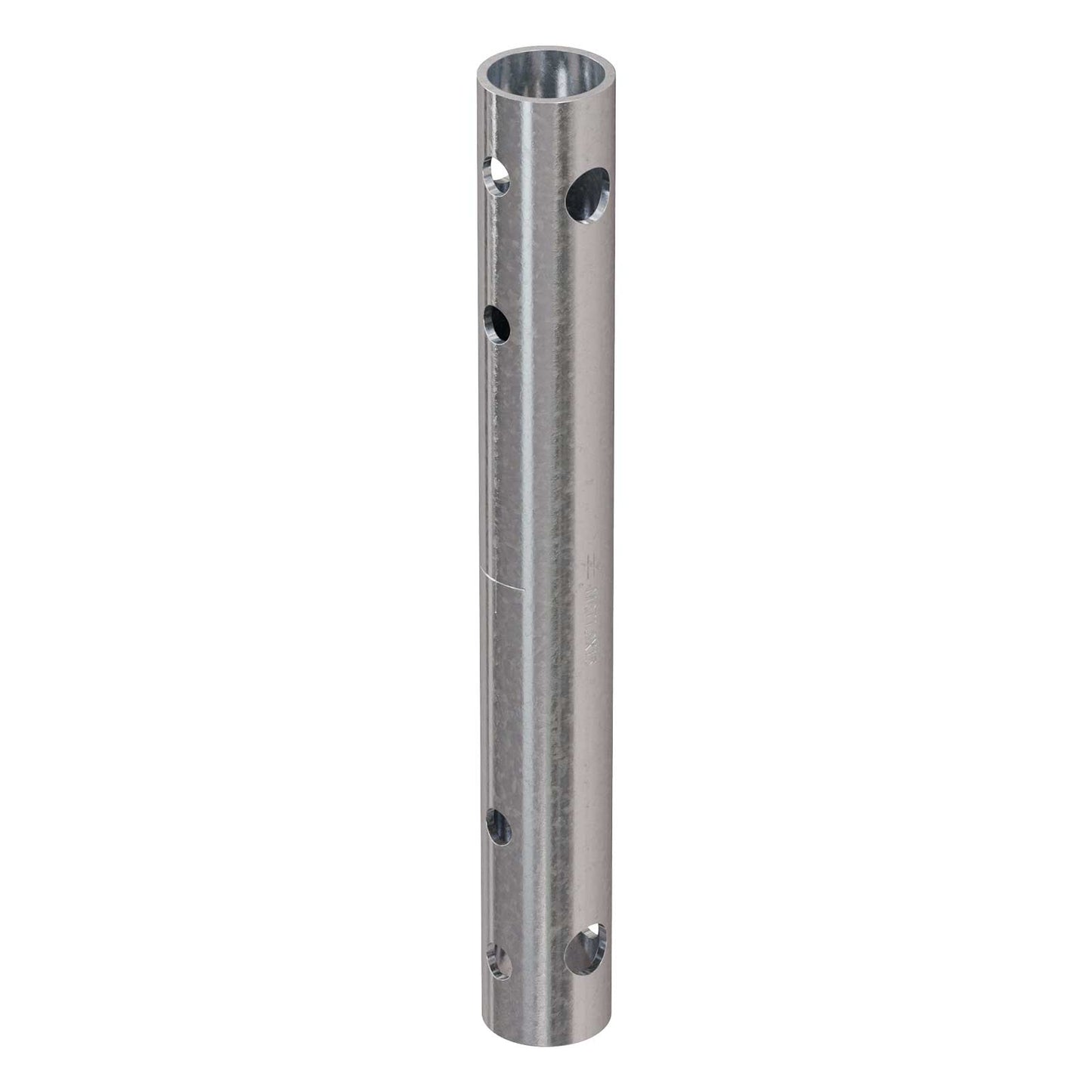

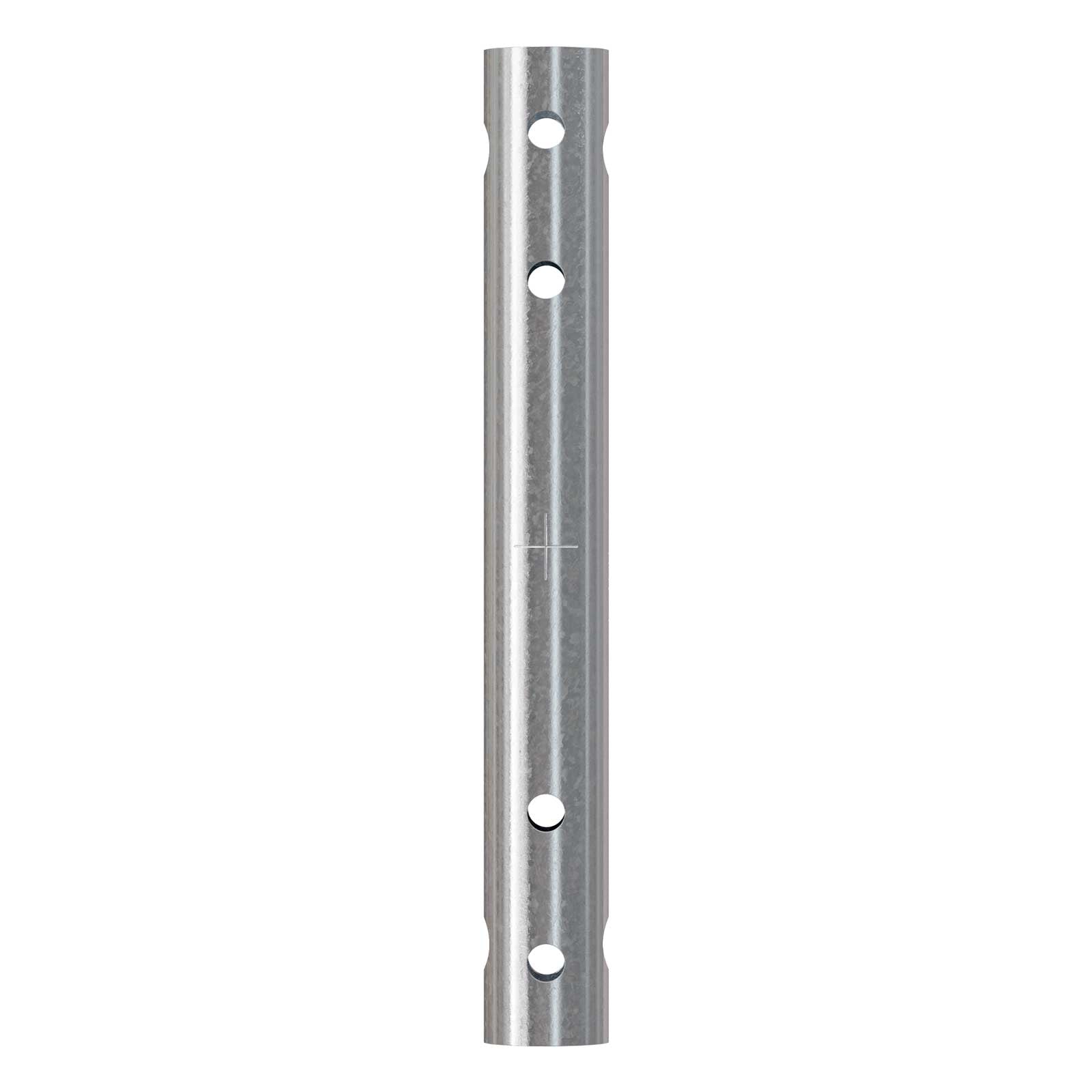

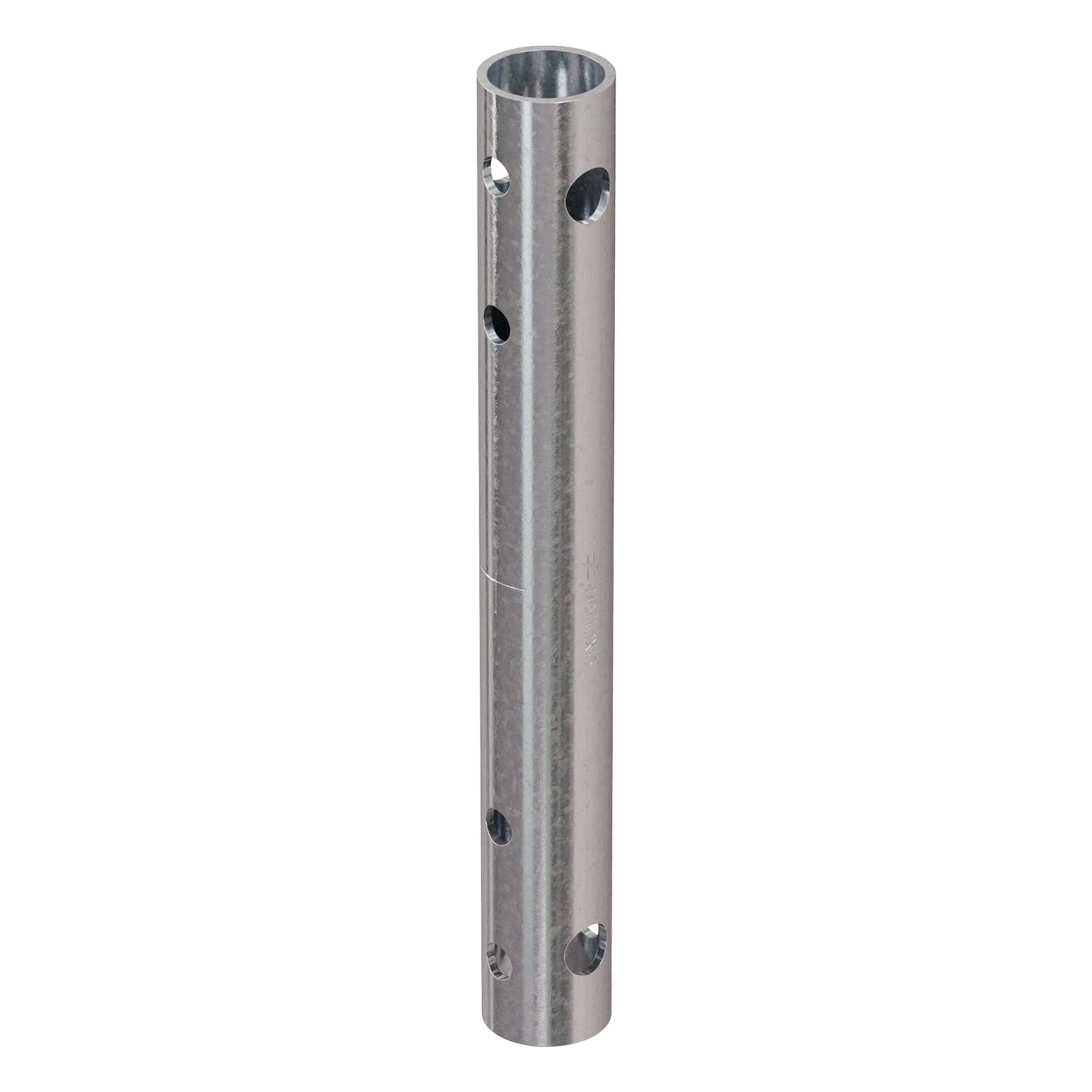

Simpson MCT1.9X15 Mass Timber Column Tie 1.9" X 15", Made to Order Non-Returnable

ICC Certified

Regular price $7499
Ships today when you order in the next 3 hours and 28 minutes

Description

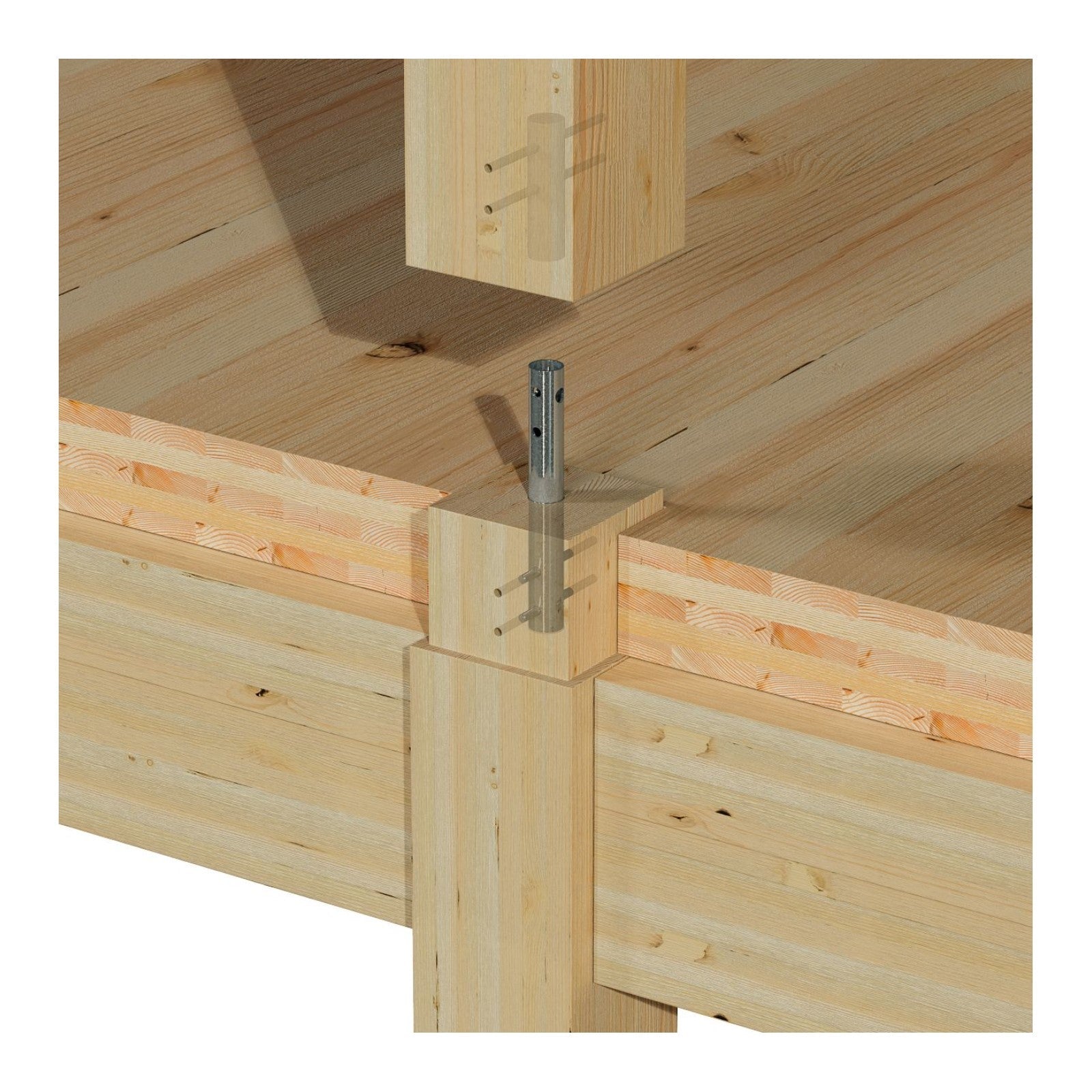

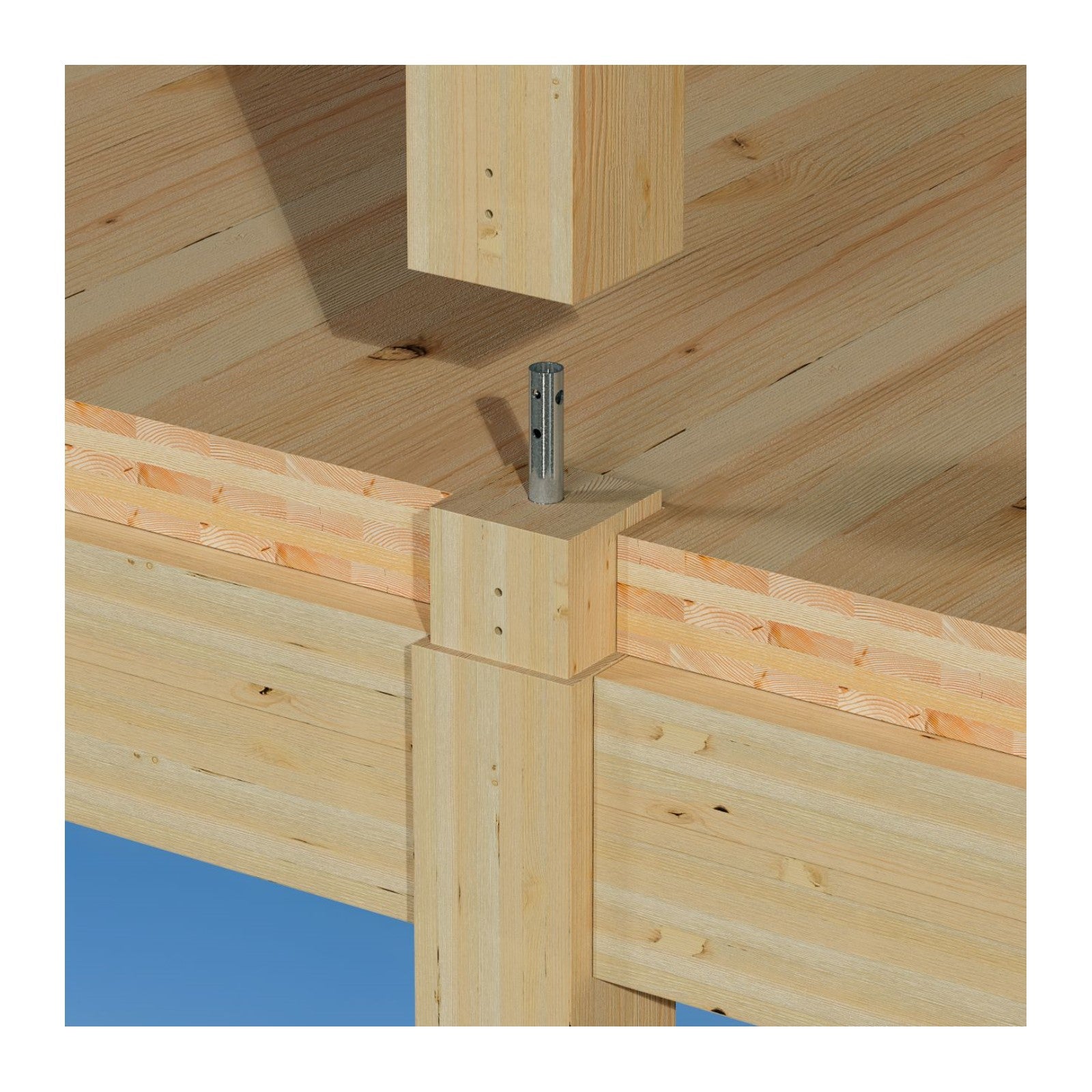

The MCT Mass Timber Column Tie is designed to connect two glulam columns, facilitating vertical load transfer through direct column-to-column bearing. Its concealed design enhances architectural aesthetics and fire protection, making it ideal for post-and-beam style construction.

Key Features:

  • Universal Design: Compatible with a wide range of column sizes, allowing the same connector to be used across various applications.
  • CNC Fabrication Friendly: Simplified routing facilitates precise cuts and drillings, ensuring accurate alignment during installation.
  • Integrated Lifting Hole: Features a tested lifting load capacity, aiding in the safe and efficient positioning of columns.

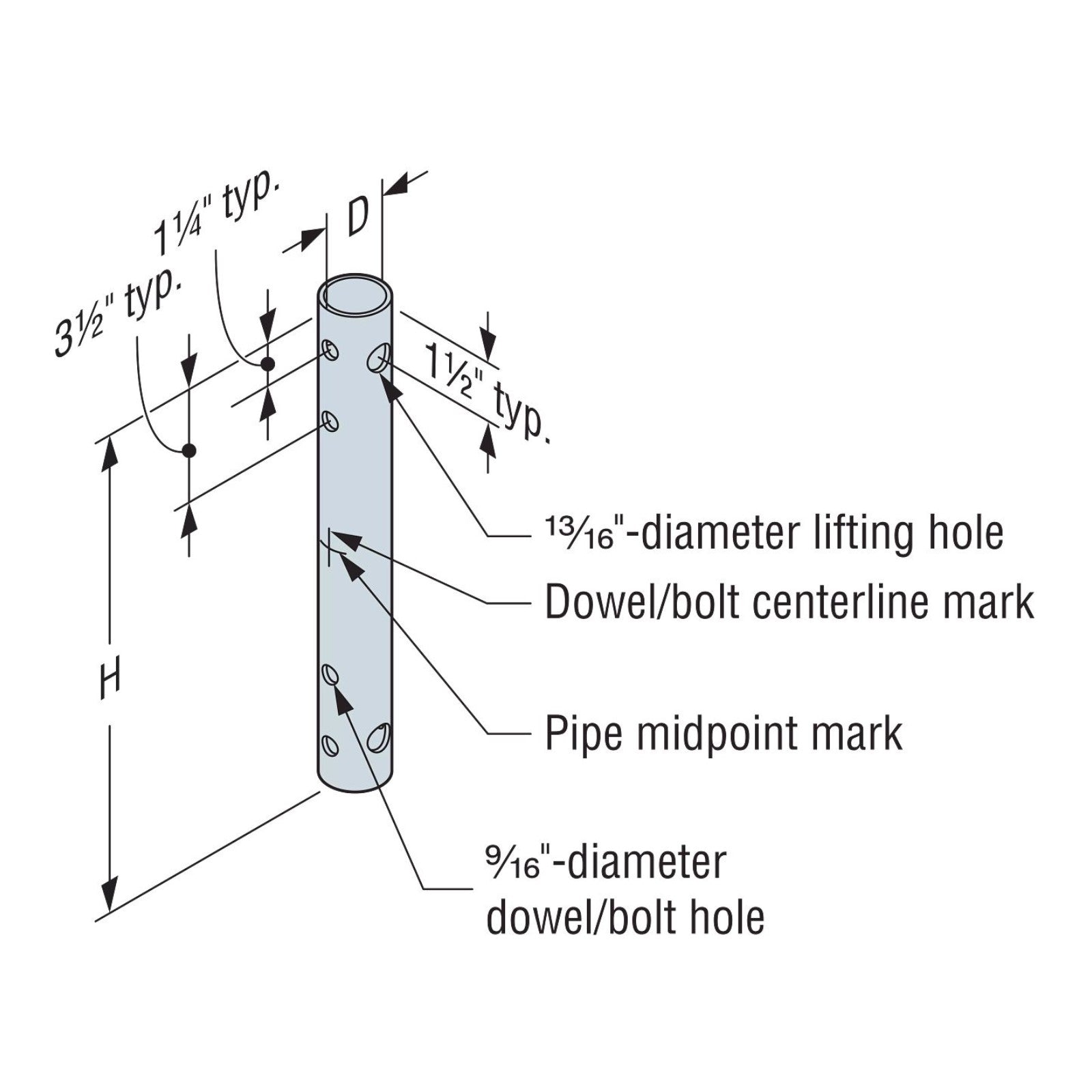

  • Alignment Aids: Crosshair marks at pipe centerlines assist in precise installation, ensuring structural integrity.

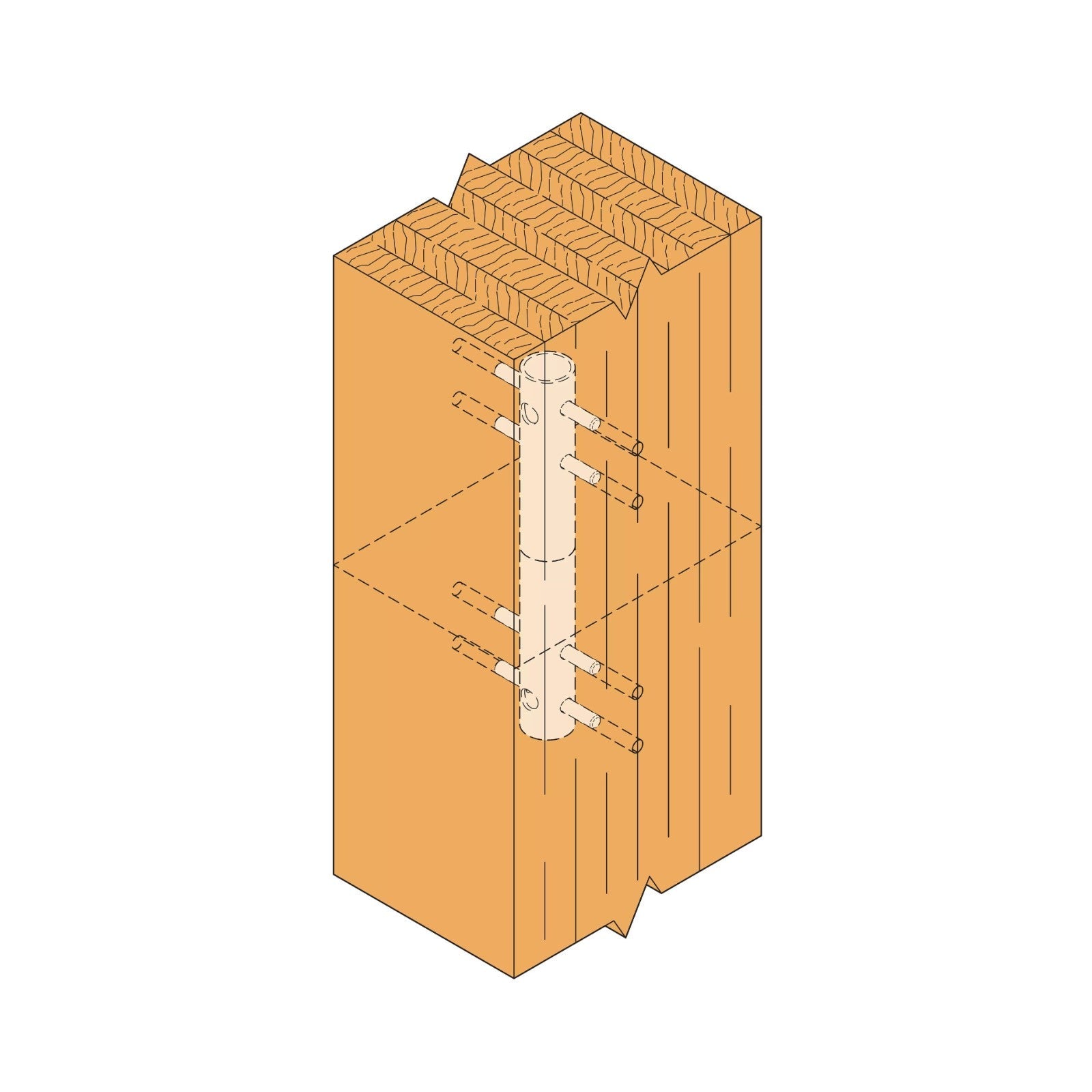

Installation Notes:

  • Precision Cutting: Utilize CNC equipment for cutting and drilling to maintain accuracy; if using hand tools, exercise extra care to ensure precision.
  • Level Column Ends: Ensure column ends are cut level to facilitate proper bearing between columns.
  • Accurate Hole Placement: Position dowel and end mill holes on true centerlines of the glulam, maintaining a tolerance of ±1/32".
  • Secure Fastening: Use tight-fit dowels or bolts (not included) with specified strength criteria to complete the connection.

Specifications

Diameter: 1.9"
Height: 15"
Material: Carbon Steel
Finish: Electro-Galvanized
Manufacturer Name: Simpson Strong-Tie
Quantity: 1
Fasteners Required: 1/2" x 4 3/4" (min.) dowel or 1/2" bolt
