SKU: MCTPLX

Simpson MCTPLX Plate for Mass Timber Column Tie - Zinc, Made to Order Non-Returnable

ICC Certified

Ships in 1-3 business days.

Description

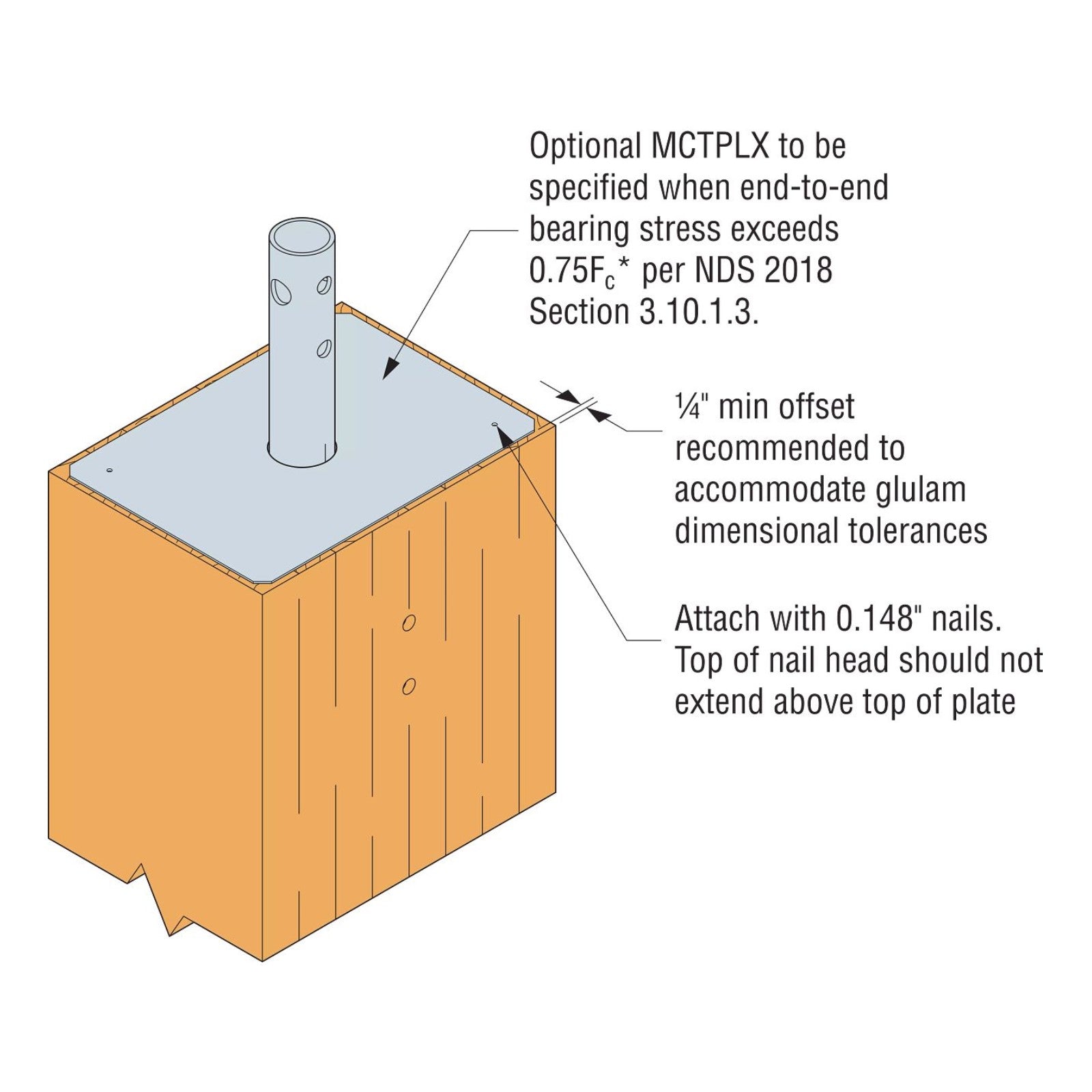

The MCTPLX Configurable Steel Plate is a 20-gauge (G90) steel plate designed to enhance the end-to-end bearing capacity of mass timber column connections. It is used in conjunction with the MCT Mass Timber Column Tie to provide additional support and stability in column-to-column connections.

Key Features:

  • Customizable Dimensions: The plate can be configured with width and length dimensions ranging from a minimum of 6 inches to a maximum of 18 inches, allowing for adaptability to specific project requirements.
  • Enhanced Bearing Capacity: By increasing the bearing surface area between connected columns, the MCTPLX plate improves load distribution and structural integrity.
  • Corrosion Resistance: Constructed from G90 galvanized steel, the plate offers reliable protection against corrosion, ensuring durability in various environmental conditions.

Applications:

  • Mass Timber Construction: Ideal for use in mass timber structures where increased bearing capacity is required for column-to-column connections.
  • Compatibility: Designed to be used with the MCT Mass Timber Column Tie, providing a concealed connection that maintains architectural aesthetics and fire protection.

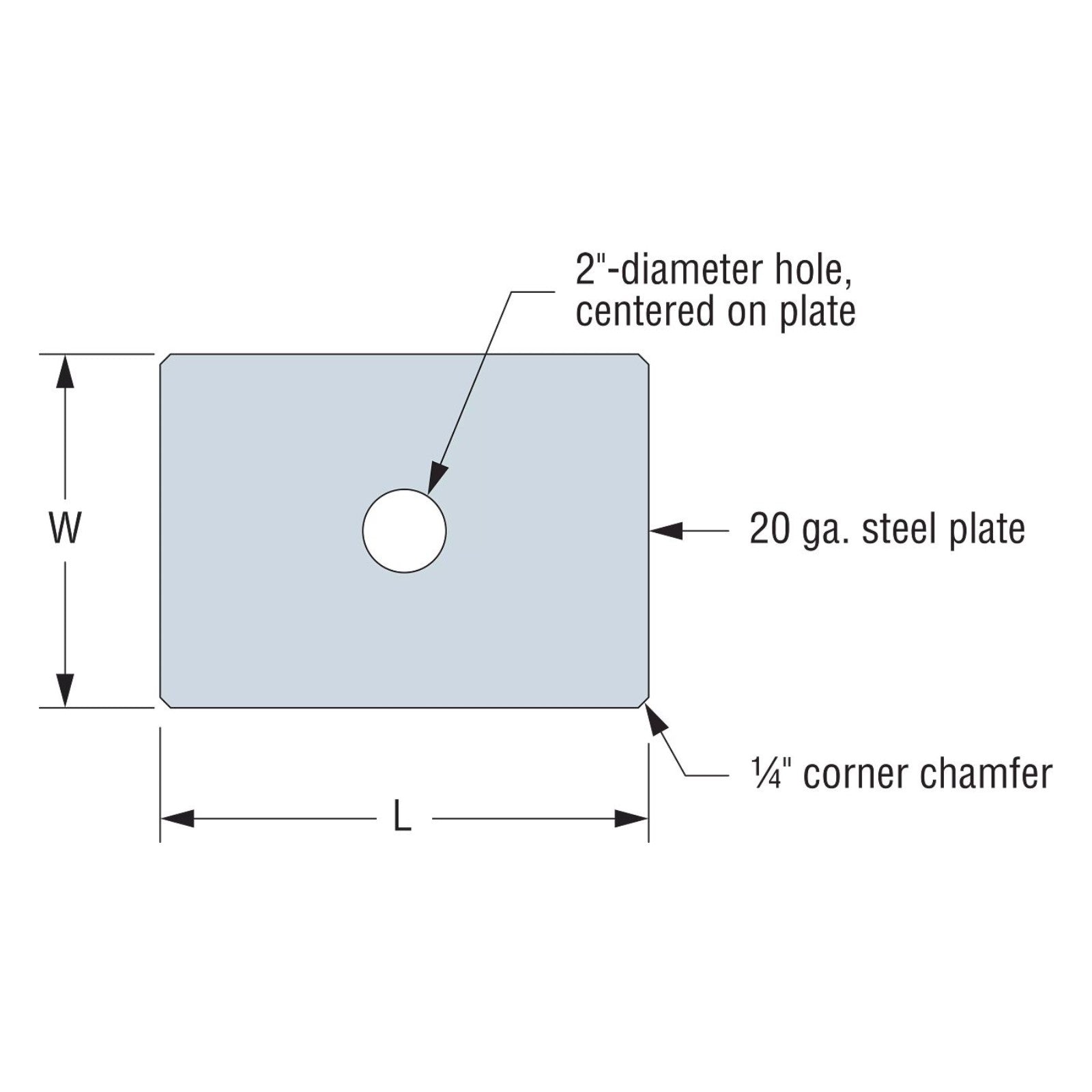

Specifications

Width: 6" - 18"
Length: 6" - 18"
Thickness: 20 Gauge
Material: Carbon Steel
Finish: Zinc Galvanized
Manufacturer Name: Simpson Strong-Tie
Quantity: 1
