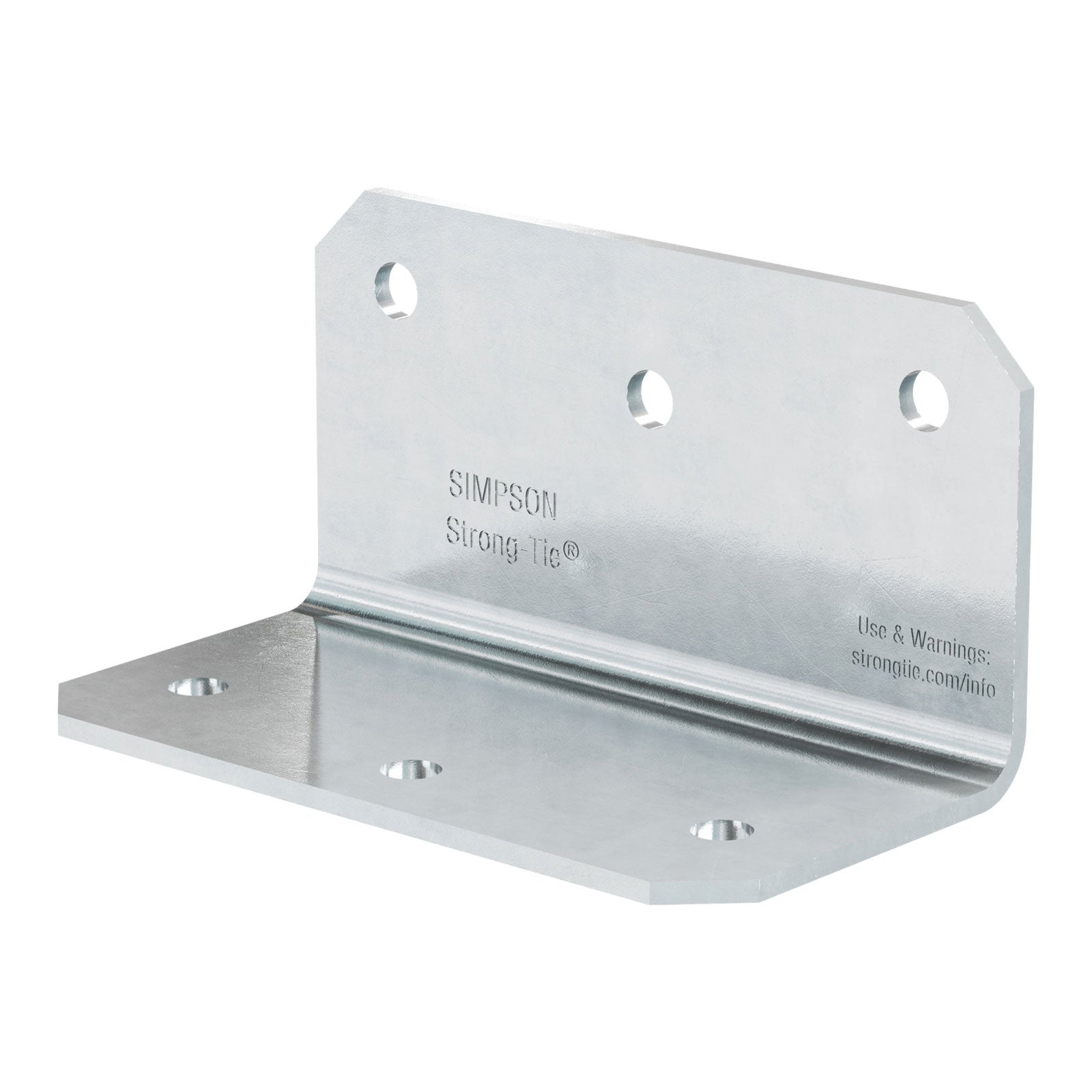

Simpson ML24SS 2" x 4" Medium L Angle - Stainless Steel
Simpson ML24SS 2" x 4" Medium L Angle - Stainless Steel
Ships in 1-3 business days.
Description:
Description:
This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

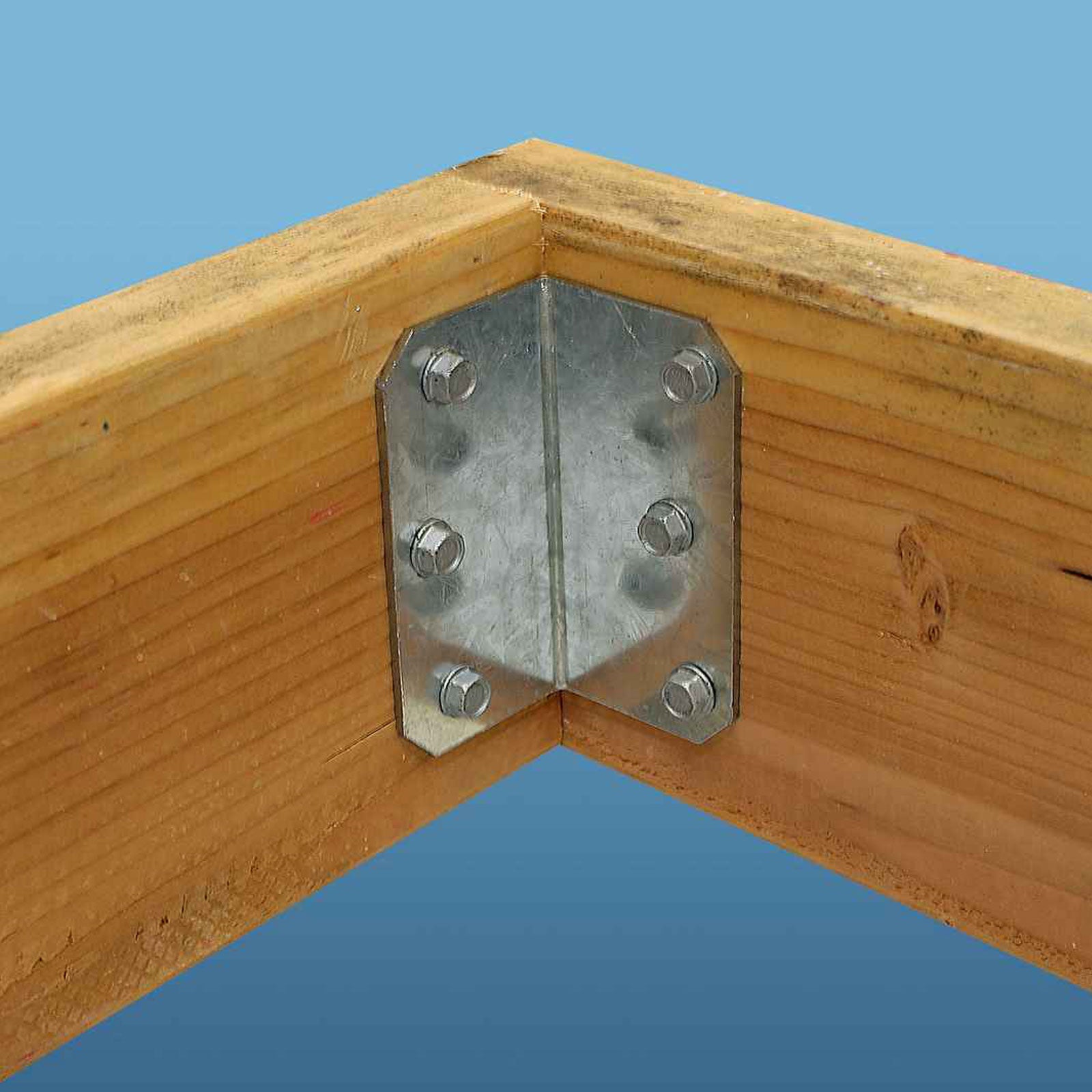

Strong-Tie ML angles provide a way to make a wide range of 90 degree connections. The ML angle combines strength and versatility through the use of Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws. Fastener holes are staggered to minimize wood splitting and opposing hole patterns allows for back to back installation without fastener interference. The Strong-Tie ML24SS angle in stainless steel for use in marine enviornments for high corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

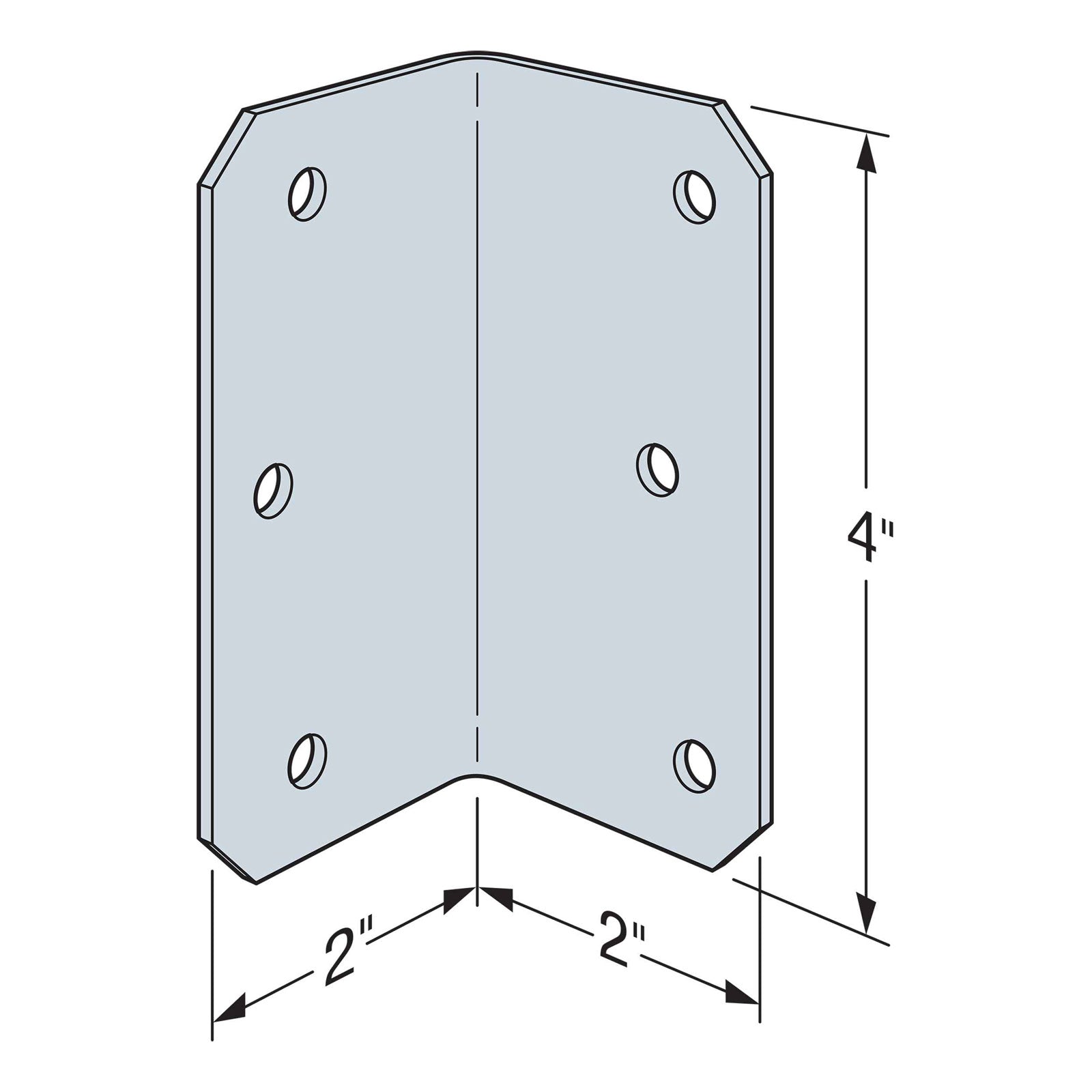

Height: 4"
Fasteners required: (6) 1/4" X 1-1/2" SDS Screws
Thickness: 12 Gauge
Quantity: 1
Finish: Stainless Steel
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Installation
Installation
• Use all specified fasteners.
• Simpson Strong-Tie 1/4" x 1-1/2" Strong-Drive SDS Heavy-Duty Connector screws are not provided with the angle.
• Use stainless-steel fasteners with stainless connectors.
• Stainless-steel steel versions achieve the same load as ZMAX versions listed in the table.
